S3 8p k04 turbo oil/coolant hose locations

[Davill9]

Hi
Can anyone assist on k04 oil feed and coolant feed and return.
The oil return is self explanatory, going into the sump.

it seems from etka and TPS, I have an oil leak on my coolant feed and a coolant leak on my oil feed ??
Definitely wrong I know but can anyone clarify which are which on the photos before I put the transfer box, gearbox, subframe etc back on and I can still stand inside Engine bay to change banjo seals

also tps say there is only a feed for coolant.
now logic says it has to return somewhere.
picture attached to next post-



[Davill9]

n.b. I have the rocker breather to turbo inlet metal gasket already.

car is 08 s3 8p hatchback

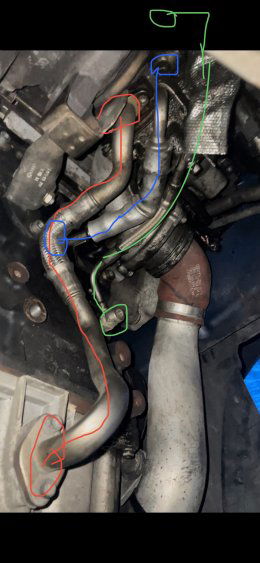

So the red in second pic is oil return with top metal gasket part number 06f145757L on order and pipe to sump metal gasket here already.
The blue and green in second pic I am unsure of atm
The green one goes to a banjo horizontally directly on the top of the core section
And surely there should be a 4th ?

I have the red hose gaskets but dont have the blue or green hose double washers (as they are banjo)

and need to know which is oil feed and what the other is

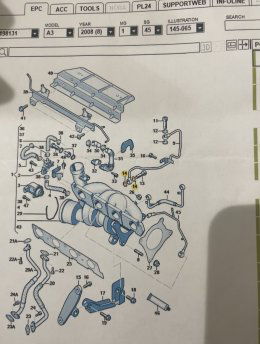

3rd pic is etka diagram which isn’t helpful other than maybe someone telling me what seals to get by illustration number maybe ?


I bought today 2xn0138149 but they were unsure which seal of them it was and definitely not no. 14 on Etka diagram.



[Davill9]

Just to clarify for anyone stuck in the future reading this- as I hate reading posts that could help and they just go dead after they work out what’s needed and don’t explain for the next person…

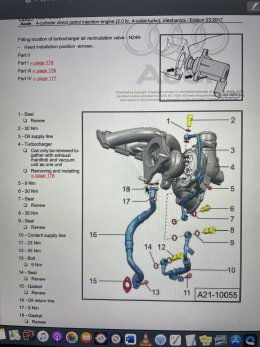

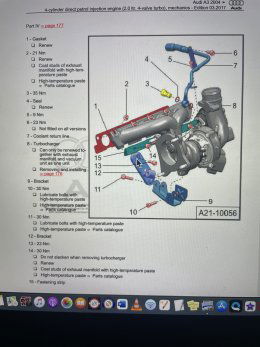

Pictures to clarify below
