TTE780+ Upgrade Performance Turbochargers RS4 / S4 B5 / A6 2.7t

TTE Si Jan 6, 2015

  1. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,661
    934
    113

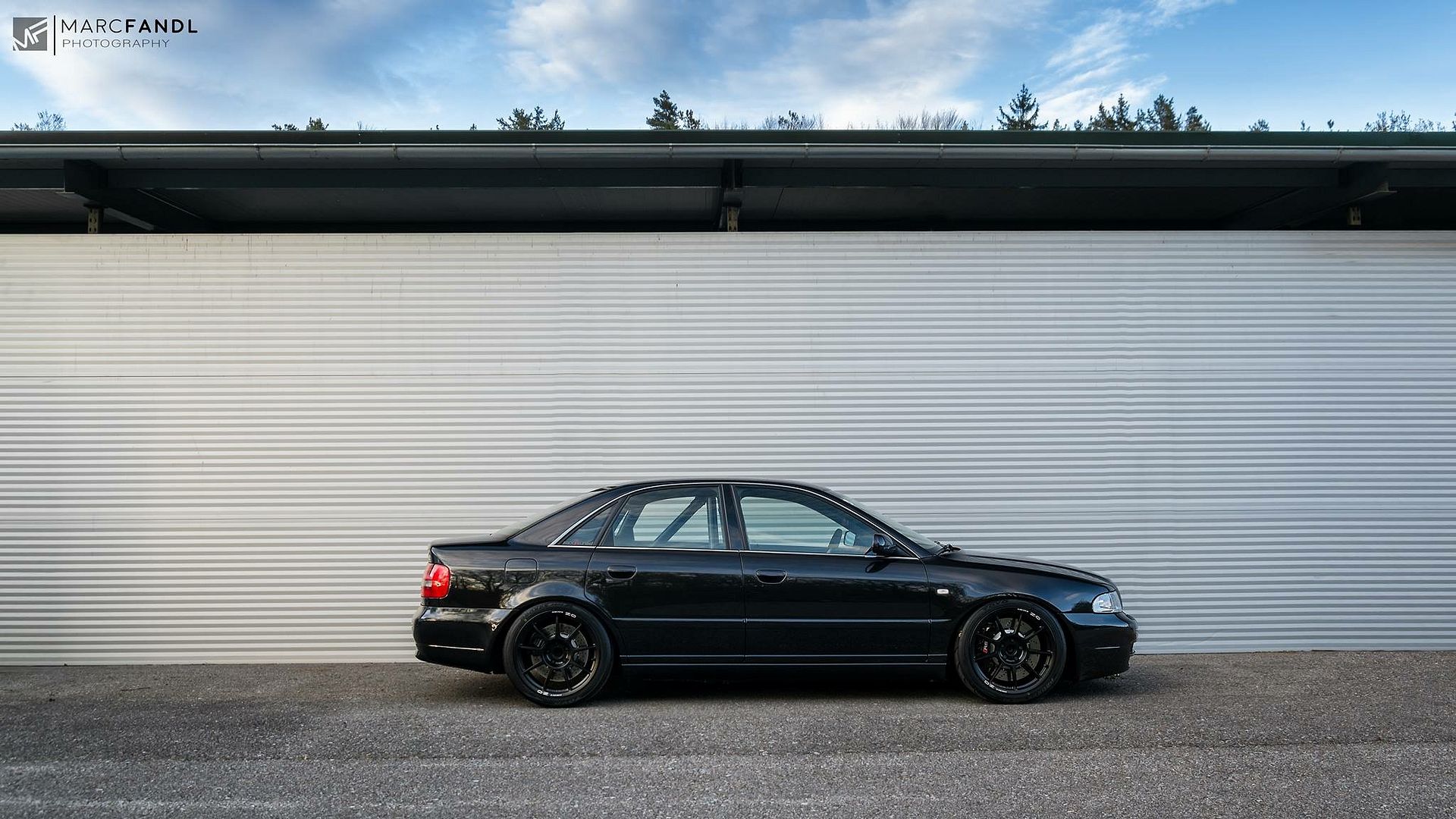

    Mike's S4 B5 TTE780+

    Powertrain Spec

    RS4 Engine 2.8
    Pauter connecting rod
    JE Pistons 8.0-1 CR
    modified oil pump
    2.8 cylinder head
    2.8 camshaft
    AG exhaust manifold
    TTE780S turbos
    R100 Custom side air intercoolers
    830ccm injectors

    Engine Built by http://www.r100.at/

    SOftware by TUNETEC

    Fuel 100Ron (no wmi)

    Boost 2,38- 1,75bar redline

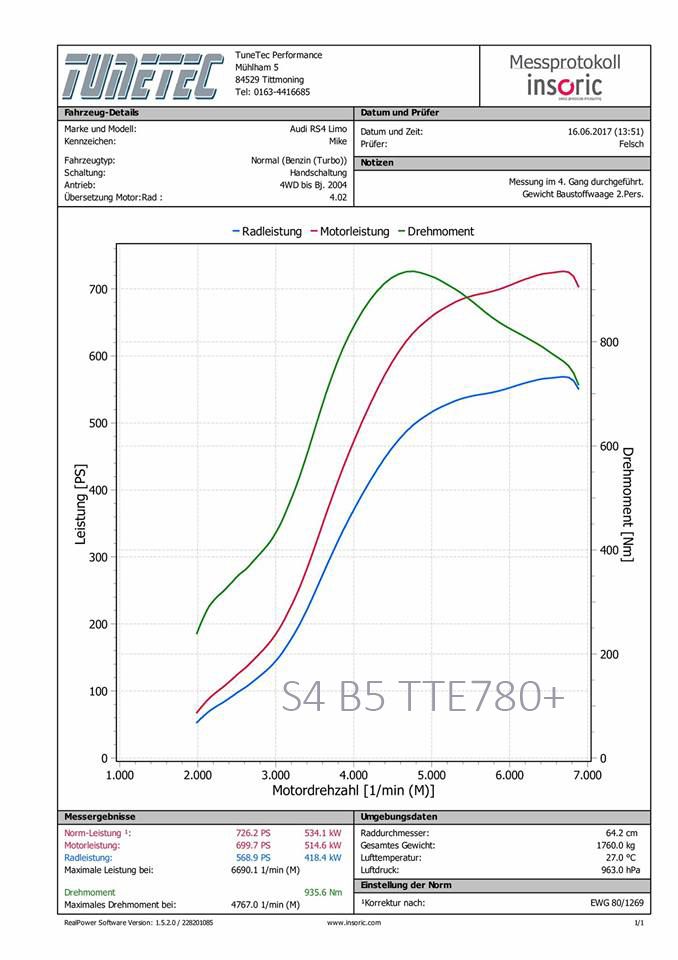

    726PS 935Nm (summer temps)



    80-300 pull



    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    [​IMG]

    100-200 5.83 sec corrected (performance box GPS)
    Summer time temps.

    [​IMG]

    Last edited: Oct 12, 2017
    Hovde and THQuattro like this.
  2. THQuattro

    THQuattro Site Sponsor Site Sponsor Team Avus Silver Team V8 Team V6 VCDS Map User Gold Supporter Team Panther Team Silver Audi RS4 saloon Audi S4 Audi A4 quattro Audi Cabriolet Owner Group S-line owners group Manual

    1,822
    1,203
    113
    Wicked car.

    TTE Si likes this.
  3. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,661
    934
    113

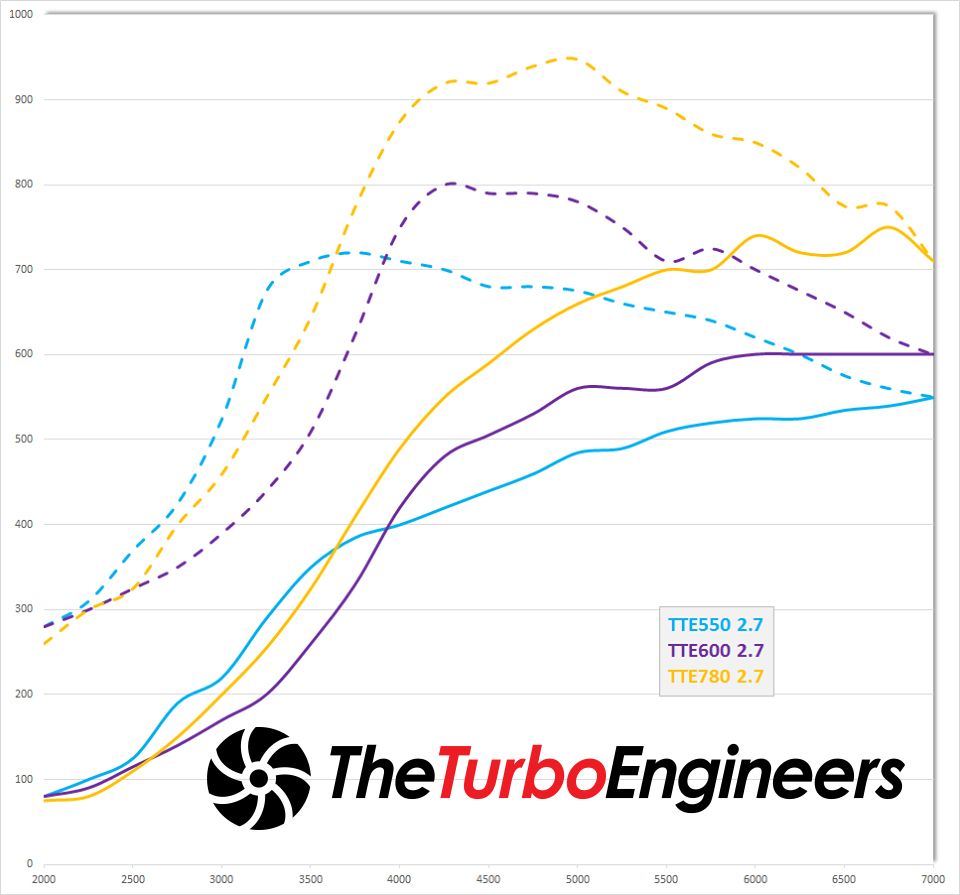

    This is why TTE780+ are so good

    Data provided by a customer and compiled from MRC Tuning dyno results shared on forums with a basis on similar hardware and fueling.

    The results speak for them self.

    #TTEPOWER #TTE780 #RS4 #S4 #B5ELITE


    [​IMG]

    THQuattro likes this.
  4. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,661
    934
    113

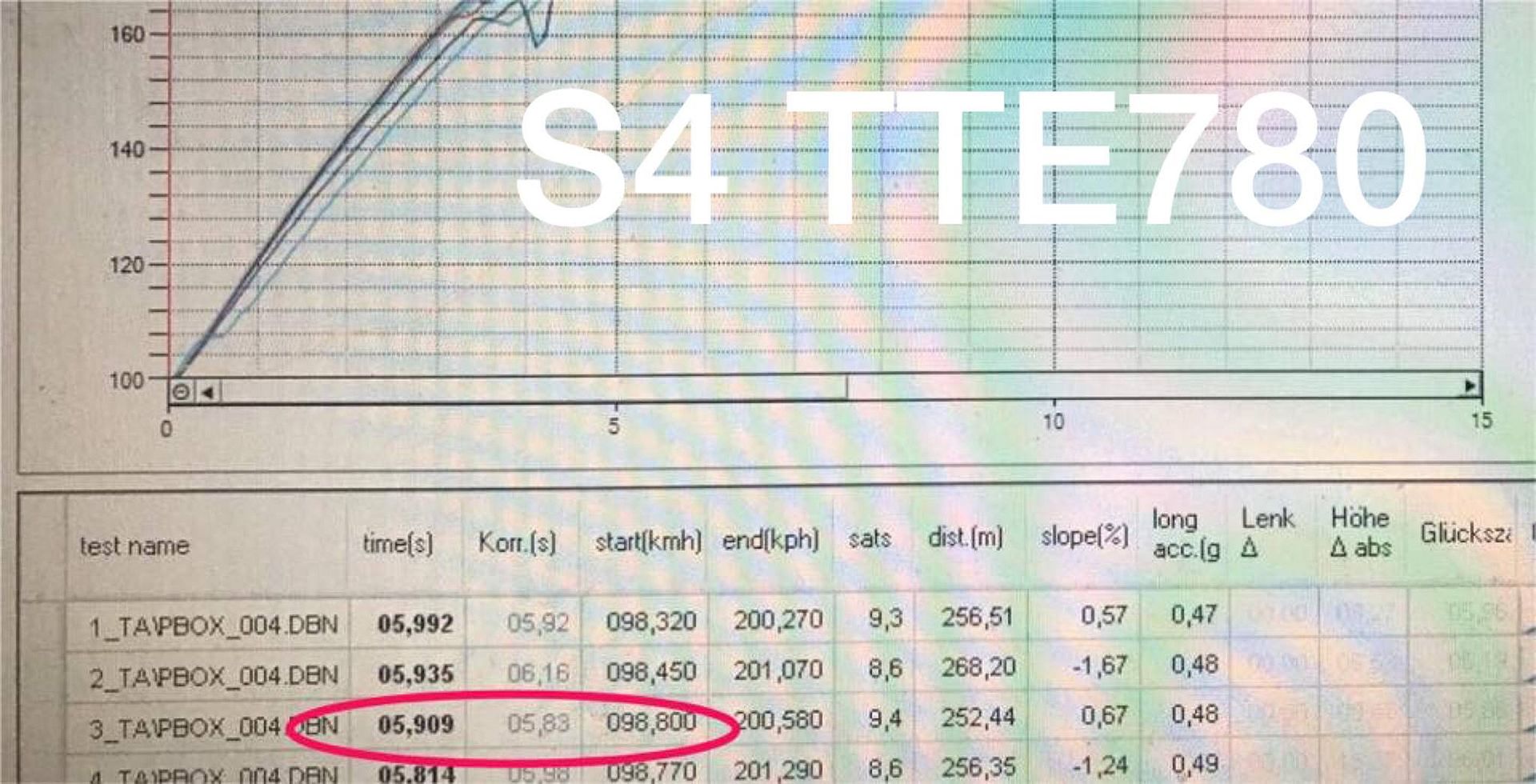

    Mike improves his 100-200 time with GPS PBOX 5.72 sec corrected, 100 ron
    He thinks can go faster as was a slight curve in the road

    [​IMG]

  5. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,661
    934
    113
    Robson's RS4 2.7 TTE780

    TTE780+ Turbos
    Wagner SMIC
    Wagner ex-manifolds
    Decat downpipes by SF
    Milltek system
    044 pump
    850 injectors
    larger MAF housing
    034 intake system
    Heads ported , +1mm valves
    Loba cams
    Intake ported
    IE forged rifle drilled rods
    JE forged pistons (stock CR)
    Calico bearings
    Loba 6 puck clutch /flywheel
    all assembly balanced

    Mild boost and timing and using 99ron fuel only (no wmi)

    696PS 862 Nm crank
    MRC tuning software



    [​IMG]
    [​IMG]
    [​IMG]

  6. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,661
    934
    113

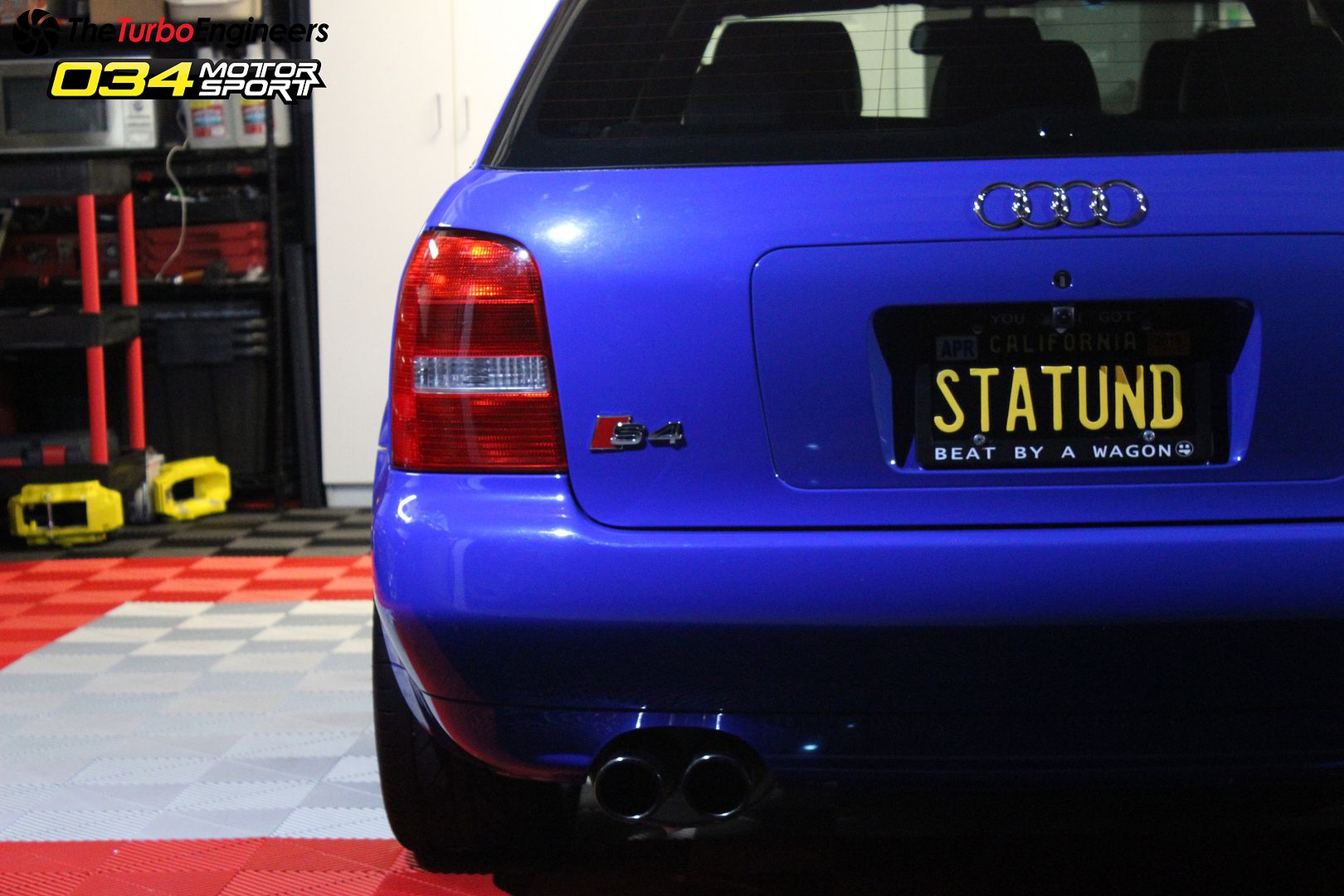

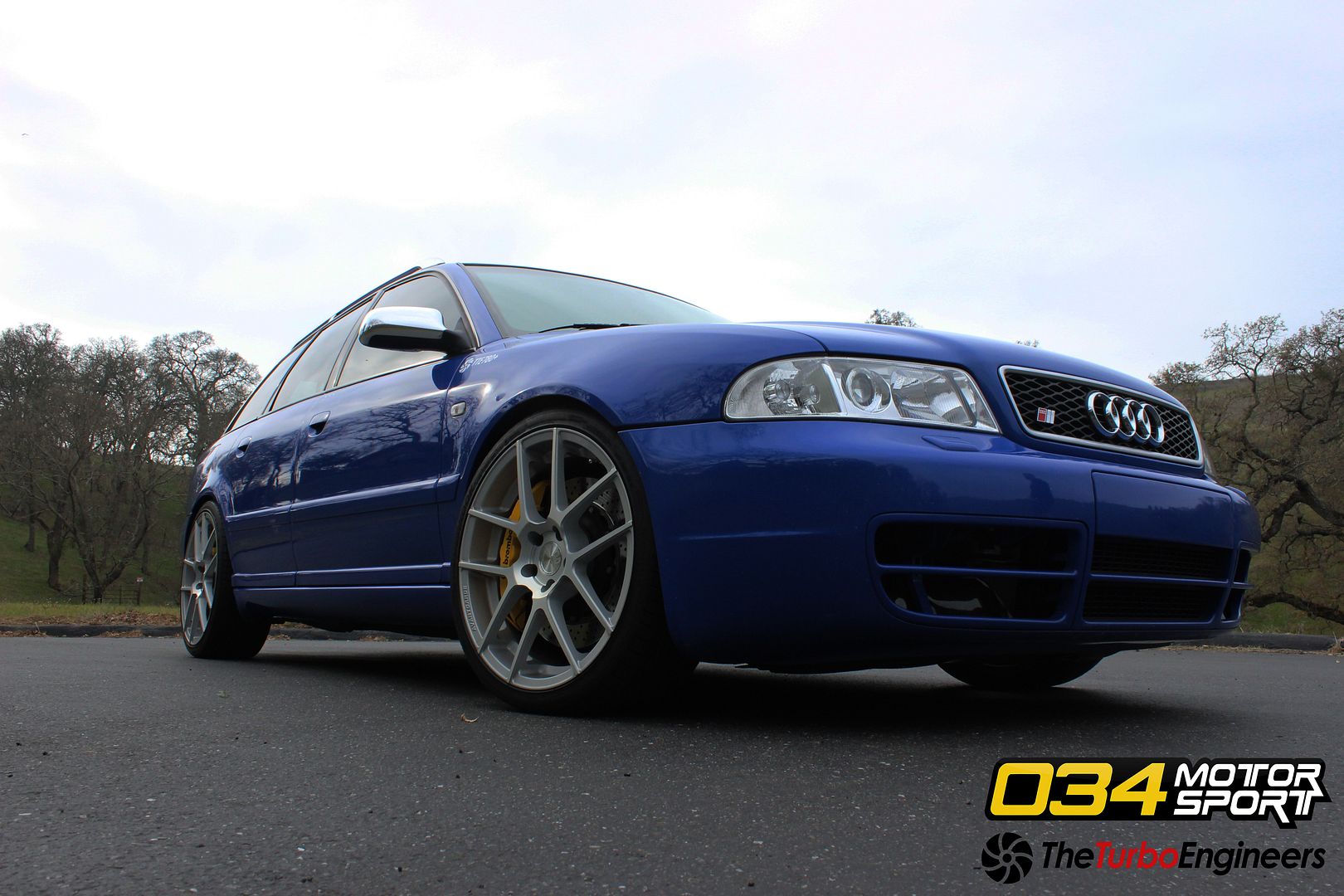

    Brandon's Fantastic S4 B5 3.0 TTE780 Wagon.

    Built & Tuned with very moderate boost levels with durability in mind.

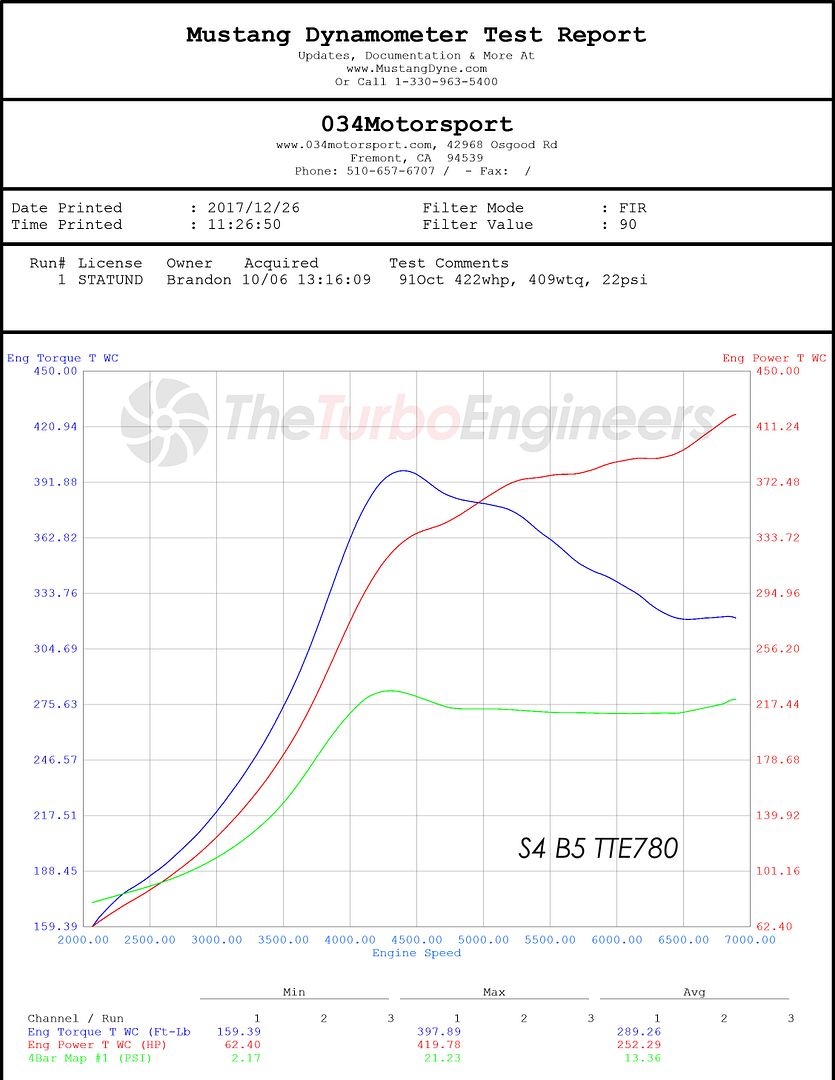

    Low boost on 91Octane 422WHP 409WTQ (22-19psi)

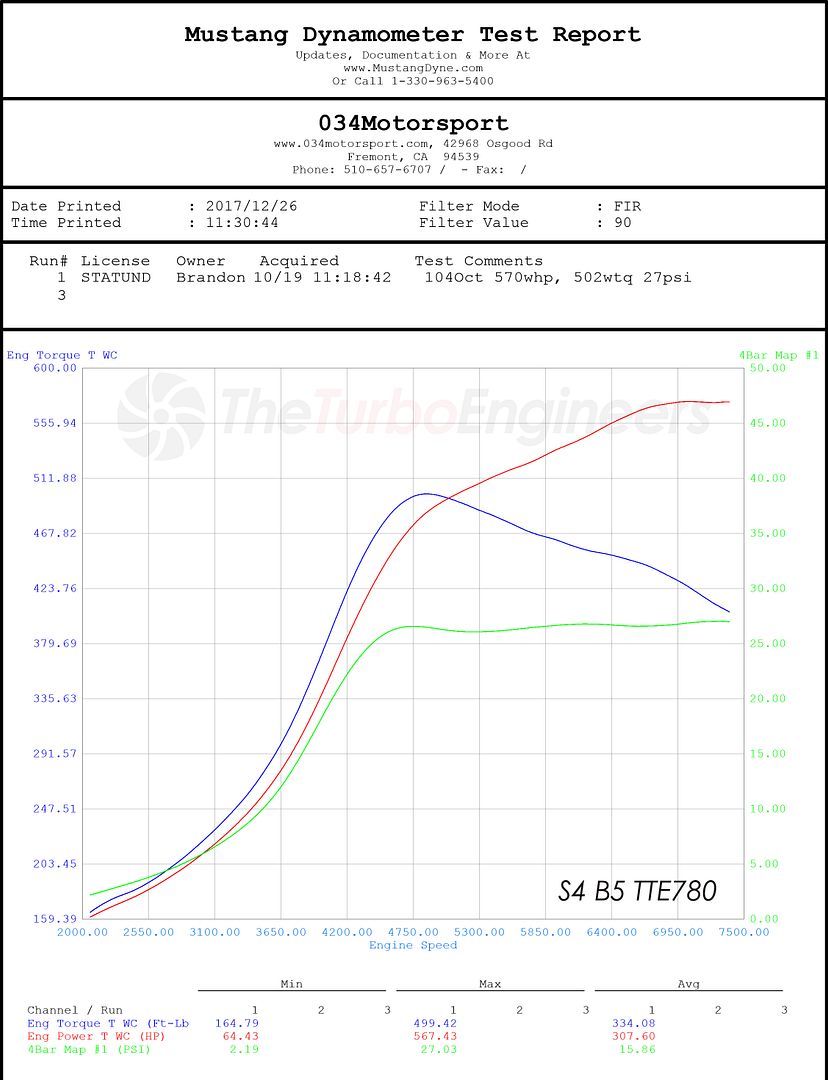

    Medium boost on 104Octane 570WHP 502WTQ (26-27PSI)

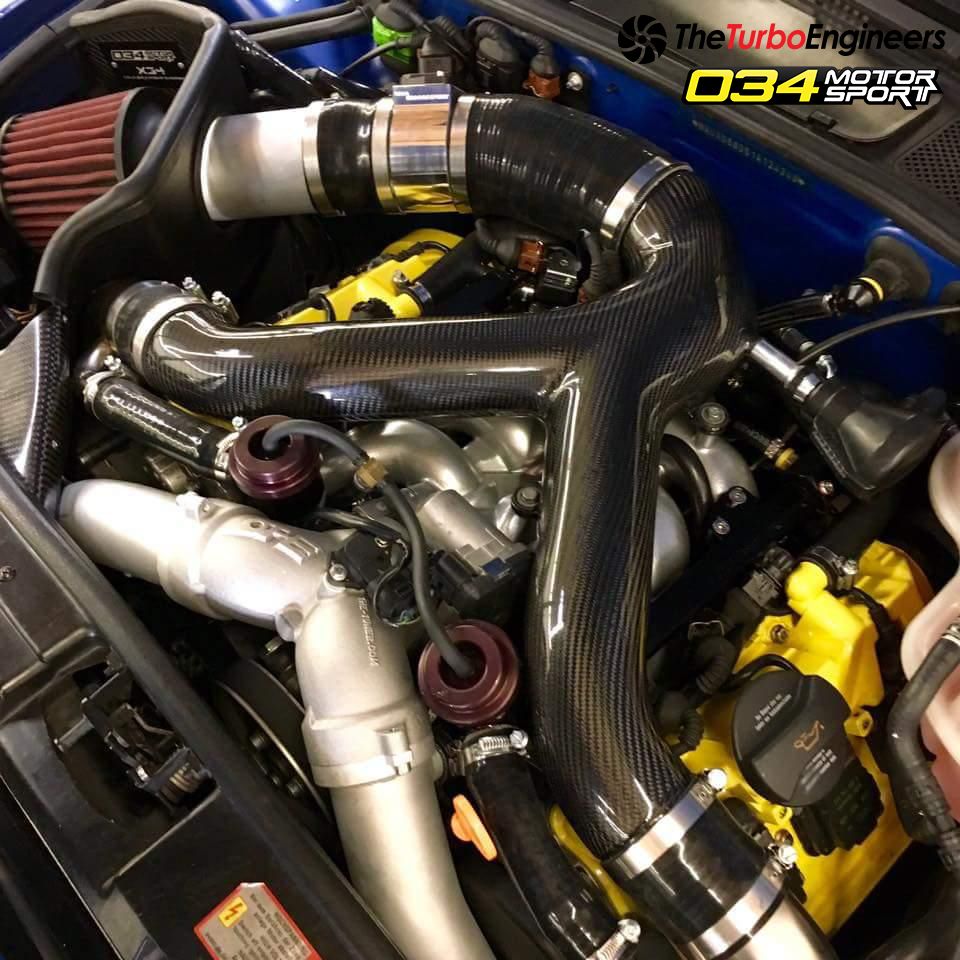

    3L Stroker
    Bore: 82.5mm
    Stroke: 92.71mm
    CR: 9.0.1
    JE Piston/Pauter Rods
    2.8 Heads w/ 1mm oversized valves
    Cat Cams (1004052)
    TTE780+ Turbos
    The-Tuner Exhaust Manifolds
    The-Tuner Pressure pipes
    The-Tuner Y Pipe
    RS4 intake manifold
    Custom 2.5" inlets
    ER Intercoolers
    034 motorsport X34 CAI
    034 motorsport 85mm MAF housing
    034 motorsport Fuel Rails
    034 motorsport 3" Downpipes
    Bosch EV14 850's
    Custom fueling 3x 044 fuel pumps w/surge tank
    W/M Injection
    Fluidampr
    South Bend Stage 4 Extreme clutch package

    Custom Tuning and much of the build by 034Motorsport

    And the list goes on but this is the basics...

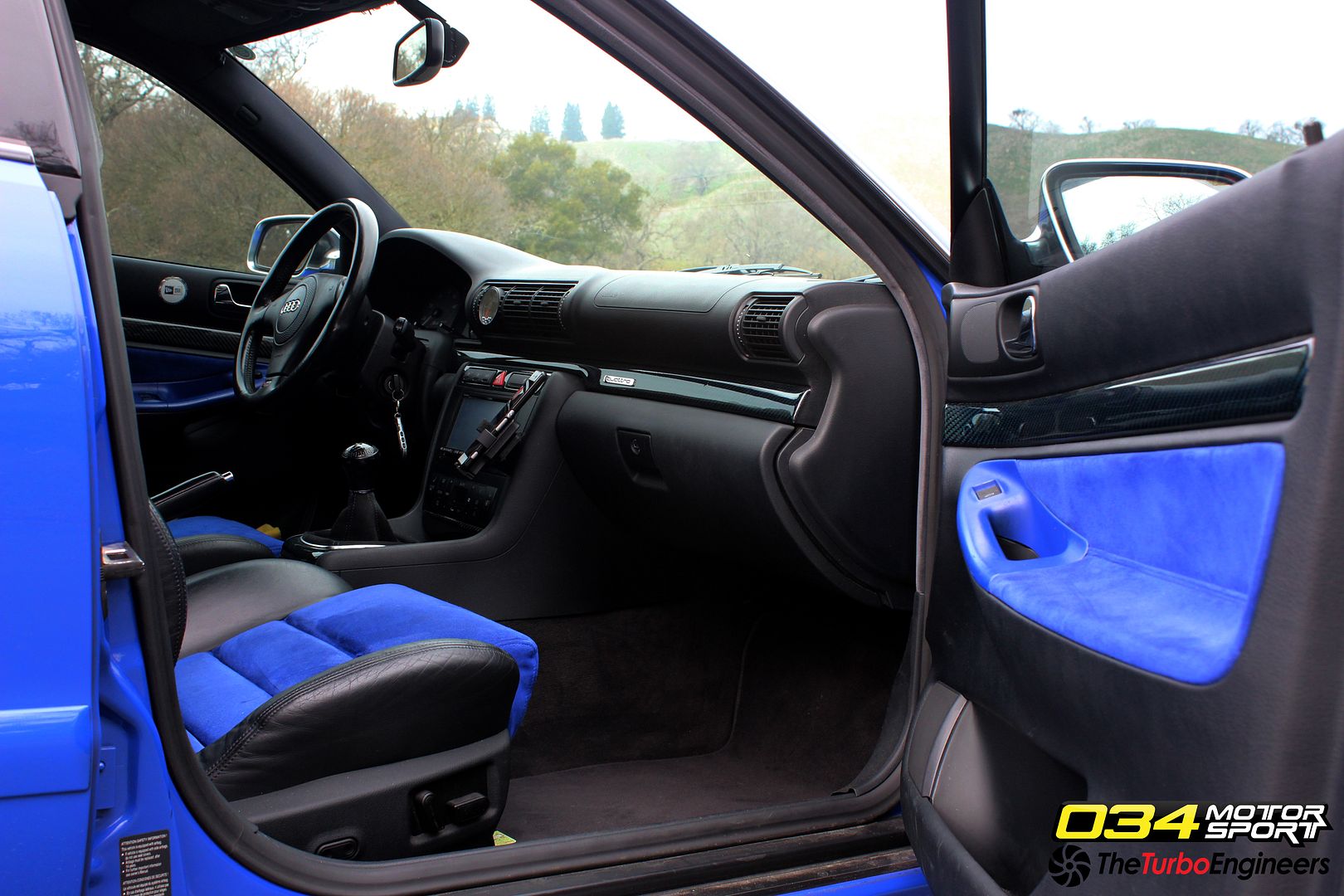

    Interior and exterior revamp 2018 so watch this space

    #TTEPOWER #034MOTORSPORT #B5ELITE #THETURBOENGINEERS#TTE780

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    THQuattro likes this.
  7. THQuattro

    THQuattro Site Sponsor Site Sponsor Team Avus Silver Team V8 Team V6 VCDS Map User Gold Supporter Team Panther Team Silver Audi RS4 saloon Audi S4 Audi A4 quattro Audi Cabriolet Owner Group S-line owners group Manual

    1,822
    1,203
    113
    Niiiiiiice.

    TTE Si likes this.
