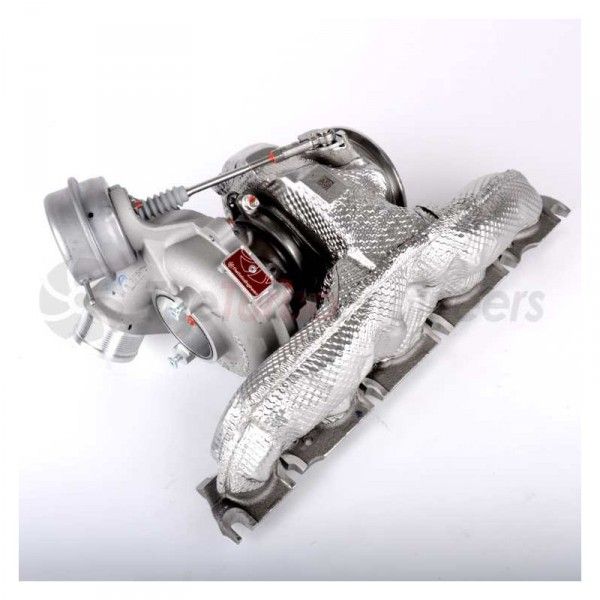

TTE625 Upgrade Performance Turbocharger 2.5 TFSI TTRS 8S / RS3 8V.2
Introducing our TTE625 performance turbocharger based on the original turbocharger but up graded to new higher output specification. Offering The Complete Ultra Plug & Play Upgrade to over 600PS.
Engineered & Enhanced
At the core of our TTE625 is a much larger TTE compressor wheel, chosen because it is highly efficient and creates an extremely high flow for comparative size. Re-Profiled compressor cover to optimised tolerance to ensure maximum compressor efficiency is given.
We CNC mill the exhaust turbine housing to accept a larger turbine and shaft.
Special profile 360 deg high-performance motorsport journal bearing is fitted, to remain durable at higher loads with no loss in transient response. The actuator used is sprung OE unit
Equilibrium
Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using our in-house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with serial numbered balance test result document.
Product Highlights:
Upgrade Injector set required for max output
https://tteglobal.com/audi/rs3/8v.2-2.5-tfsi/186/sharp-motorsport-upgrade-injector-set
Introducing our TTE625 performance turbocharger based on the original turbocharger but up graded to new higher output specification. Offering The Complete Ultra Plug & Play Upgrade to over 600PS.
Engineered & Enhanced
At the core of our TTE625 is a much larger TTE compressor wheel, chosen because it is highly efficient and creates an extremely high flow for comparative size. Re-Profiled compressor cover to optimised tolerance to ensure maximum compressor efficiency is given.
We CNC mill the exhaust turbine housing to accept a larger turbine and shaft.
Special profile 360 deg high-performance motorsport journal bearing is fitted, to remain durable at higher loads with no loss in transient response. The actuator used is sprung OE unit
Equilibrium
Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using our in-house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with serial numbered balance test result document.
Product Highlights:
- Original BWTS turbocharger as base part
- Over 600HP
- Plug and play installation
- Very early response
- Billet Milled TTE compressor
- High Flow 9blade Turbine
- O-ring sealing
- Reinforced axial and radial bearing
- Proven TheTurboEngineers quality
- Thermally shielded exhaust housing and manifold
- Made in Germany
Upgrade Injector set required for max output
https://tteglobal.com/audi/rs3/8v.2-2.5-tfsi/186/sharp-motorsport-upgrade-injector-set
