TTE535 Upgrade Performance Turbocharger GOLF R GTI MK 7/S1/S3 8V/ TTS/CUPRA & SC 5F / OCTAVIA VRS

[TTE Si]

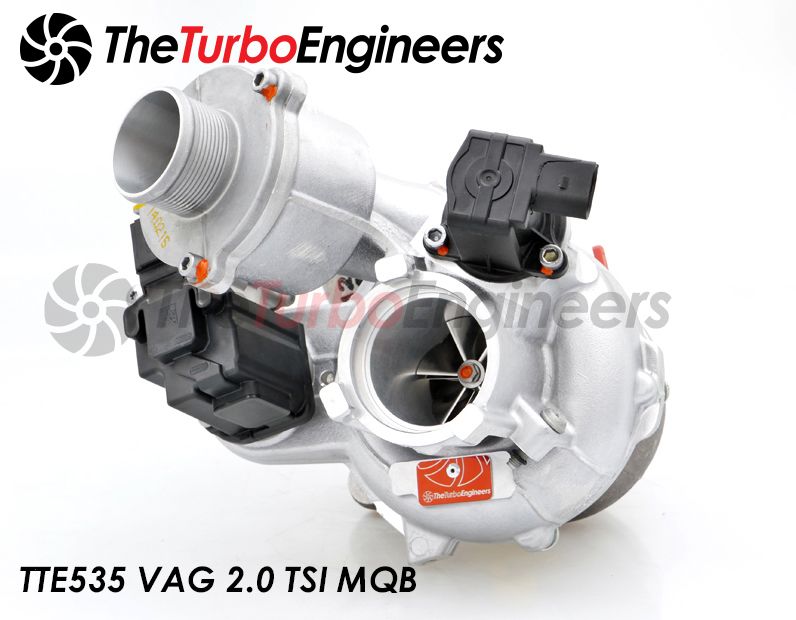

TTE535 VAG 2.0TSI MQB

Product Highlights:

• 535PS Proven at under 2.bar
• Original IHI turbocharger as base part
• Original actuator
• Original DV
• Early response
• TTE Billet Milled compressor 6+6 Blade
• TTE High-Flow 9 Blade Turbine
• TTE CNC milled OEM silencer delete
• Reinforced bearing pack
• Plug and Play installation
• Proven TheTurboEngineers quality
• Single parts finely balanced then components assembled and core high-speed VSR balanced
• Supplied with a balance test result document
• Made in Germany

prices : https://tteglobal.co.uk/audi/s1/2.0-tsi/20/tte535-upgrade-turbocharger?number=SW10019.13



[TTE Si]

QSTuning

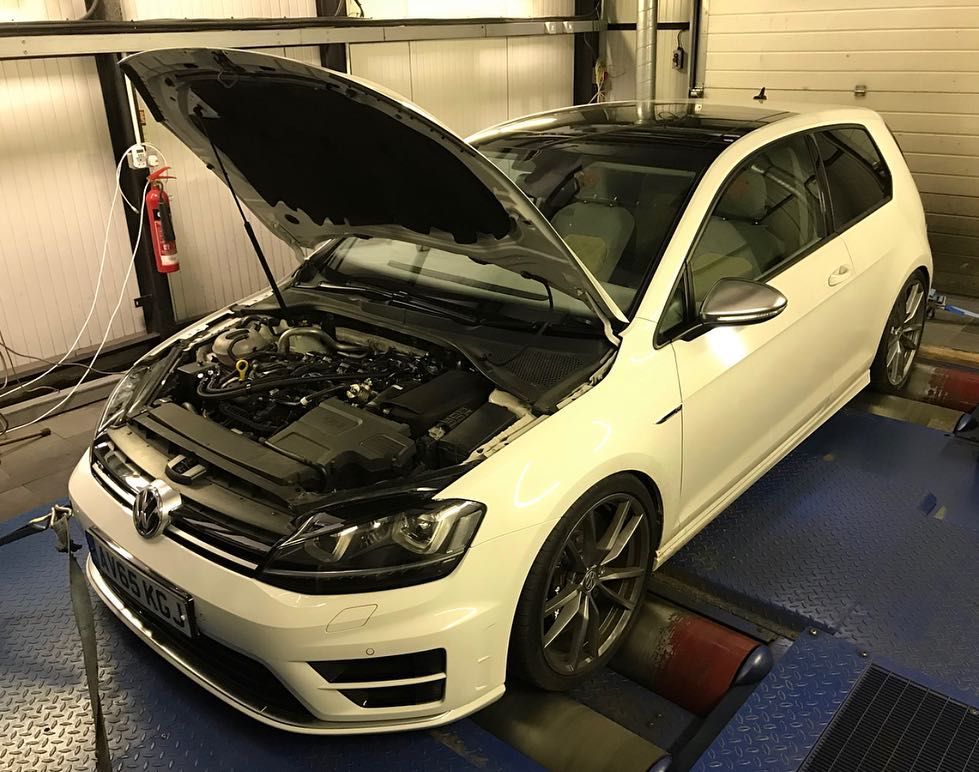

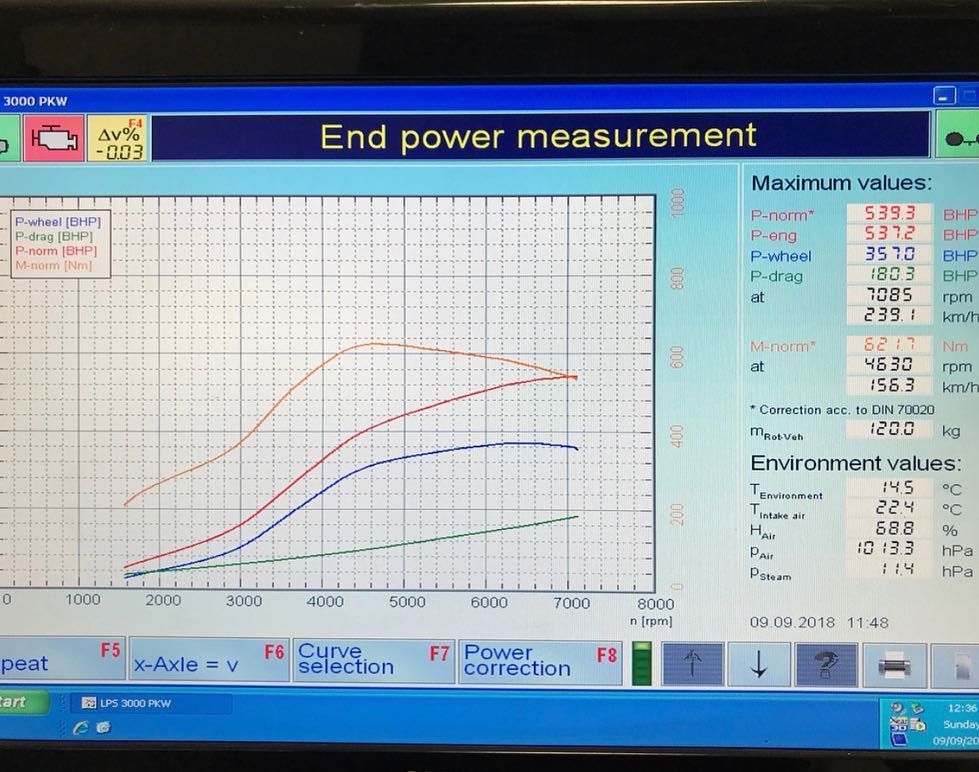

MK7R Stage 3, 539.3HP (546PS) and 621.7NM @ 2 bar with the @theturboengineers TTE535, QST ECU software, APR Stage 3 TCU, Wagner intercooler, R600 intake, Autotech HPFP, APR LPFP, NGK race plugs, 4 Bar map sensor, custom downpipe, Milltek cat-back exhaust, 99Ron

#TTE535 #RUNTTE #TTEPOWER



[TTE Si]

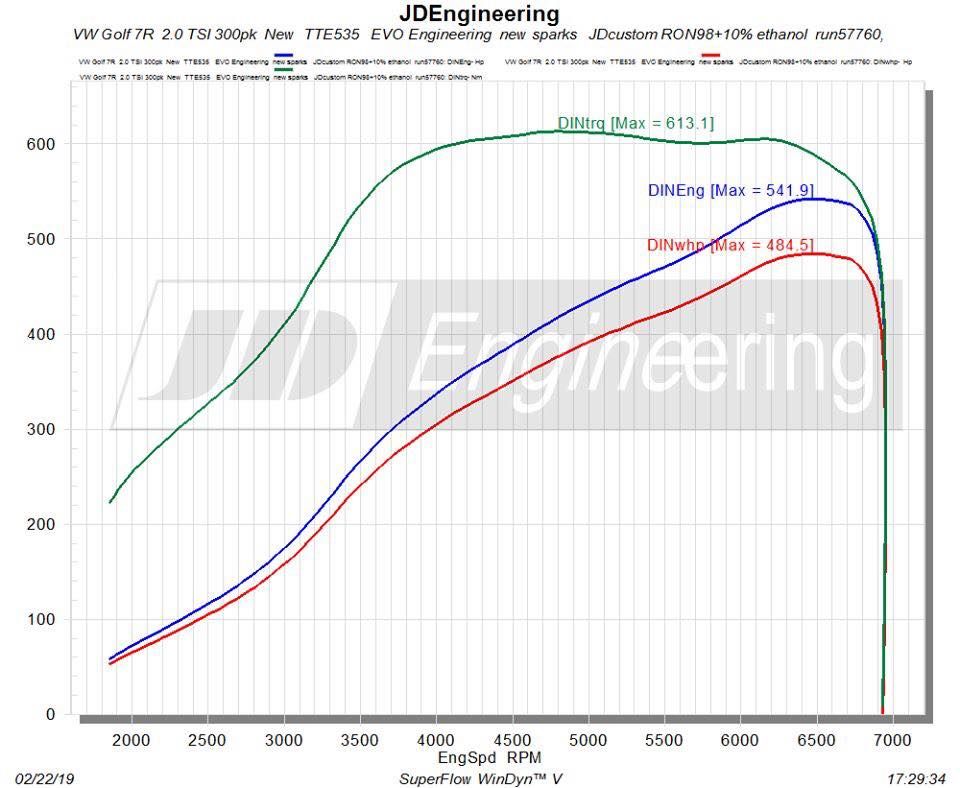

Fred’s Golf 7 R TTE535

JDEngineering Stage 4 541Hp & 613Nm (548PS)

Specs:
TTE535 Turbo
Wagner Tuning Intercooler
VW Racing R600 intake
Revo intake hose
LEYO BOV
Loba HPFP
Full decat exhaust
JD Stage 4 software
JD DSG Stage 3 software

98ron 10% bio ethanol

Evo Enginee Ring

#TTE535 #TTEPOWER #JDE #EVO



[TTE Si]

Golf 7r TTE535 by TRP 533HP (540PS) 475ft lbs (669nm) 99ron

Team TTE has another car in its ranks with this golf r supporting the TTE535 Turbo and TRP Performance ECU & DSG Software

#TTE535 #TTEPower #TRP

TURBO INFO : https://tteglobal.com/…/2.0…/20/tte535-upgrade-turbocharger…



[TTE Si]

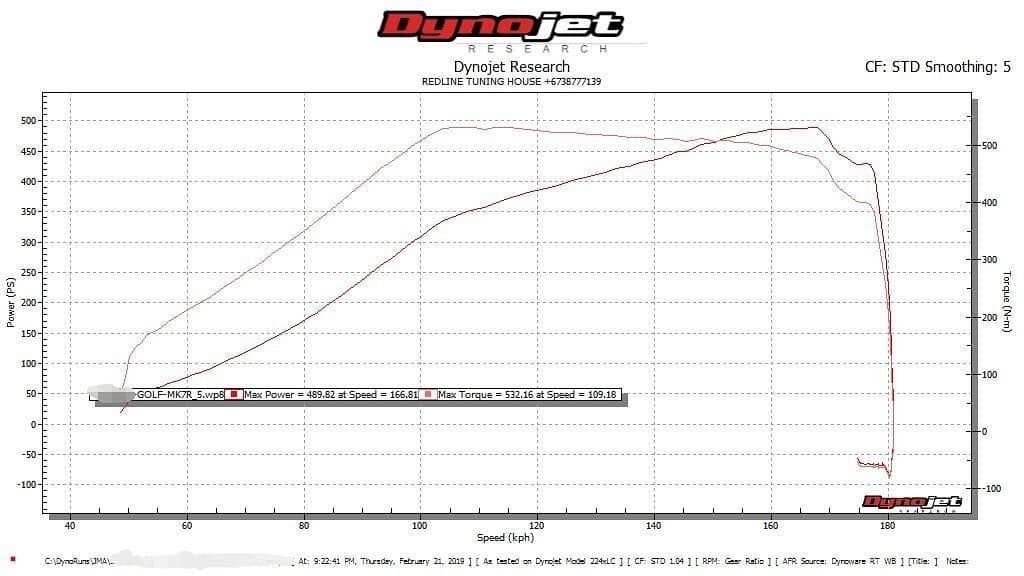

Dragy times dont lie. GOLF 7R 98RON WMI

ETUNERS software



[TTE Si]

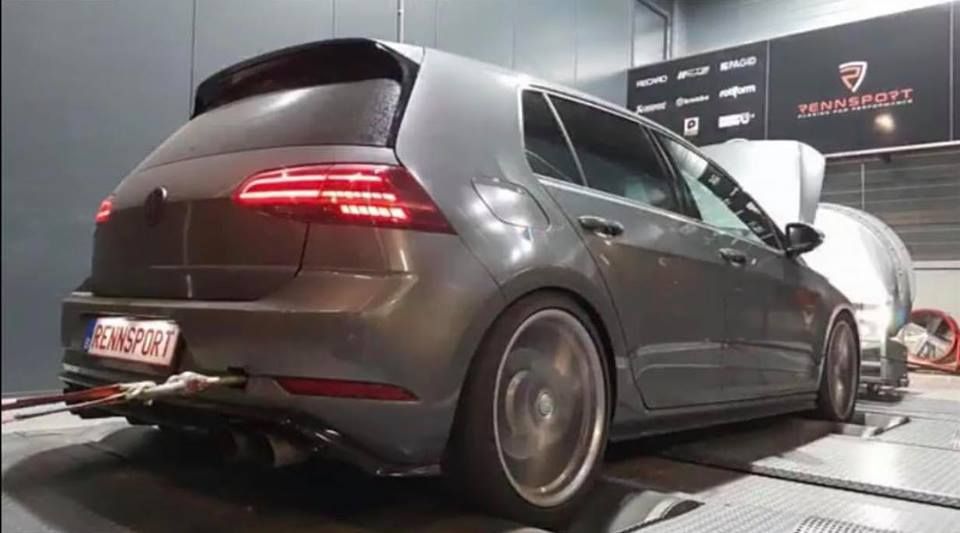

VW GOLF 7.5 R By Rennsport Chiptuning BVBA

550hp 620nm Shell VPOWER

TTE535 UPGRADE TURBOCHARGER

Upgraded High-Pressure Fuel Pump

VW R600 cold air intake / MST turbo elbow & inlet

HG Charge pipes & Silencer Delete

Wagner competition intercooler

AKRAPOVIC Turbo-back & decat large bore downpipe

ENGINE & DSG Remap st3

#VW #GOLF #R #TTE535 #WAGNER #DECAT #STAGE3#RENNSPORT #TTEPOWER



[MarkLand]

Why don't you advertise on the 610 variant?
Too much lag? Absolute necessity to build the engine and/or the trans? Not effective enough?

Sent from my ALE-L21 using Tapatalk



[TTE Si]

Why don't you advertise on the 610 variant?
Too much lag? Absolute necessity to build the engine and/or the trans? Not effective enough?

Combo of factors. Yes forged motor needed also we had gearbox issues due to the Nm produced so a DQ500 recommended. I think was a step too far and sales sort told us that.
We need to be efficient as TTE with the manufacturing and it made no sense to make and hold a quantity of stock for a low volume of sales.

I think 500-550 is the sweet spot on the platform.



[MarkLand]

Thanks for your honest feedback, very much appreciated!

Sent from my ALE-L21 using Tapatalk



[TTE Si]

JMA Volkspeed Motorsport Pushing the limit of VAG EA888 GEN3 2.0 on this daily driven R&D VW Golf 7R Stock Engine

TTE535 hybrid IS38 and pump fuel Ron97 punching 489WHP 532NM



Supporting hardware includes

Forge Motorsport Intake
Forge Motorsport Intercooler
Milltek Sport Race Exhaust System
T.M.Works Ignition System
Kido Racing Coilovers & Big Brake Kit
Snow Performance WM Injection

#JMAVolkspeedMotorsport
#TTEPOWER
#TTE535
#FORGEMOTORSPORT



[TTE Si]

GOLF GTI TTE535 97RON Fuel



[kikote]

Great product, I think it's the hybrid with more power on the market, I'm analyzing update the turbo swap on my Jetta gen3 OEM IS38, could you tell me apart from forging the engine what other hardwared it is necessary to replace, eg high and low fuel pump pressure? you sell it ?. Thank you!



[TTE Si]

I’m not familiar with Jetta but if is ea888.3

You could not require to forge and just stick to under 2bar

If you look at TTE525R thread there’s many setups told.

DP
HPFP
INLET
INTAKE
IC
TURBO
SOFTWARE



[TTE Si]

MK7R Stage 3 finished by QSTUNING UK

This was previously Stage 2 and the customer wanted more. This time it was in for TTE535, Autotech HPFP, APR LPFP, Racingline catch can, 4 bar map sensor and a massive AP Racing 390MM BBK.

This has left producing : 528.9HP and 621.9NM 99RON FUEL (2.1BAR PEAK BOOST)
#qstuning#TTEPOWER #TTE535



[kikote]

I’m not familiar with Jetta but if is ea888.3

You could not require to forge and just stick to under 2bar

If you look at TTE525R thread there’s many setups told.

DP
HPFP
INLET
INTAKE
IC
TURBO
SOFTWARE

I want those 535ps and more! It's my daily car so forging would be a necessary safety. I already have DP, inlet, intake, pulleys, IC, AEM meth kit, clutch and an OEM is38 installed in the car with 410ps, I think if I installed a TTE535 I would only need to update the fuel system, an HPFP would be enough or I also need to update the LPFP? how about the oem intake manifold, can you hold that power?



[TTE Si]

The intake manifold is fine at this boost. Only higher is there a risk of them coming apart at the seams.

Id honestly not forge to save much money and stick to as i said 2.0 bar your seen over 500-540ps fuel and setup depending.



[DevonS3]

I’m sure this has been covered, but is there a TTE525 tune available for a manual with a Sachs Organic clutch? Currently at 350hp if could for another 100hp that would be great! Or would a TTE470 be more suitable for a manual?? Many thanks



[TTE Si]

Seat Cupra TTE535 by ShifTech Tours
TTE535 Turbo upgrade
Milltek Downpipe decat
Scorpion cat back exhaust
VW R600 intake
Wagner Intercooler
HPFP Upgrade
Intake fuel pump upgrade
98ron + e20% 2.0bar peak boost

Result 559HP 636Nm

Turbo info : https://tteglobal.com/audi/s1/2.0-tsi/20/tte535-upgrade-turbocharger?number=SW10019

#worknotblabla#ttepower#tte535



[TTE Si]

SEAT LEON CUPRA TTE535 BY OUR FRIENDS NK Performance & C2 Motorsports Reims

Result 537HP 604Nm 1.8bar peak
fuel 98ron with 20% e85



[TTE Si]

VW PASSAT 2.0 280 BY KSF MOTORSPORT
Result : 531 PS/ 613 NM 98 octane

TTE535 IS38 upgrade turbo
Custom exhaust 76mm
APR INTERCOOLER
VWR airbox and turbo elbow
HPFP UPGRADE
Custom engine software MRC Tuning
DSG Software MRC Tuning

Turbo info : https://tteglobal.com/audi/s1/2.0-t...9JDOG0yVwcDAOx887WqwdUljWLxF6FN1Y0ZxMsMbIj37g

#RUNTTE #TTE535





500+Nm at 3500RPM = GREAT TURBO RESPONSE



[TTE Si]

Fred’s VW Golf 7R TTE535

MILTEK full exhaust without catalyst
Wagner Intercooler
VWR600 intake
REVO silicone hose
NGK racing plugs
Loba HPFP
TTE535 is38 hybrid turbo
Upgrade clutch
TVS Engineering ECU & TCU Software

557HP 647nm 102Ron fuel



[TTE Si]

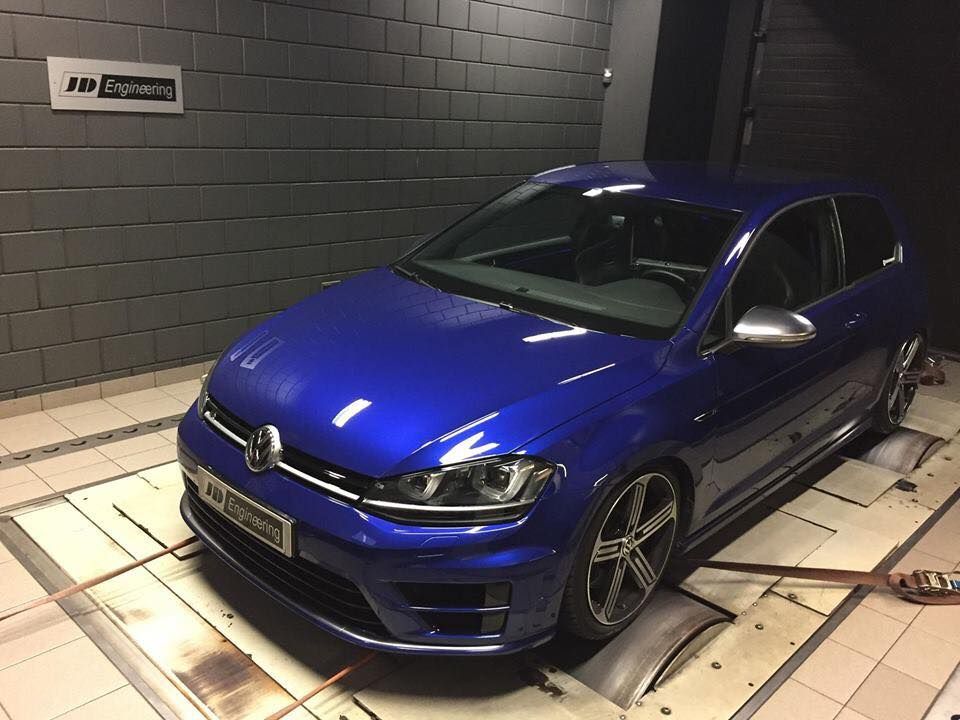

VW Golf 7 R 2.0 TSI 300pk 4-Motion by MP Carworks
OEM Specs: 300HP & 380Nm
JD Stage 4: 536HP & 599Nm

Specs by Vagnetics
TTE535 is38 hybrid Turbo
Milltek Sport Downpipe with 200cells sportcat
VW Racing R600 intake
VW Racing Intake hose
VW Racing Intake pipe
VW Racing Intercooler
JDEngineering Stage 4 software
JDEngineering DSG Stage 3 software
RON100 Shell Vpower

#RUNTTE#TTE535#JDE#VAGNETICS#MPCARWORKS



[TTE Si]

Matt Maisey’s AUDI S3 8v

TTE535 Hybrid turbo
Wagner Tuning intercooler
VWR600 intake + elbow
Ngk racing plugs
Latest gen coil packs
Autotech hpfp
4 bar map sensors
Aem water meth
Milltek Sport valved system & dp
99ron pump fuel
MRC software

Dyno Result 534HP 635Nm (fully spooled at 3250RPM)

#TTEPOWER #RUNTTE #TTE535

Turbo info : WWW.TTEGlobal.com



[TTE Si]

VW Golf 7 MK2 GTi by DVX performance Belgium
Stock: 230.0 HP / 350.0 Nm

DVX TTE535, 496.0 HP / 605.0 Nm
Quick spool & power.
266 HP↗
255 Nm↗

Dvx modifications:

- TTE535 hybrid turbo
- Charge pipe and outlet pipe
- HPFP upgrade
- LPFP upgrade
- Milltek Sport Decat Turboback
- Performance intercooler and air intake

Custom DVX Engine Remap 98 octane
Limited for stock internals

Custom DVX DQ250 Remap
✔600nm torque limiter
✔Raised clamp force
✔faster shiftspeed
✔faster reaction time shift paddles
✔Kickdown removal in manual mode
✔Shifts at higher rpm

TURBO INFO : https://tteglobal.co.uk/audi/s1/2.0-tsi/20/tte535-upgrade-turbocharger?number=SW10019.13



[TTE Si]

Latest result on a GOLF 7R at ECOTUNE

2.1 BAR 99RON

548HP 515Ft bls

FULL SPOOL AT 3150RPM Approx



[TTE Si]

VW Golf 7R 2.0 TSI TTE535 By TVS Engineering

TVS ECU Stage 3: 531Hp & 610Nm (limited for durability)
TVS TCU DQ250 Stage 3
RON98 Fuel



[TTE Si]

CUPRA ST (Avant) TTE535 MTR tuned

pump 102ron / full weight



[TTE Si]

‼ Skoda Superb 2.0 TSi 280 HP @DVX PERFORMANCE 502.4 HP / 561 Nm ‼

Skoda Superb 2.0 TSi 280.0 HP / 350.0 Nm
DVX 502.4 HP / 561.0 Nm

222.4 HP↗
211 Nm↗

Stage 3 TTE535:
- TheTurboEngineers TTE535 turbo
- VWR intake and inlet
- Downpipe
- Intercooler
- OEM exhaust
- OEM HPFP

DVX performance Belgium
Custom DVX Engine Remap 98 octane
Custom DVX DQ250 Remap

Turbo info : https://tteglobal.com/…/20/tte535-is38-upgrade-turbocharger…

#DVXPERFORMANCE #TTE535



[TTE Si]

New heat shield process available on the TTE535 and other TTE upgrades



[TTE Si]

Congrats to Cristian Barbu

Seat Leon Cupra R -18 Limited Edition

Tuned by BSR Sweden
98 fuel⛽️ (no wmi)
TTE535 turbo
Manual
522hp 600nm
On cup2 tires
100-200 7 sec

REAL TIMES FROM REAL CARS THAT LAST.. Not just a few weeks.

#TTEPOWER #TTE535

TTE535 INFO : https://tteglobal.com/…/20/tte535-is38-upgrade-turbocharger…

GOES 108 on TTE OWNERS TIMES : https://www.theturboengineers.com/100-200-1-4-times



[TTE Si]

Mark Graham’s Audi S3 8V with no tricks...

TTE535 Turbo
Pump fuel 99
full weight
no wmi

ECOTUNE Stage3 software (525HP 500FT LBS)



[TTE Si]

Nice result at ATM Chiptuning Performance

VW Golf 7R
ATM Ecu & TCU stage3 Software
TTE535 Turbo
Autotech HPFP
RacingLine R600 intake
RacingLine inlet pipe
RacingLine inlet 90
RacingLine oil catch can
Wagner Intercooler
Milltek Full Exhaust
4bar Map sensor
541HP 663nm @2BAR 100ron fuel
