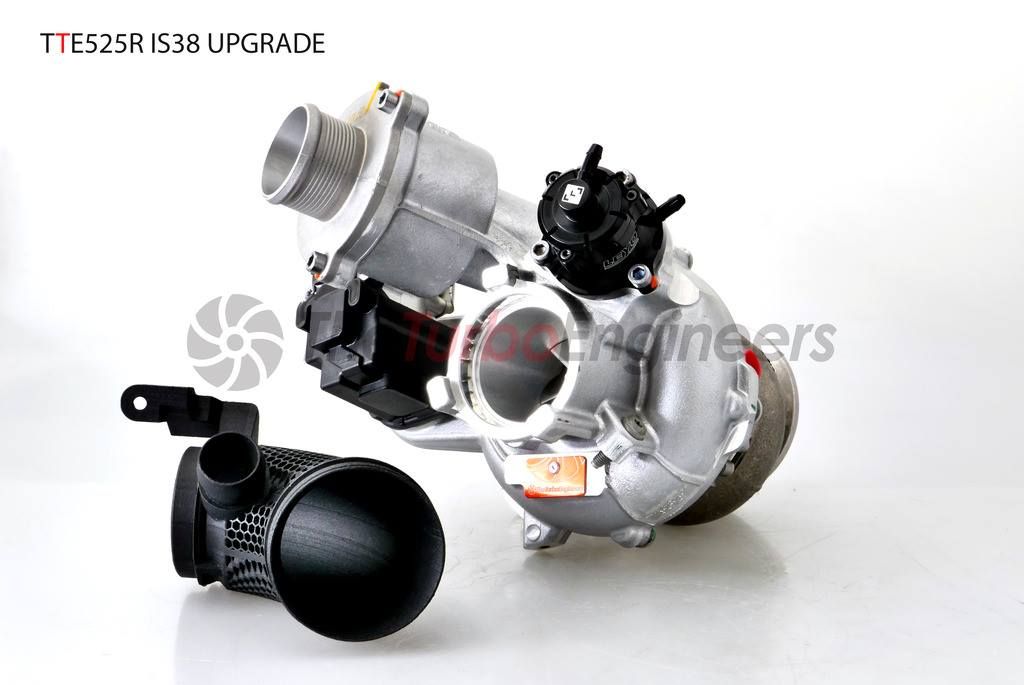

TTE525R+ Upgrade Performance Turbocharger GOLF R GTI MK 7/S1/S3 8V/ TTS/CUPRA & SC 5F / OCTAVIA VRS

[TTE Si]

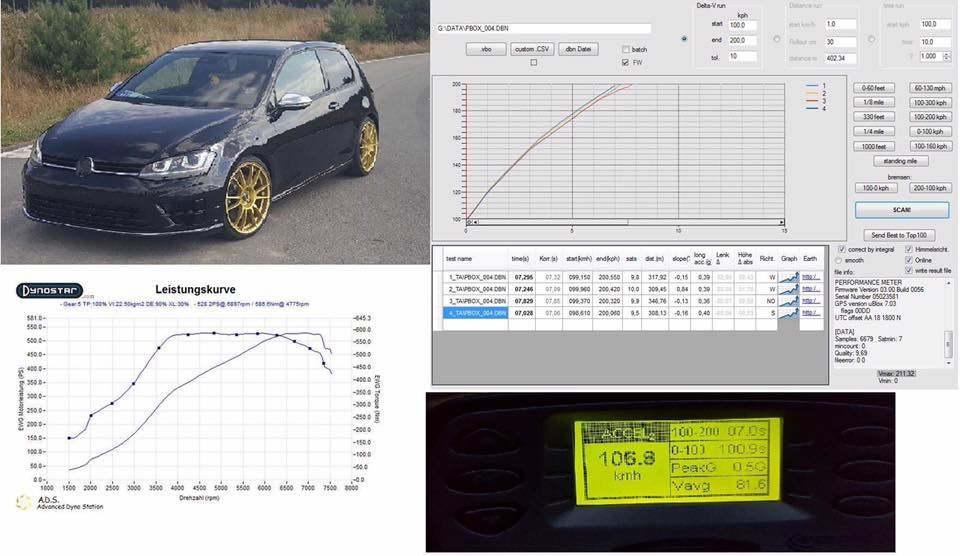

NEW TTE525R OFFICIAL RECORD 100-200 !

Konny's G7R TTE525R 7.06 sec verified & corrected.

Leader board updated : https://www.theturboengineers.com/100-200-1-4-times



[TTE Si]

BIG HP G7R FROM SOUTH AFRICA

CSM MotorSport, JB4 Development Golf 7R

TTE 525 Turbo upgrade
Wagner Intercooler
Full Zaust- Rogue Performance
Chip Logic Custom Ecu Tune + JB4 Stack
Dsg Custom Tune
Cooling Mist Meth with JB integration
SUNCO GT260 race fuel

590PS 702NM(Stock engine)



[TTE Si]

Darlyson's VW Golf 7R TTE525R 0-60 MPH 2.87 Seconds

Software by United Motorsport USA



[TTE Si]

Ibrahim's VW GOLF 7 R TTE525R MRC 0-230KMH(142MPH) Approx 13sec as indicated on clocks.

0-100kmh 2.85 seconds as shown on P3 gauge in car !

UAE MRC Tuning Custom Software

Cars best 1/4 mile at the drag strip is 10.9@125mph

Spec :

TTE525R turbo upgrade
Wagner Tuning Intercooler
Upgrade intake
Stock cat back exhaust
Stock clutches
Stock motor



[TTE Si]

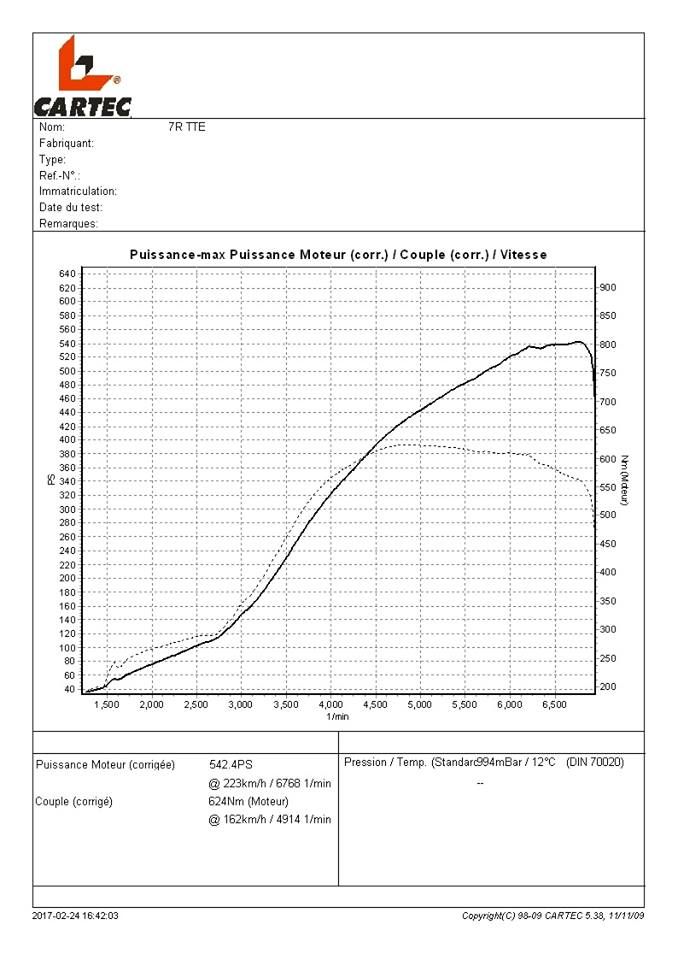

VW GOLF 7 R TTE525R FROM KSF MOTORSPORT

TTE525R Turbo
TTE Turbo Intake
TTE Silencer Delete
Leyo Motorsport BOV
Wagner Tuning Intercooler
Upgrade Exhaust
Intake Upgrade
HPFP Upgrade
Boost pipe Upgrade
WMI kit
MRC Tuning custom software calibration
Engine Power 542PS 624Nm (98 fuel)

Stock motor





Dyno Video



[TTE Si]

Golf 7r TTE525R vs Ferrari 458 Speciale

0-300kmh race

Golf wins !




#SUPERCARKILLER#MRCTUNING#TTEPOWER#TTEORNOTHING#GOLF7R#TTE525R#FERRARI458#SPECIALE#MQB#STAGE3+



[TTE Si]

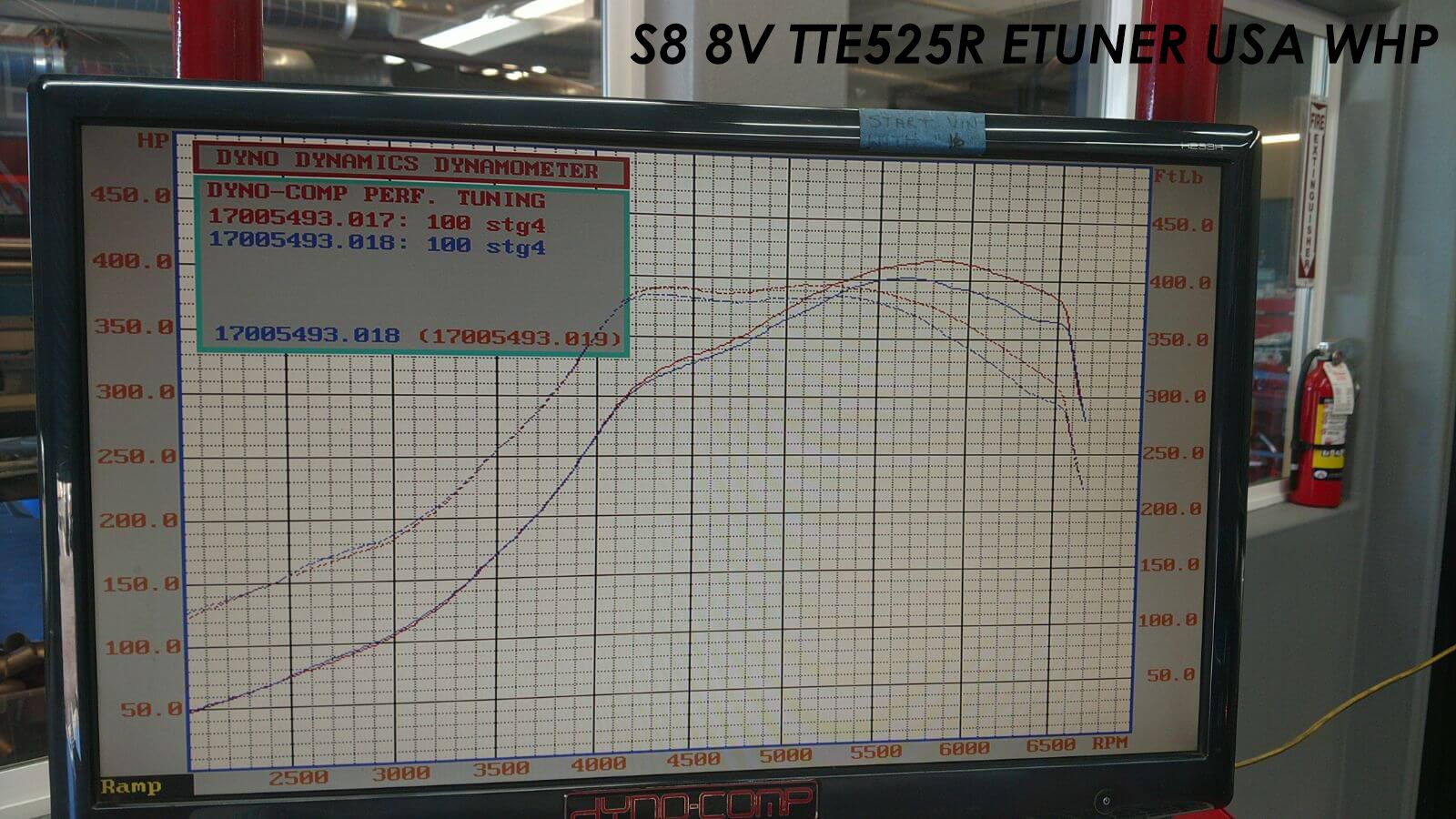

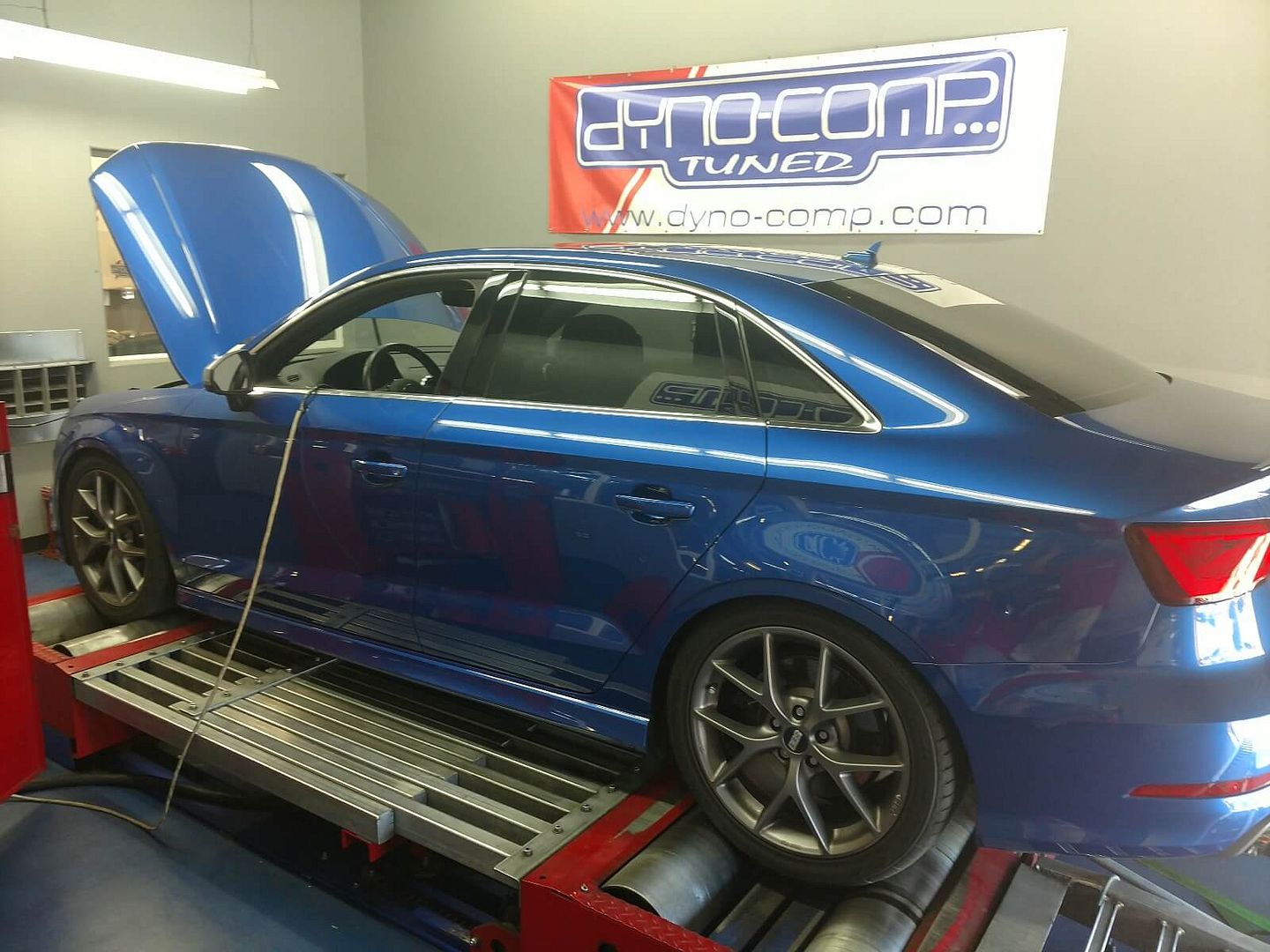

Audi S3 8V 2.0 TFSI USA spec (Stock motor & clutches)

Etuners Stage5 Software 91Oct fuel (US spec Stock fuel system)

Independent Results from Dynocomp Rolling Road USA.

For 91Oct fuel, in blue, the car produced 401whp in all wheel drive mode.

For 100Oct fuel, in red, the car produced 420whp in all wheel drive mode.

350Ftlbs at 4000RPM. Approx Torque


Upgrade specifications :

TTE525R Upgrade Turbo & TTE Intake
Leyo Motorsport BOV
Upgraded Exhaust
Etuners Stage 5 ECU remap
Etuners Stage 3 TCU remap


#TTEPOWER #ETUNER #TTE525R #LEYO #WHP #USA #MQB #UPGRADE #HYBRID #TURBOCHARGER #TTEFTW



[TTE Si]

Autototal S3 8V TTE525R MRC TUNING Taking 1st place in the 4 cylinder category over 1/2 mile in Brasil

100-200 7.6 sec
804m 18.1 sec

#MRCFTW#TTE525R#TTEORNOTHING



[TTE Si]

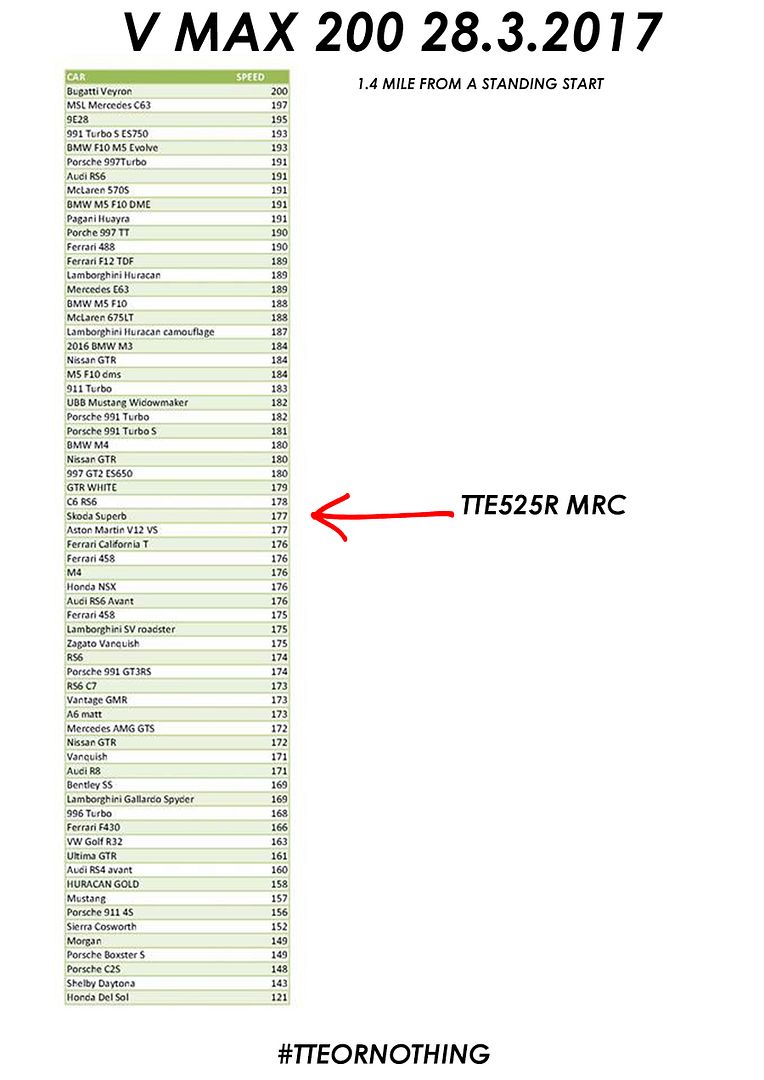

WHEN YOU TURN UP TO VMax 200 IN YOUR SKODA TTE525R TUNED BY MRC Tuning

Congrats to Micky for doing a 177MPH in the 1.4 mile timed zone holding off some serious thoroughbred supercars.

#TTE525R #MRC #THETURBOENGINEERS #WAGNER#TTEORNOTHING



[TTE Si]

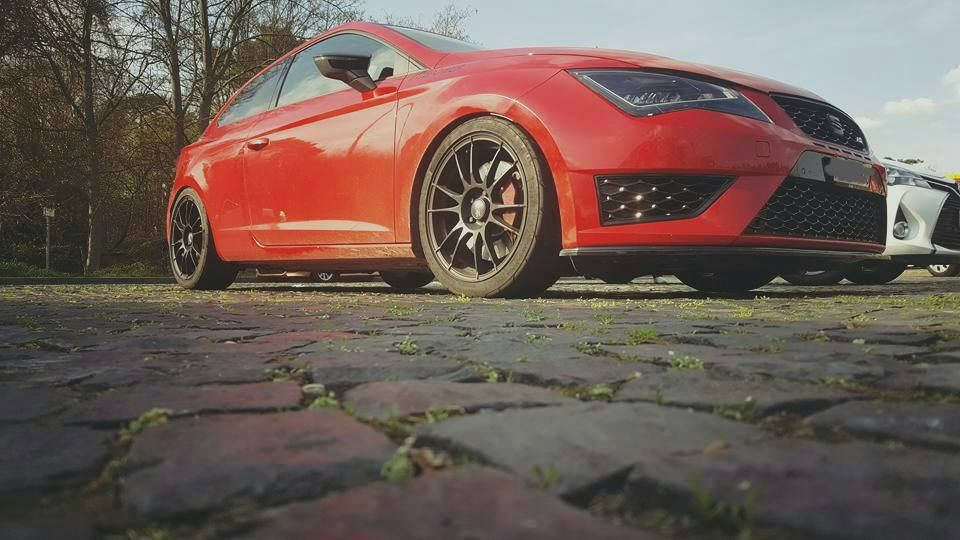

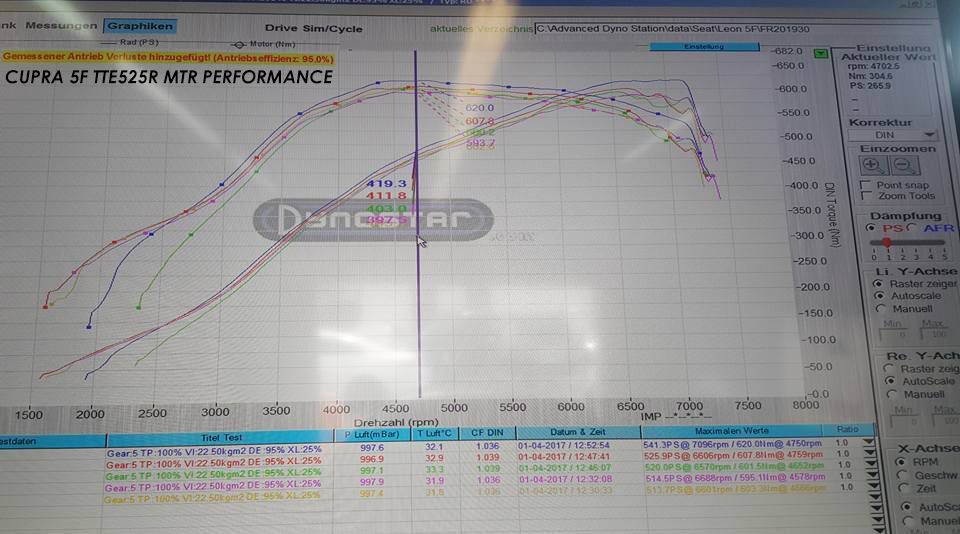

Seat Leon Cupra 5f TTE525R

MTR Performance Software

541PS 620Nm



[TTE Si]

100-200 pbox corrected 6.68 sec



[TTE Si]

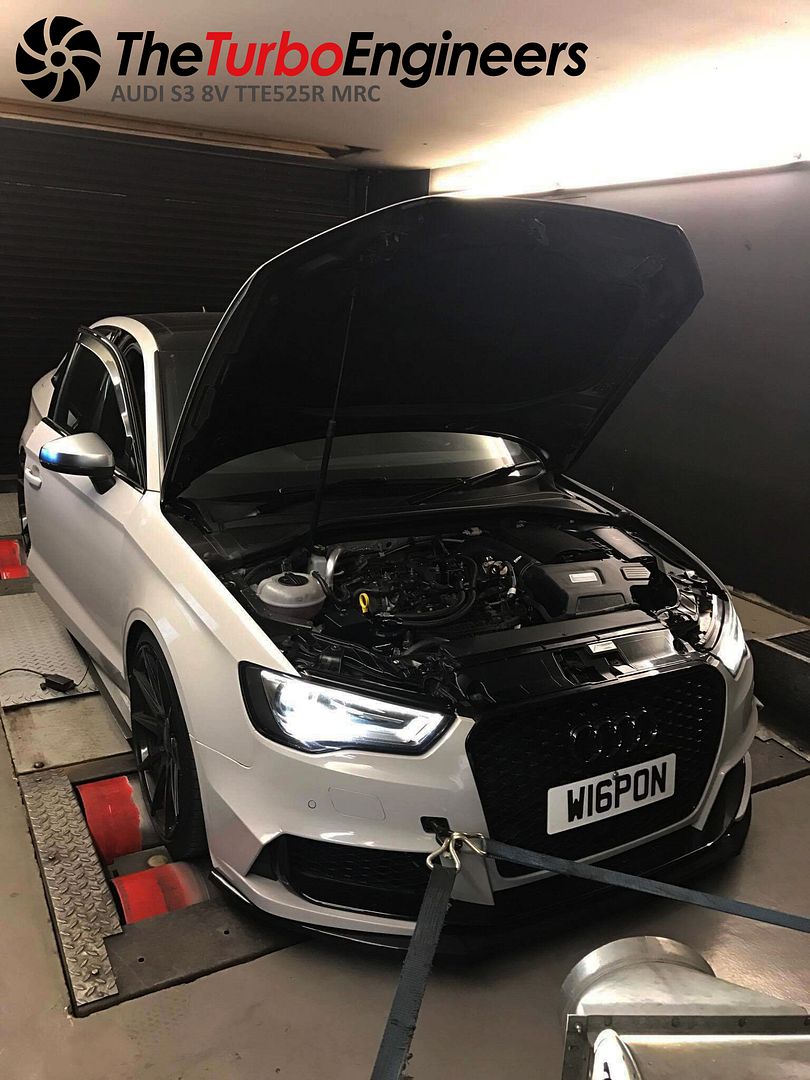

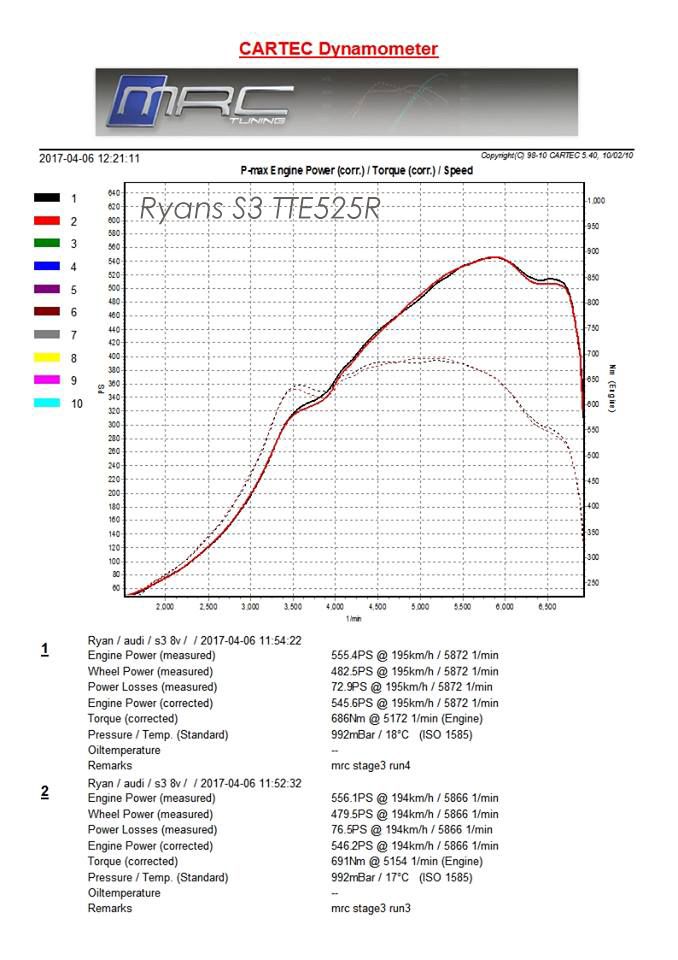

Ryan's beautiful S3 8V TTE525R at MRC Tuning for software.

Mods & Car Prepared and delivered by D.H Automotive

545PS 686NM (Stock engine)

near 650nm at 3500rpm ! FAST SPOOLING

Spec list :

TTE525R turbo
TTE Turbo muffler delete
Mrc custom turbo intake pipe/ elbow
Wagner Tuning Intercooler
Racingline catchcan setup
Racingline vwr600 intake
Ngk racing spark plugs
Auto tech fuel pump internals
Milltek Full exhaust system
4 bar map sensor
Forge Intake silicon hose
99ron fuel
MRC STAGE 3 Custom software

#TTE525R #WAGNER #MRC #DHA



[TTE Si]

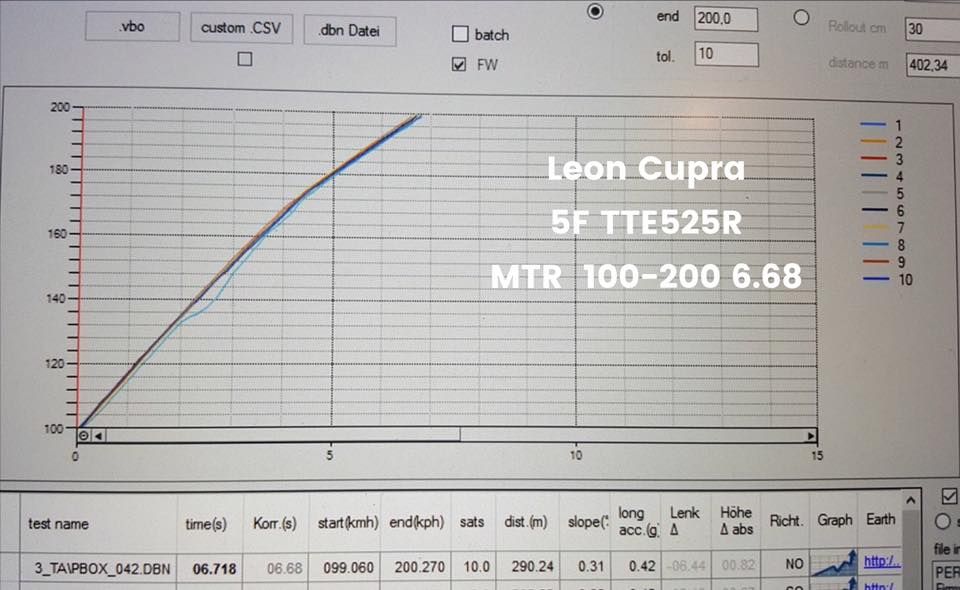

SEAT LEON CUPRA 5F TTE525R MTR 540PS / 620nm
100-200 6.68 SEC

#TTE525R #MTR #TTEPOWER



[TTE Si]

Very fast 1/4 mile pass for the AUDI S3 8V MQB Platform.

10.743 @132.83 MPH

REDSRACING S3 8V TTE525R SLS Tuning ECU Software

TVS Engineering DSG Software

Congratulations to 任锦东

#TTEPOWER #SLS #REDSRACING #TTE525R



[TTE Si]



[TTE Si]

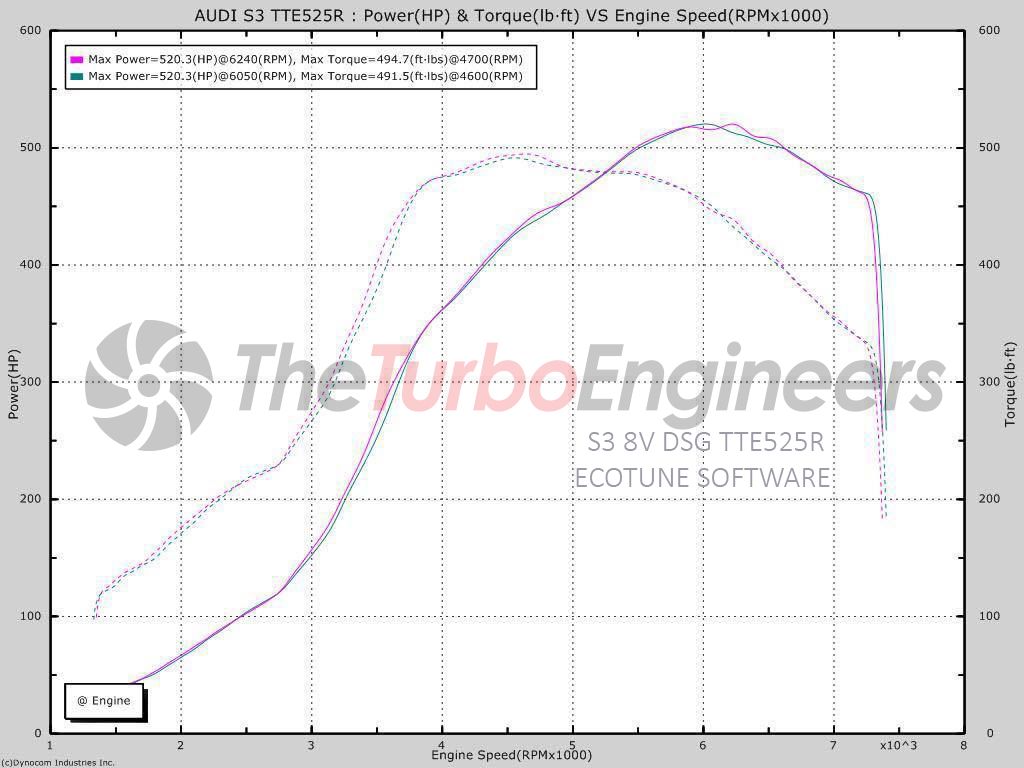

Congratulations to Berat Aliu in his S3 8V using the TTE525R hybrid Turbocharger Installed by Ecotune and utilising there custom Software.

Managing a best 1/4 mile time of 10.859 sec @128.2 MPH at Crail Raceway in Scotland today.

Maybe the fastest S3 8V 1/4 mile time posted in GB

to date and the first 10 sec run from a S3 8V MQB.

#TTEPOWER #TTE525R #S38V #10SEC #MQB #ECOTUNE #98RON#ROADTYRES #WAGNER



[URL=http://s1158.photobucket.com/user/TheTurboEngineers/media/s3%208v%20tte525r%20ecotune%202.2%20bar_zps9zcdjtfa.jpg.html]

[/URL]



[TTE Si]

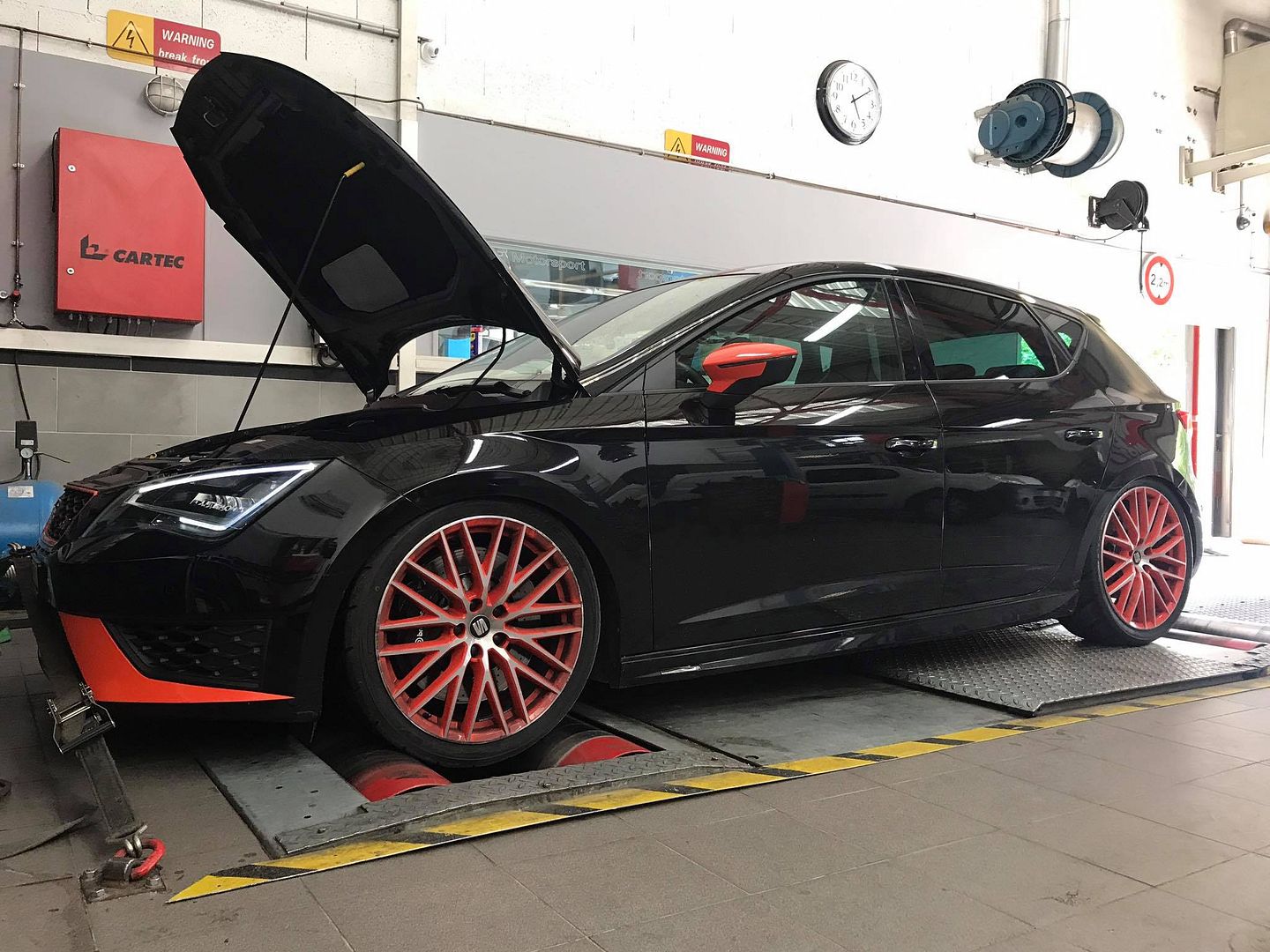

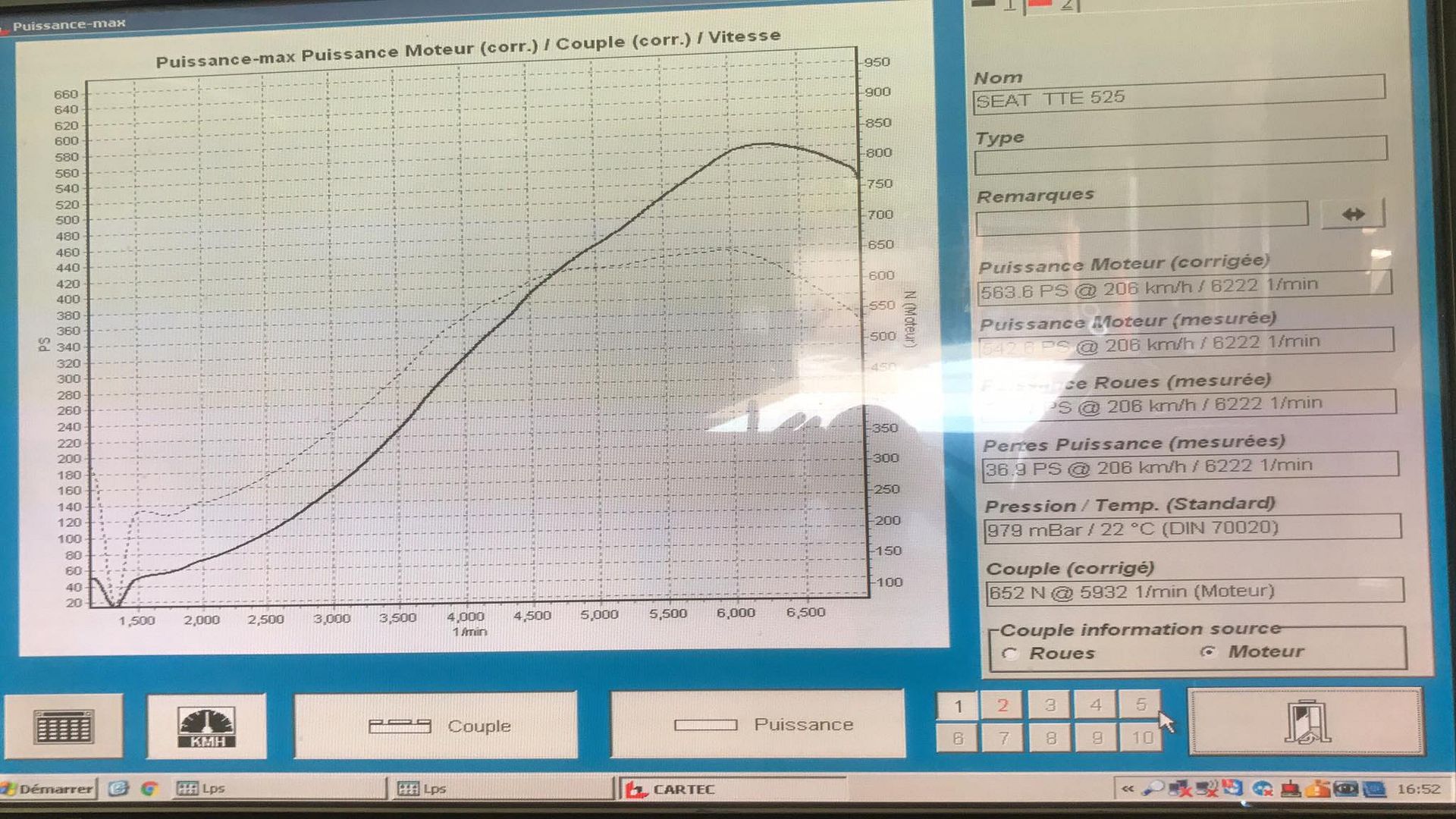

Seat Cupra TTE525R by KSF MOTORSPORT

Using MRC Software

563PS 652Nm

#TTEPOWER



[TTE Si]

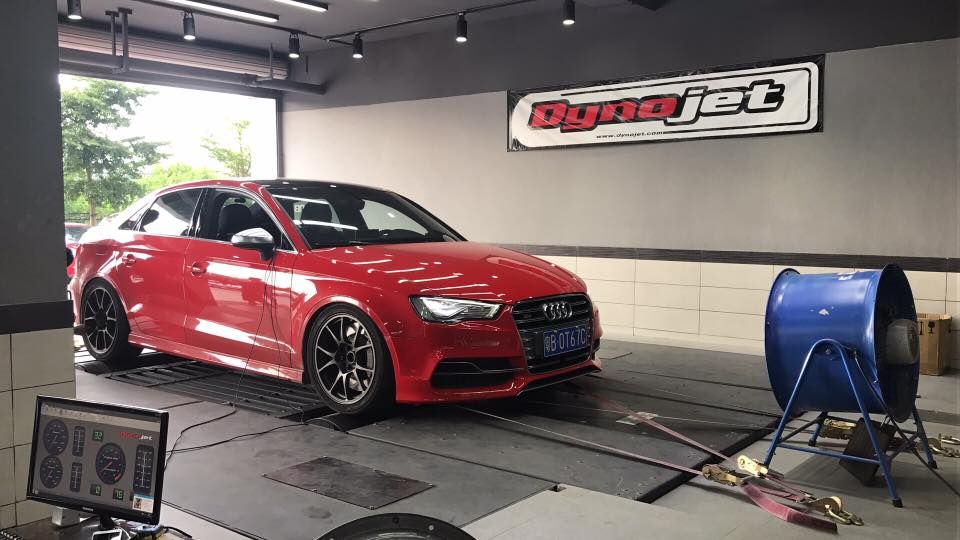

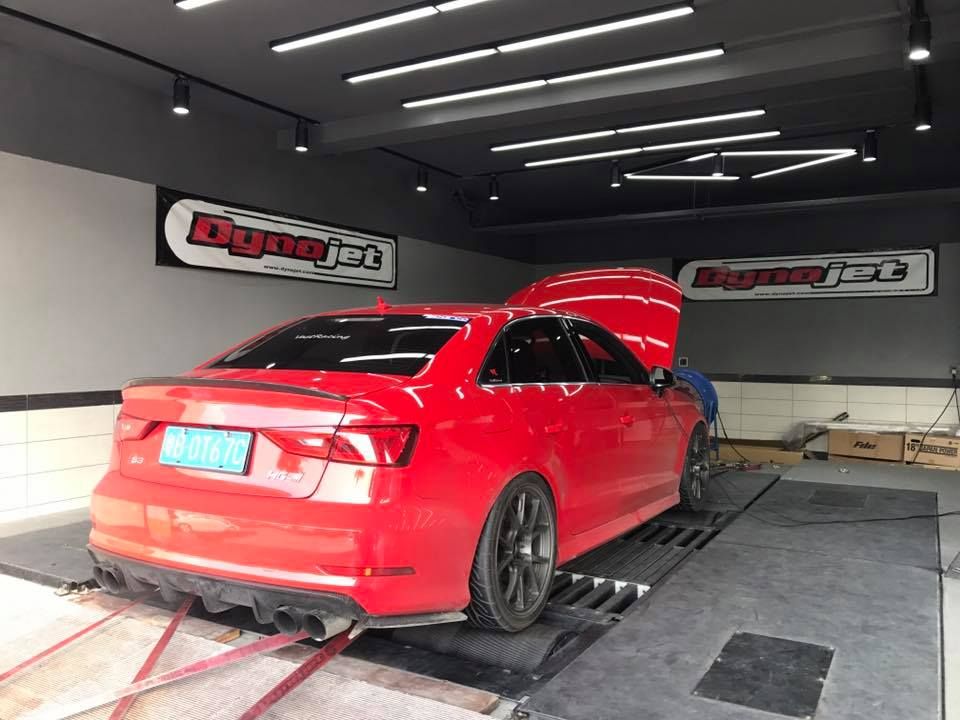

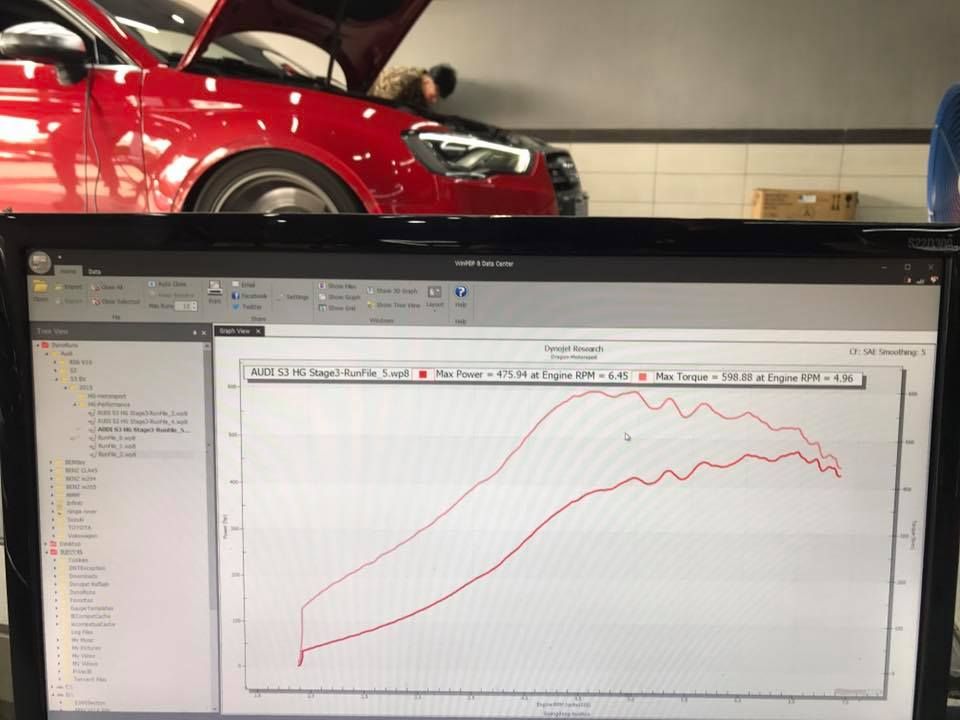

HG-Performance Audi S3 stage3+ TTE525R with serial engine and clutch.

475hp and 598nm at the wheels and 571hp at the crank with 98RON petrol.

#TTEPOWER #TTE525R



[TTE Si]

independent TTE525R review



[TTE Si]



[TTE Si]



[TTE Si]



[TTE Si]



[TTE Si]



[MarkLand]

Are those Cupras struggling to pass the power to the ground? (FWD)



[TTE Si]

Premium tyres are a must. Lets just say you need drive a FWD car with this power.



[MarkLand]

Thanks for your reply



[TTE Si]

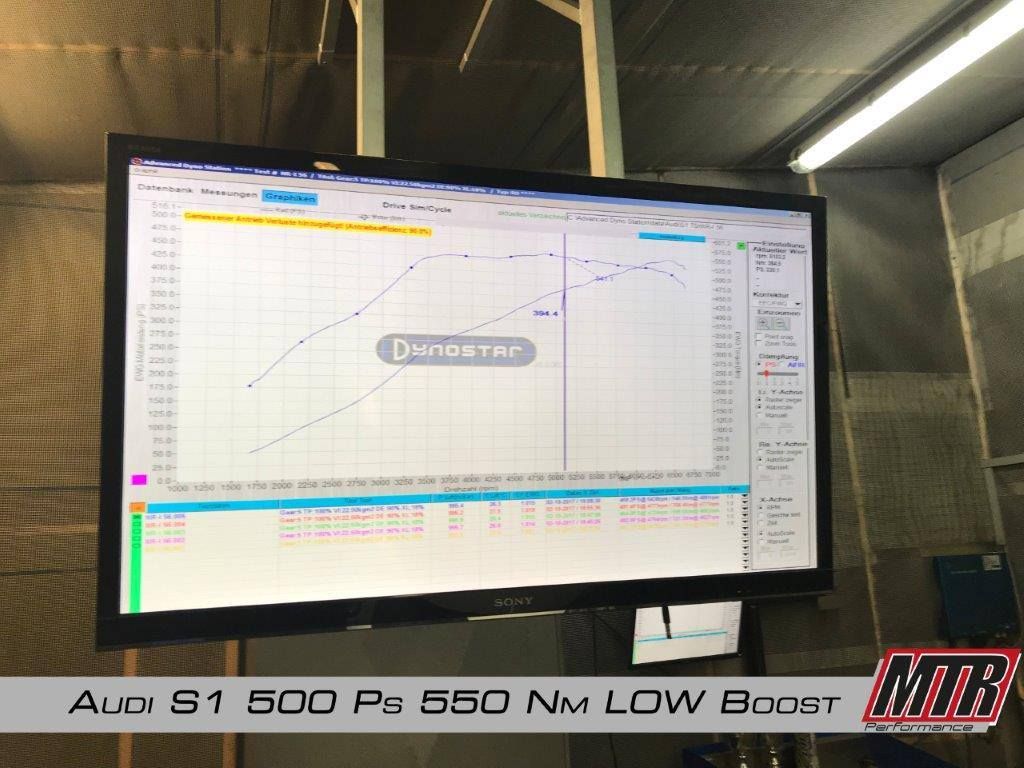

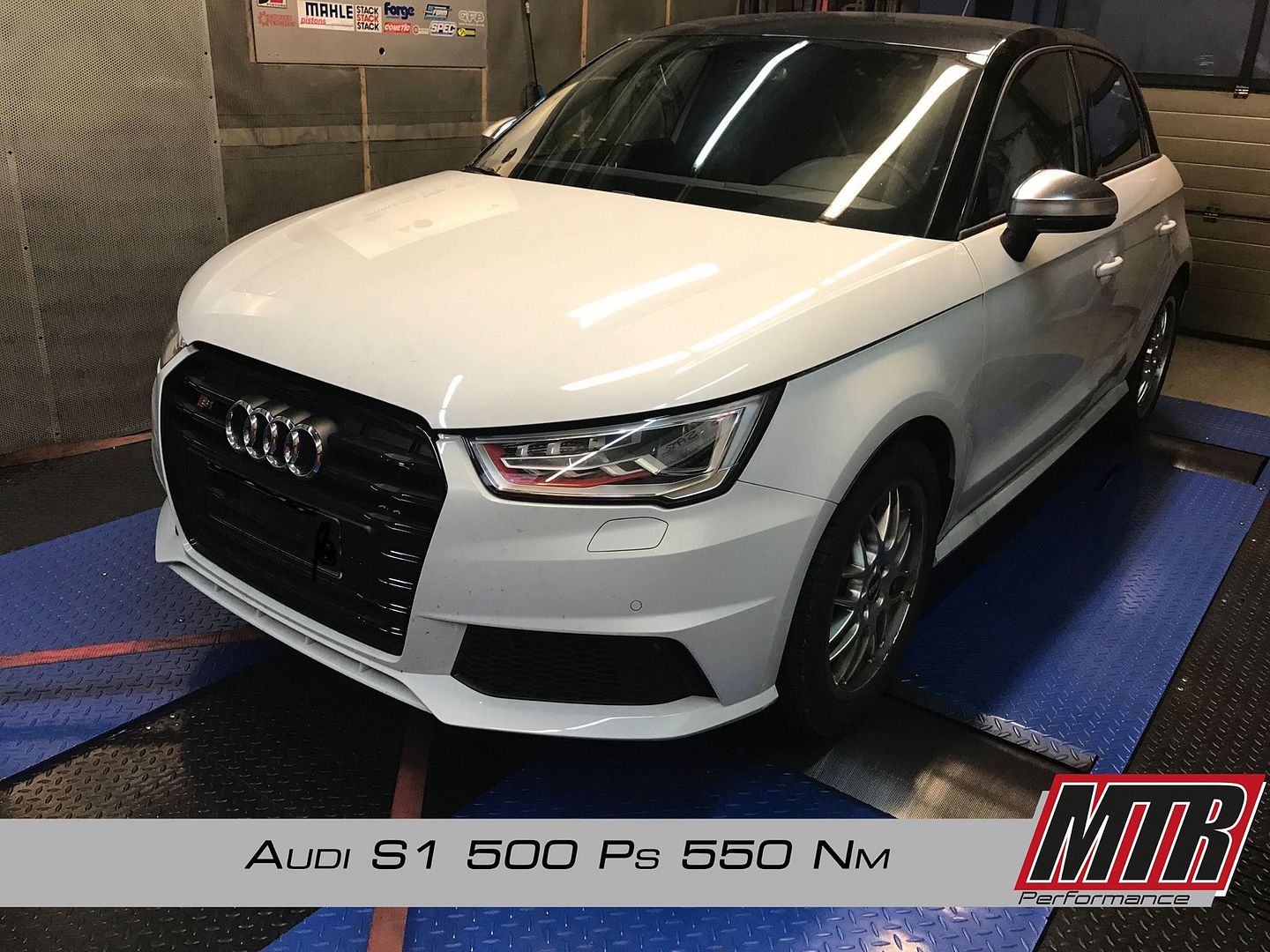

Audi S1 TTE525R

500 PS / 550 NM

- TTE525R Upgrade turbo & TTE turbo inlet
- SAR Custom Intake
- Modified clutch

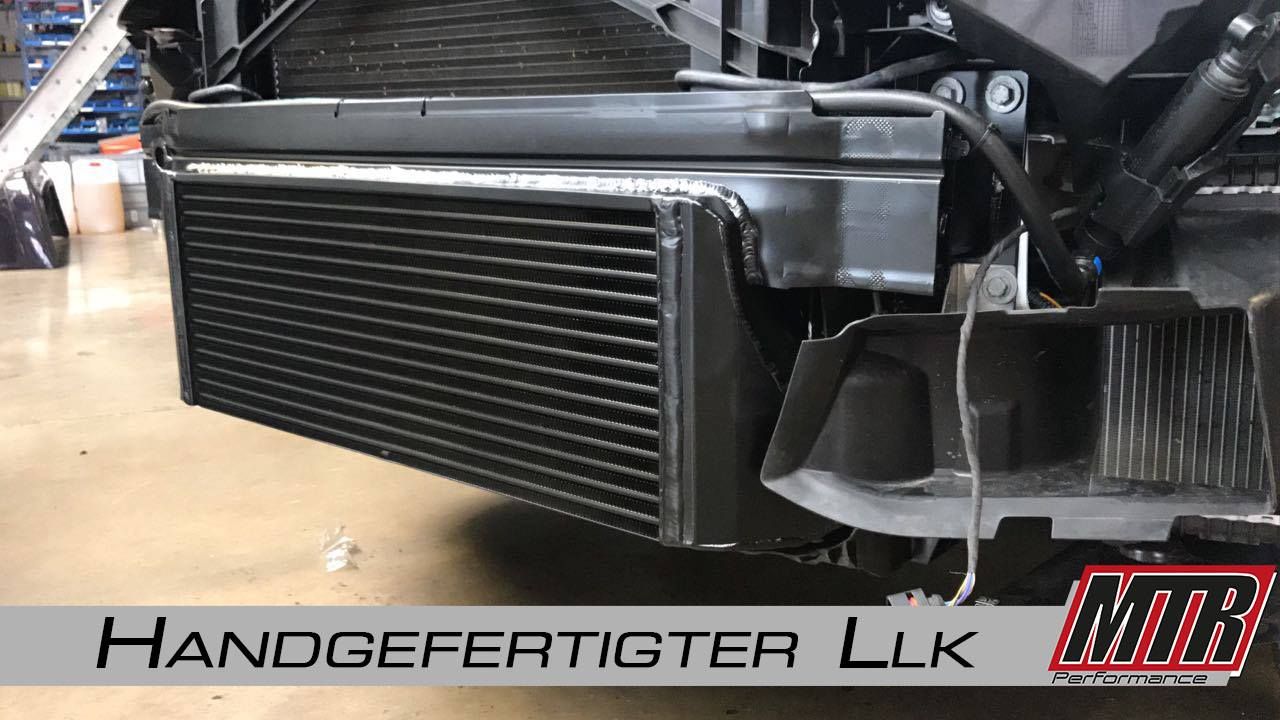

- Custom intercooler
- Exhaust System 3 Inch
- MTR Performance Custom software (low boost)

Sar- Turbotechnik
TheTurboEngineers
MTR Performance
LEYO Motorsport

#Audi #S1 #TFSI #E888 #Quattro #MTR
#SAR #TTE #BigTurbo #BigPower #TTE525r
#MadeInGermany #4Zylinder #RunTTE #TTEPOWER



[Tony-c-]

Finally a S1 with a TTE! Have the internals been changed? Is the custom intercooler needed because of a high temp country?



[TTE Si]

Finally a S1 with a TTE! Have the internals been changed? Is the custom intercooler needed because of a high temp country?

Stock motor yes. Yes as the S1 IC is quite poor

Did make 550ps 720Nm at higher boost but tuned to 500/550 for safety


The Intercooler



[drummerdimitri]

I am thinking of upgrading my stock turbo to a 525r but I would like to know if a CTS turbo intercooler will do or does it have to be a Wagner intercooler?



[TTE Si]

I am thinking of upgrading my stock turbo to a 525r but I would like to know if a CTS turbo intercooler will do or does it have to be a Wagner intercooler?

Wagner Intercooler is recommended and IE



[drummerdimitri]

Wagner Intercooler is recommended and IE

If those are not available can I use the CTS Turbo or HG motorsports?



[TTE Si]

If those are not available can I use the CTS Turbo or HG motorsports?

I only recommend what I know works. As above



[TTE Si]

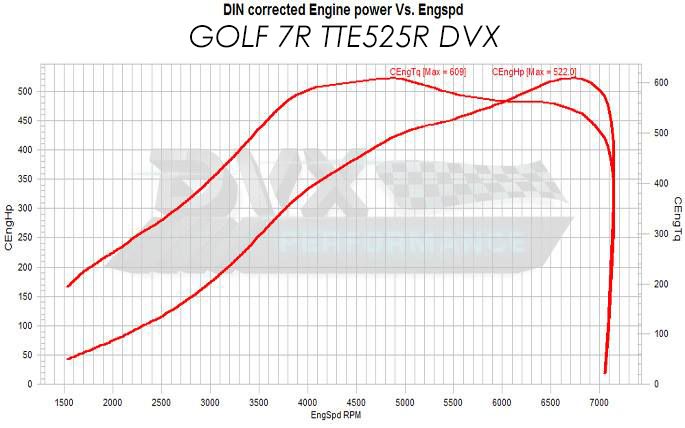

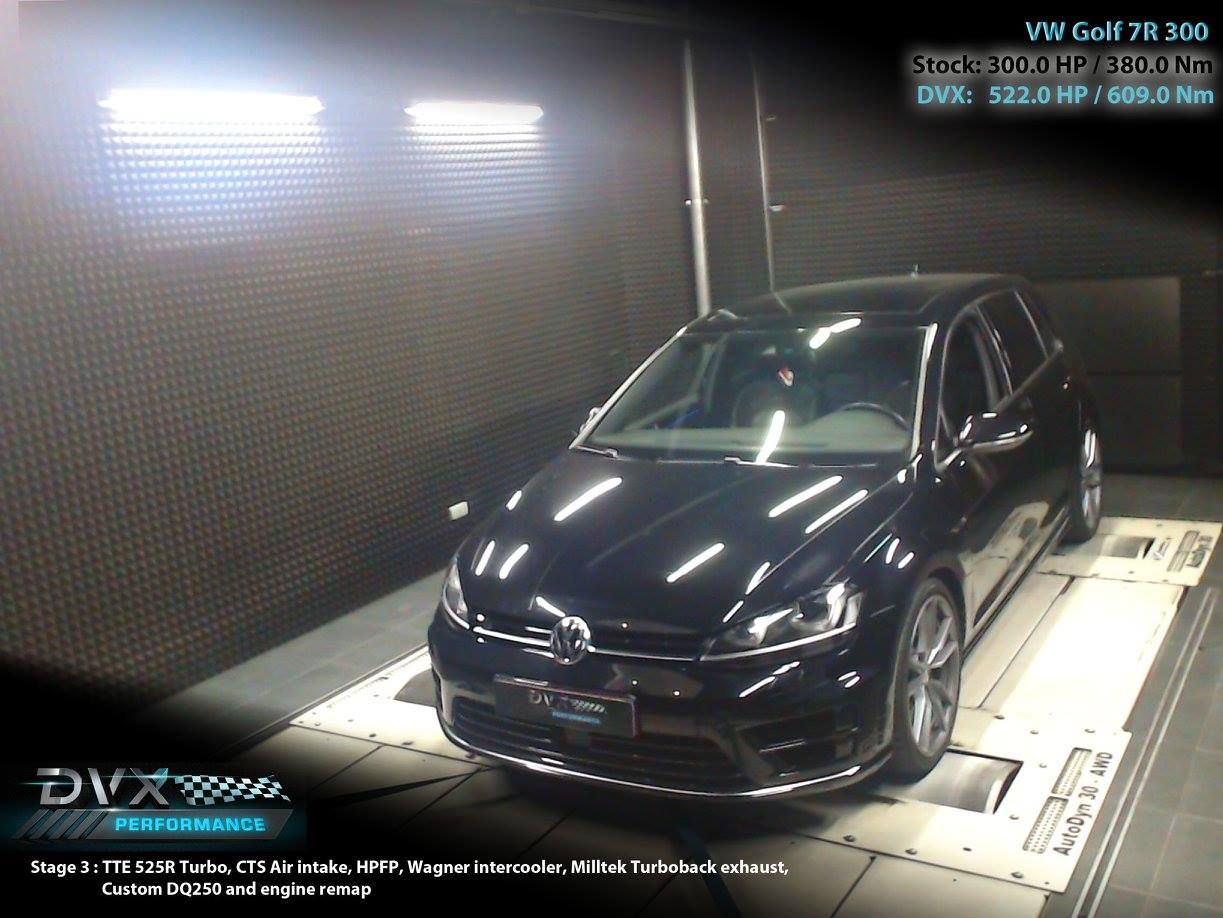

VW Golf 7R TTE525R by DVX Performance special stages

DVX 522.0 HP / 609.0 Nm

Stage 3:
- TTE525R turbo
- TTE Turbo intake
- TTE Silencer delete
- Milltek Sport Turboback exhaust
- Wagner Tuning intercooler
- Upgrade HPFP fuel pump
- CTS Turbo Air intake
- Leyo Motorsport BOV
- Custom DQ250 Remap
- Custom DVX Engine Remap
- 98 octane fuel

☎ 0032 (0) 3 866 32 35

✉ info@dvxperformance.be

#dvxperformance #TTEPOWER #TTE525R



[TTE Si]

Ryan David's S3 8V TTE525R

Enjoy

#TTEPOWER #TTE525R #MRCTUNED



[hondema1980]

Just ordered one ...
Hope to share some results soon .....

Hey Rogier I think I saw your S3 3 weeks ago in Lochem. I remapped my 8p S3

Verstuurd vanaf mijn SM-G930F met Tapatalk



[TTE Si]

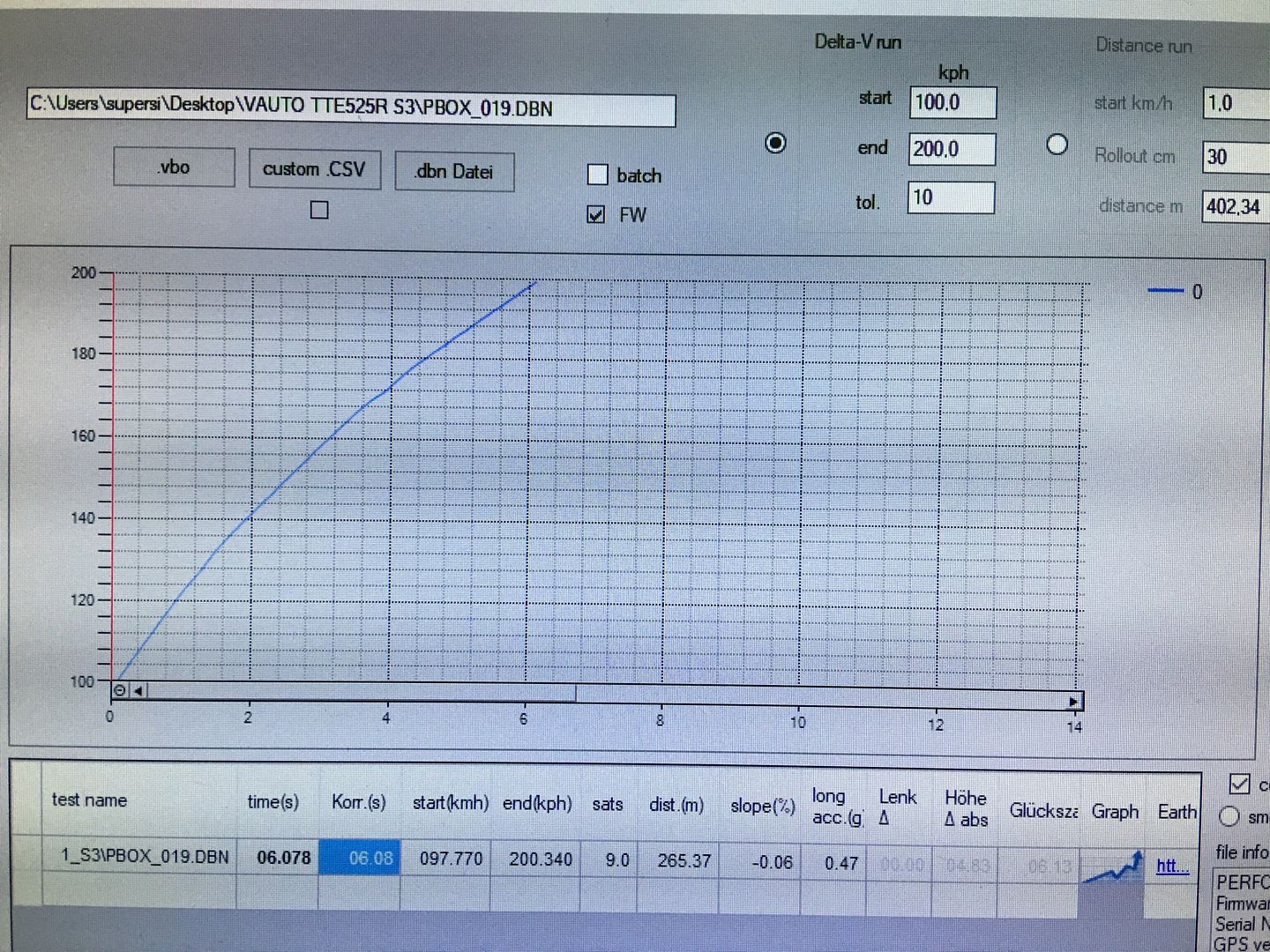

Audi s3 8v limo
TTE525R Turbocharger
Vauto ecu software
TVS Engineering, RTE Authorised Distributor ****-Pacific DSG software
(stock engine & dsg)
480WHP 650NM Approx

Has run 10.2 1/4 MILE also

RANKED AT 10TH ON TTE OWNERS TIMES
https://www.theturboengineers.com/100-200-1-4-times
Welll done

#TTEPOWER #TTE525R #VAUTO #TVS #TTEORGOHOME



[TTE Si]

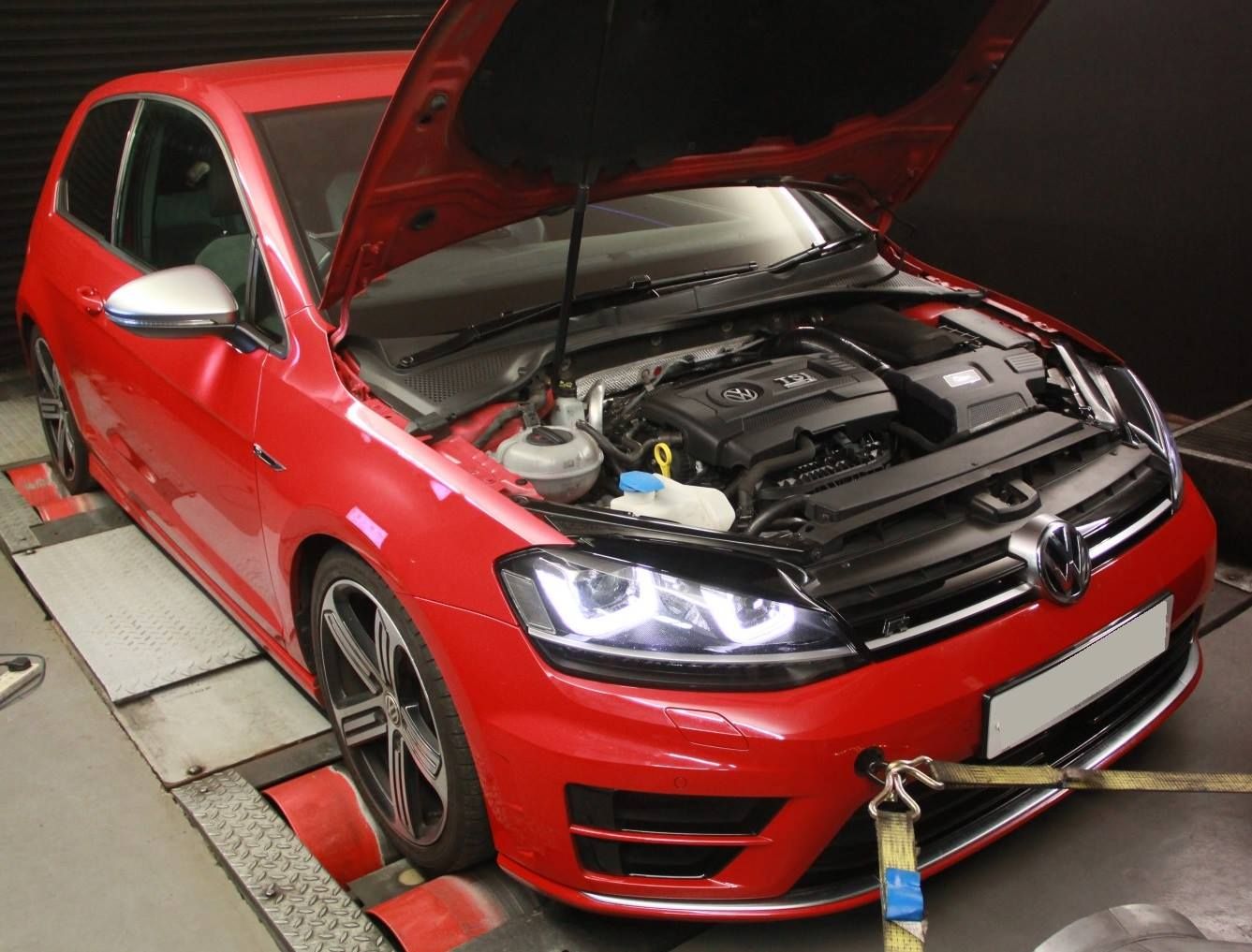

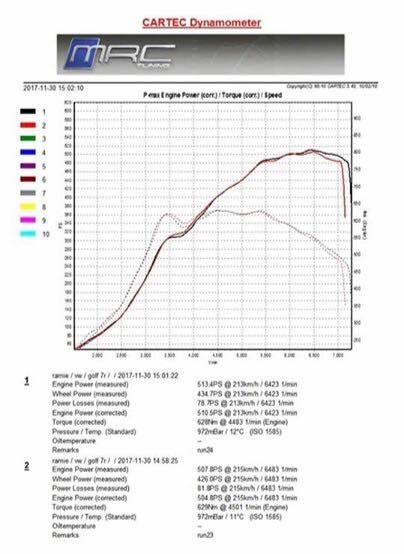

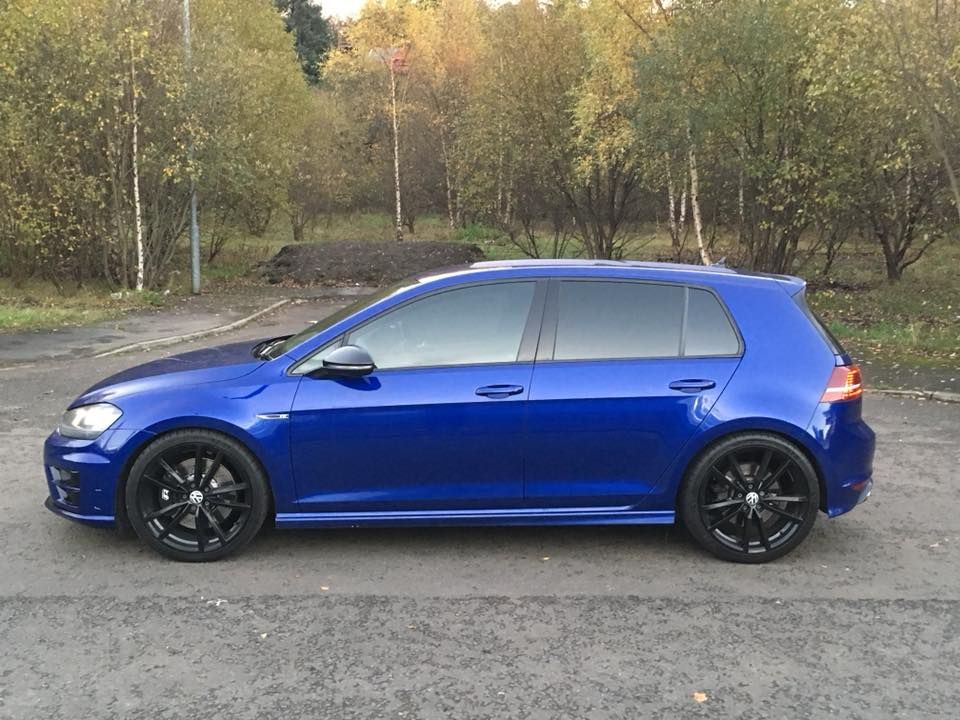

VW GOLF 7R TTE525R by D.H Automotive Scotland

510PS 620Nm

2bar 99ron pump fuel using MRC Software

Full torque approx 3400rpm

#TTEPOWER #TTE525R #DHAUTOMOTIVE



[TTE Si]

golf 7R has a TTE525 fitted with Decat downpipe, intercooler, HPFP, Intake kit, and with the MRC Stage 3 Remap,at 2.05bar, and MRC stronic Remap it did 517ps and 609nm. (stock exhaust 99ron)
