TTE500+ Upgrade Performance Turbocharger 2.5 TFSI TTRS / RS3 / RSQ3
Introducing our TTE500+ performance turbocharger, Including a CNC matched and ported OE intake pipe for the 2.5 TFSI motor. Based on the original turbocharger but upgraded to new higher output specification. Offering The Complete Ultra Plug & Play Upgrade to over 500PS.
Engineered & Enhanced

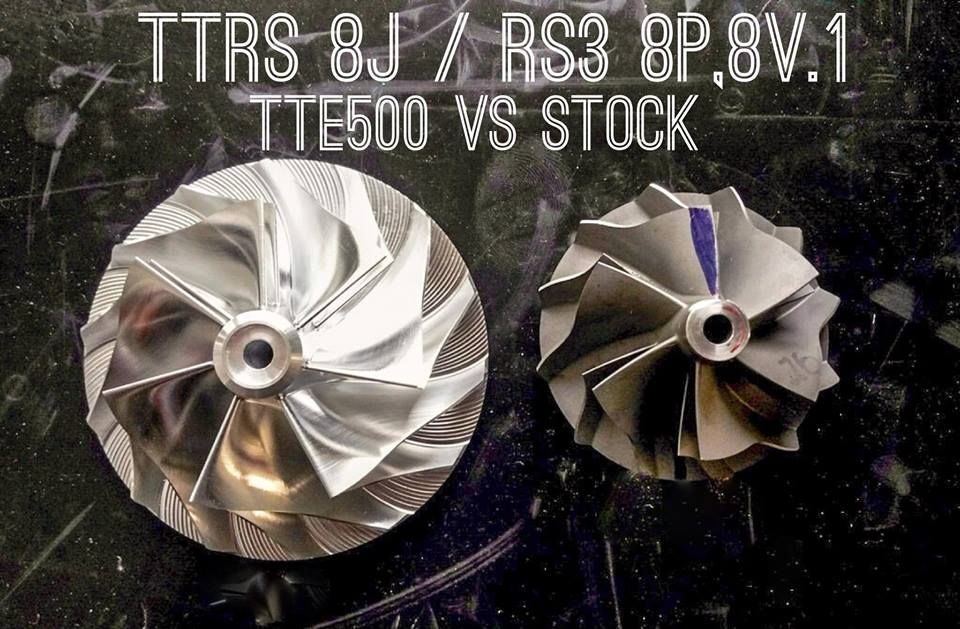

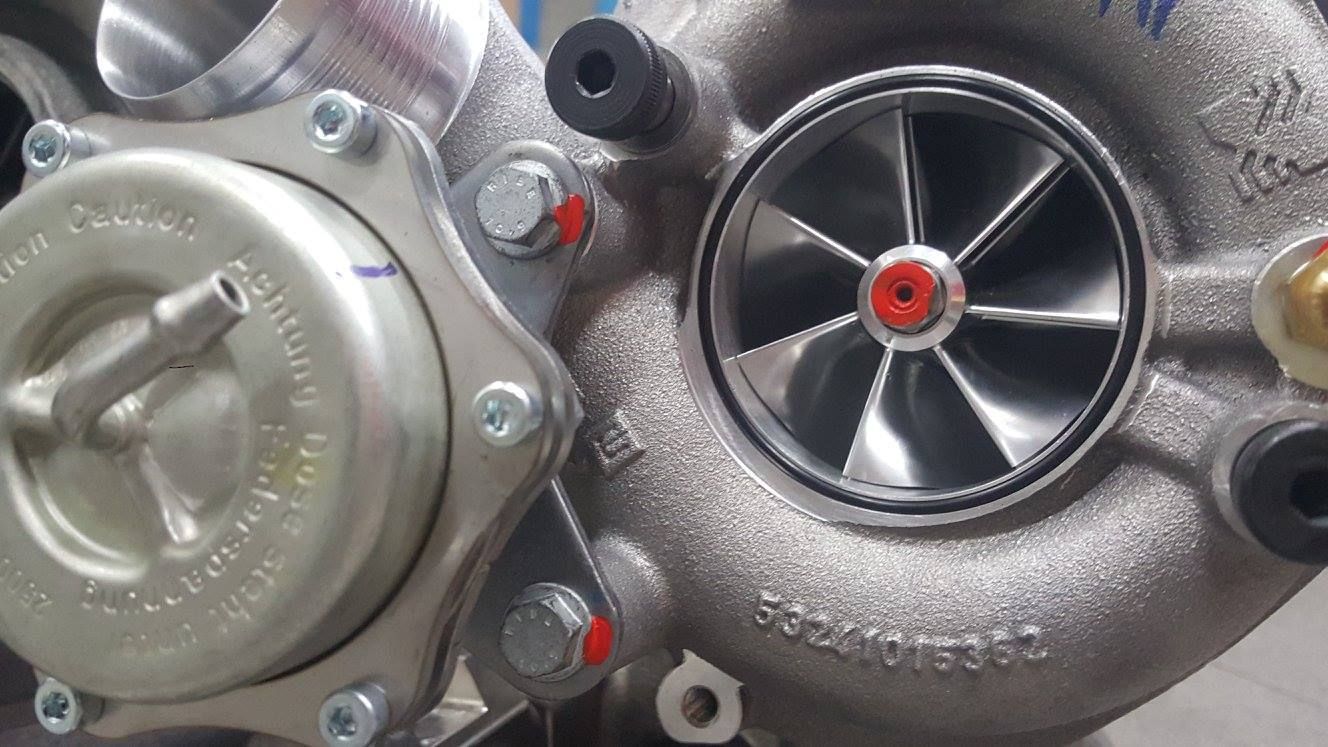

At the core of our TTE500+ is a much larger TTE compressor wheel, chosen because it is highly efficient and creates an extremely high flow for comparative size. Re-Profiled compressor cover to optimised tolerance to ensure maximum compressor efficiency is given.
We CNC mill the exhaust turbine housing to accept a larger 9 Blade turbine and shaft.
Attention is given to CNC port the exhaust runners at the flange to match and smooth the transition from head to exhaust runner for maximum gas speed and so improving efficiency to the bigger turbine.
Special profile 360 deg high-performance motorsport journal bearing is fitted, to remain durable at higher loads with no loss in transient response. The actuator used is uprated sprung OE unit, fitted with our reinforced clamps for trouble-free operation. This also can also be modified to customer needs and specifications.
The intake pipe included with this upgrade has been CNC milled and hand finished to match and smooth the transition to the larger compressor inlet opening to lower turbulence and maximise velocity, this is sealed to the compressor cover by a Viton rubber o-ring for a constant dependable seal.
Equilibrium
Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using our in-house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with serial numbered balance test result document.
Key Points
TTE Billet Highly efficient compressor geometry with a 58mm Inducer
TTE 9 Blade high flow Turbine
Genuine BorgWarner Uprated & reinforced actuator
Genuine BorgWarner Reinforced motorsport bearing system
CNC Optimized and hand finished Intake pipe
Viton O-ring for Intake Sealing
CNC Optimized Compressor Cover Machining Clearances
CNC Port Matched Exhaust Manifold Runners
Plug and Play Installation
Single parts finely balanced then components assembled and core high-speed VSR balanced, supplied with a balance test result document

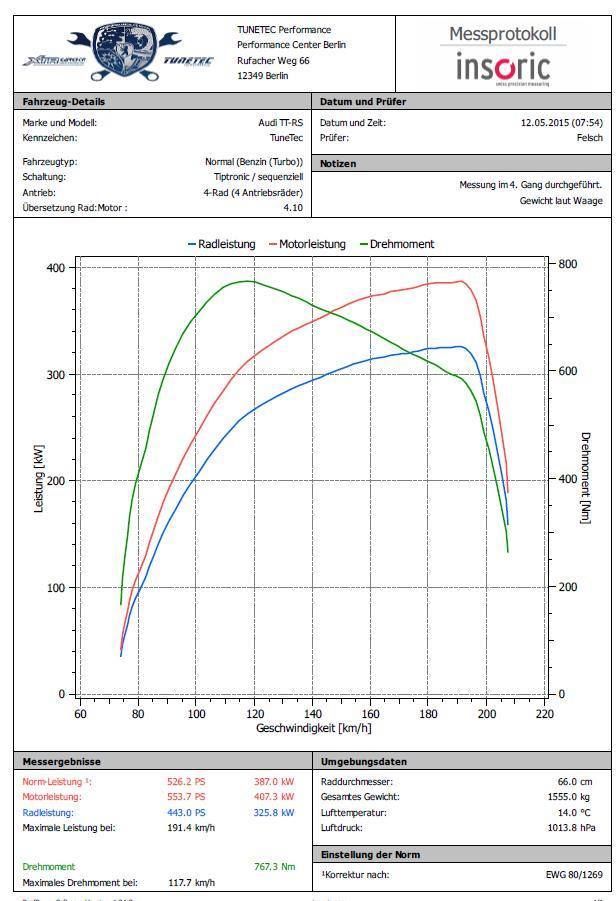

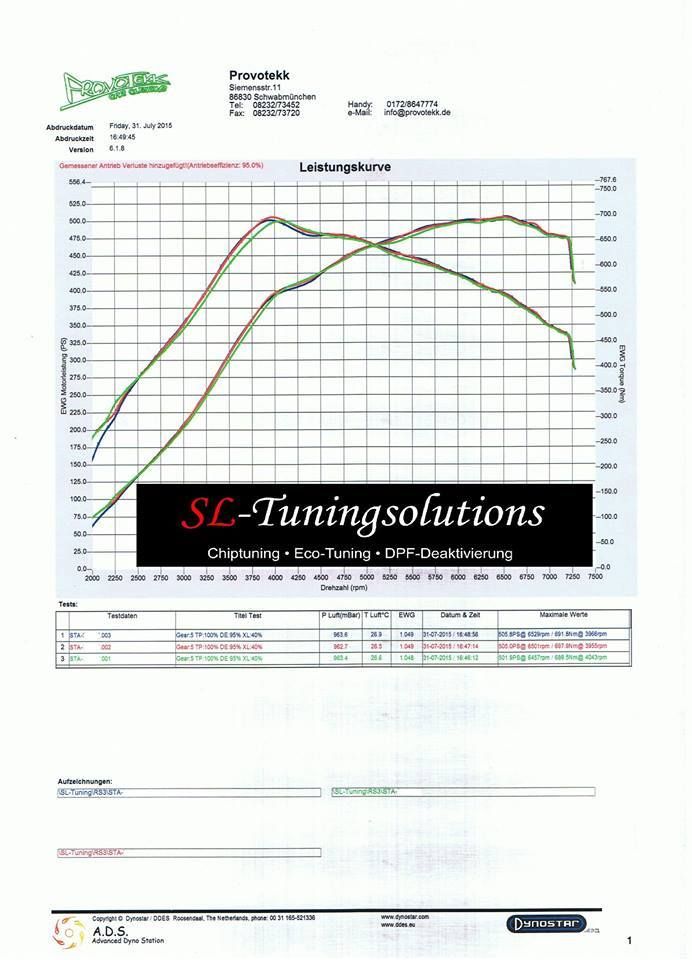

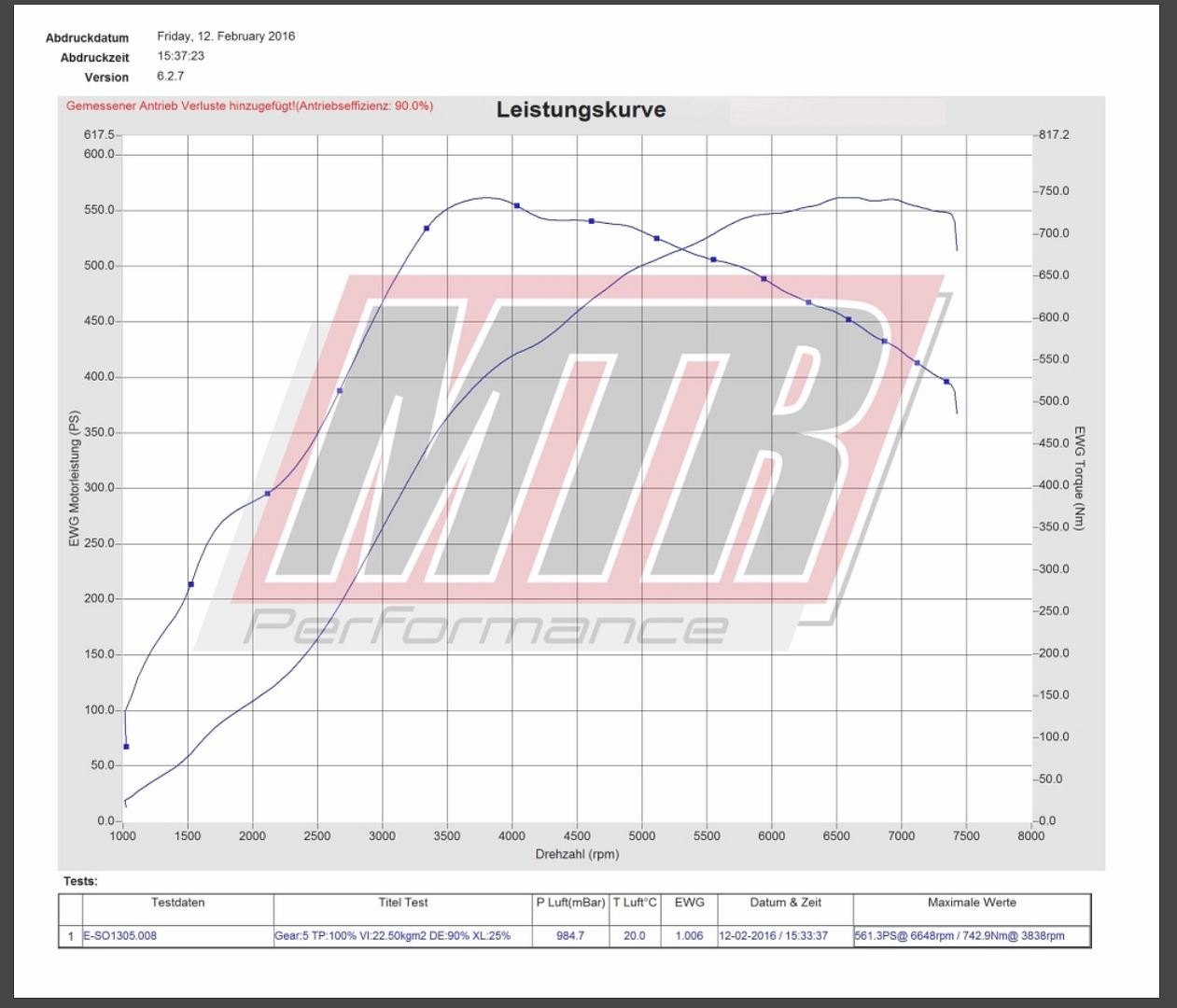

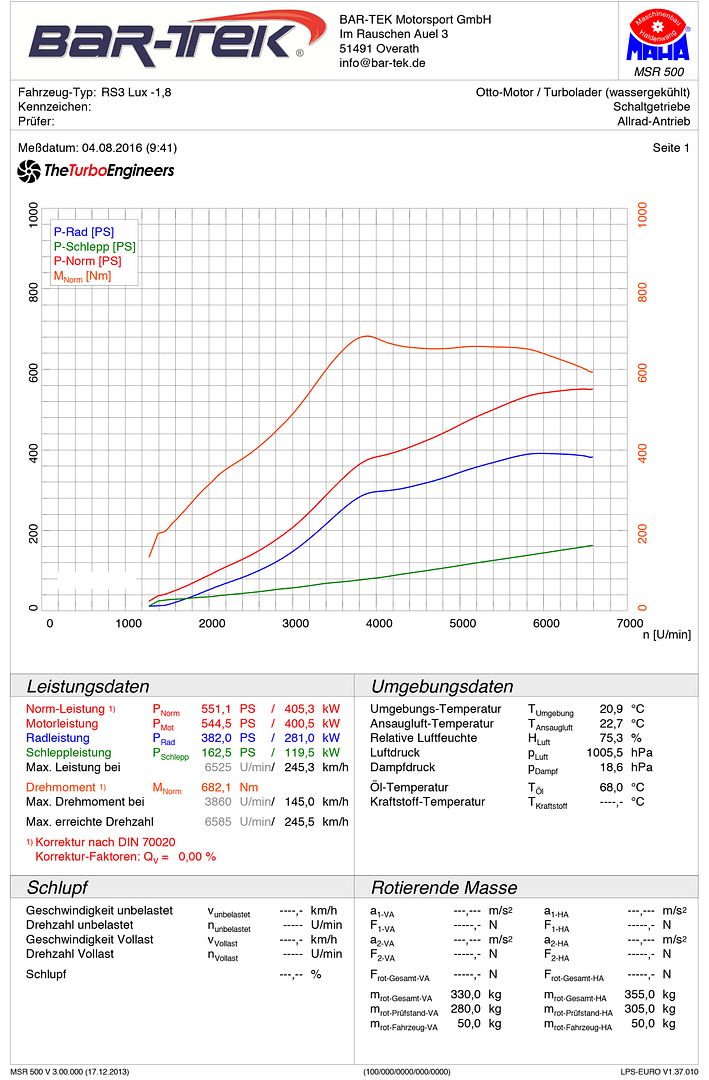

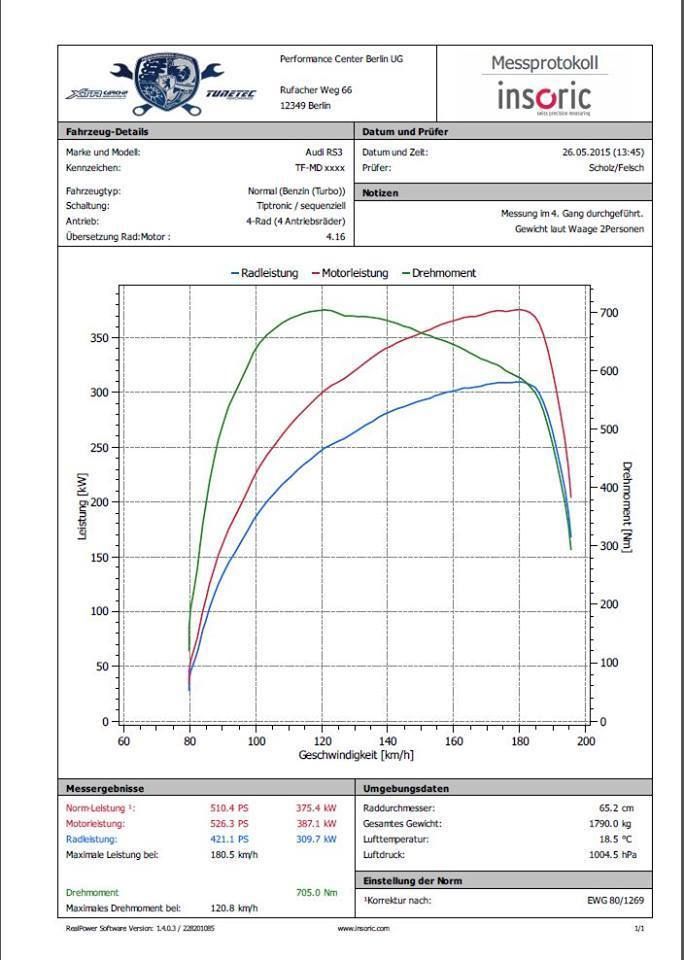

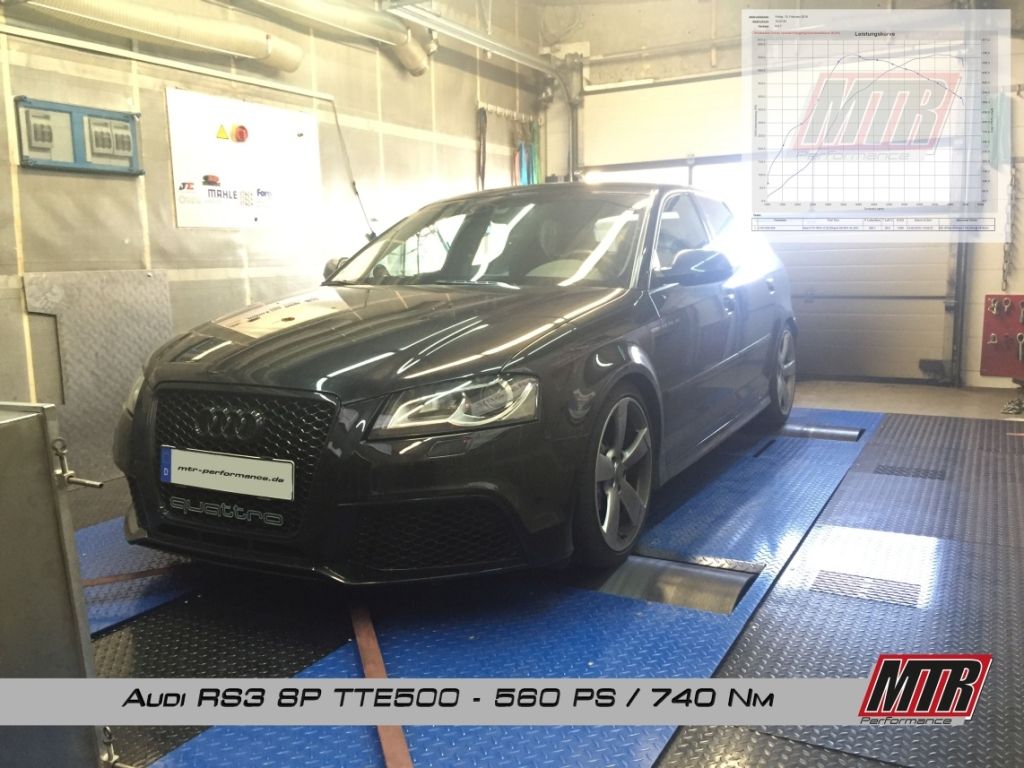

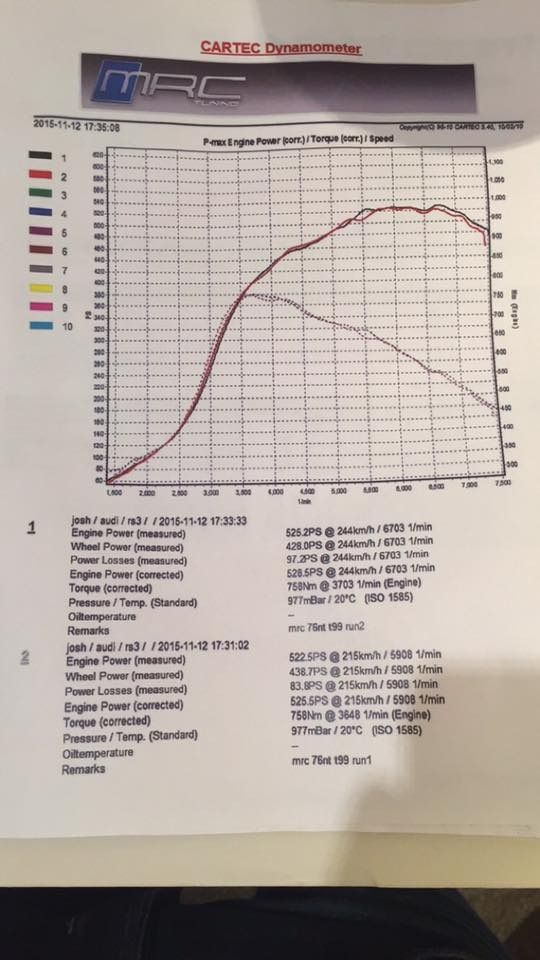

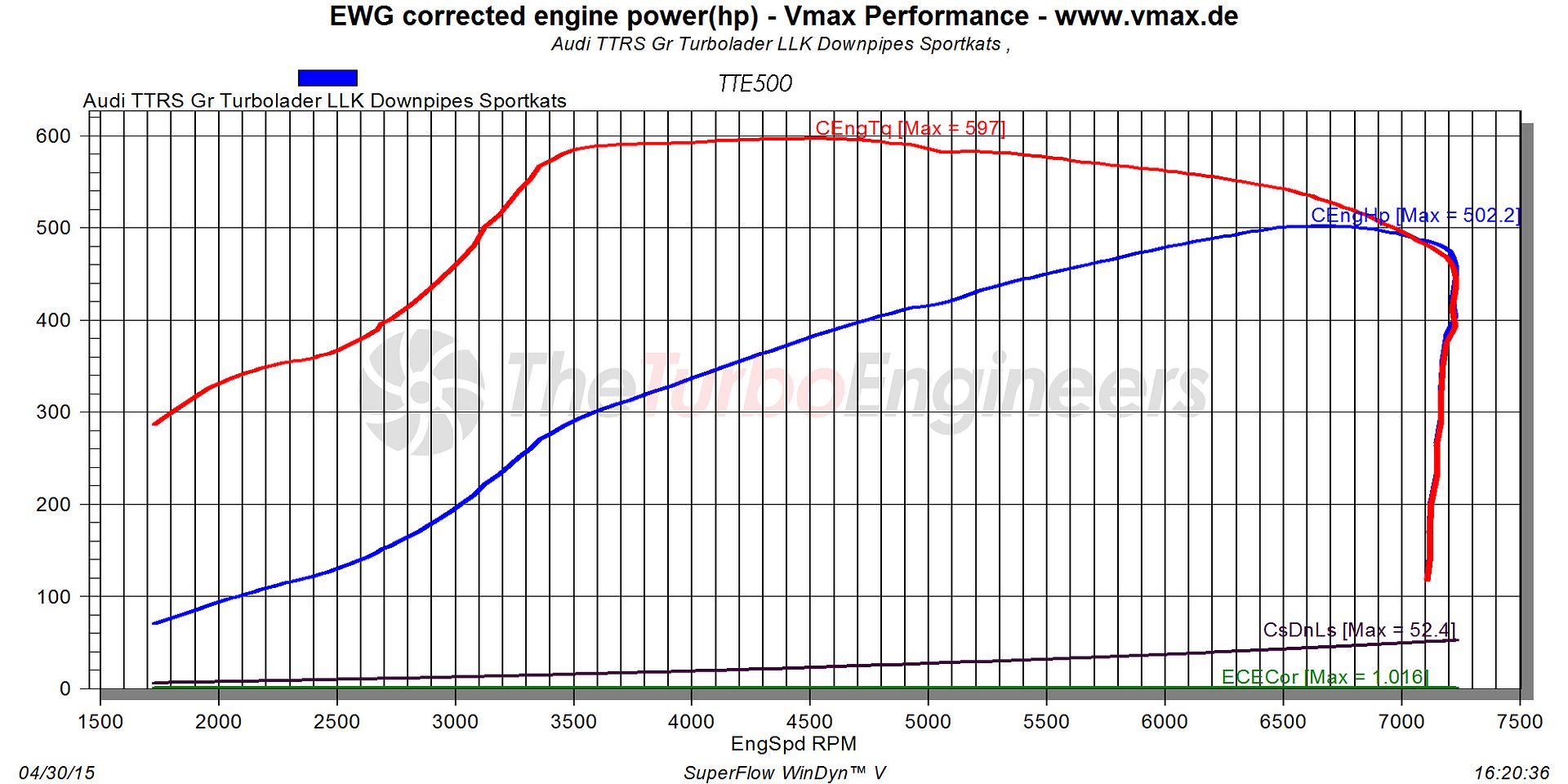

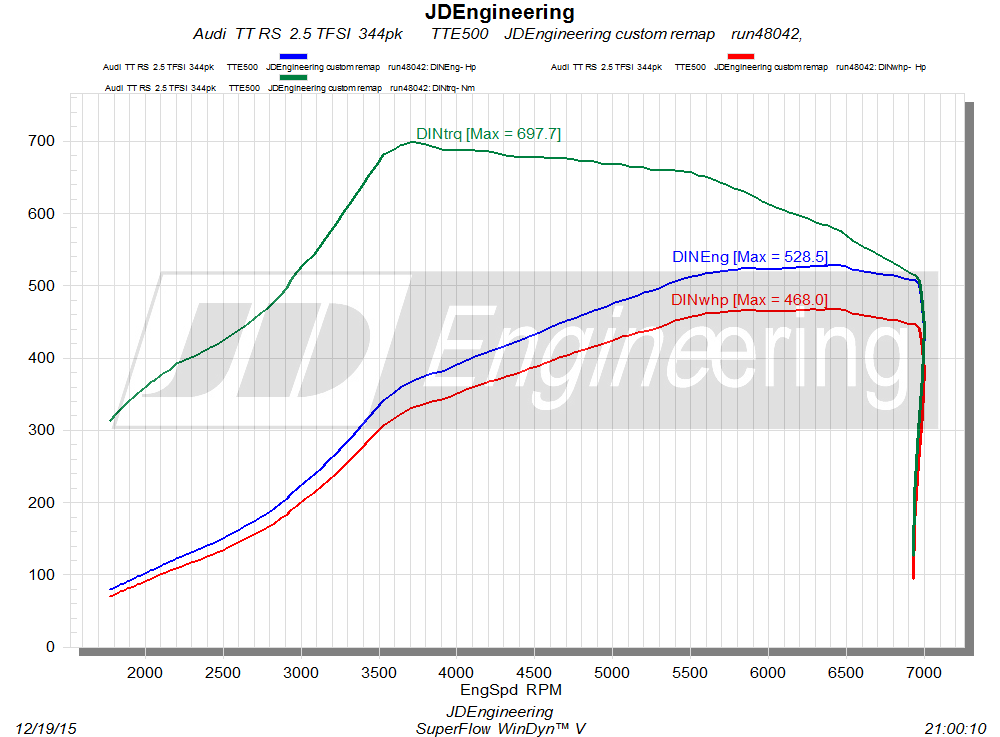

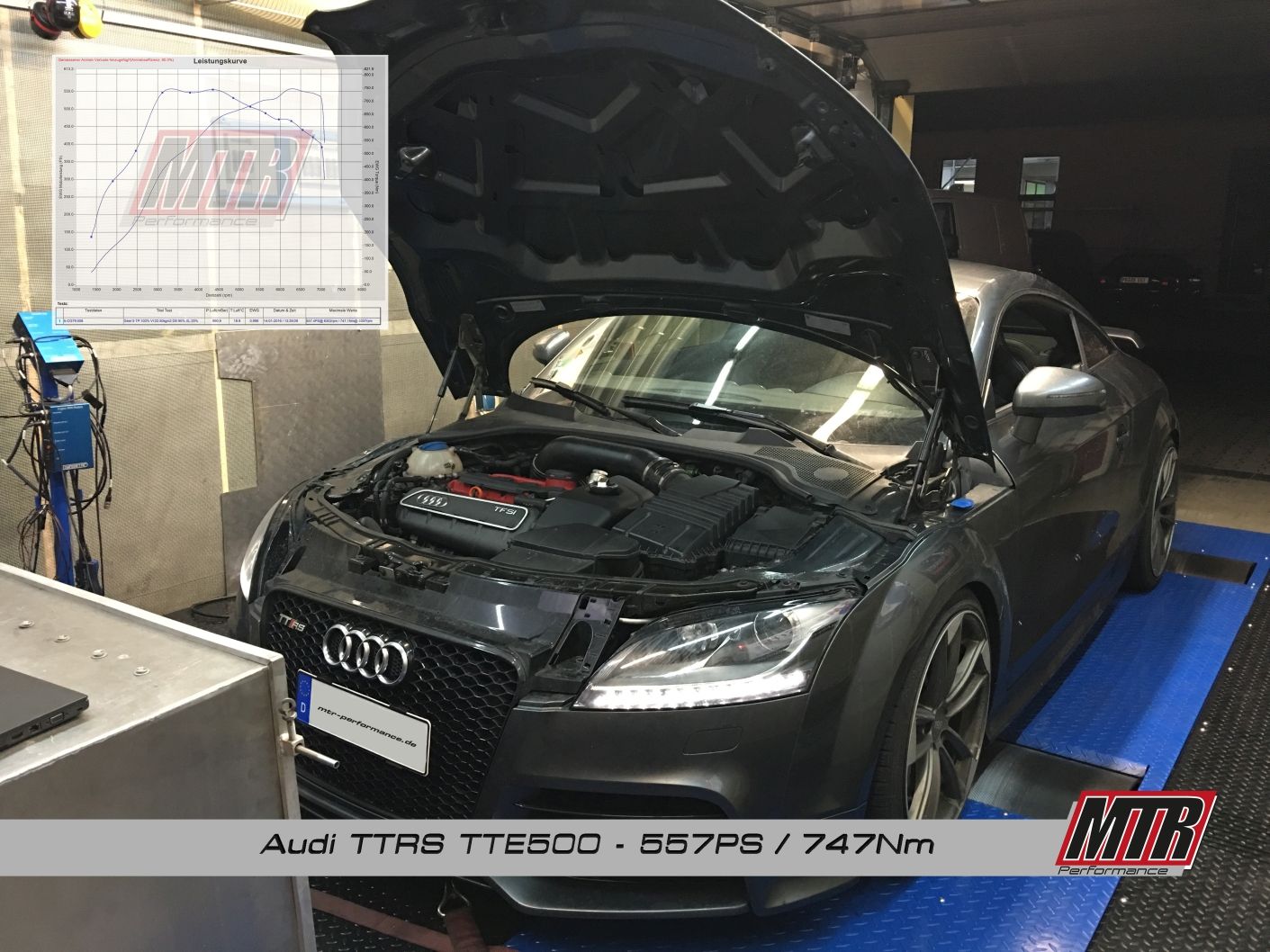

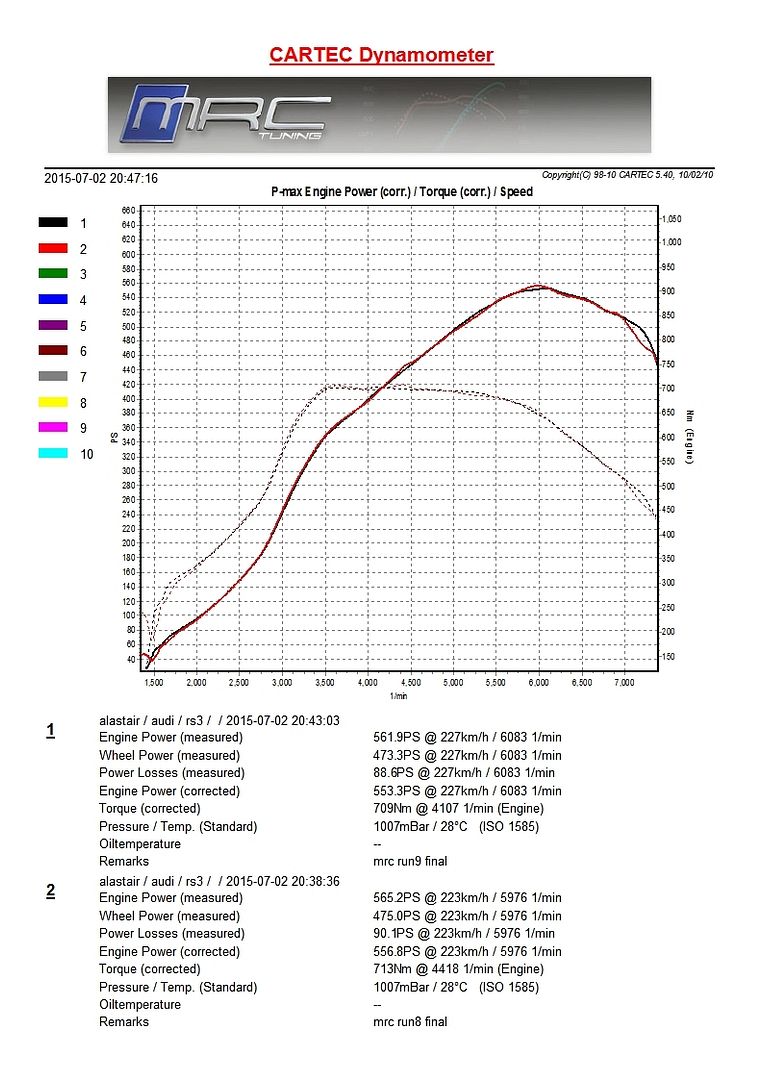

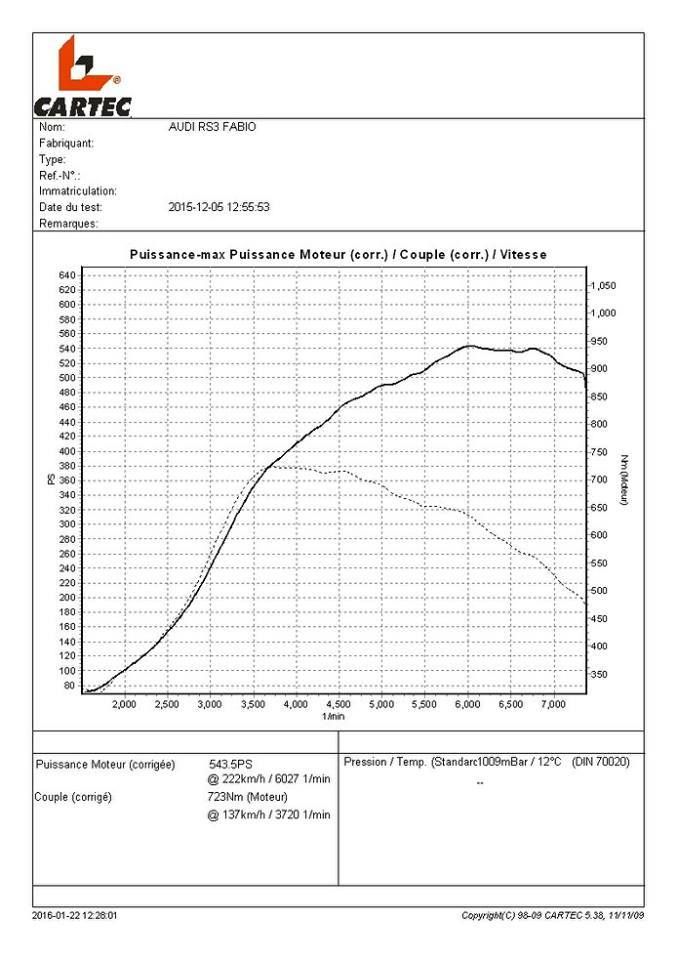

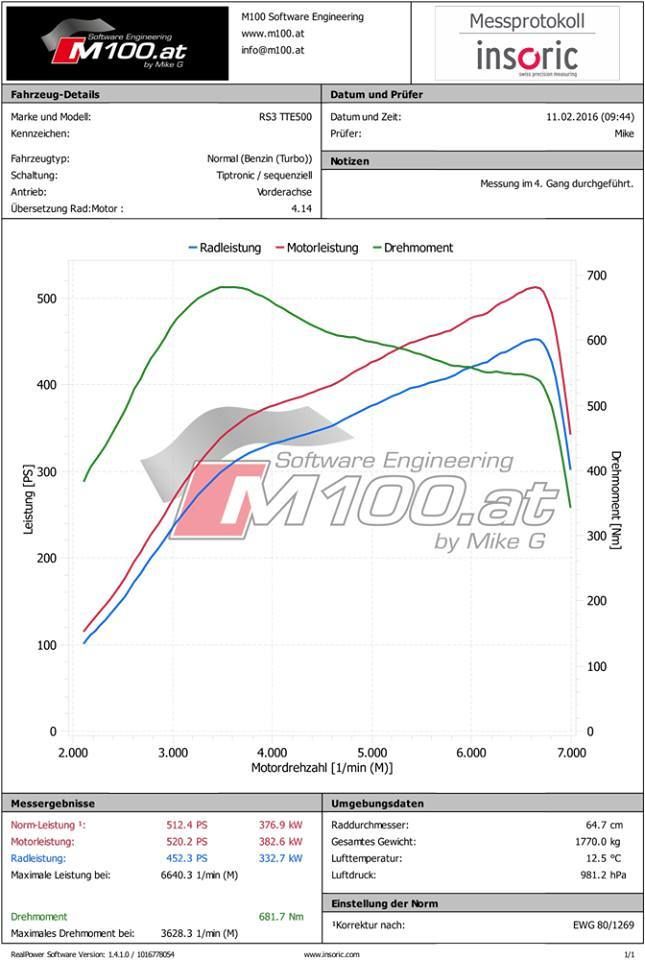

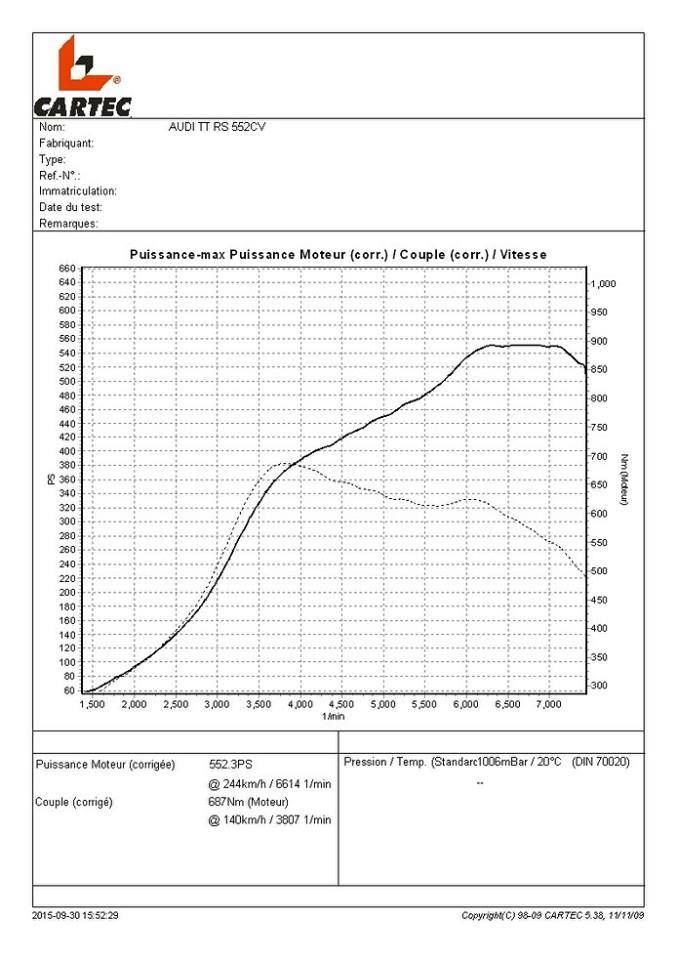

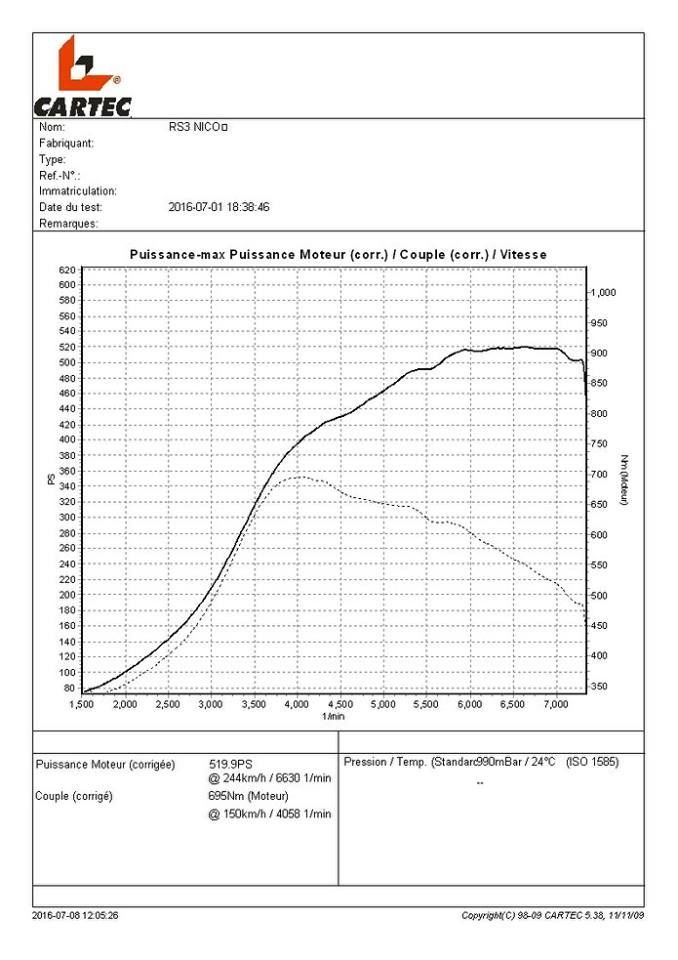

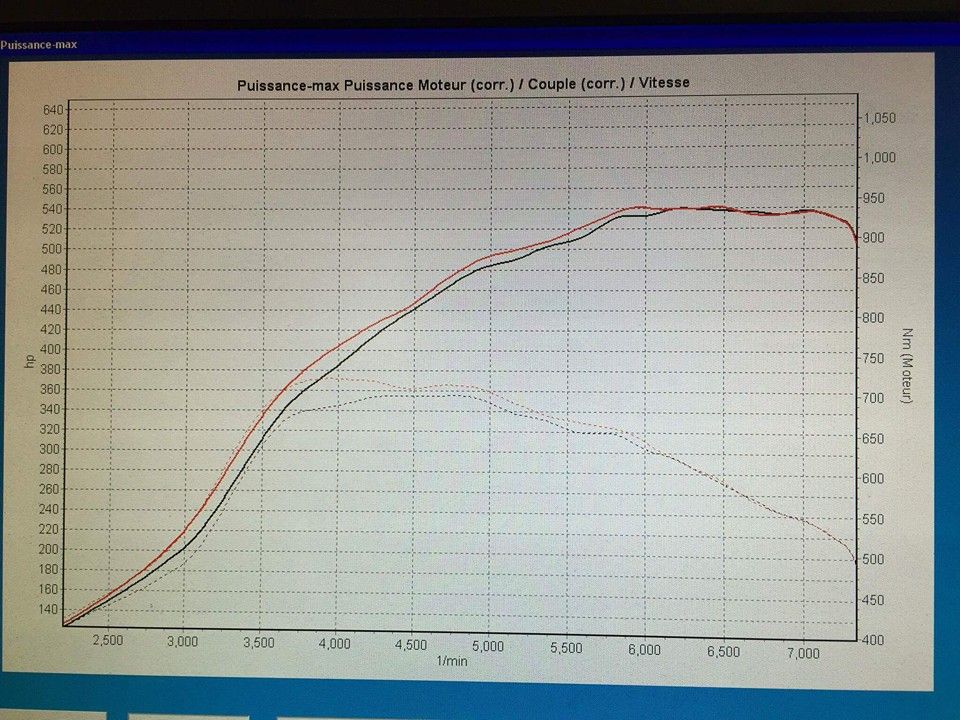

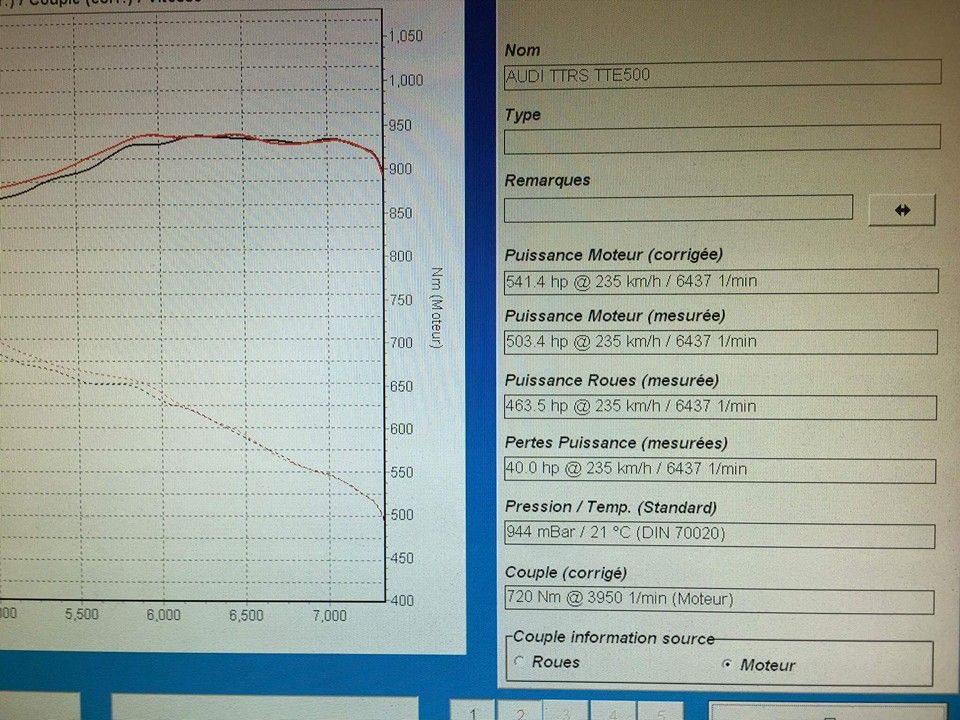

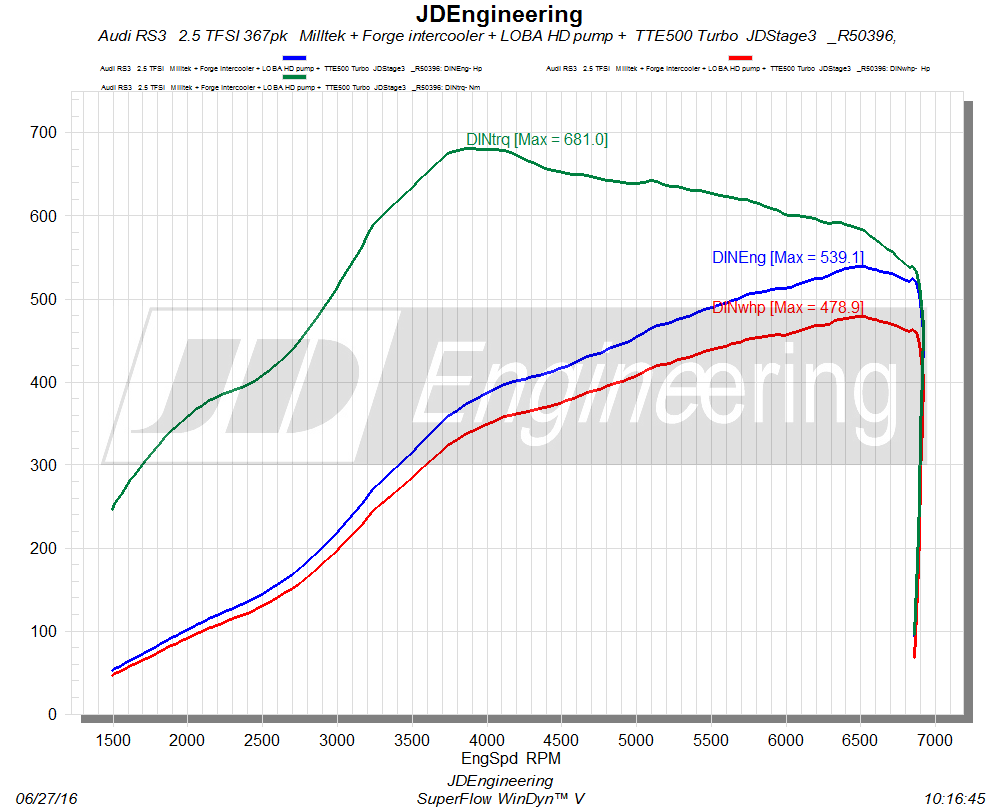

500+PS Capable (proven at over 550PS)
Designed, Machined & Built by TTE in Germany
We can also offer to upgrade used good condition serviceable unit to TTE500 specification.
Pricing :
https://tteglobal.com/audi/rs3/8v.1-2.5-tfsi/28/tte500-upgrade-turbocharger
Top Tip : The original VAG Manifold gasket needs enlarging to match the ports on the turbo.
