My minor modding thread

<tuffty/> Jul 29, 2009

  1. <tuffty/>

    <tuffty/> Badger 5 Edition...Its all about the flow... Staff Member Moderator Audi S3

    22,417
    4,486
    113
    There will be a short interlude of stripping the haldex and diff for internal cleaning first...

    <tuffty/>

  2. Avatar

    Google AdSense Advertisement


  3. JohnDuh

    JohnDuh Active Member

    160
    26
    28
    So she's up on jackstands or did you buy "new" parts?

    Sent from my ONE A2003 using Tapatalk

  4. <tuffty/>

    <tuffty/> Badger 5 Edition...Its all about the flow... Staff Member Moderator Audi S3

    22,417
    4,486
    113
    These are replacements... they will get cleaned up and serviced and I'll replace the whole back end in one go...

    The current 'break not sell' trend makes it little easier and cheaper to allow this to happen :)

    <tuffty/>

  5. Alex C

    Alex C Well-Known Member VCDS Map User Audi S3

    3,364
    390
    83
    how's the rear subframe; just surface rust?

  6. <tuffty/>

    <tuffty/> Badger 5 Edition...Its all about the flow... Staff Member Moderator Audi S3

    22,417
    4,486
    113
    Bit manky to be honest so will evaluate mine when I take the diff out and most likely just wirebrush and brush paint mine on the car as I don't fancy the idea of having to realign the subframe at this time...

    <tuffty/>

  7. <tuffty/>

    <tuffty/> Badger 5 Edition...Its all about the flow... Staff Member Moderator Audi S3

    22,417
    4,486
    113

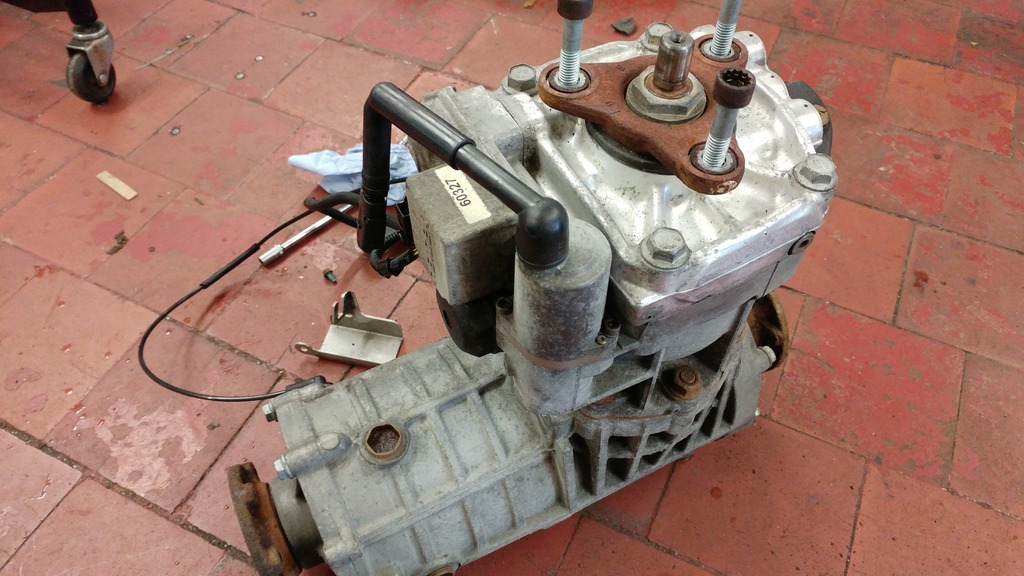

    So today I mostly took the replacement diff apart to inspect and clean

    [​IMG]

    Pulled out the diff first...
    [​IMG]

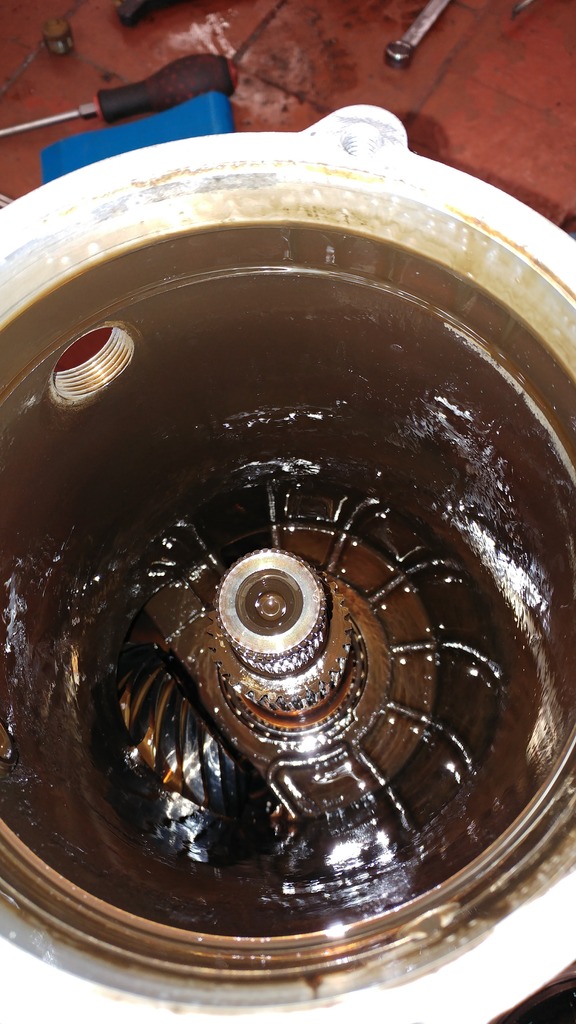

    Inside just needs a clean, no obvious debris or wear..
    [​IMG]

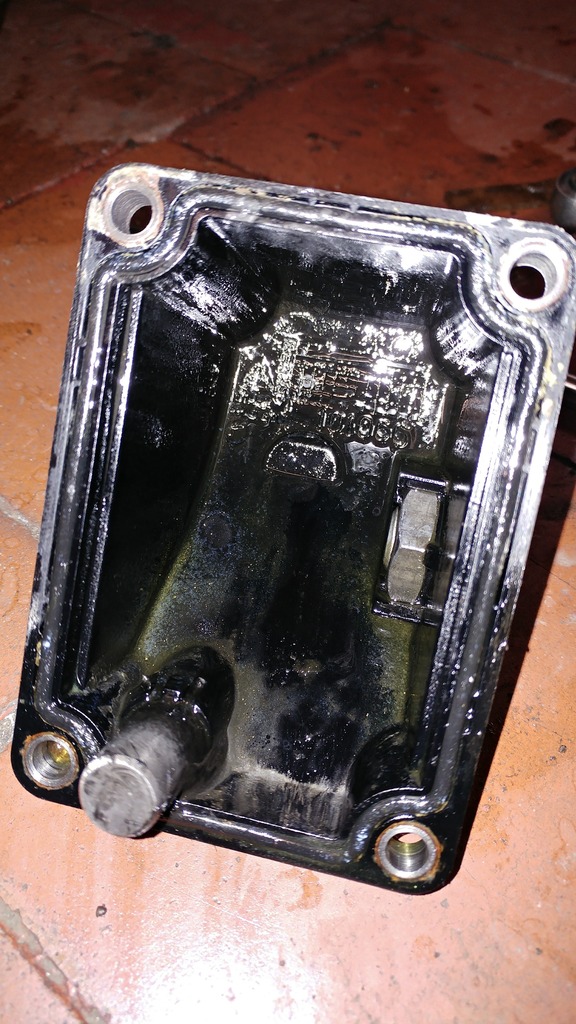

    Stripped the haldex... the housing opposite the controller appears to be a 'sump'... was a bit of debris on the swarf magnet and the oil had a tinge of gold metallic from the clutch friction plates
    [​IMG]

    [​IMG]

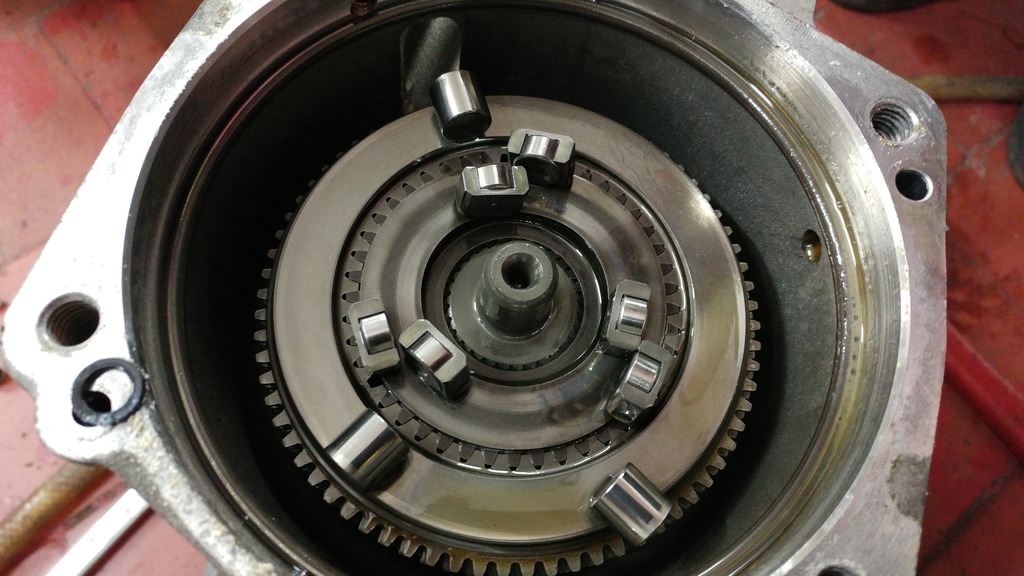

    Removed the front of the haldex clutch unit... all the rollers fell out :(
    [​IMG]

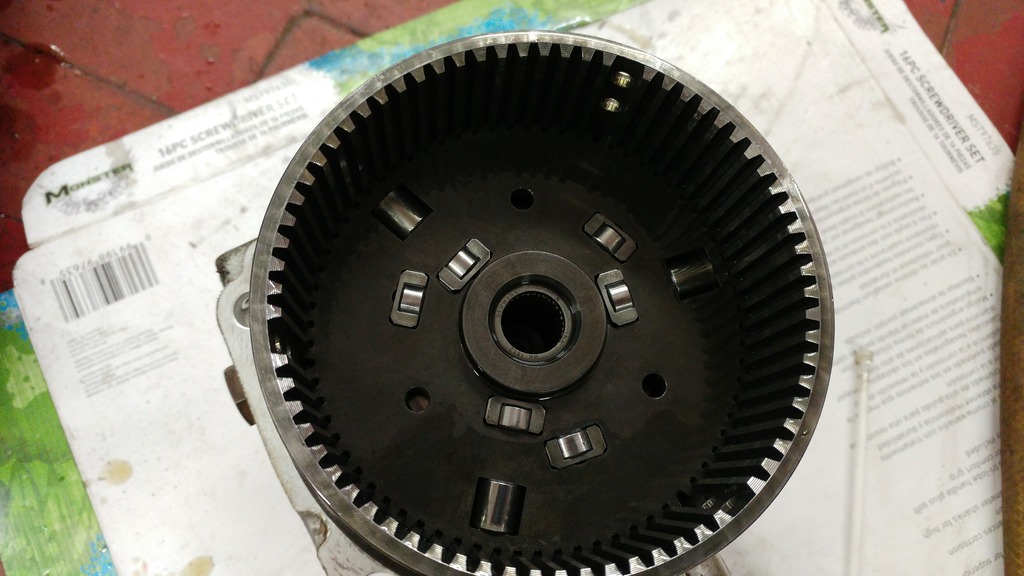

    ..so popped them back in... luckily they fell out in the right order...
    [​IMG]

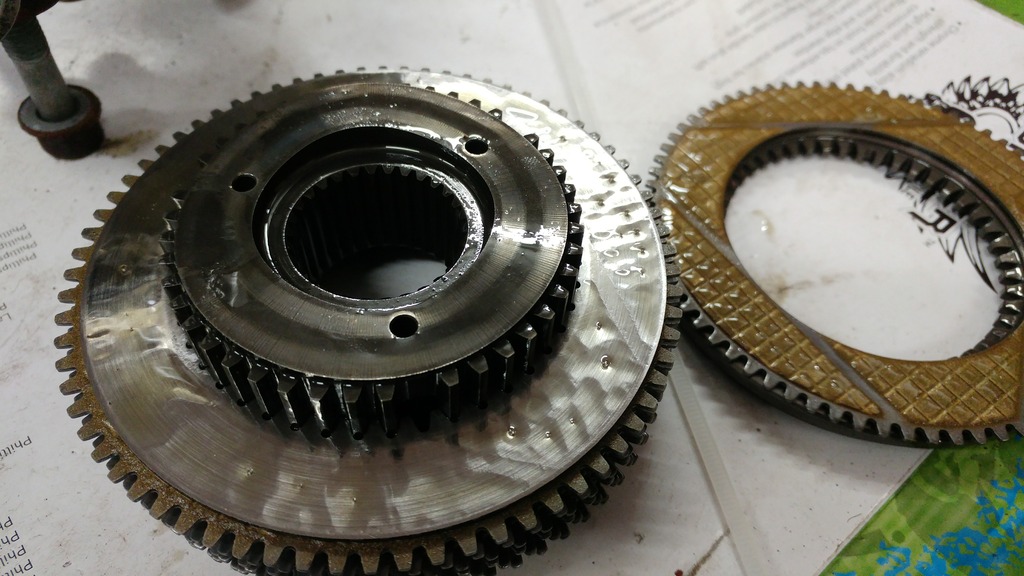

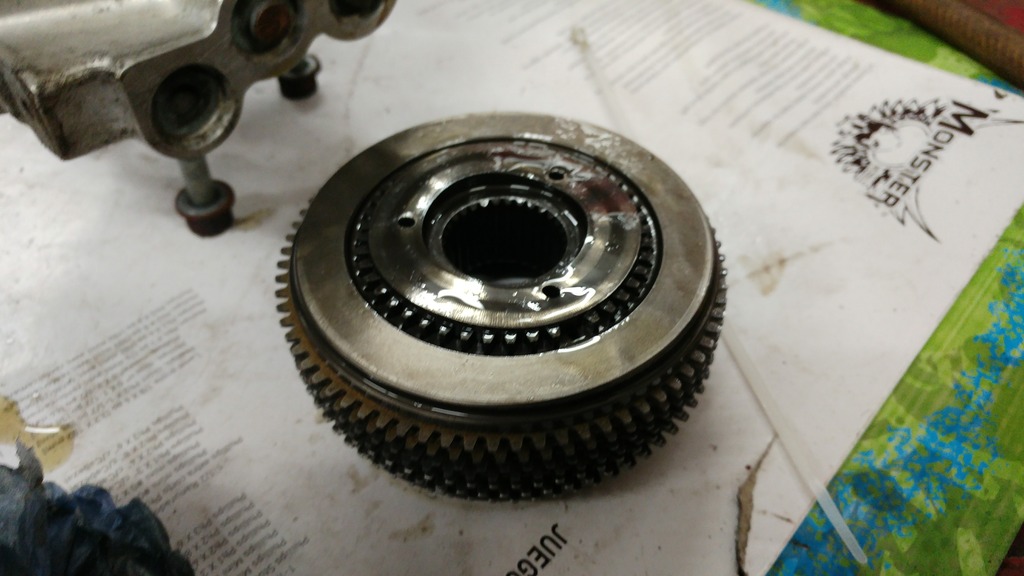

    Removed the clutch pack to check wear...
    [​IMG]

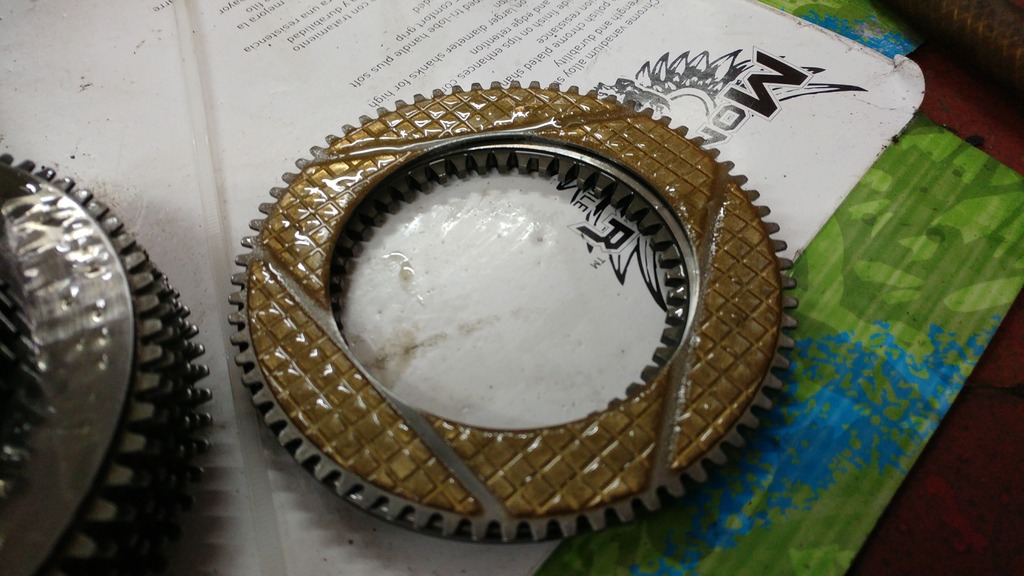

    Haldex is a multiplate wet clutch system and is a mix of plain and cerametallic friction plates..
    [​IMG]

    [​IMG]

    Cleaned out the clutch housing...
    [​IMG]

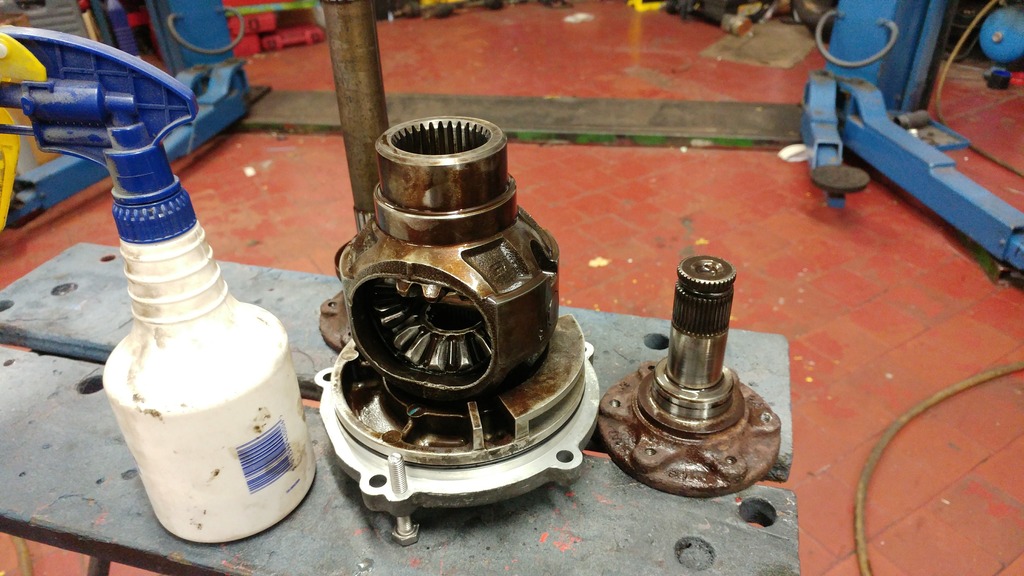

    Cleaned the diff too...
    [​IMG]

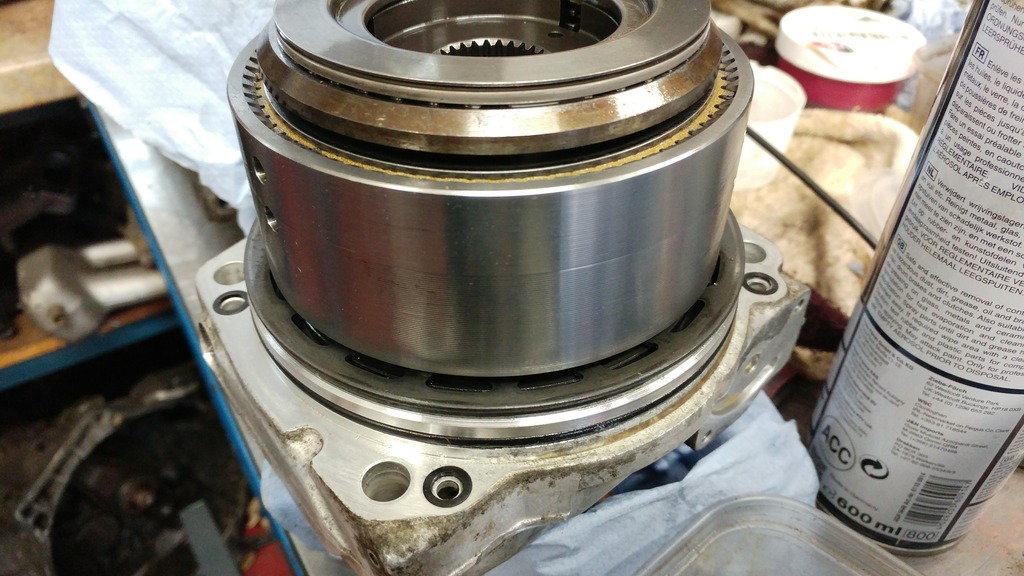

    ...and put the haldex back together...
    [​IMG]

    Bit more cleaning to do and still waiting on the controller and doughnut... then I can paint it!! :D

    <tuffty/>

    Jay 01 s3, tomjol and IanPG like this.
  8. Stuart B

    Stuart B Well-Known Member

    2,586
    520
    113
    did you fill the haldex up whilst on the bench, or is that ill-advised?

    I'm loving the calmness of the rollers falling out, but still managing to take a photo. :)

  9. <tuffty/>

    <tuffty/> Badger 5 Edition...Its all about the flow... Staff Member Moderator Audi S3

    22,417
    4,486
    113
    Not filled anything as yet... still needs a final clean and paint first ;)

    <tuffty/>

  10. basil brush

    basil brush Active Member

    557
    187
    43
    Paul , this is on my list to do as mine is dragging only when it's cold ( ok once warmed up !!!!)
    I'm going to buy a 8N TT one , are all seals re useable or are there paper gaskets involved ?

  11. <tuffty/>

    <tuffty/> Badger 5 Edition...Its all about the flow... Staff Member Moderator Audi S3

    22,417
    4,486
    113
    They are o-rings... personally I wouldn't reuse them and have just spent some 60 quid on new o-rings, bungs and seals...

    I'll post up a list of part numbers once they arrive

    <tuffty/>

    Sam_ likes this.
  12. Avatar

    Google AdSense Advertisement


  13. basil brush

    basil brush Active Member

    557
    187
    43
    Ideal , thank you :)
    Nice to know , I won't be in a hurry as like you I'll be bench building it aand fitting it once I'm 100% happy with it :D

  14. <tuffty/>

    <tuffty/> Badger 5 Edition...Its all about the flow... Staff Member Moderator Audi S3

    22,417
    4,486
    113
    basil brush and S3Alex like this.
  15. Prawn

    Prawn My other car is a MINI!!!!

    11,848
    4,024
    113
    Excellent work pt! It wouldn't be you without the cleaning and painting!

    Hope it's all back to its full health when I come up in 10 days time :)

    <tuffty/> likes this.
  16. <tuffty/>

    <tuffty/> Badger 5 Edition...Its all about the flow... Staff Member Moderator Audi S3

    22,417
    4,486
    113
    Took the haldex apart again as decided I couldn't reuse the o-rings again...

    There are four o-rings, one big one for the unit and three small ones for oilways...
    [​IMG]

    Using this link to sort out part numbers I order the seals plus some other parts I needed
    http://audi.7zap.com/en/rdw/audi+a3+s3+sportb+lim+qu/a3/2002-209/5/525-525015/

    The three seals in the pic above aren't shown on the diagram but are 02D525349

    This is the list of parts I ordered but this also includes an o-ring for the diff end cap and a diff fill plug as the one on this diff is a little corroded
    [​IMG]


    Will have to wait now until next week for the parts to arrive but not expecting the controller and doughnut till then anyway sooooooo....

    [​IMG]

    ...I painted stuff :D

    <tuffty/>

  17. <tuffty/>

    <tuffty/> Badger 5 Edition...Its all about the flow... Staff Member Moderator Audi S3

    22,417
    4,486
    113

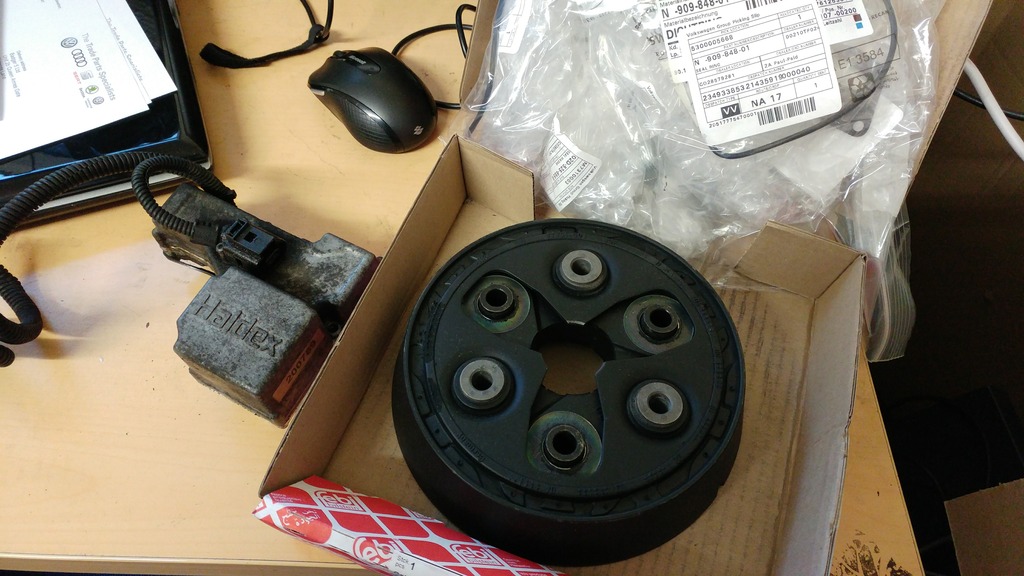

    Moar Partz!...

    [​IMG]

    <tuffty/>

  18. Those doughnuts ain't cheap!

  19. superkarl

    superkarl MAN OF STEEL

    9,752
    2,538
    113
    Why the need for the dognut?

  20. <tuffty/>

    <tuffty/> Badger 5 Edition...Its all about the flow... Staff Member Moderator Audi S3

    22,417
    4,486
    113
    You met me right? ;)

    <tuffty/>

  21. superkarl

    superkarl MAN OF STEEL

    9,752
    2,538
    113
    Haha yeh but there is always a logical reason, just wondering if you've noticed wear or anything that could be detrimental. I've never ever considered that part before


    Sent from my iPhone using Tapatalk

  22. <tuffty/>

    <tuffty/> Badger 5 Edition...Its all about the flow... Staff Member Moderator Audi S3

    22,417
    4,486
    113
    Have seen a couple go... tbh I am clutching at straws a little with what may actually be wrong as I can't drive the car at anything over 10-15mph without it shaking to bits and while I have jack the car up and had a look its difficult to see whats wrong as there is nothing obviously hanging off anywhere so ideally I need to get her up in the air at Bills on the two poster and leave it running to listen and observe..

    I was always going to refurb the drivetrain so this is all part of that... I will also replace the front one too when I come to swap the gearboxes over...

    Just drove the car down the road again as the noise seemed to have gone when parking her up last week but no... its still there so will have to organise getting her recovered to Bills when he has space and a ramp free to have a look...

    I wouldn't care if she would drive with the haldex powered off but there is a rotational knocking noise now and that could be anything... rather than do more damage I would rather leave her locked away until I can arrange to spend time with her at Bills...

    <tuffty/>

  23. Stuart B

    Stuart B Well-Known Member

    2,586
    520
    113
    Are you going to keep your old haldex for spares or do the same service with your old one and recycle? I am not after it, just wondering if you hoard the stuff as if I read the thread right - it doesn't seem to have been the problem?

    I assume it cant be anything to do with the suspension you changed a few weeks before.

    A question about the fuse 31 / haldex - does that simply stop the clutch engaging? - is it possible to run an S3 with the haldex and diff etc fitted but without the propshaft installed?

  24. <tuffty/>

    <tuffty/> Badger 5 Edition...Its all about the flow... Staff Member Moderator Audi S3

    22,417
    4,486
    113
    Old diff/haldex will be stripped to see if there is anything salvageable from it... it will most likely then be left out for scrap...

    I still have no idea what the actual problem is... even if it turns out that the haldex/diff is ok I will most likely scrap it as it be too cost prohibitive to put back together and sell on considering I would prefer to replace all the seals..

    I doubt it is anything to do with the suspension work but I am not discounting anything until I have got to the bottom of it...

    Pulling fuse 31 cuts power to the haldex controller and pre-charge pump... as for running it on the road without a prop... this will be much the same as running on a 2wd dyno with the fuse pulled or being towed with front wheels off the ground... sustained drive like this will overheat the haldex oil and damage the clutch pack as one side of the haldex will be turning while the other isn't (or as much)...

    You can run haldex cars on 2wd dynos for a short period of time as by design there is expectation for speed differential between prop connected and diff connected plates... this is how it acts as a centre diff when in normal operation and not engaged... but if this was sustained then the haldex would over heat, kill the oils lubrication properties and cause excessive wear to the clutch plates...

    <tuffty/>

    snowy and superkarl like this.
  25. Stuart B

    Stuart B Well-Known Member

    2,586
    520
    113
    could the propshaft be bent?

  26. <tuffty/>

    <tuffty/> Badger 5 Edition...Its all about the flow... Staff Member Moderator Audi S3

    22,417
    4,486
    113
    Very very unlikely...

    <tuffty/>

  27. sparrow

    sparrow Active Member

    180
    83
    28
    If you have a spare Haldex controller and unit lying around, I'd like to have a play with one

  28. <tuffty/>

    <tuffty/> Badger 5 Edition...Its all about the flow... Staff Member Moderator Audi S3

    22,417
    4,486
    113
    I'm sure I can sort something out dude

    <tuffty/>

    sparrow likes this.
  29. Andrew@A.L.D

    Andrew@A.L.D May add NOS to 600+bhp S3.

    3,882
    617
    113
    Will the Haldex controller be painted blue and put on eBay for £800?

  30. Sam_

    Sam_ Down under

    3,044
    492
    83
    Orange for £850 ;)

  31. <tuffty/>

    <tuffty/> Badger 5 Edition...Its all about the flow... Staff Member Moderator Audi S3

    22,417
    4,486
    113
    I have two spare... could do both colours :)

    So... today some boy racer turned up...

    [​IMG]

    [​IMG]

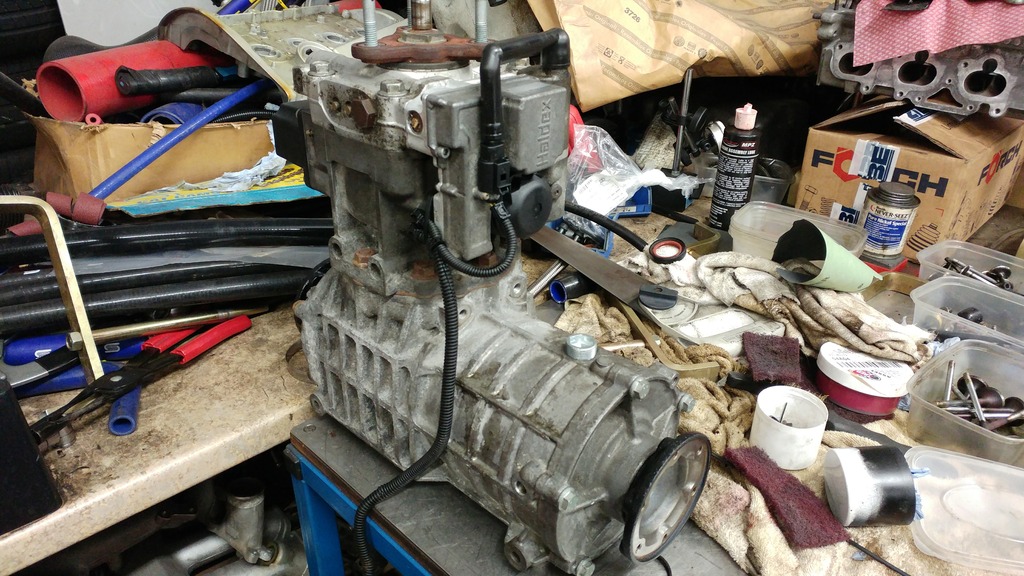

    ...and I used my expensive array of o-rings and seals to put the rear diff back together...
    [​IMG]

    [​IMG]

    Just need to sort getting the car down to Bills and then paint the diff ready for replacing... I will do this regardless of if I find another issue or turns out not to be the problem...

    <tuffty/>

  32. Rainbird

    Rainbird Active Member

    339
    197
    43
    I know I'm one to talk, as @Prawn well knows, but is that a somewhat hairless patch spreading or just the light? :p

  33. Avatar

    Google AdSense Advertisement


  34. <tuffty/>

    <tuffty/> Badger 5 Edition...Its all about the flow... Staff Member Moderator Audi S3

    22,417
    4,486
    113
    I didn't use flash so it's definitely not a light issue ;)

    <tuffty/>

    Rainbird likes this.
  35. scotty_24

    scotty_24 Well-Known Member

    1,122
    300
    83
    I had a full head of hair.
    Then I bought a S3 8L.

    A few nervous breakdowns later, my sun roof is expanding like Nicks too ha ha

  36. <tuffty/>

    <tuffty/> Badger 5 Edition...Its all about the flow... Staff Member Moderator Audi S3

    22,417
    4,486
    113
    Happens to the best of us :)

    <tuffty/>

    scotty_24 likes this.
  37. Prawn

    Prawn My other car is a MINI!!!!

    11,848
    4,024
    113
    So THAT'S why you're always wearing a hat !?

    scotty_24 likes this.
  38. scotty_24

    scotty_24 Well-Known Member

    1,122
    300
    83
    I had flowing ginger locks until Feb 2011 and I bought this blasted car ha ha !
    Buying a house has finished it off.


    Good progress in all areas though lads! Mines now has a new role of a new shelf in the garage to put things on, but manifold swop is penciled in for a fortnights time!

  39. <tuffty/>

    <tuffty/> Badger 5 Edition...Its all about the flow... Staff Member Moderator Audi S3

    22,417
    4,486
    113
    So this morning... this happened!!..
    [​IMG]

    Huge shout out to Bill for trailering the old girl to the unit...

    Got her up on a ramp, let her run in 5th on idle.... and this was the result...



    So... appears the centre bearing is f00ked... I suspect thats the root of all the issues at this time so not really the diff at all but... as I have said before a drive train refurb was always planned and the parts for the diff was cheap enough not to worry about so no real drama...

    Plan now is to remove the heat shield and have a look at exactly whats gone... it could still be either the CV or centre bearing... could even be both but I will price up for both and most likely replace both anyway..

    Will post pics up later once I have had a look

    <tuffty/>

  40. The Chippy

    The Chippy Member

    41
    3
    8
    I can see why the car would feel like its shaking to ****!!!! That's quite a mass wobbling about there!!

  41. <tuffty/>

    <tuffty/> Badger 5 Edition...Its all about the flow... Staff Member Moderator Audi S3

    22,417
    4,486
    113

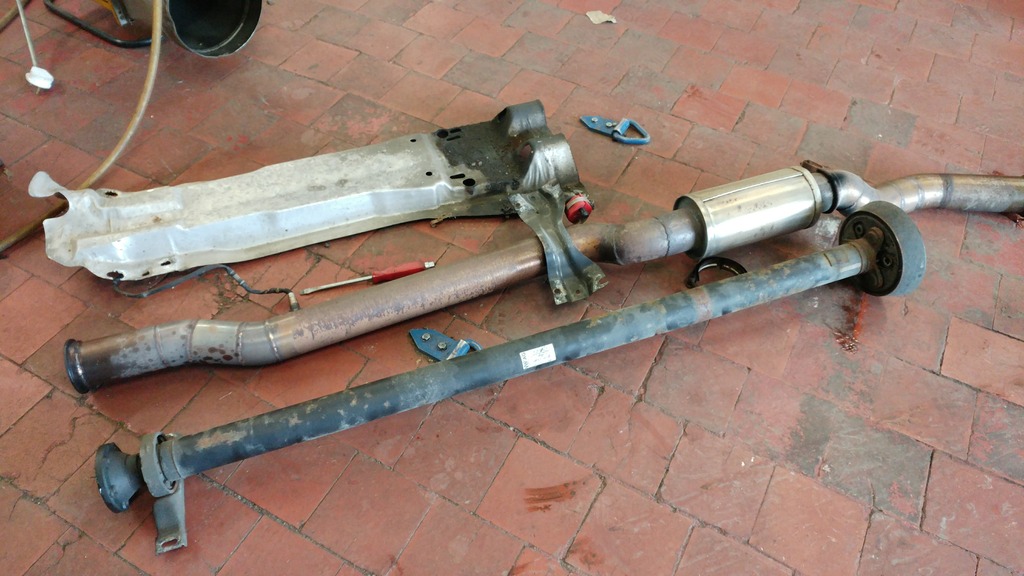

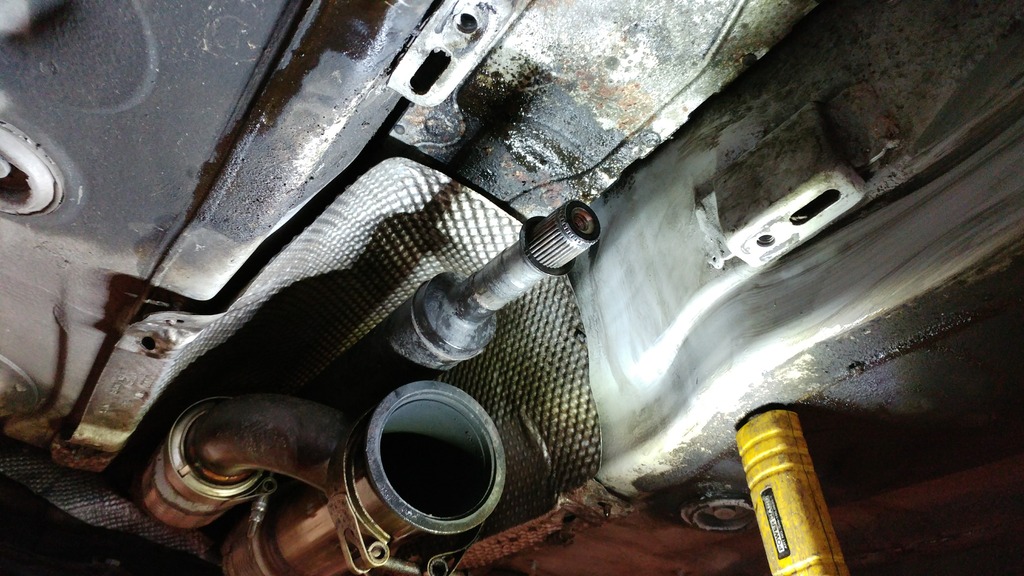

    Removed some stuff...
    [​IMG]

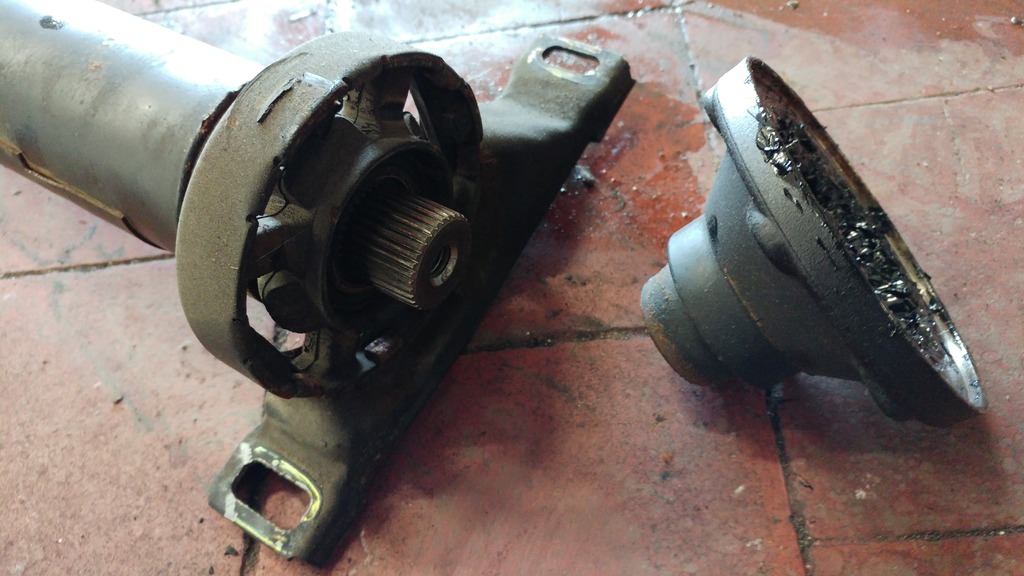

    Centre bearing is a nasty looking voided thing but was in one piece at least but with all the heatshielding out the way it was fairly evident that the centre CV wasn't in a happy place...

    On inspection it was then clearly evident it wasn't in a happy place!!
    [​IMG]

    [​IMG]

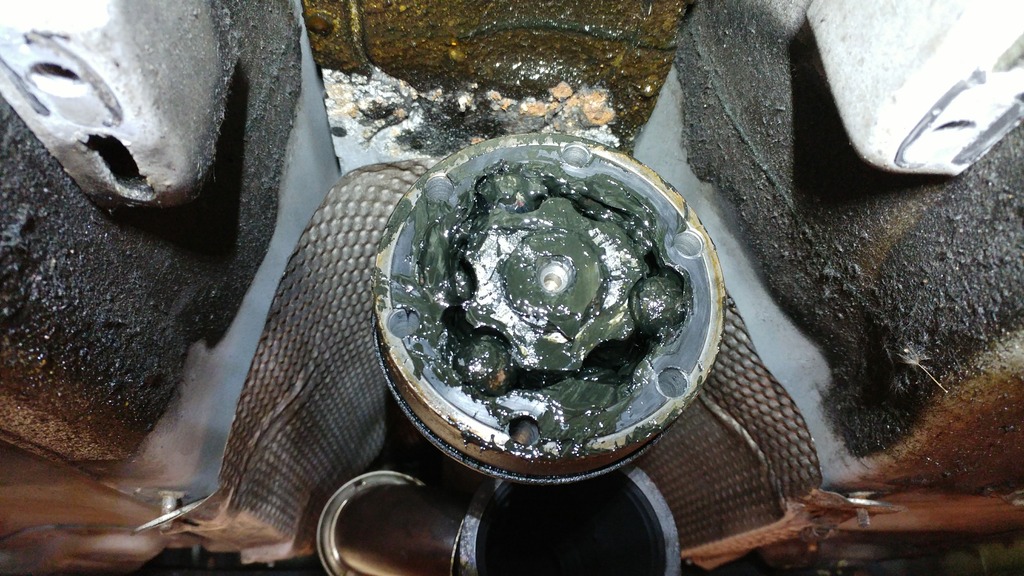

    Quick dose of brake cleaner later and...
    [​IMG]

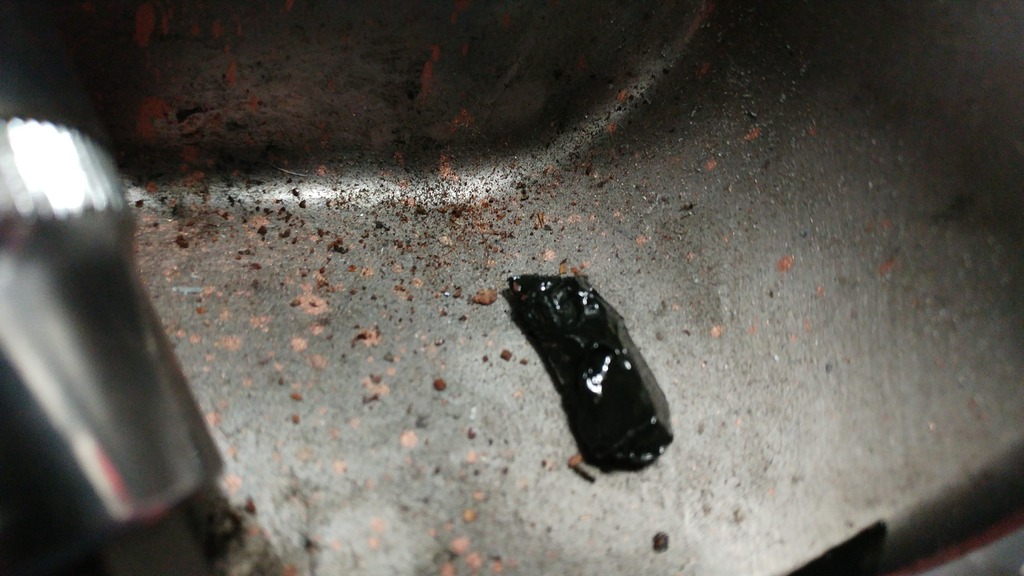

    Ah!...

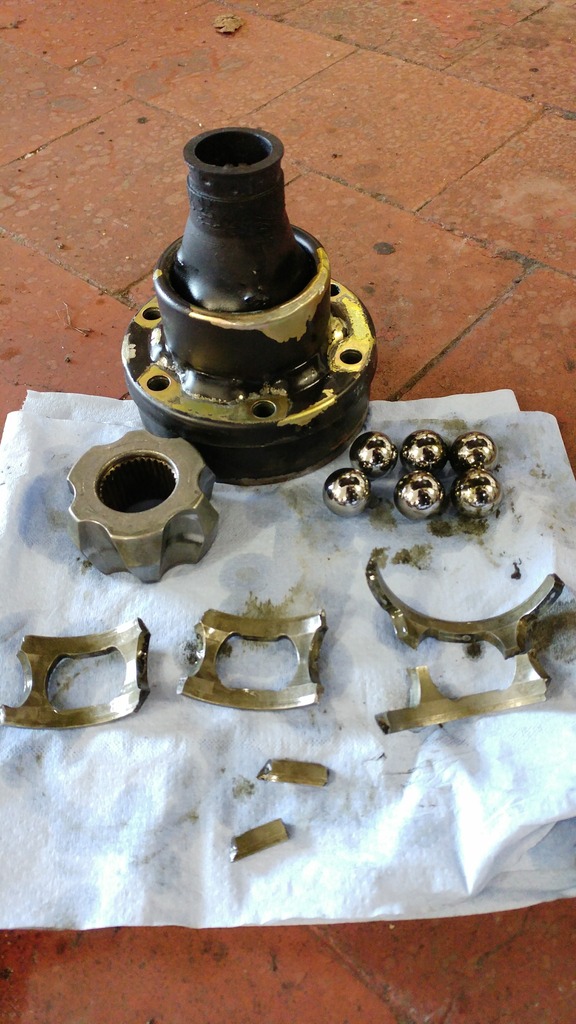

    Removed the joint and cleaned up the parts that fell out lol...
    [​IMG]

    So won't be changing the diff just yet but I will do it at some point just because...

    Have dug out some part numbers and will have a chat with our friendly parts guy... hopefully have her back up and running next weekend

    <tuffty/>

    S3Alex, Alex C, StaceyS3 and 3 others like this.
  42. <tuffty/>

    <tuffty/> Badger 5 Edition...Its all about the flow... Staff Member Moderator Audi S3

    22,417
    4,486
    113
    Part numbers for the centre CV and bearing are
    1J0598331 - centre CV
    1H0521349 - centre bearing

    Not sure how much these will be as yet but a few searches suggest the cv kit could be pricey... in typical VAG way the pricing of stuff is unpredictably variable.. there is nothing special about this CV either as its a parts bin part... its essentially a 100mm inner CV from an Ibiza Cupra (an others)...

    On the left is one of Bill's spare inners for his race car.... on the right is whats left of my prop one..
    [​IMG]

    [​IMG]

    Worst case if the kit works out too expensive I'll get a normal 100mm CV and you can get the boot separately (mines split...)

    Not much more I can do until parts arrive so left the car in a state of undress...
    [​IMG]

    ...removed (and cleaned) the drive cup on the rear section of the shaft in readiness to remove the support bearing..
    [​IMG]

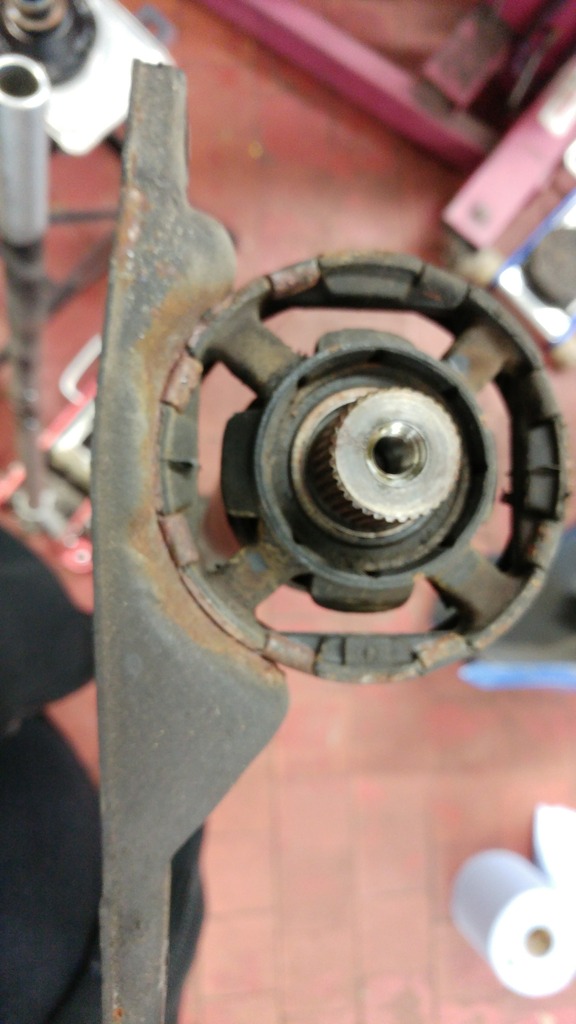

    Support bearing looks bl00dy awful as a bit of kit... poor old thing must get a hammering!
    [​IMG]

    Was happy with the findings of the day... glad it was obvious what the problem was and have never seen or heard of one going before (hence not even considering it)...

    As I was about to leave the unit the evening gave me another small photo op.... I do like golden hours :)

    [​IMG]

    <tuffty/>

  43. Stuart B

    Stuart B Well-Known Member

    2,586
    520
    113
    good job on the discovery, those CV joints look totally different, is it really worn that much. Is this general wear and tear of 500BHP wear and tear?

    Inspired by your photography I took some snaps with my mobile phone walking the dogs. lolz its really difficult to focus on the moon with a 6mm lense.
