My Custom Design and built AV cabinet.. lots of pics!

atkins14 Apr 12, 2015

  1. atkins14

    atkins14 Active Member

    150
    63
    28
    Well it has taken me a while to finally post my build thread of my custom AV cabinet. I had been searching for a suitable cabinet to fit all my equipment in for a while, but there was nothing I could find that met my requirements.

    The problems I was having was nothing was quite deep enough to fit, as well as not looking nice, especially at the budget I was looking to spend. As my profession as a product/industrial designer I am quite picky about design!

    My equipment spec:

    - Dali Zensor 7 5.1 in Gloss White

    - Yamaha RX-A1030

    - Playstation 3

    - Apple TV

    - Sky HD+ Box

    My 1st step was to do some CAD design and renders to see what would look good.

    [​IMG]

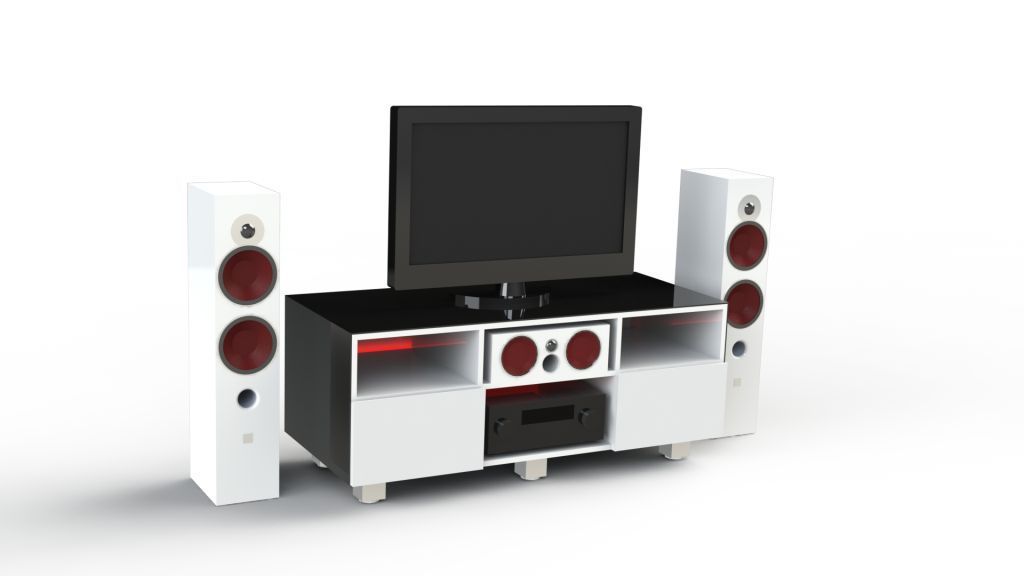

    Some Renders:
    [​IMG]


    [​IMG]

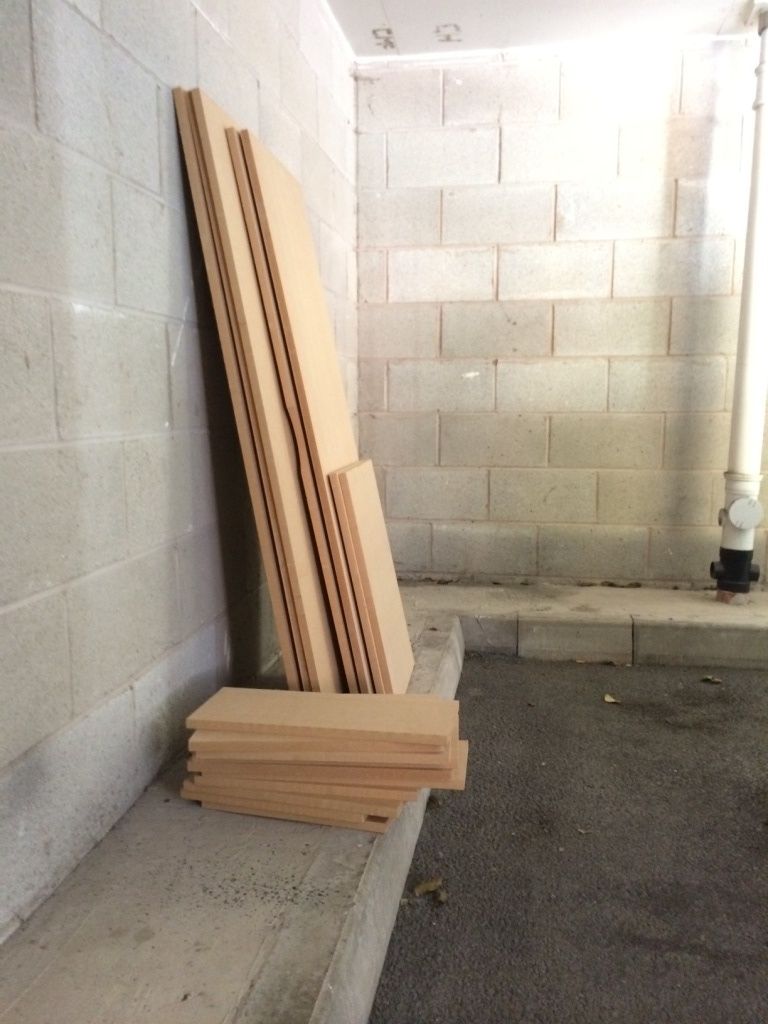

    My material choice was 18mm MDF due to better finish and cost. I created a cutting kit for all my panels then cut them out.

    [​IMG]

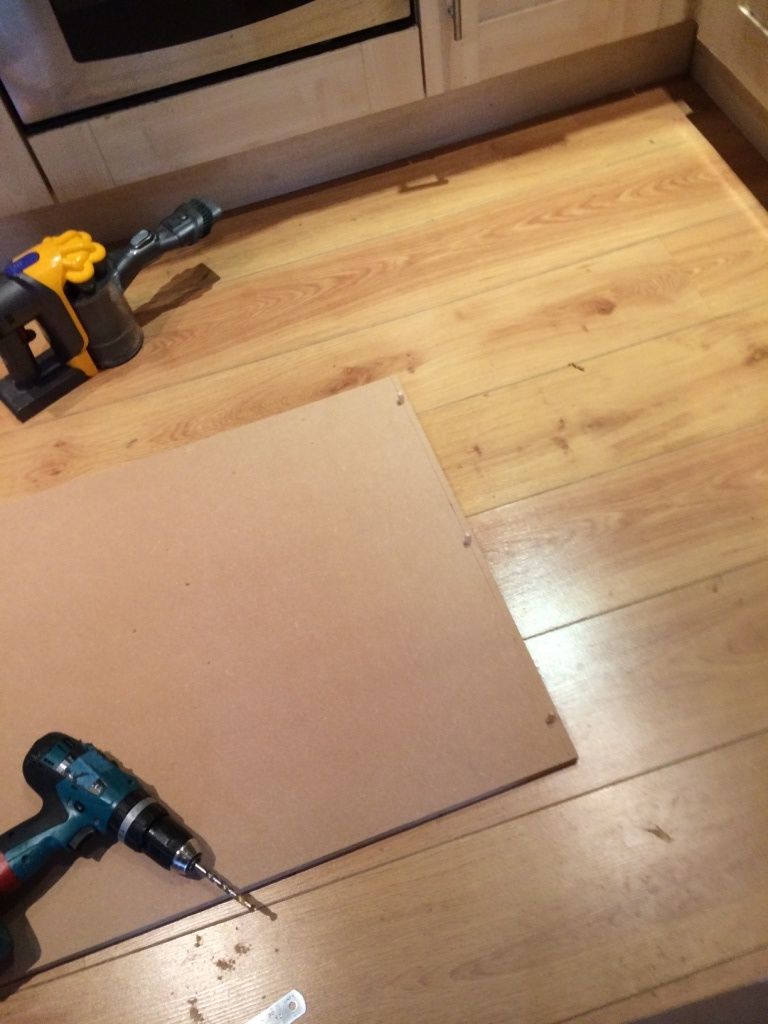

    Thought I would secure the build with dowels and high strength wood glue.

    [​IMG]


    [​IMG]


    Panels going together nicely!

    [​IMG]

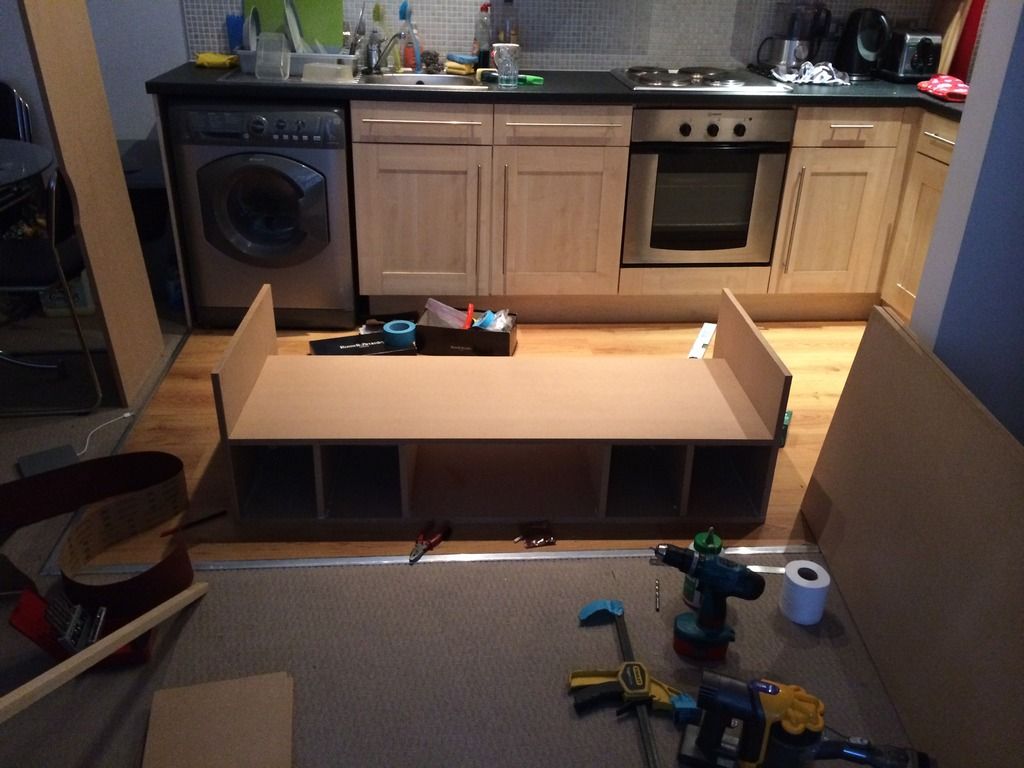

    First level on...
    [​IMG]

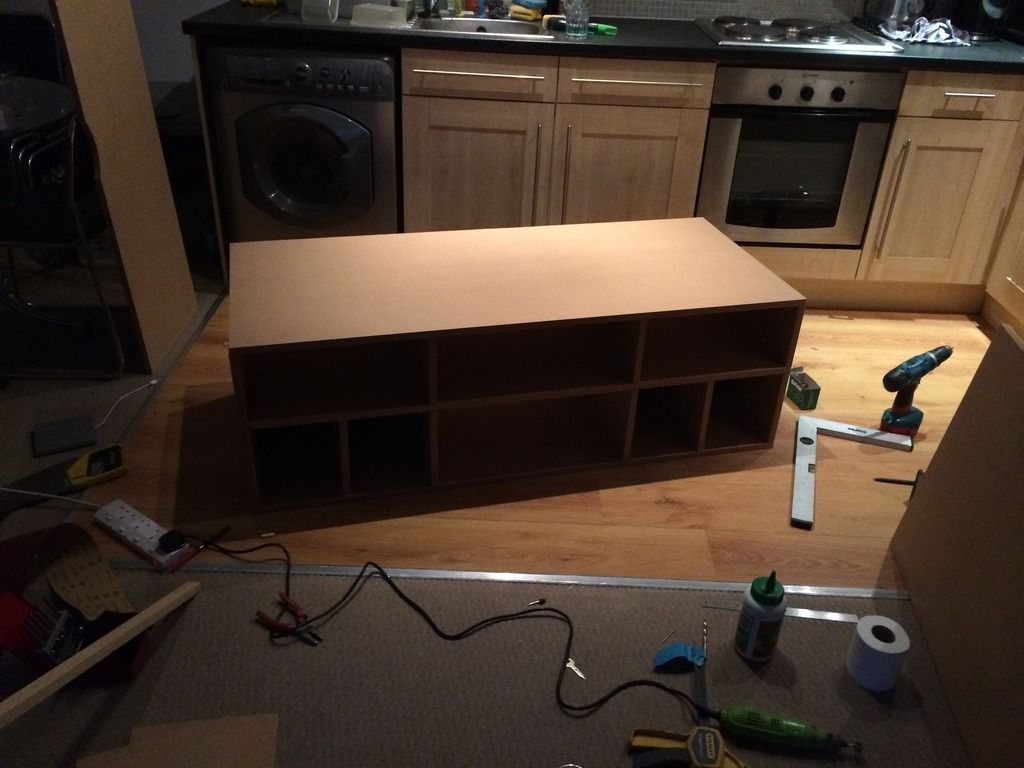

    Top on!

    [​IMG]


    Space for cable management at the back.

    [​IMG]

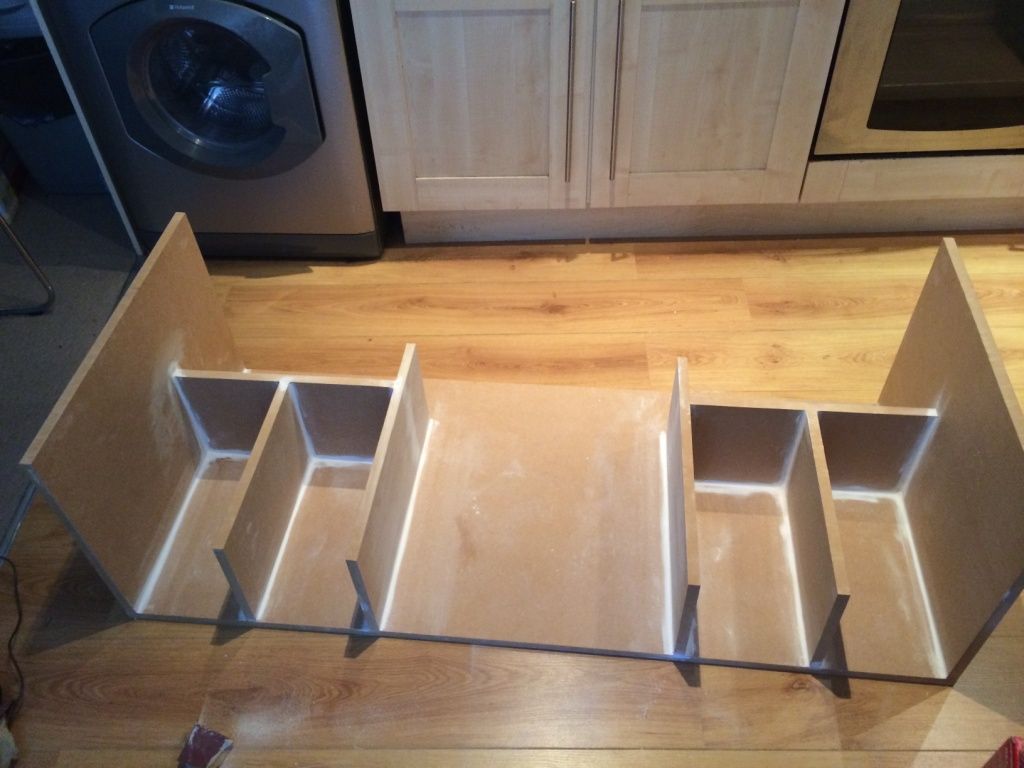

    Sealing all joints...
    [​IMG]


  2. atkins14

    atkins14 Active Member

    150
    63
    28
    Priming all edges as well!
    [​IMG]


    Ready to take some high gloss paint...
    [​IMG]


    Hinges and magnetic push catches...
    [​IMG]


    Feet go on!
    [​IMG]


    [​IMG]


    Installing remote controlled adjustable strip lighting...
    [​IMG]


    [​IMG]


    Test fit of centre speaker! It fits :)

    [​IMG]


    Acrylic panelling to cover top, sides and door fronts in gloss black and white.

    [​IMG]


    Happy with these results!
    [​IMG]


    Now to start connecting everything up in position!

    [​IMG]


    [​IMG]


    With my old TV....

    [​IMG]


    With the addition of my new 55" 4K Samsung TV! More fitting on the cabinet now!

    [​IMG]


    Completed build! :)

    [​IMG]


    [​IMG]


    Well hope you like my build thread! Cables are all kept out of view and I am very happy about the finish. Any questions feel free to ask!

    Pete

  3. rich dj

    rich dj Active Member

    272
    30
    28
    Great finish nice work fella. Always tried to find a cab or stand with the centre speaker in the middle but failed due its size. And to fit the rest of the kit.

  4. atkins14

    atkins14 Active Member

    150
    63
    28
    Thanks Rich! Yes I searched everywhere to find something suitable for my equipment, one of my biggest issues was most cabinets were too shallow, especially for the depth of my AV receiver and also to allow room for hidden cable management, plus I was picky on designs... naturally had to design and build my own one... :)

  5. klauster

    klauster Well-Known Member

    1,188
    112
    63
    How much do you think it cost you to do in the end? Great work

  6. atkins14

    atkins14 Active Member

    150
    63
    28
    Thanks! It cost me around £300 in materials, the biggest expense was the acrylic panels which were around £120... Out of interest I sent off my design to a well-known custom AV furniture builder and they quoted £2000+ o_O...

  7. klauster

    klauster Well-Known Member

    1,188
    112
    63
    Very nice saving then :)))

  8. lisaaudia3

    lisaaudia3 New Member

    20
    1
    3
    That is really smart.

  9. atkins14

    atkins14 Active Member

    150
    63
    28
    Thanks guys :). Certainly was a good saving, although was hard work! Swore I wouldn't do it again... however enough time has passed and feel like a new furniture project :p...

  10. Ric 2001

    Ric 2001 Member

    87
    52
    18
    That looks ace.

    Just what I'm after. About to purchase the Dali Ikon 6. MKII 5.1. Then need 2 sots for the sky box and computer. However is that enough room for ventilation on the Amp. My pioneer LX88 says 20cm from the top of the amp and 10cm at the sides. This is the main reason I haven't found anything.

  11. atkins14

    atkins14 Active Member

    150
    63
    28

    Thanks Ric,

    That will be a nice set up! As for ventilation that was a bit of concern when designing. I currently have 50mm above and 30mm on each side. However the shelf above does not go all the way back so the last quarter of the receiver has quite a lot of room. As well as the unit not being flush against the wall. I have felt the temperature within the space after long periods of use and it doesn't seem to be an issue at all, seems to get plenty of air flow.

    I guess if you were that concerned you could install some quiet 12cm pc fans to help improve airflow...

    My designer mind is now thinking of a nice new unit with some cooling system... :think::D

  12. Superdoug

    Superdoug Member VCDS Map User

    34
    3
    8
    Really good finish. I have found the same issue as you, Why are the units never deep enough for AV receivers?

  13. atkins14

    atkins14 Active Member

    150
    63
    28
    Thanks! I know! I guess for most people a standard receiver can just about fit, but higher end models tend to be bigger... I searched everywhere and couldn't believe I couldn't find anything that was suitable off the shelf!

  14. Superdoug

    Superdoug Member VCDS Map User

    34
    3
    8
    Yeah you need at least 50cm really. My Techlink stand it 45. I manage to squeeze the amp in but I can't shut the door properly.

  15. illingworth22

    illingworth22 Active Member TeamMisano Audi S3 Audi A3

    476
    153
    43
    Nice Job indeed! I have a couple of questions

    1) How did you cut the different sections.... Jig set up? and what tool...Explanation please ;)
    2) Did you get the acrylic pre-cut to size?
    3) What High Gloss pain did you use?

    Can or should I say Could a complete novice do this?

    I would love to make something like this!

  16. atkins14

    atkins14 Active Member

    150
    63
    28
    Thank you!

    Ok well cutting the wood, I marked up all the dimensions for the different sizes on the 2440x1220mm panels and propped them flat on some stands that I have at work, a standard Jigsaw was used to cut along the drawn dimensions. However I am sure there are companies that you can get the wood cut to your pre-cut sizes as well. This would save time and effort.

    The acrylic panels were pre cut from here: http://www.sheetplastics.co.uk/

    As for the high gloss paint, I just went to B&Q and picked up some tins of the Dulux trade gloss paint, but as I used MDF, I also had to use polycell filler on all the edges and joints. I also used a paint primer for all the surfaces before the gloss paint was applied.

    As for making something like this, it depends how much patience you have! Also it would be ideal if you have a suitable space to build it, unlike myself when I built it on my kitchen floor in my apartment.

    All I can say is, it is very time consuming, took about 3 weeks of working on it after work in the evenings and then on the weekends. Having spent over £300 in materials as well I was determined to have a great finished item. There were many times that I questioned myself why I event started to do this, however having the finished product I am so happy that I did!

    Anymore questions feel free to ask!

  17. mookster

    mookster Active Member quattro

    271
    74
    28
    Great effort mate, love it. Whole set up looks awesome :)

    atkins14 likes this.
  18. atkins14

    atkins14 Active Member

    150
    63
    28
    Cheers mate, still loving it... :grinning:

  19. jamiewatkins2004

    jamiewatkins2004 Active Member

    127
    44
    28
    Smart as f**k matey. Bet you're well happy with it.
    Could be a business in waiting there fella.


    Sent from my iPhone using Tapatalk

    atkins14 likes this.
  20. atkins14

    atkins14 Active Member

    150
    63
    28
    Haha thanks, yes furniture design is something that I have always enjoyed! Always thinking about doing something in the future though! :)

  21. rosinap

    rosinap New Member

    23
    17
    3
    I know this is old but man, I have to say I am really impressed by your skills! It looks amazing, good job!

  22. atkins14

    atkins14 Active Member

    150
    63
    28
    Thanks! Appreciate it! It's still going strong, but just recently bought a new place so I am sure there will be new projects to come! :relaxed: Not looking forward to moving it though... :seenoevil:
