Facelift S4/S5 ECU development complete - Performance Data and Dyno inside

Rick @ Unicorn Motor Dev.

Site Sponsor
Site Sponsor
I'm pleased to say I've finished development of the facelift B8.5 S4/S5 ECU.

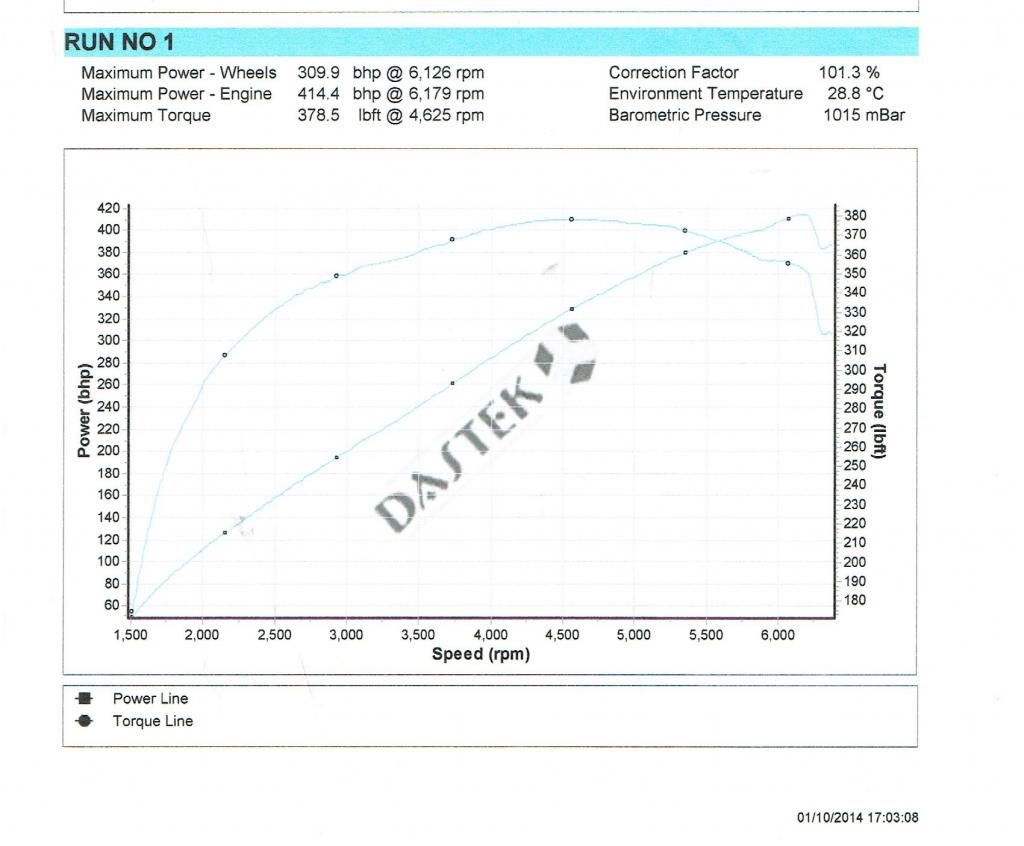

Stage 1 on this car made 420PS/414bhp. 349 as standard. All dyno's and VBOX tests were done on half a tank of super market 95 mixed with half a tank of VPower. Not the ideal mixture, pure VPower will make a few more hp but this does represent a real world example.

This car had covered just over 5k

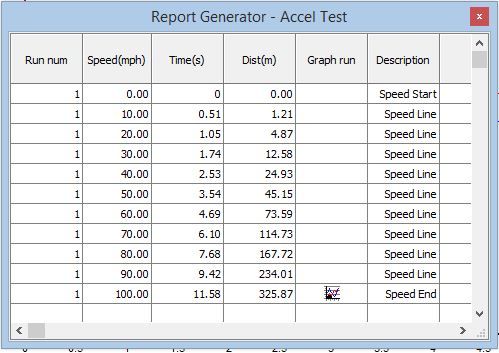

0-100mph Standard




0-100 Stage 1

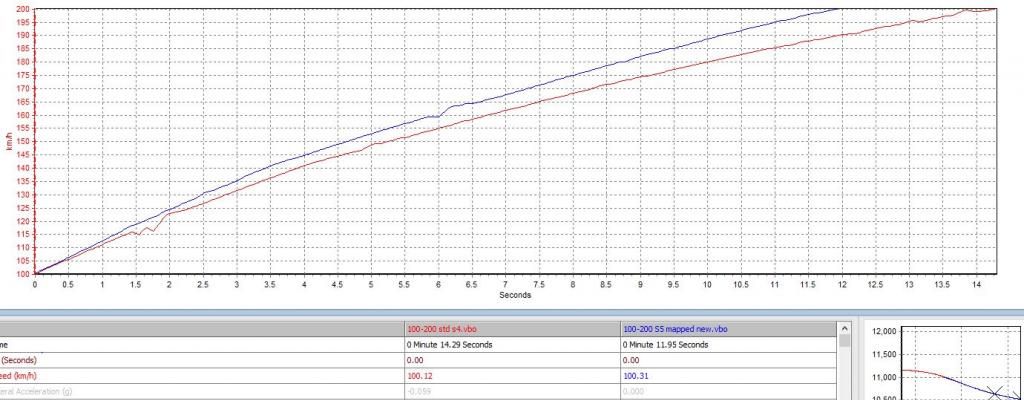

0-100 comparison



100-200kph Standard 14.29s, Stage 1 11.95




Price for Stage 1 is £500, all cars are custom mapped, Stage 2 and upwards also available :)

Thanks, Rick :)


Cyprio

Registered User
Good work! Nice to know that so little can be done to the S4 for what is quite a considerable power gain. My question is whether or not the S-tronic gearbox can accommodate any further increase in engine power without too much of a adverse effect.

So, you guys out there with S-tronic gearboxes - what's your thoughts?


benjie

Registered User
The box is rated at 600nm max I believe, 440ish as standard.


Bustamoves

Flat Foot Shifting
Hi rick, off topic but looking at mapping soon, 2.0 tfsi Quattro stronic 2010.
Is it true the ecu needs to come out for you todo a map on it? And what gain roughly would I be looking at on stage 1 (211hp stock)
Thanks


Rick @ Unicorn Motor Dev.

Site Sponsor
Site Sponsor
Hi rick, off topic but looking at mapping soon, 2.0 tfsi Quattro stronic 2010.
Is it true the ecu needs to come out for you todo a map on it? And what gain roughly would I be looking at on stage 1 (211hp stock)
Thanks

ECU does not have to come out at all on your car :) S4/5 is all OBD too :)

Rick
