Hi ALL,

My name is Beni I am from The-Netherlands. Having a great hobby what is cars specially VAG Cars :) We have a own group of friends called as team (bro-performance). (All just for 4 FUN) :busted cop:

After many months of reading :readit: here on this fantastic FORUM, and allot of great help from forum members @desertstorm @bobbysigh I thought let`s open a new thread of my car. I love to take part in drag racing 1\4mile and want to set a own personal record with this car soon I hope.

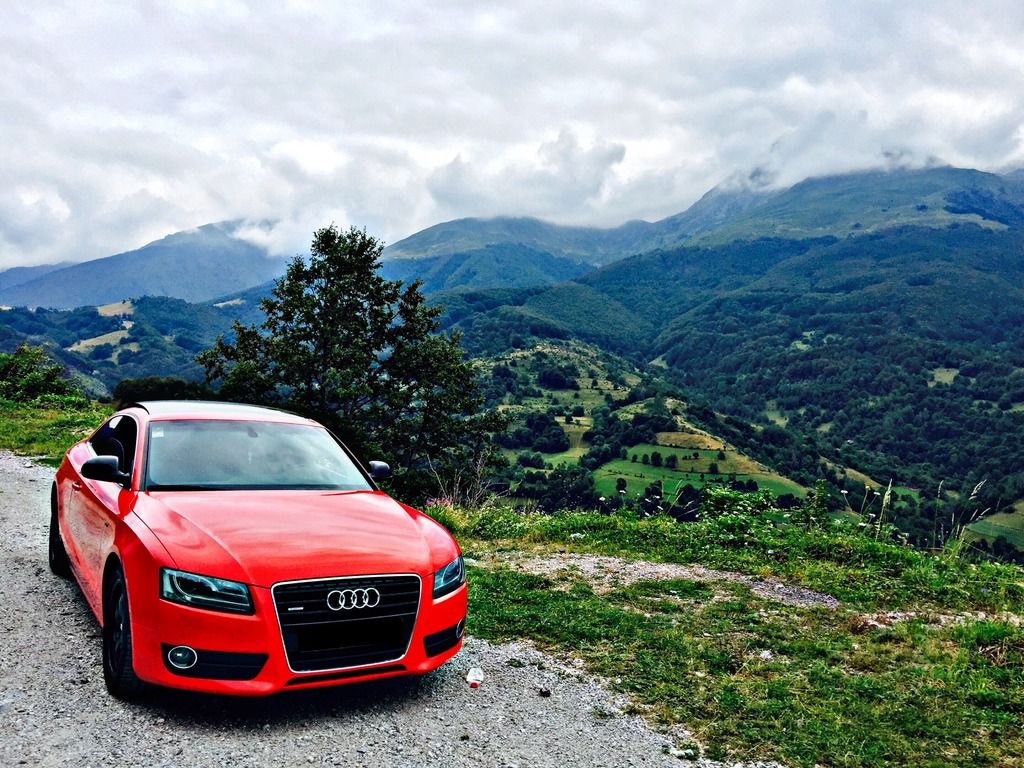

Went for a AUDI A5 3.0TDI color (Misano Red) engine code (CAPA). I already have done a couple of modifications on the car :

90MM downpipe
76MM Exhaust system no silencers 100% straight pipe
EGR delete + EGR Cooler delete + EGR Flap delete
Swirl flap delete + Intake Manifold Flap Actuator Motors LEFT+RIGHT delete
Bigger air box intake 85MM + Pipercross filter +Butterfly flap delete
Darkside Intercooler
Audi A5 Facelift S-LINE rear bumper + Rieger RS Diffusor + RS5 OEM TIPS Black

More pictures will follow.


Last edited:

AJ91

Registered User
Is it easy to swap the rear bumper to S-line?

I have a standard a5 and want the S-line rear bumper as its easy to find diffusers for that one so im guessing its just a straight swap? does the facelift fit my 2011 or would I need one for my model year?


BRO-Performance

Registered User
Hi Beni car looks great. liking the mods. Looking forward to more updates with this.

Thank you very much!

Looks awesome. A5 definitely the best looking Audi imo.

A chrome delete and it would look even cleaner!

Thank you. Yes the chrome delete to high gloss black is in the to-do list.

very nice, seen this on your YouTube channel

Thank you. The youtube car is not me i can say. This is a other guy that i also know. He's from germany. I think you mention him. A5 3.0TDI, RED, RS build?

Is it easy to swap the rear bumper to S-line?

I have a standard a5 and want the S-line rear bumper as its easy to find diffusers for that one so im guessing its just a straight swap? does the facelift fit my 2011 or would I need one for my model year?

I have a facelift s-line rear bumper and it fits 100% on my pre-facelift car. (I also had a standard rear bumper)

You just must look that it is from a same chassis. The A5 coupe can also fit a A5 cabrio rear bumper. The coupe on the other hand won't fit a sportback rear bumper.

Keep in mind that a s-line rear bumper is needed to fit most of the diffusers on the internet.


AJ91

Registered User
I have a facelift s-line rear bumper and it fits 100% on my pre-facelift car. (I also had a standard rear bumper)

You just must look that it is from a same chassis. The A5 coupe can also fit a A5 cabrio rear bumper. The coupe on the other hand won't fit a sportback rear bumper.

Keep in mind that a s-line rear bumper is needed to fit most of the diffusers on the internet.


Awesome. On my to do list when spring comes around!


BRO-Performance

Registered User
Update :

I have removed the turbo for a bigger upgrade. It is still gonna be the same turbo (2260VK) but with some modifications on it. (Hybrid)

I have sent the turbo last week to the company tditurbos so they can do all the magic on it.

The magic :

New CHRA installed with AMG GT23 twin ring turbine wheel with extra cutback.
Stagger gap piston ring seal + all new internals.
65mm - 6 billet compressor wheel with 69mm extended tips.
Machined to VNT shroud, compressor housing and backplate. VSR balanced and flow set calibrated.

I expect the turbo to be back next week so i can install it, and test it.

More to come you can gues... :relaxed:

Some pictures :



Last edited:

BRO-Performance

Registered User
Update :

Today i received the new MAF sensor. It's from a BiTdi much bigger than the original one i can say. (90mm) I had to buy a silicon from 90mm to 75mm for my intake otherwise it won't fit!

For the people that want to know why the BiTdi MAF sensor? It is handy to see how much air the engine is flowing. With the standard MAF it get maxed out on a stage 1 tuning.

Also the 4 bar mapsensor arrived.



BRO-Performance

Registered User
Update :

The turbo arrived in good condition this week.

We have installed it together with some heat wrap on the downpipe.

Also installed the BiTdi maf sensor what is plug & play on the OEM airbox so that's a positive.

Soon i go for the dyno run, and see what we can get out of this monster setup.

Also must say at the moment there is some turbo lag because everything is bigger. I expect in de software tuning we can get this to a minimum.

To be continued...



desertstorm

Moderator
Staff member
Moderator
VCDS Map User
@BRO-Performance I am not surprised it's laggy if you have fitted the Bi-Tdi MAF as well without mapping it. The fuelling especially the smoke control relies a lot on the MAF reading . As you have fitted the Bi-Tdi MAF without recalibrating the MAF in the ECU it will be under reading a lot.
Put the original MAF back on and I think you will find the response will be much better. An uncalibrated Bi-Tdi MAF will show an airflow reading about 30% lower than a standard MAF. Anybody that's driven a diesel with a failing MAF will know how gutless they can feel.


BRO-Performance

Registered User
@BRO-Performance I am not surprised it's laggy if you have fitted the Bi-Tdi MAF as well without mapping it. The fuelling especially the smoke control relies a lot on the MAF reading . As you have fitted the Bi-Tdi MAF without recalibrating the MAF in the ECU it will be under reading a lot.
Put the original MAF back on and I think you will find the response will be much better. An uncalibrated Bi-Tdi MAF will show an airflow reading about 30% lower than a standard MAF. Anybody that's driven a diesel with a failing MAF will know how gutless they can feel.


Where would i be without you! You helped me allot on this forum, thank you so much.

I will give this information also too the tuner.
