Enabling *** & subwoofer control without VCP - FL success

Thanks, THIS is cool, just did it on my FL A3 Sportback, MIB2 Harman MHI2 with Audi Sound System.

I first edited the 00x003B00 with subwoofer dial range set to min= F7 , center= 00, max= 09.

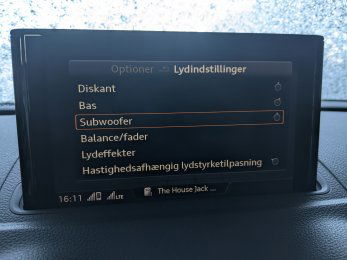

Calculeted the checksum and a restart of the radio, and there the sub dial was in the sound menu, great, but the dial did nothing to my listening, just like some other here reported, i think this just enables the dial knob on the display, and the range the dial can do, the actual gain setting is set in the other dataset 00x003000 below here.

Then i edited the 00x003000 with subwoofer max gain changed from 00, now set to = 5A. (I think this could be either 5A or 64)

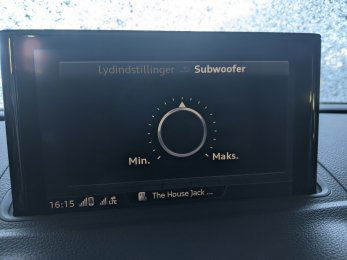

Calculeted the checksum and a restart of the radio, and now i can confirm the subwoofer dial works.

PXL 20230225 151126240PXL 20230225 151557025

30060E00500064060700FA0000060700FA0000060700FA0000010E1F400064000607003C010203141E232428292C2F3035363B3E40446806071F400102030405060708090A0B0C14282C32383B680001020304060708090A0B0C0D0E101112131400020407090B0D10121416181B1D1F212426280003070A0D1114171B1E2125282B2F3235393C0004090D12161B1F24282C31353A3E43474B5000060B11161C21272C32383D43484E53595E6400070D141B21282F353C434950575D646B7178000810171F272F363E464E565D656D757C848C0607005000000000000000000000000000000000000000013201F4000A141E28323C46505A646E78828C96A0AAB4080700500000000000000000000000000000000000080700500000000000000000000000000000000000010703E8D800000000000000000000000000000000060C0096C40613015ECE020700140002071F40F1BA190008070050000000000000000000000000000000000008070050000000000000000000000000000000000006101F405A0000000000000000000000000000000006180B54B002072134FB06140096D8020703E8F1BA0C0008070050000000000000000000000000000000000008070050000000000000000000000000000000000006101F405A0000000000000000000000000000000006180B54B002072134FB06140096D8020703E8F1BA0C00080700500000000000000000000000000000000000080700500000000000000000000000000000000000010703E8D800000000000000000000000000000000060C0096C40613015ECE020700140002071F40F1BA19000807001400000000000000000000000000000000000A07005000000000000000000000000000000000000A070050000000000000000000000000000000000006310054C40613001408080A00140006130014043C0000080A00FA0000000000000000000000000000000000010A2648B10000000000000000000000000000000006270316EC00000000000000000000000000000000060F0896CE060A17701E0607051400060703E800C40100080700500000000000000000000000000000000000080700500000000000000000000000000000000000010703E8D800000000000000000000000000000000060C0096C40613015ECE020700140002071F40F1A6320008070050000000000000000000000000000000000008070050000000000000000000000000000000000006101F405A0000000000000000000000000000000006180B54B002072134FB06140096D8020A03E8F1BA0C0008070050000000000000000000000000000000000008070050000000000000000000000000000000000006101F405A0000000000000000000000000000000006180B54B002072134FB06140096D8020A03E8F1BA0C00080700500000000000000000000000000000000000080700500000000000000000000000000000000000010703E8D800000000000000000000000000000000060C0096C40613015ECE020700140002071F40F1A632000807001400000000000000000000000000000000000A07005000000000000000000000000000000000000A070050000000000000000000000000000000000006310054C40613001408080A00140006130014043C0000080A00FA0000000000000000000000000000000000010A2648B10000000000000000000000000000000006270316EC00000000000000000000000000000000060F0896CE060A17701E0607051400060703E800C4010000000000000000C800C82800C800C82800C800C82800C800C82800C800C82800C800C828003030DED9
30060E00500064060700FA0000060700FA0000060700FA0000010E1F4000645A0607003C010203141E232428292C2F3035363B3E40446806071F400102030405060708090A0B0C14282C32383B680001020304060708090A0B0C0D0E101112131400020407090B0D10121416181B1D1F212426280003070A0D1114171B1E2125282B2F3235393C0004090D12161B1F24282C31353A3E43474B5000060B11161C21272C32383D43484E53595E6400070D141B21282F353C434950575D646B7178000810171F272F363E464E565D656D757C848C0607005000000000000000000000000000000000000000013201F4000A141E28323C46505A646E78828C96A0AAB4080700500000000000000000000000000000000000080700500000000000000000000000000000000000010703E8D800000000000000000000000000000000060C0096C40613015ECE020700140002071F40F1BA190008070050000000000000000000000000000000000008070050000000000000000000000000000000000006101F405A0000000000000000000000000000000006180B54B002072134FB06140096D8020703E8F1BA0C0008070050000000000000000000000000000000000008070050000000000000000000000000000000000006101F405A0000000000000000000000000000000006180B54B002072134FB06140096D8020703E8F1BA0C00080700500000000000000000000000000000000000080700500000000000000000000000000000000000010703E8D800000000000000000000000000000000060C0096C40613015ECE020700140002071F40F1BA19000807001400000000000000000000000000000000000A07005000000000000000000000000000000000000A070050000000000000000000000000000000000006310054C40613001408080A00140006130014043C0000080A00FA0000000000000000000000000000000000010A2648B10000000000000000000000000000000006270316EC00000000000000000000000000000000060F0896CE060A17701E0607051400060703E800C40100080700500000000000000000000000000000000000080700500000000000000000000000000000000000010703E8D800000000000000000000000000000000060C0096C40613015ECE020700140002071F40F1A6320008070050000000000000000000000000000000000008070050000000000000000000000000000000000006101F405A0000000000000000000000000000000006180B54B002072134FB06140096D8020A03E8F1BA0C0008070050000000000000000000000000000000000008070050000000000000000000000000000000000006101F405A0000000000000000000000000000000006180B54B002072134FB06140096D8020A03E8F1BA0C00080700500000000000000000000000000000000000080700500000000000000000000000000000000000010703E8D800000000000000000000000000000000060C0096C40613015ECE020700140002071F40F1A632000807001400000000000000000000000000000000000A07005000000000000000000000000000000000000A070050000000000000000000000000000000000006310054C40613001408080A00140006130014043C0000080A00FA0000000000000000000000000000000000010A2648B10000000000000000000000000000000006270316EC00000000000000000000000000000000060F0896CE060A17701E0607051400060703E800C4010000000000000000C800C82800C800C82800C800C82800C800C82800C800C82800C800C8280030301571

004064F70009F70009F70009000000000000000000F700090000000002070102001E262E373F474F5764707D8995A6B6C7DBF03131CBBE
004064F70009F70009F70009000000000000000000F70009F700090002070102001E262E373F474F5764707D8995A6B6C7DBF03131D568

  • Like
Reactions: chrisslyi and Oli250
Can I put it in my mhi2 with car scanner?

Wysłane z mojego SM-G988B przy użyciu Tapatalka

unilitePL said:
Can I put it in my mhi2 with car scanner?

Wysłane z mojego SM-G988B przy użyciu Tapatalka
Click to expand...
This will work if you have or are looking to install the Audi Sound System. I'm not sure if this would enable the menu on the B&O system.

I have a Audi sound system. I install this solution and I Think its works. I think so.. ;)

Wysłane z mojego SM-G988B przy użyciu Tapatalka

  • Like
Reactions: Oli250
Hi all,

I have searched a lot in the web and this topic seens to be the best in this subjetc.

I have an RSQ3 2018 with bose sound system (with OEM subwoofer in the back) but without the subwoofer level configuration in the MMI.

Do you belive that this configuration will works for me ?

Could somebody help me? What I need to verify?

Thanks a lot !

marcelogalbe said:
Hi all,

I have searched a lot in the web and this topic seens to be the best in this subjetc.

I have an RSQ3 2018 with bose sound system (with OEM subwoofer in the back) but without the subwoofer level configuration in the MMI.

Do you belive that this configuration will works for me ?

Could somebody help me? What I need to verify?

Thanks a lot !
Click to expand...
Do you have the FL(F3) or preFL(8U)?

marcelogalbe said:
preFL - 8U
Click to expand...
Do you have Carscanner or another tool to read Datasets?(ODIS/VCP/Carscanner)

I’m not sure, if it works, because I never worked with Q3 8U or this generation. But if you have 30-50$/€ over, buy a ELM327(e.g Carista) and download CarScanner App and try to read out 0x3000 dataset.

I think it should work, but I’m not giving any guarantee:)

deadsmiily said:
Do you have Carscanner or another tool to read Datasets?(ODIS/VCP/Carscanner)

I’m not sure, if it works, because I never worked with Q3 8U or this generation. But if you have 30-50$/€ over, buy a ELM327(e.g Carista) and download CarScanner App and try to read out 0x3000 dataset.

I think it should work, but I’m not giving any guarantee:)
Click to expand...
Nice! I'll buy the device and try to read out the dataset... I'll let you know the result!!! Thanks a lot

  • Like
Reactions: deadsmiily
deadsmiily said:
Do you have Carscanner or another tool to read Datasets?(ODIS/VCP/Carscanner)

I’m not sure, if it works, because I never worked with Q3 8U or this generation. But if you have 30-50$/€ over, buy a ELM327(e.g Carista) and download CarScanner App and try to read out 0x3000 dataset.

I think it should work, but I’m not giving any guarantee:)
Click to expand...
Hi... I bougth the ELM and install the CarScanner... unfortunatelly I cound read the datasets, even the basic data cant be read :-(

I have sent an email to the CarScanner develop and he told me that the CarScanner only works with MQB plataform.. :-(

Do you know any other app that could help me to extract these datasets ?

marcelogalbe said:
Hi... I bougth the ELM and install the CarScanner... unfortunatelly I cound read the datasets, even the basic data cant be read :-(

I have sent an email to the CarScanner develop and he told me that the CarScanner only works with MQB plataform.. :-(

Do you know any other app that could help me to extract these datasets ?
Click to expand...

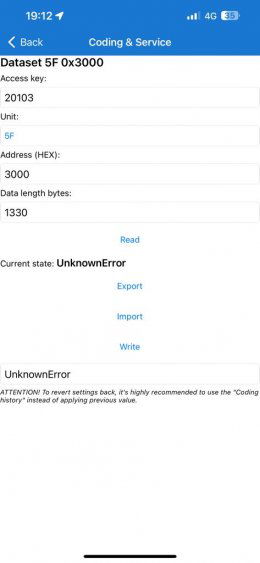

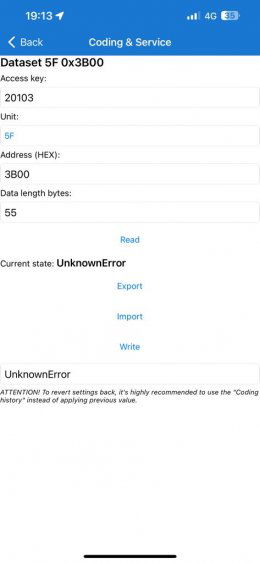

Attachments

  • 3B.jpg
    27.9 KB · Views: 249
  • 30.jpg
    28 KB · Views: 258
Allan_84 said:
Thanks, THIS is cool, just did it on my FL A3 Sportback, MIB2 Harman MHI2 with Audi Sound System.

I first edited the 00x003B00 with subwoofer dial range set to min= F7 , center= 00, max= 09.
Calculeted the checksum and a restart of the radio, and there the sub dial was in the sound menu, great, but the dial did nothing to my listening, just like some other here reported, i think this just enables the dial knob on the display, and the range the dial can do, the actual gain setting is set in the other dataset 00x003000 below here.

Then i edited the 00x003000 with subwoofer max gain changed from 00, now set to = 5A. (I think this could be either 5A or 64)
Calculeted the checksum and a restart of the radio, and now i can confirm the subwoofer dial works.

View attachment 264714View attachment 264715

30060E00500064060700FA0000060700FA0000060700FA0000010E1F400064000607003C010203141E232428292C2F3035363B3E40446806071F400102030405060708090A0B0C14282C32383B680001020304060708090A0B0C0D0E101112131400020407090B0D10121416181B1D1F212426280003070A0D1114171B1E2125282B2F3235393C0004090D12161B1F24282C31353A3E43474B5000060B11161C21272C32383D43484E53595E6400070D141B21282F353C434950575D646B7178000810171F272F363E464E565D656D757C848C0607005000000000000000000000000000000000000000013201F4000A141E28323C46505A646E78828C96A0AAB4080700500000000000000000000000000000000000080700500000000000000000000000000000000000010703E8D800000000000000000000000000000000060C0096C40613015ECE020700140002071F40F1BA190008070050000000000000000000000000000000000008070050000000000000000000000000000000000006101F405A0000000000000000000000000000000006180B54B002072134FB06140096D8020703E8F1BA0C0008070050000000000000000000000000000000000008070050000000000000000000000000000000000006101F405A0000000000000000000000000000000006180B54B002072134FB06140096D8020703E8F1BA0C00080700500000000000000000000000000000000000080700500000000000000000000000000000000000010703E8D800000000000000000000000000000000060C0096C40613015ECE020700140002071F40F1BA19000807001400000000000000000000000000000000000A07005000000000000000000000000000000000000A070050000000000000000000000000000000000006310054C40613001408080A00140006130014043C0000080A00FA0000000000000000000000000000000000010A2648B10000000000000000000000000000000006270316EC00000000000000000000000000000000060F0896CE060A17701E0607051400060703E800C40100080700500000000000000000000000000000000000080700500000000000000000000000000000000000010703E8D800000000000000000000000000000000060C0096C40613015ECE020700140002071F40F1A6320008070050000000000000000000000000000000000008070050000000000000000000000000000000000006101F405A0000000000000000000000000000000006180B54B002072134FB06140096D8020A03E8F1BA0C0008070050000000000000000000000000000000000008070050000000000000000000000000000000000006101F405A0000000000000000000000000000000006180B54B002072134FB06140096D8020A03E8F1BA0C00080700500000000000000000000000000000000000080700500000000000000000000000000000000000010703E8D800000000000000000000000000000000060C0096C40613015ECE020700140002071F40F1A632000807001400000000000000000000000000000000000A07005000000000000000000000000000000000000A070050000000000000000000000000000000000006310054C40613001408080A00140006130014043C0000080A00FA0000000000000000000000000000000000010A2648B10000000000000000000000000000000006270316EC00000000000000000000000000000000060F0896CE060A17701E0607051400060703E800C4010000000000000000C800C82800C800C82800C800C82800C800C82800C800C82800C800C828003030DED9
30060E00500064060700FA0000060700FA0000060700FA0000010E1F4000645A0607003C010203141E232428292C2F3035363B3E40446806071F400102030405060708090A0B0C14282C32383B680001020304060708090A0B0C0D0E101112131400020407090B0D10121416181B1D1F212426280003070A0D1114171B1E2125282B2F3235393C0004090D12161B1F24282C31353A3E43474B5000060B11161C21272C32383D43484E53595E6400070D141B21282F353C434950575D646B7178000810171F272F363E464E565D656D757C848C0607005000000000000000000000000000000000000000013201F4000A141E28323C46505A646E78828C96A0AAB4080700500000000000000000000000000000000000080700500000000000000000000000000000000000010703E8D800000000000000000000000000000000060C0096C40613015ECE020700140002071F40F1BA190008070050000000000000000000000000000000000008070050000000000000000000000000000000000006101F405A0000000000000000000000000000000006180B54B002072134FB06140096D8020703E8F1BA0C0008070050000000000000000000000000000000000008070050000000000000000000000000000000000006101F405A0000000000000000000000000000000006180B54B002072134FB06140096D8020703E8F1BA0C00080700500000000000000000000000000000000000080700500000000000000000000000000000000000010703E8D800000000000000000000000000000000060C0096C40613015ECE020700140002071F40F1BA19000807001400000000000000000000000000000000000A07005000000000000000000000000000000000000A070050000000000000000000000000000000000006310054C40613001408080A00140006130014043C0000080A00FA0000000000000000000000000000000000010A2648B10000000000000000000000000000000006270316EC00000000000000000000000000000000060F0896CE060A17701E0607051400060703E800C40100080700500000000000000000000000000000000000080700500000000000000000000000000000000000010703E8D800000000000000000000000000000000060C0096C40613015ECE020700140002071F40F1A6320008070050000000000000000000000000000000000008070050000000000000000000000000000000000006101F405A0000000000000000000000000000000006180B54B002072134FB06140096D8020A03E8F1BA0C0008070050000000000000000000000000000000000008070050000000000000000000000000000000000006101F405A0000000000000000000000000000000006180B54B002072134FB06140096D8020A03E8F1BA0C00080700500000000000000000000000000000000000080700500000000000000000000000000000000000010703E8D800000000000000000000000000000000060C0096C40613015ECE020700140002071F40F1A632000807001400000000000000000000000000000000000A07005000000000000000000000000000000000000A070050000000000000000000000000000000000006310054C40613001408080A00140006130014043C0000080A00FA0000000000000000000000000000000000010A2648B10000000000000000000000000000000006270316EC00000000000000000000000000000000060F0896CE060A17701E0607051400060703E800C4010000000000000000C800C82800C800C82800C800C82800C800C82800C800C82800C800C8280030301571

004064F70009F70009F70009000000000000000000F700090000000002070102001E262E373F474F5764707D8995A6B6C7DBF03131CBBE
004064F70009F70009F70009000000000000000000F70009F700090002070102001E262E373F474F5764707D8995A6B6C7DBF03131D568
Click to expand...

Thank you for this!

Did you also change the EQ settings there or is it another car model?

Rgds Chris

I have a PFL A3 8V that I retrofitted the FL MIB2 system in. I'm having trouble getting the sub control back. Could anyone help me out?

0x3000

Code:
3004070078005A060700FA0000060700FA0000060700FA000002071B58005A000607003C010203141E232428292C2F3035363B3E40446806071F400102030405060708090A0B0C14282C32383B680001020304060708090A0B0C0D0E101112131400020407090B0D10121416181B1D1F212426280003070A0D1114171B1E2125282B2F3235393C0004090D12161B1F24282C31353A3E43474B5000060B11161C21272C32383D43484E53595E6400070D141B21282F353C434950575D646B7178000810171F272F363E464E565D656D757C848C0607005000000000000000000000000000000000000000013201F4000A141E28323C46505A646E78828C96A0AAB4080700960000000000000000000000000000000000062800AF2800000000000000000000000000000000061E010ECE00000000000000000000000000000000060F021C1E060A03E883061E00739C060A2328A6280000080700AA000000000000000000000000000000000006140104B0000000000000000000000000000000000628006EA600000000000000000000000000000000061E00AA28061E04B0C406190BF4A60623177050E20000080700AA000000000000000000000000000000000006140104B0000000000000000000000000000000000628006EA600000000000000000000000000000000061E00AA28061E04B0C406190BF4A60623177050E20000080700960000000000000000000000000000000000062800AF2800000000000000000000000000000000061E010ECE00000000000000000000000000000000060F021C1E060A03E883061E00739C060A2328A62800000A0A009600000000000000000000000000000000000A0A00960000000000000000000000000000000000061E00501E00000000000000000000000000000000061E0023E20619003C1E001E00291E0607004B00D80700080700FA0000000000000000000000000000000000061403428800000000000000000000000000000000061E083EA600000000000000000000000000000000061E05AA280628026C00061E01F432060A08FC32B00C00080A00960000000000000000000000000000000000062800AF3C00000000000000000000000000000000061E010ECE00000000000000000000000000000000060F021C1E060A03E883061E0073CE060A2328A6E21E00080A00AA000000000000000000000000000000000006140104C4000000000000000000000000000000000628006ED800000000000000000000000000000000061E00AA3C061E04B0C406190BF4A60623177050F60000080A00AA000000000000000000000000000000000006140104C4000000000000000000000000000000000628006ED800000000000000000000000000000000061E00AA3C061E04B0C406190BF4A60623177050F60000080700960000000000000000000000000000000000062800AF3C00000000000000000000000000000000061E010ECE00000000000000000000000000000000060F021C1E060A03E883061E0073CE060A2328A6E21E000A0A009600000000000000000000000000000000000A0A00960000000000000000000000000000000000061E00501E00000000000000000000000000000000061E0023E20619003C1E001E00291E0623008228D80700080700FA0000000000000000000000000000000000061403428800000000000000000000000000000000061E083EA600000000000000000000000000000000061E05AA280628026C00061E01F432060A08FC32D80C0000000000000000C800FA2800C800FA2800C800FA2800C800FA28003200642800C801F428003030C9AA

0x3b00


Code:
00406DF70009F70009F70009000000000000000000F70009F700090003070102001E262E373F474F5764707D8995A6B6C7DBF03131D775

Just thought I’d share that I finally got around to applying these modifications to my B9 S4. Changes went without a hitch and things definitely sound a lot better with my upgraded speakers and amplifier.

I managed to track down someone who had made tweaks for their B9 A4 and applied their code directly to mine.

Feels like the sort of thing that would benefit from a car by car repository.

Mattmanslim said:
Just thought I’d share that I finally got around to applying these modifications to my B9 S4. Changes went without a hitch and things definitely sound a lot better with my upgraded speakers and amplifier.

I managed to track down someone who had made tweaks for their B9 A4 and applied their code directly to mine.

Feels like the sort of thing that would benefit from a car by car repository.
Click to expand...
Happy to hear that. Based on your previous post, I understand that you have an early B9 model with the old MMI and B&O. This old MMI can't officially be updated to have the subwoofer control and the "hack" available will change the A4 Avant image in the MMI to a Q7.

I have a 2016 Audi B9 Avant with B&O and no subwoofer setting. So, what would specifically be needed to add the subwoofer setting without changing the image to the Q7? I would have someone do the coding for me, but it's a bit hard for me to understand all the details discussed in this thread, especially as most people are discussing the A.S.S not B&O. Can you share that? Thank you very much.

Last edited:
Hey everyone, just looking for a bit of help here.

I"ve just recently replaced the MIB2 on my 2017 Audi A4 without B&O, coded it and patched it, switched coding to internal amp however my sound is still off.

I stumbled across this page and it seems this would be my solution however I'm really unfamiliar with this process.

Would anybody be able to help me upload the correct dataset to my MIB using ODIS-E as its the only software that i own.

I would really appreciate it, thanks!

Hi @Oli250, Please can you help me to enable subwoofer knob and increase gain a little bit for my Audi Q7 4M with MIB2 high Harman unit. I have attached original dataset files here as txt files.

I tried it with Hex 010 editor but didn't get through it so your help will be much appreciated.


Thanks a ton.


Attachments

  • 0x3B00_text.txt
    111 bytes · Views: 95
  • 0x3000_text.txt
    2.6 KB · Views: 92
Oli250 said:
Hi all

I thought I would share that I was able to enable the Audi Sound System and the subwoofer menu using just a bluetooth ELM327 dongle and the CarScanner mobile app. No VCP/ODIS/etc. required, though it did take quite a lot of research!

Looking through the forum I didn't see anyone having much joy with this so thought I would do a quick write up. This applies to the MIB2 MHS2 (may need correcting but I believe that is the 'Delphi' std model). Following any of the below at your own risk etc., especially considering you may not have the same MMI hardware I do.

I was able to figure all this out thanks to the write up by Alex over at MQB-blog.com (https://mqb-blog.com/en/2022/02/21/sound-dataset/). I won't go into much detail as it's all very well explained there. Briefly, Alex has worked out the breakdown of the relevant addresses from the 5f module that control the internal amp output in the MIB2 (addresses 0x003000 and 0x003B00). To get the subwoofer menu working I also had to update the MMI firmware to MU 2103.

5f address 0x003000 contains the configuration for the sound processing on the internal amp - I used this to enable the centre speaker and sub channels of the amp but there's certainly a lot that could be done here. This would be of particular interest to anyone undertaking more complex audio projects - channel specific EQ filters and the DSP settings can all be manually tweaked / disabled here.

5f address 0x003B00 contains the sound configuration. Here I was able to enable the controls for the subwoofer menu.

A brief "How-To"
1. Use the CarScanner app to read module 5f, addresses 0x003000 and 5f 0x003B00. These can be found in the coding section of the app under 'dataset dump'. I copied the values out to edit on a computer using a hex editor. I strongly recommend using 010 editor with the templates available from the MQB-blog post linked above, these identify the various bytes and values so you can easily make sense of the hex data.

2. To enable the Audi Sound System & Subwoofer menu I updated the following bytes:
0x003000
Update Signalflow to 30 (6ch center sub 9.1), this is the first byte in the address
View attachment 258864

0x003B00
Update Struct Knob Subwoofer range to -9, 0, 9
View attachment 258865


3. Once the relevant bytes have been updated using a hex editor the checksum for each address must also be updated to avoid any errors. The checksum is the final 2 bytes in each address and is calculated using the CRC-16/CCITT algorithm. To calculate the new checksum take your updated addresses and copy each one without the old checksum into the calculator at crccalc.com and set the input settings as shown below. In this case the checksum to be copied back in would be 0CBC

View attachment 258866

4. Take your newly updated 0x003000 and 0x003B00 address parameters (without any spaces, new lines, etc.) and use CarScanner to write these back on to their relevant locations on the 5f module. Restart your MMI and everything should now be working.



Any queries let me know, if there's interest I'm happy to expand on this or add some screenshots of the process.
Click to expand...
This looks amazing work. I'm very new to all this and need the most basic instructions I think I've got most of this understood but how do I write it back to carscanner if I have the new address parameters on the laptop? I can sort of piece together all of the rest from all your helpful advice on here. It's probably not something someone like me should attempt being so clueless on this but I am struggling with the controls after coming from a superb with canton. Thanks in advance
