A4 B9 Avant rear camera retrofit

Stephen Thomas

Registered User
Joined
Jul 24, 2020
Messages
6
Reaction score
0
Points
1
Location
aberdare
Hello, could someone please help me out ?
I've just purchased a genuine Audi reverse camera and loom.
I've watched and looked at photos that have been posted and people talk about splicing into wires etc.
The loom supplied with the camera comes with plugs, wires with metal connectors already attached. Does anybody know if there are already plugs in the vehicle that I just connect too ?


Attachments

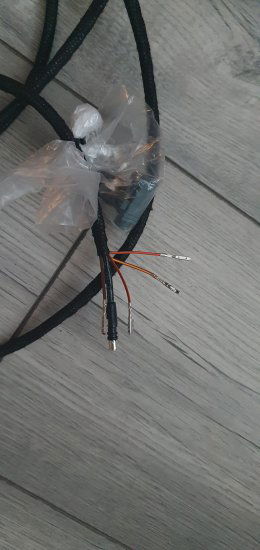

  • 16197205580822348715925949734343.jpg
    1 MB · Views: 215

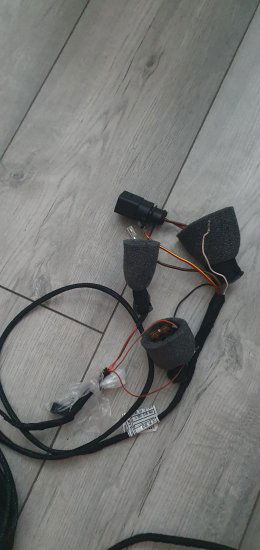

  • 16197206327031223471552801584832.jpg
    996.7 KB · Views: 177
Disclaimer, I’m not going to be much help here but are you sure this was for a B9 ? I’ve fitted a gen camera myself on mine and these cables do not look familiar, missing connectors and cable ends I don’t recognise.
Of course it may be right and a different version or something but I’m not so sure. Hopefully someone else may recognise this particular kit.


Sent from my iPhone using Tapatalk

Disclaimer, I’m not going to be much help here but are you sure this was for a B9 ? I’ve fitted a gen camera myself on mine and these cables do not look familiar, missing connectors and cable ends I don’t recognise.
Of course it may be right and a different version or something but I’m not so sure. Hopefully someone else may recognise this particular kit.


Sent from my iPhone using Tapatalk
Yes, was definitely for a B9. It's made by westfallia. It just looks nothing like what I've seen in pictures and videos.

Ok. Well it still makes no sense to me but I’m no expert by any stretch. I have an S4 avant and I went with the below set. It also tees off the rear washer so the camera gets a good squirt when washing the rear window.

You can also see the loom is properly made up and doesn’t look at all like what you have.

Check eBay item 273426219857


Sent from my iPhone using Tapatalk

I agree with Steff8 it definitely looks like you have something different. That loom doesn't match what you need to do.

Hello all, just to let you know, it Wass the loom for my car, I fitted it yesterday. It doesn't connect in the fuse box, it connects to the rear of the mmi. All up and running. Many thanks.
