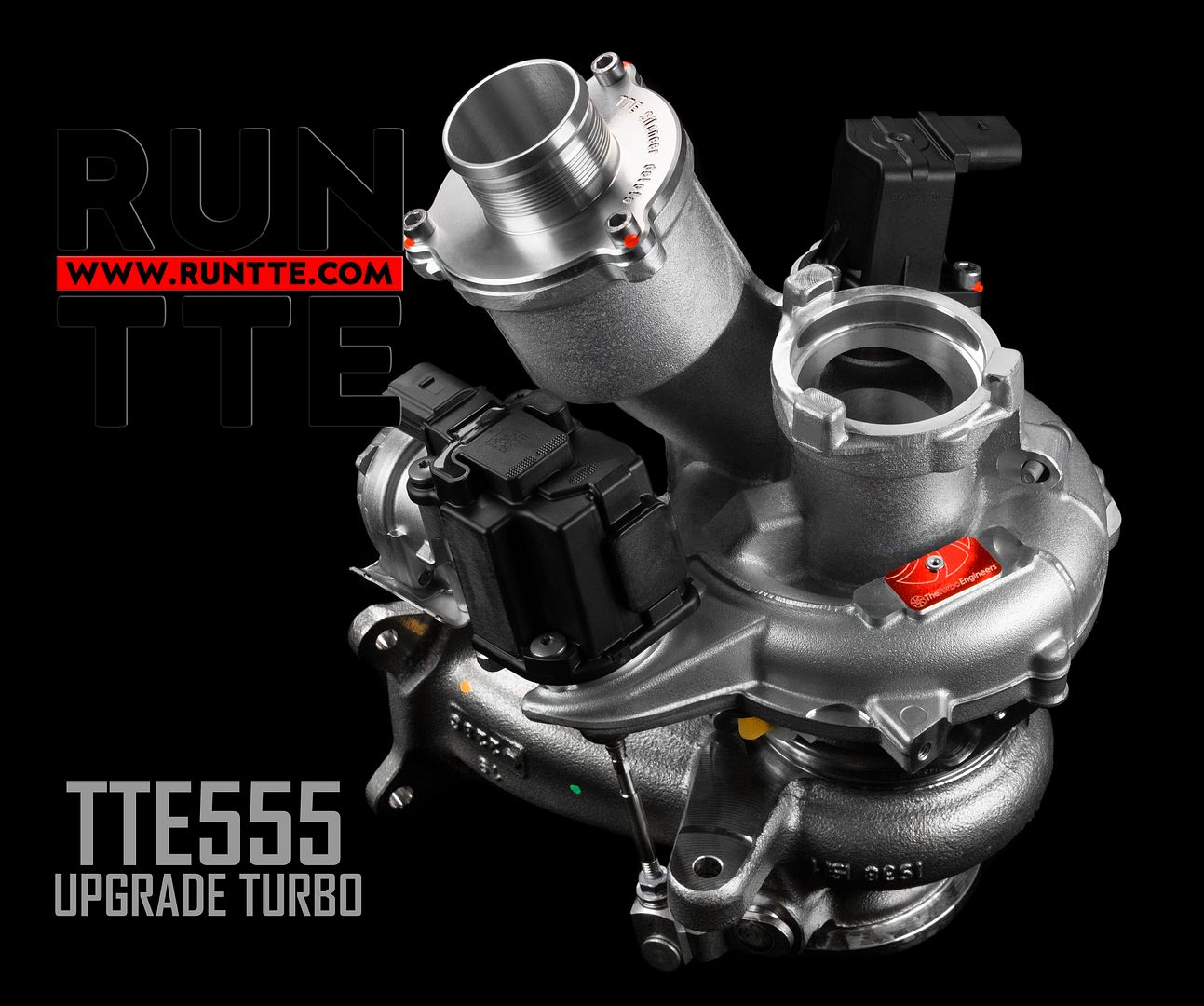

VAG 2.0 / 1.8TSI EA888.3 MQB TTE555 UPGRADE TURBOCHARGER




TTE555 is our very latest hybrid performance upgrade turbocharger based on the Original IHI IS38 turbocharger for the 3rd generation VAG 2.0TSI. Stage 3+ power, with good spool and response. We feel this is the strongest performing hybrid IS38 available on offer.

Product Highlights:

  • Original IHI turbocharger as base part
  • Original Genuine actuator
  • Original Genuine diverter valve
  • TTE Billet Milled compressor 6+6 Blade
  • TTE High-Flow Low- Mass 9 Blade Turbine
  • TTE CNC Billet milled silencer delete
  • Reinforced bearing pack
  • Plug and Play installation as IS38 turbocharger
  • 555 PS+ proven
  • Proven TheTurboEngineers quality
  • Single parts finely balanced then components assembled and core high-speed VSR balanced
  • Supplied with a balance test result document
  • Made in Germany
More product info and pricing here : https://tteglobal.com/audi/s1/2.0-tsi/296/tte555-upgrade-turbocharger

Any more photos of the turbo?
What are the differences from the tte535 vs tte555

MTA

VW G7.5 R TTE55 98RON & WMI


Torque below 580Nm so are not pushing the limits of the Standard motor

Result 560hp 566nm (capped)

#MTA #TTE555 #TTEPOWER




524 lb-ft at 2.0 bar? Seriously? That's 710 Nm from 2 litres, that's off the scale!

Nick

  • Like
Reactions: TTE Si
welwynnick said:
524 lb-ft at 2.0 bar? Seriously? That's 710 Nm from 2 litres, that's off the scale!

Nick
Click to expand...
Must have blown up on the dyno as it stops at 5500rpm and it was still making power. It does have wmi so would have loads of timing and would be wmi dependent. The Turbo technics V5 is a bigger frame turbo and can only just make that with that boost. Plus it’s cheaper.

MaxBoostMRC said:
Must have blown up on the dyno as it stops at 5500rpm and it was still making power. It does have wmi so would have loads of timing and would be wmi dependent. The Turbo technics V5 is a bigger frame turbo and can only just make that with that boost. Plus it’s cheaper.
Click to expand...

Not blown up and makes power past 6500rpm you need to look at the dyno closer.

This is said to be A new record GOLF R for this particular MRC Tuner.

Regards to Meth dependant tune you need to ask Mr MRC(Mihnea) as was custom-tuned by him personally, but I doubt he would due to the risks.

MRC Tuning UK ran a TTE555 At 2.4bar for approx 1 year on a stock engine golf 7R. We had that turbo shipped to us last month to inspect as part of our continuing R&D (Fastest GOLF R IN EUROPE) and the turbo was perfect. :rock:

#ttepower

Seat Leon Cupra TTE555 by DVX performance Belgium

Spec:
- Forged Engine
- TTE555 Turbo hybrid IS38
- Intercooler
- Air intake
- SB Endurance Clutch
- Turboback exhaust
- HPFP

Custom DVX performance Engine Remap @2.1 bar peak, using 98 Ron ⛽️ + WMI for extra safety

Result : 550HP 642Nm (400nm at 2800rpm)




VW Golf 7R tuned by TVS Engineering

⚙ Modifications:
TheTurboEngineers TTE555 IS38 hybrid turbo
APR de catted downpipe
APR cat-back exhaust system
RacingLine Performance R600 intake
Wagner Tuning intercooler
Leyo Motorsport upgraded charge pipe hoses
Leyo Motorsport blow off valve
Autotech Sport Tuning upgrade HPFP
Walbro 525 upgrade LPFP
Aquamist Water & Methanol Injection Systems (50/50)
Intake Flaps deleted

✅ TVS Engine Stage 4
✅ TVS DQ381 Stage 3
Result : : 548HP & 635Nm (2.2bar peak)
100-200 6.90Sec (winter tyres)
Performance limited for stock motor (made more but was reduced)
⛽ RON98 E15 (45L RON98 + 10L E85)





Congrats to al-bertin AR and SPARKLOAD of Spain
Setting a new TTE555 Hybrid 1/4MILE WORLD RECORD 10.3 AT 132MPH (unprepped)
VW GOLF 7R TTE555 578HP 668NM





Ranked 49 on the TTE leader board
www.theturboengineers.com

TTE OWNERS TIMES 100-200 VBOX

100-200-300 km/h times & 1/4mile times from TTE turbo owners
www.theturboengineers.com www.theturboengineers.com

SPARKLOAD GOLF 7R NOW GONE 10.2 UNPREPPED TRACK


NEW TTE555 IS38 Hybrid 1/4 mile World Record
by @spark_load

1/4 MILE 9.980 sec @136.00mph
No prep & strong headwind
Congrats to Pablo on continuing to improve his car to keep resetting records
