TTE420 Upgrade Performance Turbocharger VAG 2.0 TFSI

TTE Si Jan 3, 2015

  1. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113

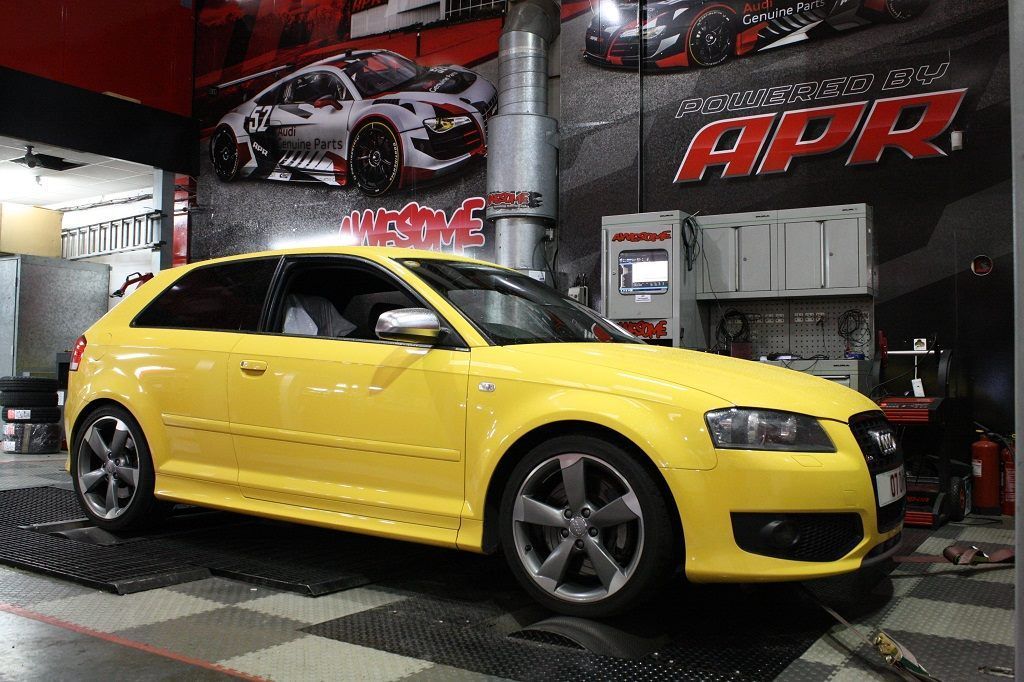

    Dan Svarups 2007 Audi S3 2.0 TFSI (BHZ)


    TTE420 Upgrade Turbo
    APR TTE420 software provided by Awesome GTI
    Revo Cold Air Intake
    Pipewerx 3" Downpipe & decat with Milltek Resonated exhaust
    Runner Flap Delete
    S3 Injectors (stock)
    Autotech HPFP
    DW65v LPFP
    155bar FPRV

    423 BHP 437 FT/LBS / 592 NM - DIN Smoothing
    411 BHP 425 FT/LBS / 576 NM - SAE Smoothing

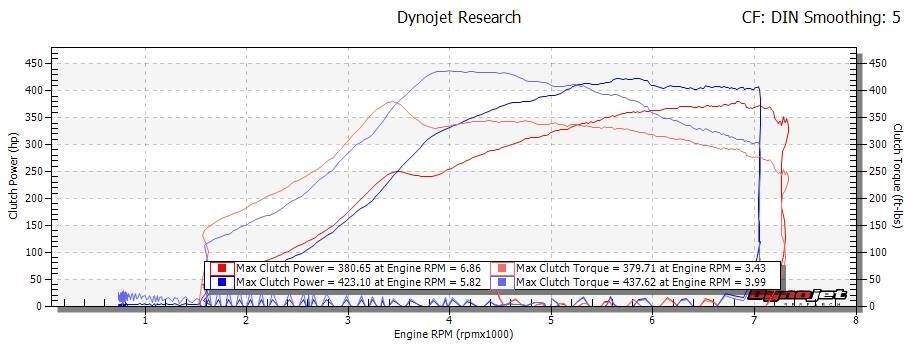

    The dyno plots shows Revo 2+ in red and APR420 in blue.

    More info from Dan shared in TTE owners and fans group on Facebook

    [​IMG]
    [​IMG]
    [​IMG]

    Last edited: Feb 24, 2016
  2. Dandanfings

    Dandanfings Well-Known Member Bronze Supporter Audi S3

    676
    544
    93
    Does revo do a file for this turbo or is it just a generic stage 2 file running your turbo?

  3. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113
    REVO do not have software for no, so until do, i dont recomend the standard files for my hardware. Have been good results but are tweeked files im told.

    Best ask in our TTE owners group on this car, im not sure of details but owner is in there and posted the results and info on what you ask.. please ask join and ask questions

  4. Dandanfings

    Dandanfings Well-Known Member Bronze Supporter Audi S3

    676
    544
    93
    Ok that's good to know, i know you don't recommend it but at least the car is safely drivable with standard software.

  5. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113
    Well that would need checking and loging and i wouldnt offer warranty if any issue as is stock turbo software.

  6. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113

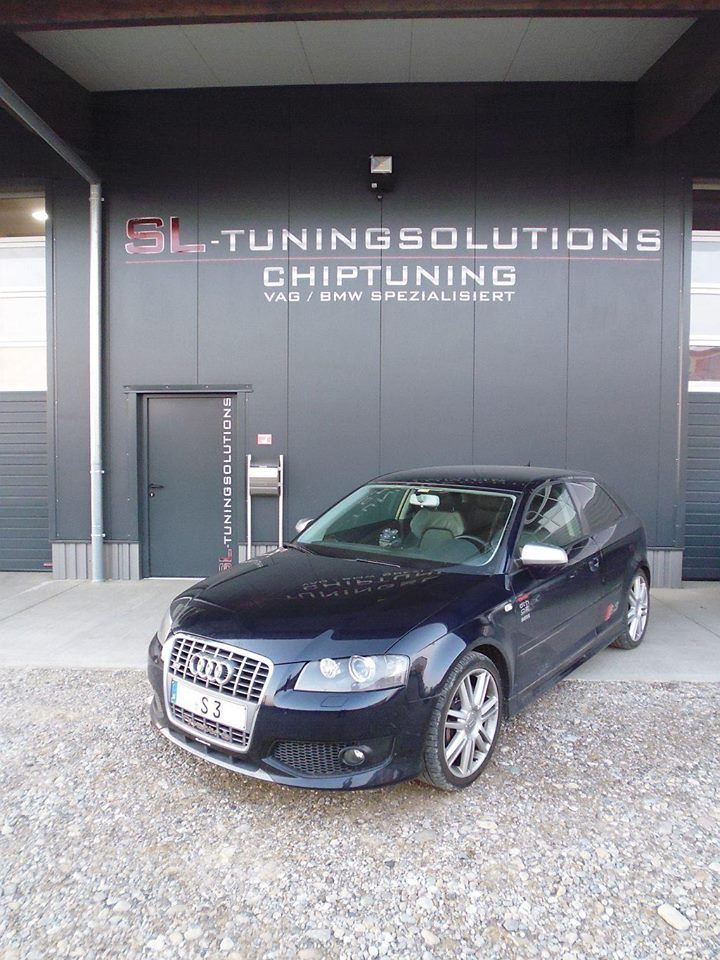

    S3 TTE420 414PS 595NM Sl-tuning

    Setup:
    TheTurboEngineers TTE420 P&P Turbo
    Wagner Tuning intercooler
    Sachs Performance clutch
    RS4 FPV
    HG-Motorsport exhaust
    90/76mm Downpipe mit 1x 200 cpi Kat
    Intake pump upgrade
    Autotech Hpfp Upgrade
    stock motor

    [​IMG]
    [​IMG]
    [​IMG]

  7. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113
  8. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113

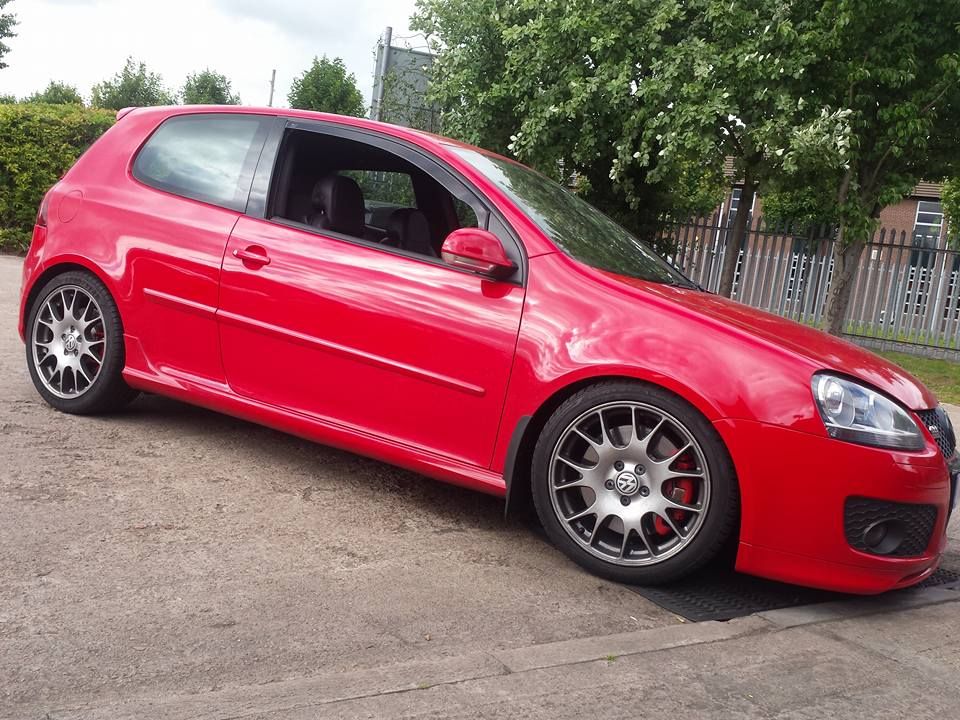

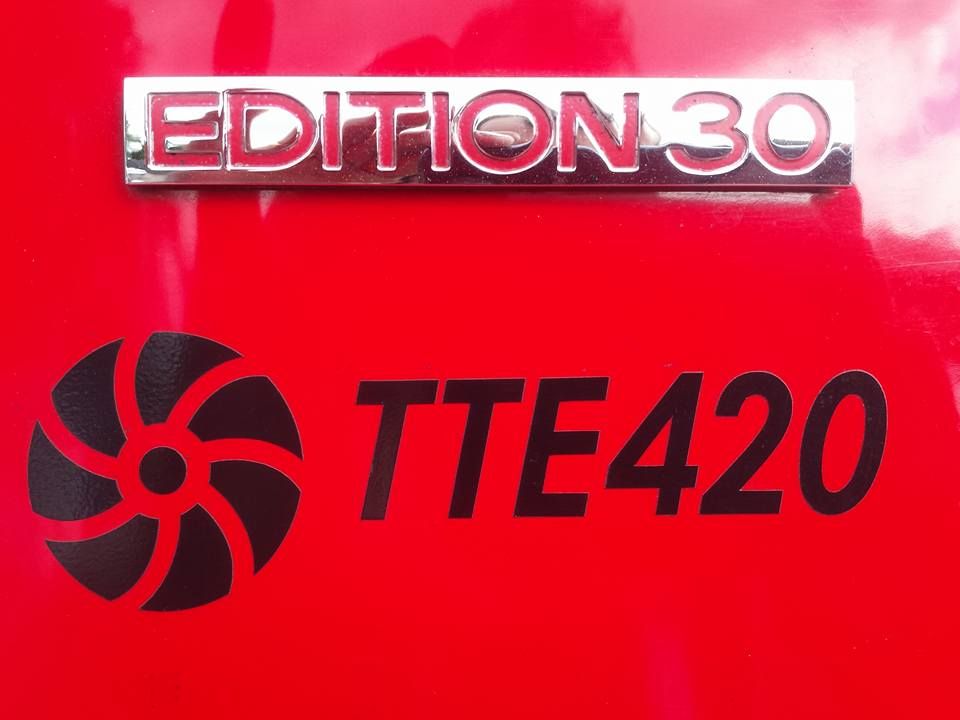

    Ollie's TTE420 Turbocharged VW ED30 Tuned with custom R-Tech Performance Tuning software.

    442ps 588nm 99 fuel 1.85-1.4bar (no wmi) 99 fuel @18psi boost (no wmi)



    [​IMG]

    [​IMG]

  9. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113

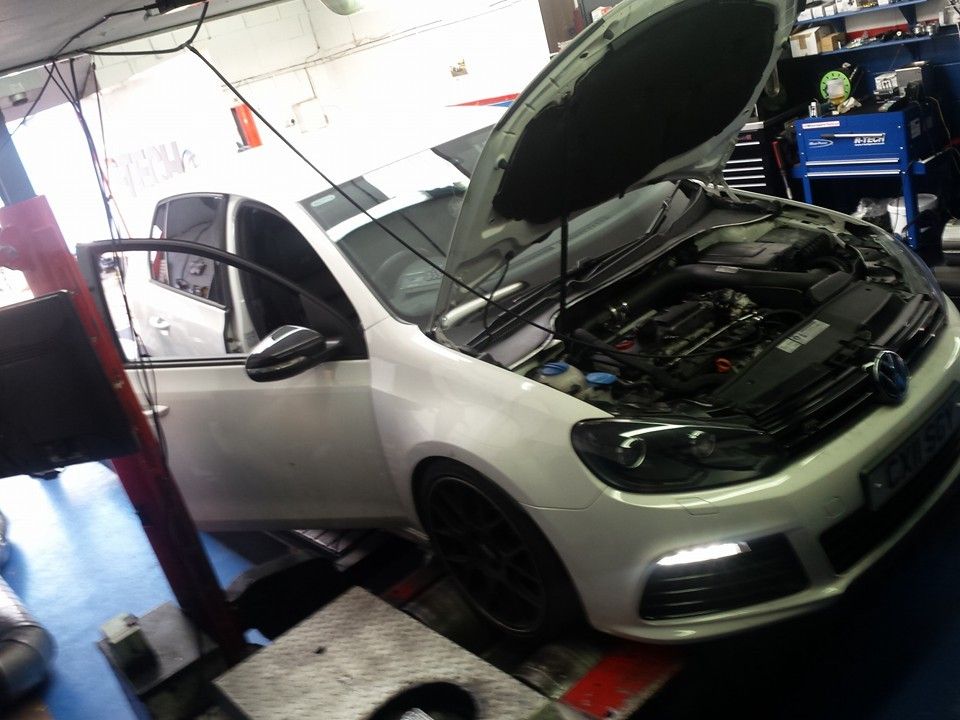

    Rich's VW GOLF 6R TTE420 with yet again custom R-Tech Performance Tuning software. 422ps 566Nm

    [​IMG]
    [​IMG]

  10. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113

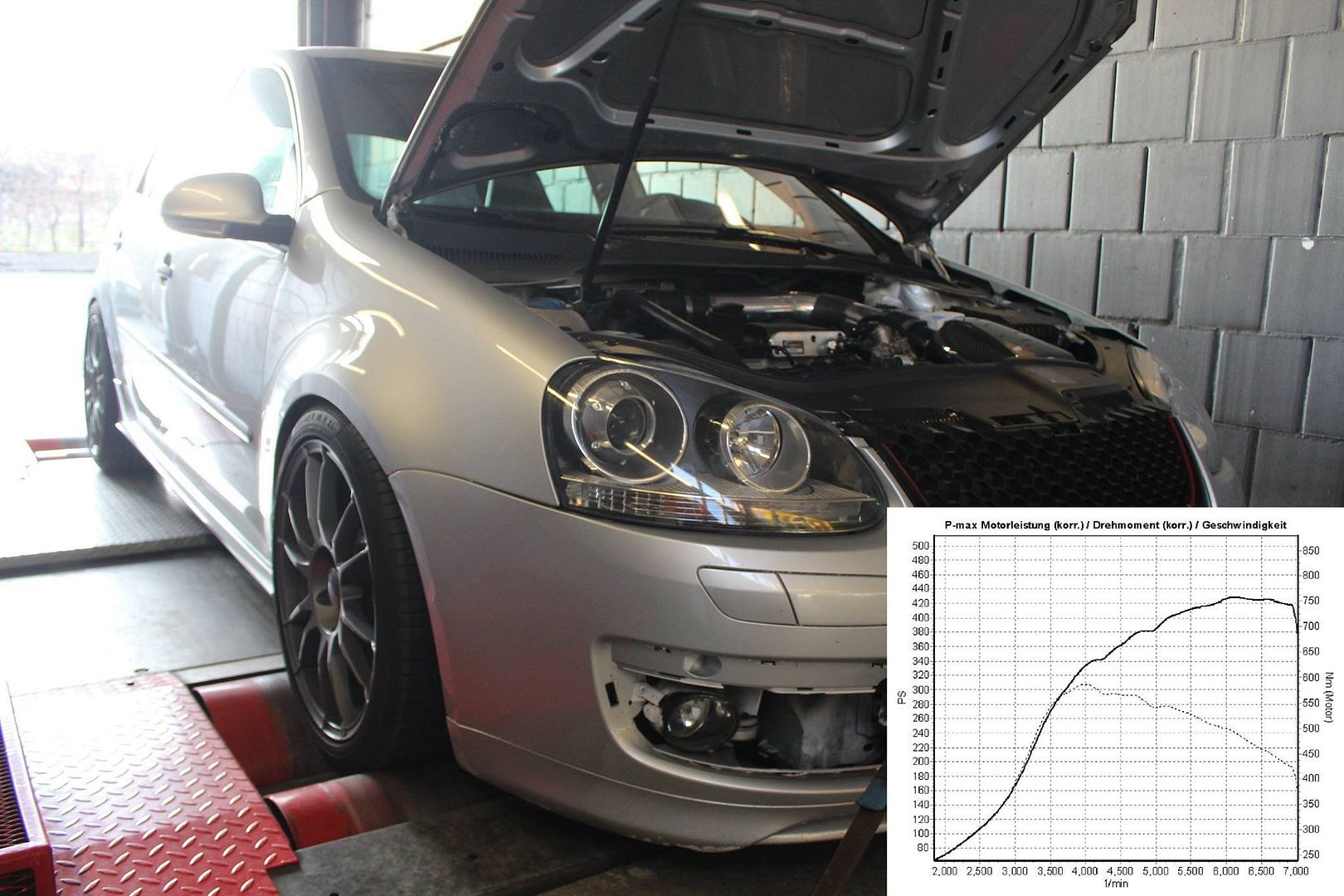

    Kevin Andries Perfect Golf GTI 2.0 TSI TTE420 DVX performance tuned.

    453.4HP 604Nm 1,6bar to 1,45 red line

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  11. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113
  12. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113
  13. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113

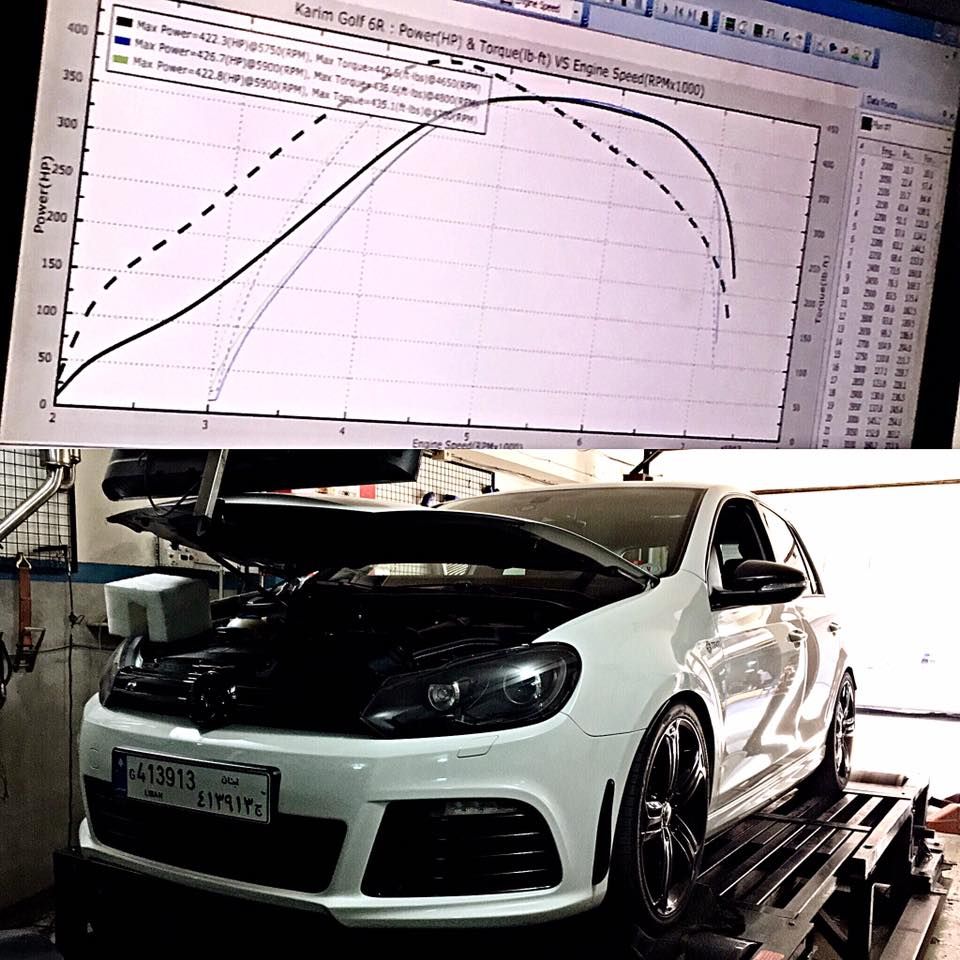

    Golf 6 R TTE420 by PowerGram

    455 hp, 611 Nm STD on 98 RON without WMI

    ECU Tuned by Driver Motorsport

    [​IMG]
    [​IMG]
    [​IMG]

  14. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113

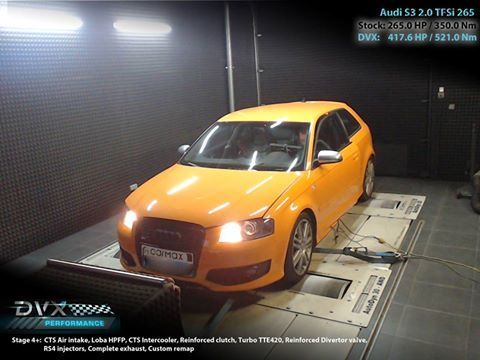

    DVX S3 Stage 4+:
    - TTE420
    - CTS Turbo intercooler and air intake
    - Upgrade HPFP
    - Forge Motorsport divertor valve
    - RS4 injectors
    - Reinforced clutch
    - 98 fuel (no wmi)
    - Custom DVX Remap
    - 423PS 521Nm

    [​IMG]
    [​IMG]

  15. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113

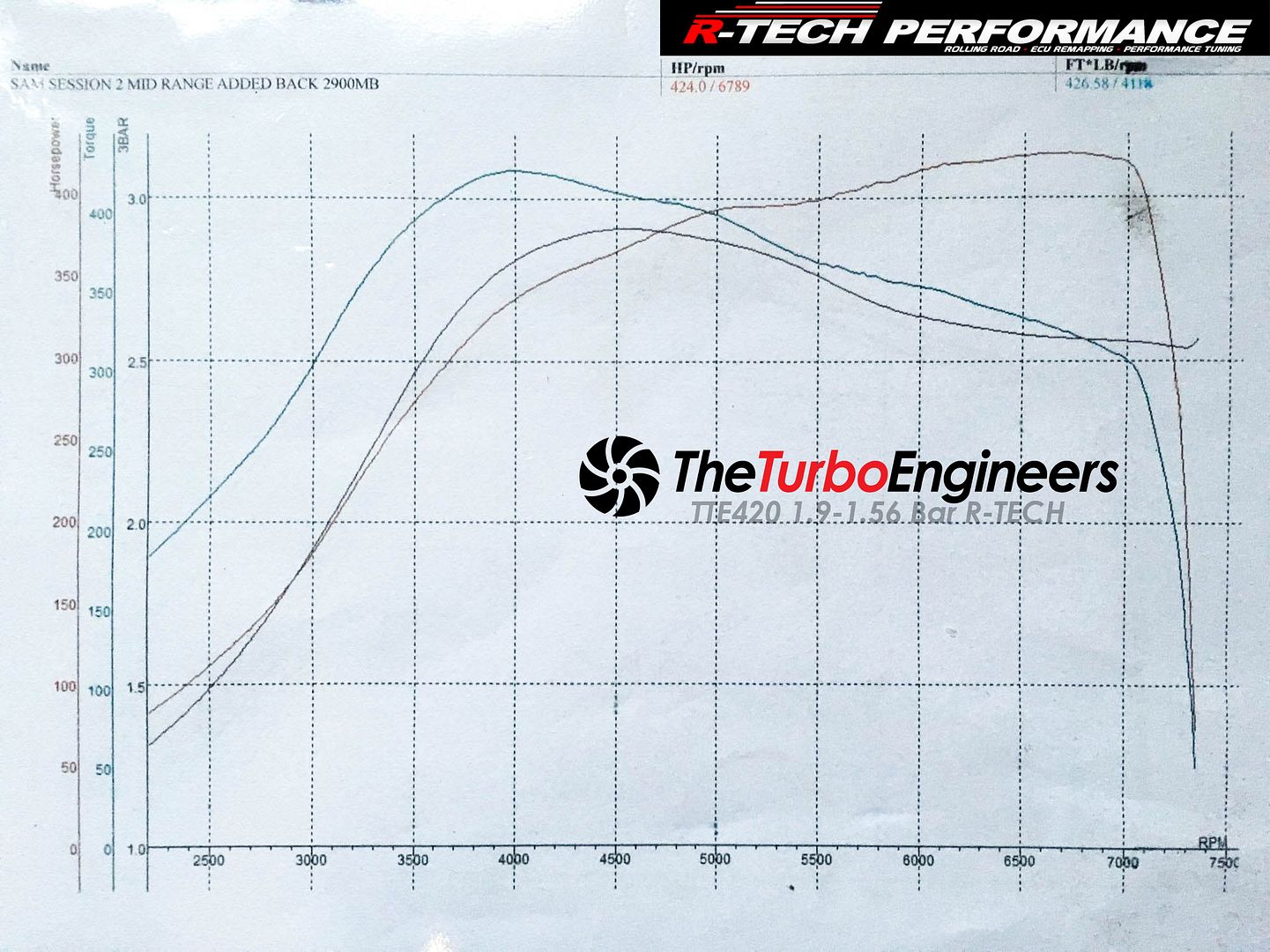

    New TTE420 result from R-Tech Performance Tuning

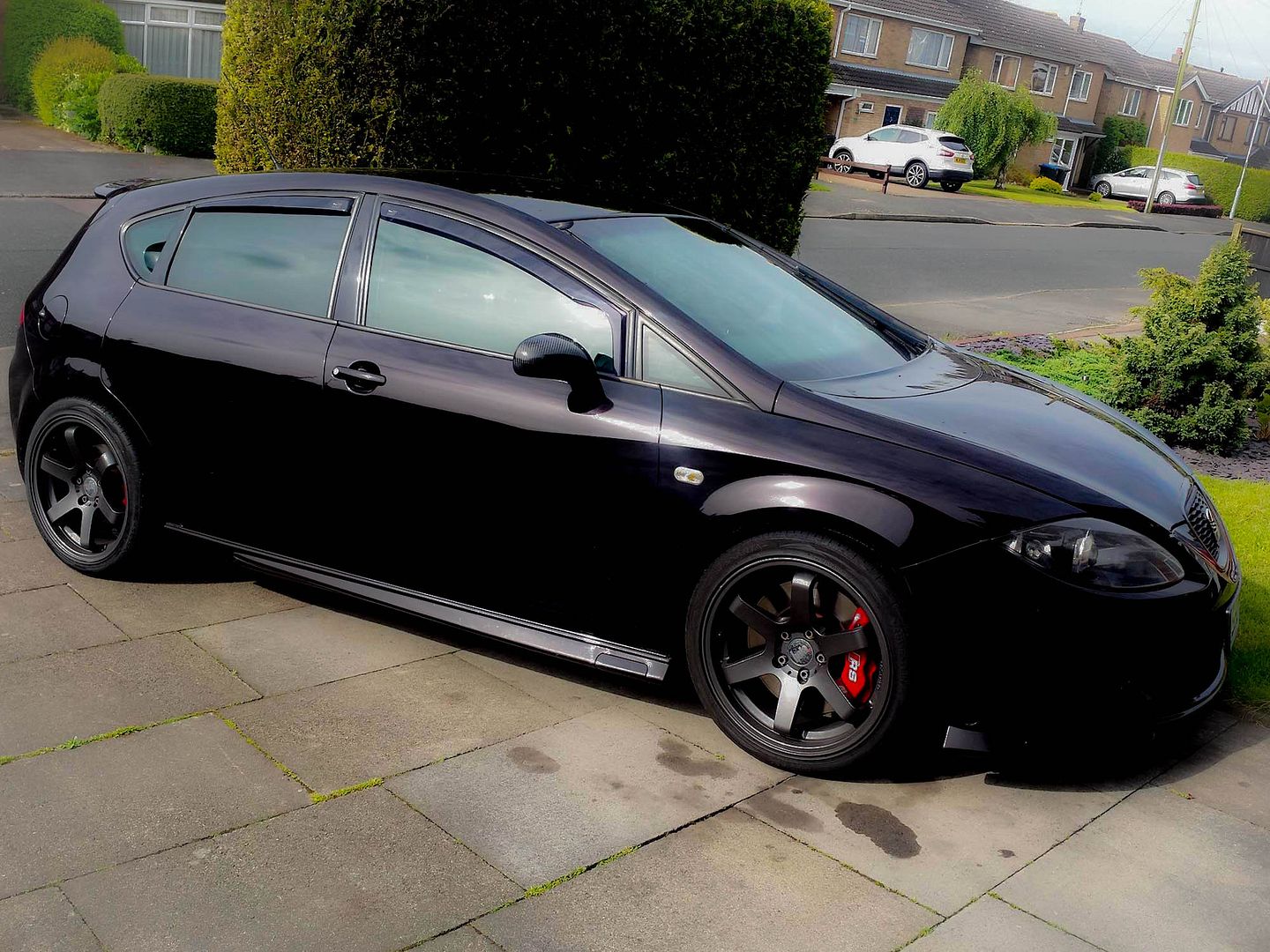

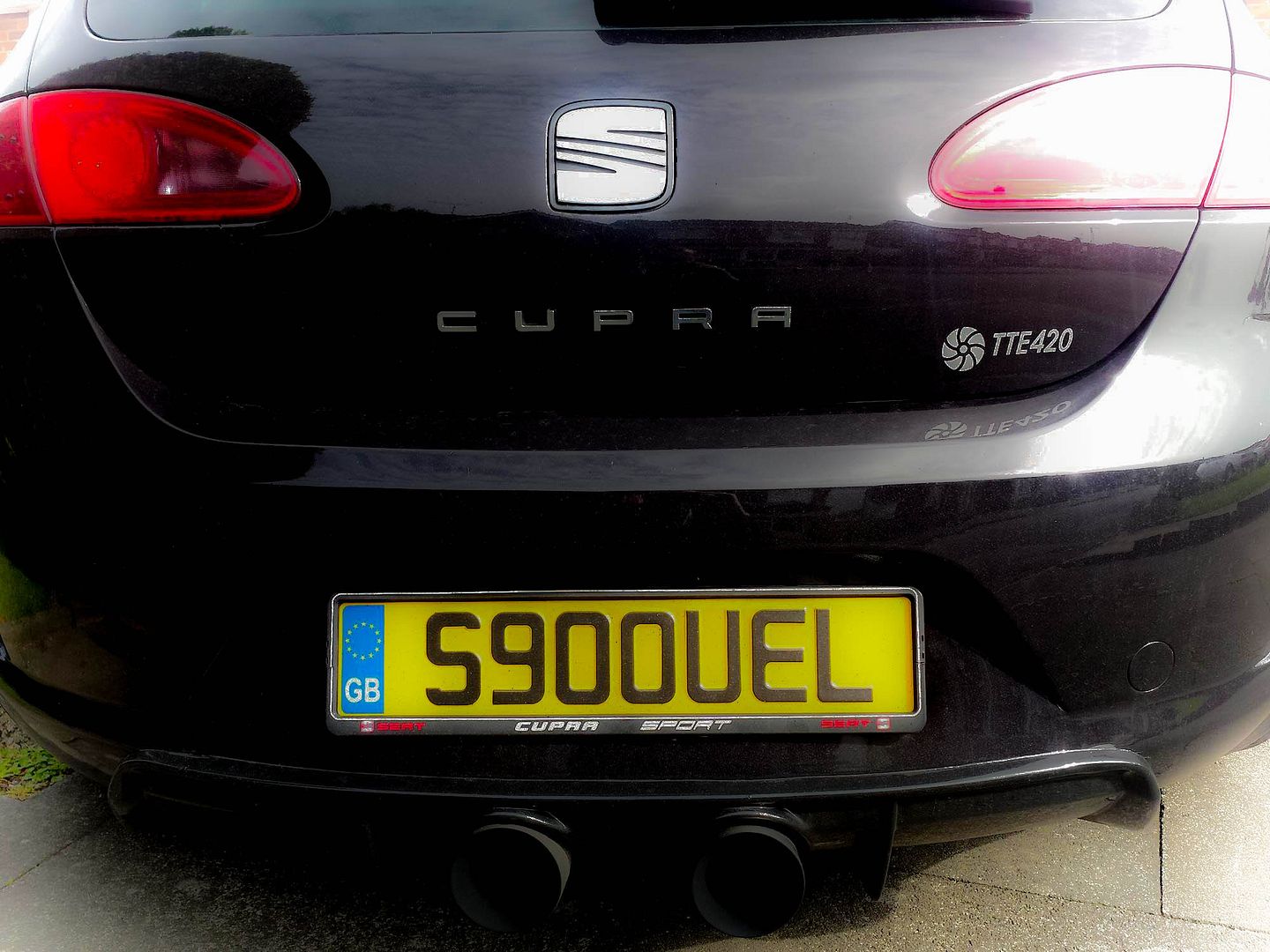

    Sam's Seat Leon TTE420 with Rtech software

    Hardware..

    TTE420 Turbo (ported)
    3.5" relentless full downpipe, decat and milltek catback,
    Custom intake
    Wellycooler
    All uprated intercooler hoses
    Apr hpfp
    Dw lpfp
    155bar valve
    Forge super size DV
    Rfd
    Wmi, dual nozzle (not mapped for)
    Helix clutch
    Revo engine mounts
    Rtech Pcv delete

    Shell vpower 98

    424HP 426 Ftlbs (429 PS 577Nm)


    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Tan likes this.
  16. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113
  17. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113
  18. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113
  19. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113

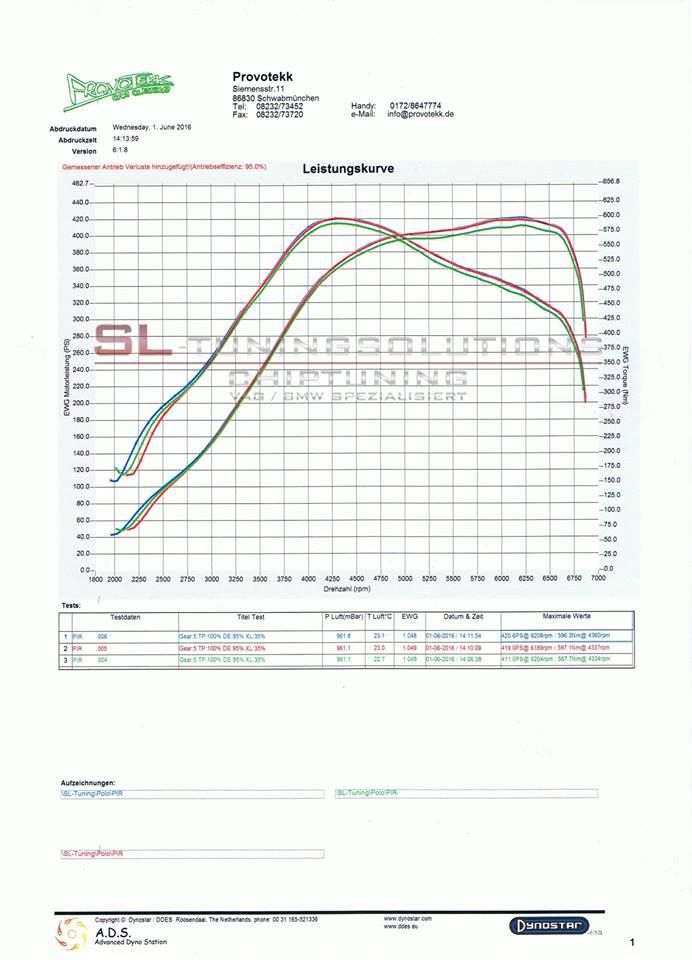

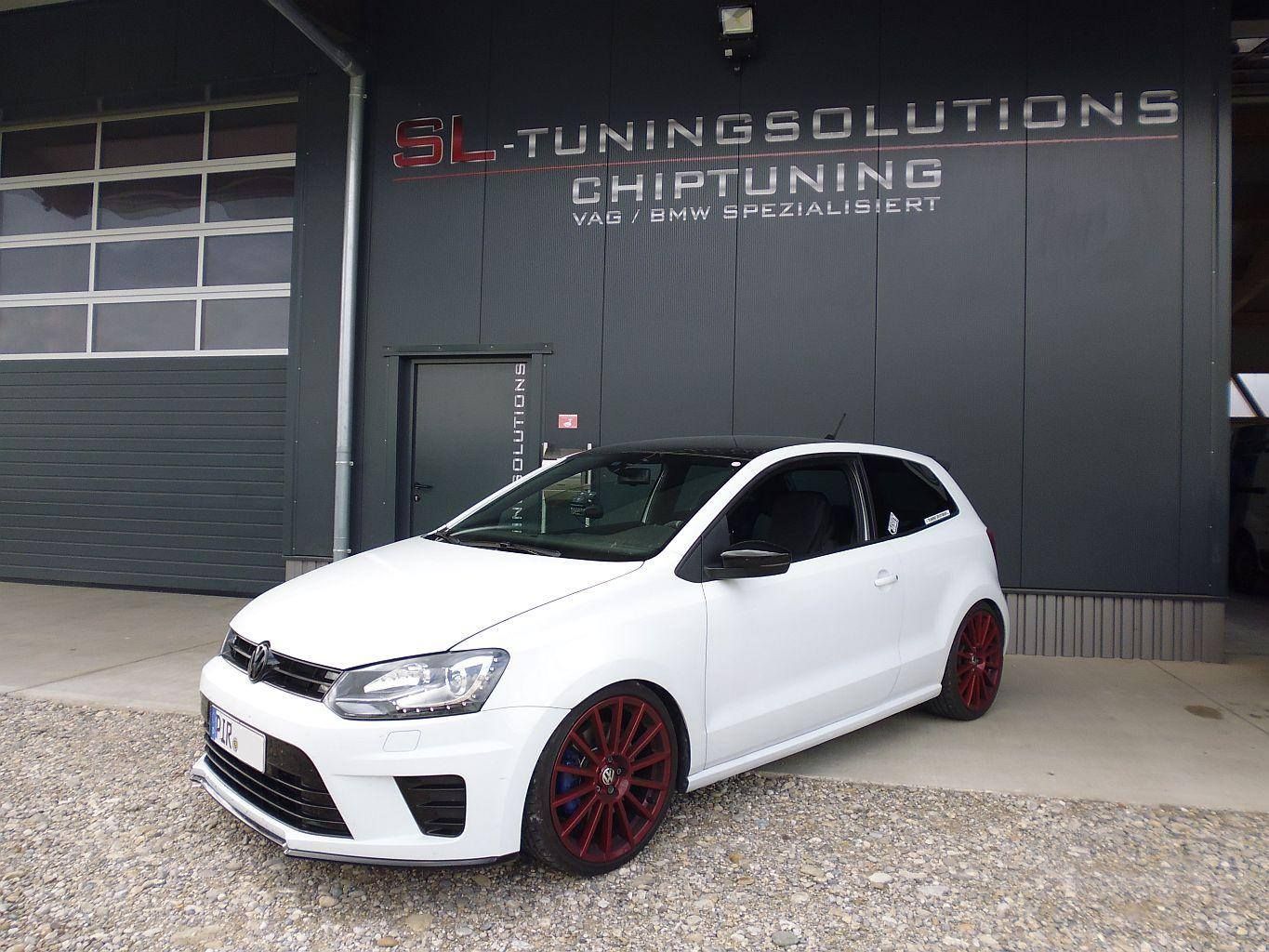

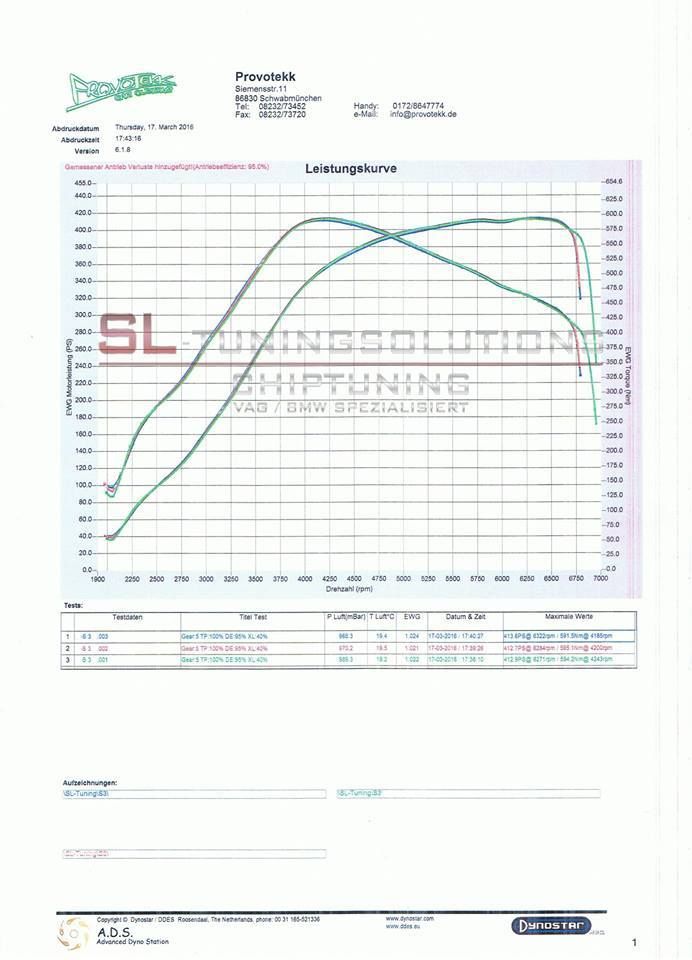

    Polo WRC, TTE420 From Sl-Tuningsolutions

    421 PS / 597 NM (EWG)


    [​IMG]
    [​IMG]

  20. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113

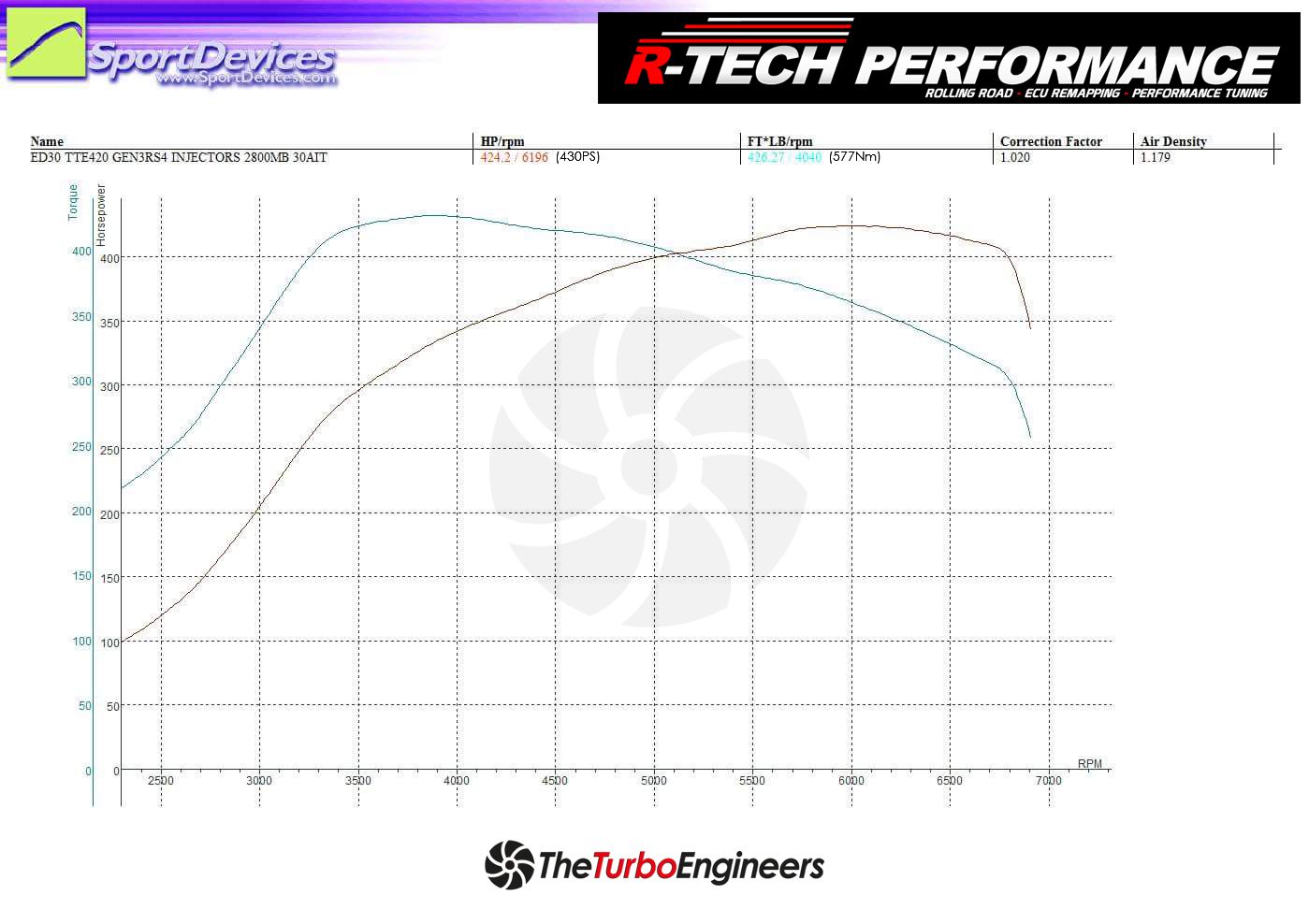

    TTE420 Doing The Business Again..

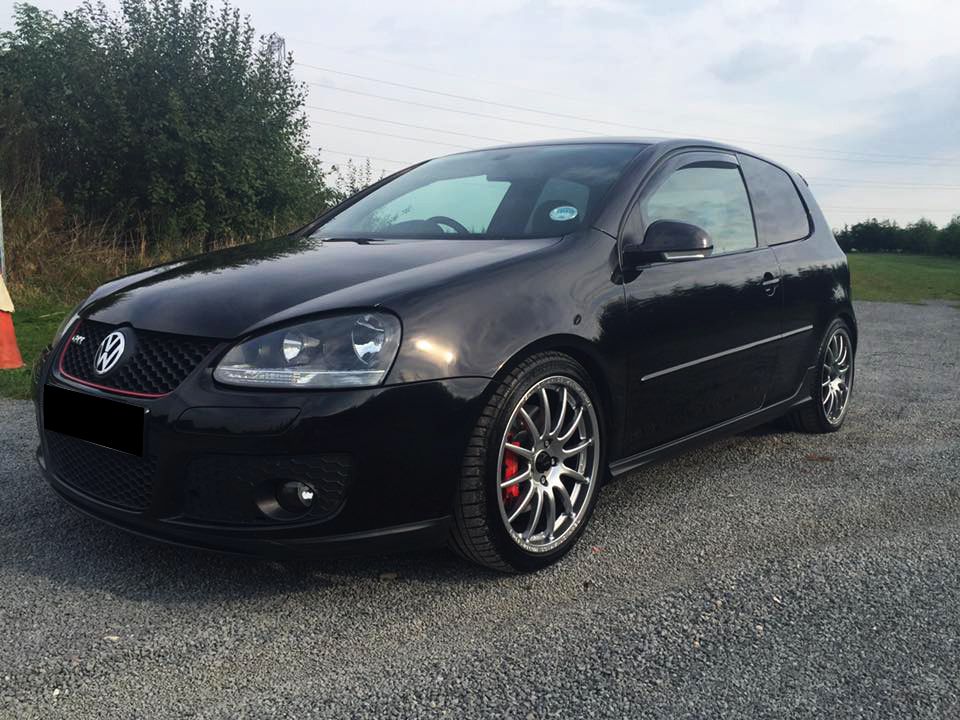

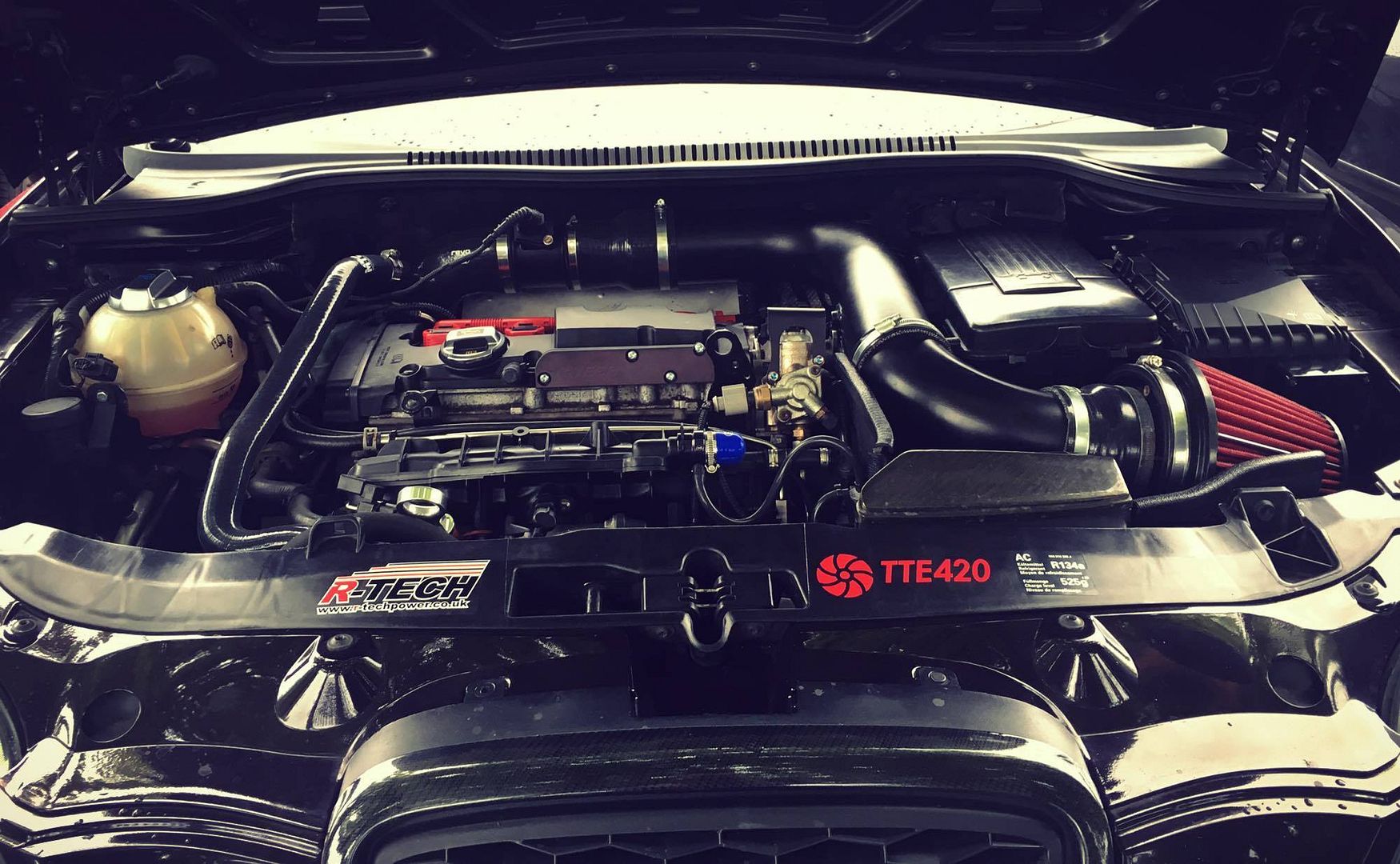

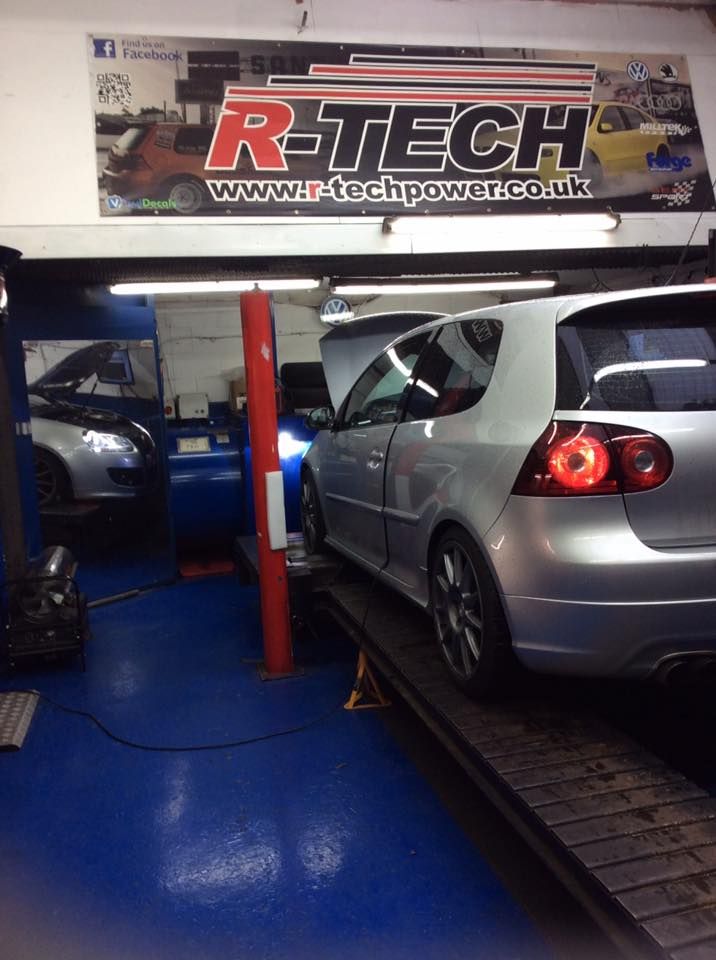

    Callum Stockdale's VW GOLF GTI ED30 TTE420 Tuned by R-TECH 430PS 577Nm 1.8bar boost pressure, 99 shell vpower (no wmi)

    TTE 420 turbo
    RS4 injectors
    Upgrade HPFP
    HFP-A35HV LPFP
    155 fpr
    GFB DV+
    Rfd
    Cts discharge and throttle pipes
    Peron intercooler
    Bcs powervalve system
    R-tech pcv delete
    Evap delete
    SALK
    Super pro front polybushed and rear
    Tyrol subframe kit
    034 motorsport engine mounts (street)
    Vibratechnics subframe mount
    Bilstein b12 sportline kit
    Ttrs topmounts
    H&R front and rear anti roll bars
    Helix smf + Helix organic clutch
    Quaife lsd




    [​IMG]

    [​IMG]
    [​IMG]

  21. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113

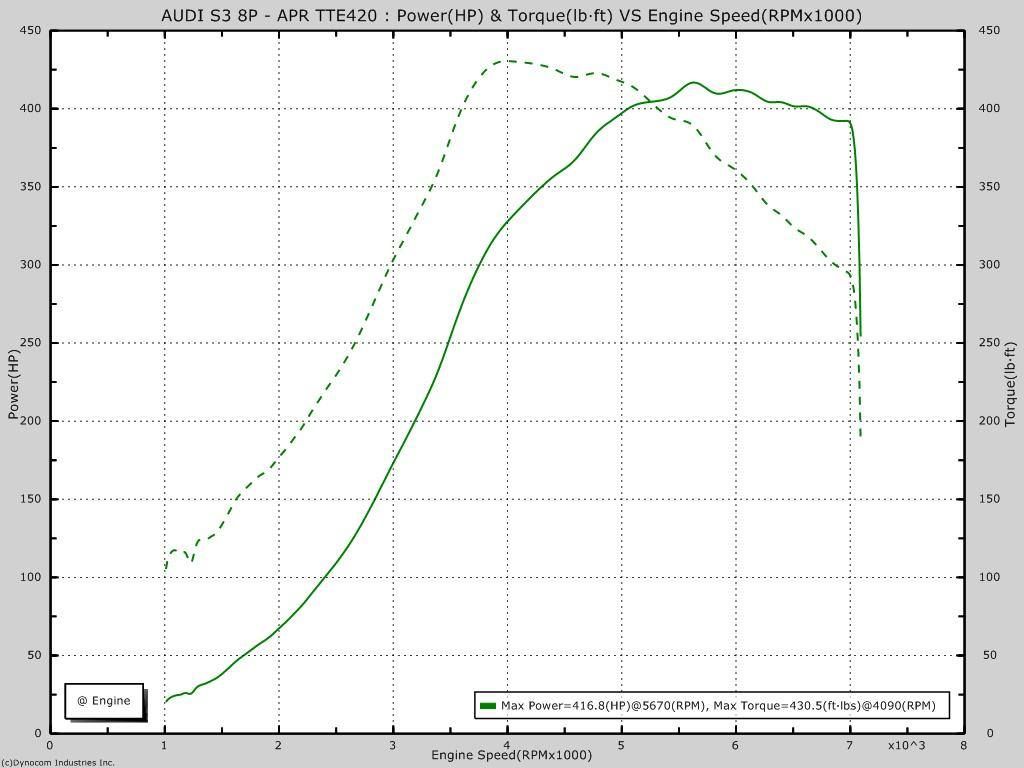

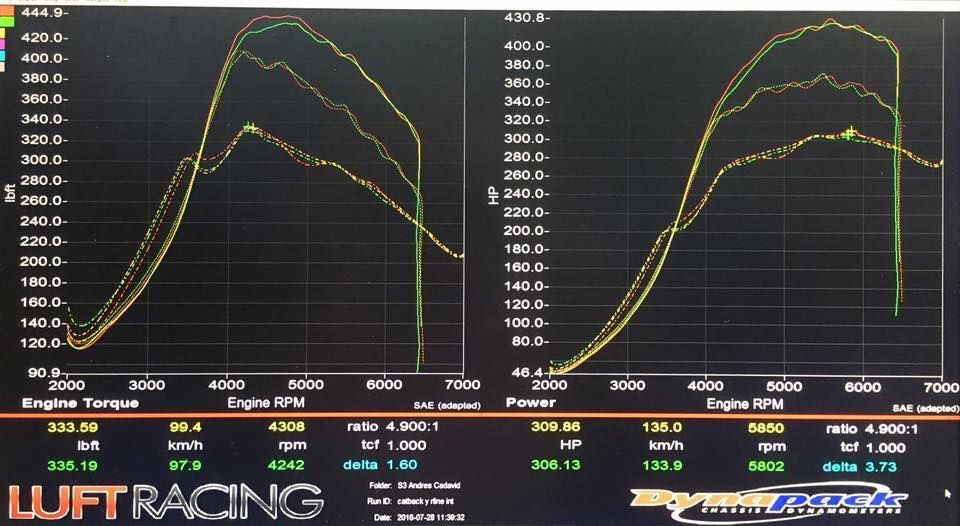

    MK2 S3 APR Colombia got the following results with APR TTE420 & software:
    - S3 8P APR Stage 2+ 95 RON (310whp / 335 wtq)
    - S3 8P APR TTE420 95 RON (370whp / 410 wtq)
    - S3 8P APR TTE 420 108 RON (430whp / 445 wtq)

    [​IMG]

  22. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113

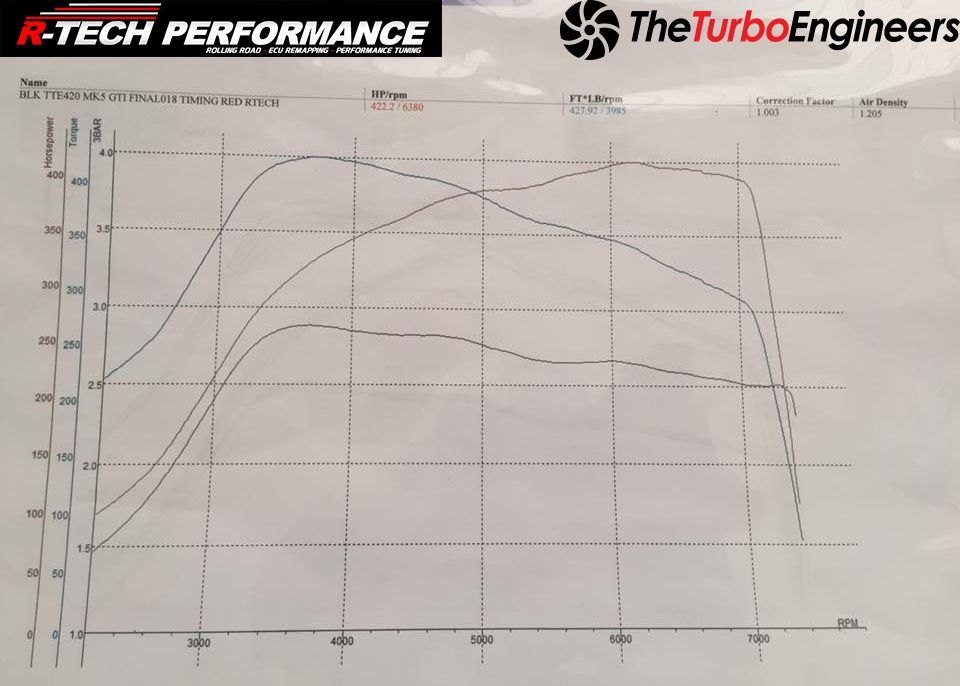

    Great TTE420 result on Rtech Software using 98 fuel

    422.2 bhp 428 ftlb at 1.7 bar boost peak (428PS 579Nm). Over 350ft lbs at 3k rpm !

    Russ's golf is a sleeper for sure







    [​IMG]
    [​IMG]

  23. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113
  24. Mohkassir

    Mohkassir New Member

    3
    2
    3
    Need some help I'm looking to buy this turbo but not sure if I can run this turbo on stoke internals on a golf gti mk5 axx engine
    I know all the other mods that I need to do but this what I'm not sure of ??

  25. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113
    New result from R-tech

    ED30 TTE420
    VPOWER 99 FUEL (no WMI)
    1.85BAR Peak

    445PS 578Nm

    Great Spool too!!

    [​IMG]

  26. Broken Byzan

    Broken Byzan Photographic Moderator Staff Member Moderator VCDS Map User quattro Audi A4

    13,237
    466
    83
    Not having a dig, what's the safe peak boost of these, they breeze 420 but obviously get pushed harder for more. I just was curious how it affects longevity?

  27. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113
    There happy at 2+ bar. Years ago all guys in Germany was pushing 2.2 -2.4

    Few ecotune (scotland) cars at 2.2+ years on no issues

    But much depends on the set-up. Tuners now worked out the best hardware and other to make optimum power at lower boost so better all round.

    Really this turbo is Bullet proof for reliability as are all and its due to premium parts and precision balancing & engineering.

    Broken Byzan likes this.
  28. Broken Byzan

    Broken Byzan Photographic Moderator Staff Member Moderator VCDS Map User quattro Audi A4

    13,237
    466
    83
    Thanks for the info, its appreciated.

    TTE Si likes this.
  29. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113

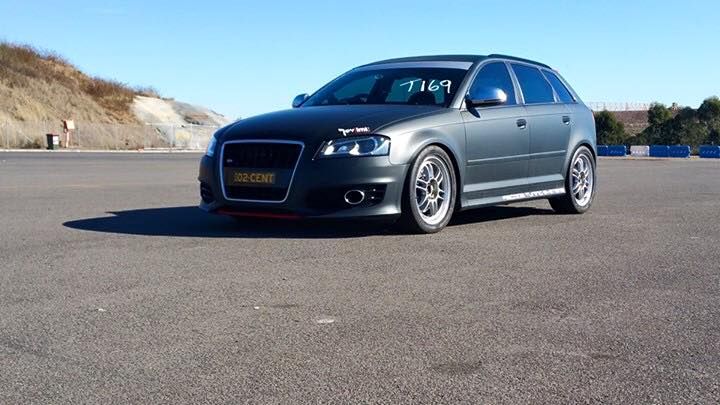

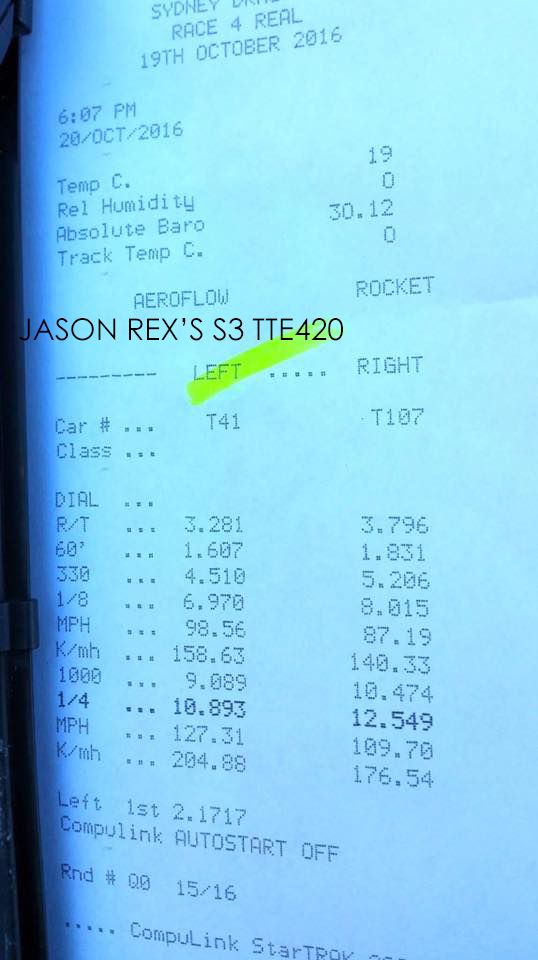

    NEW TTE420 1/4 MILE RECORD

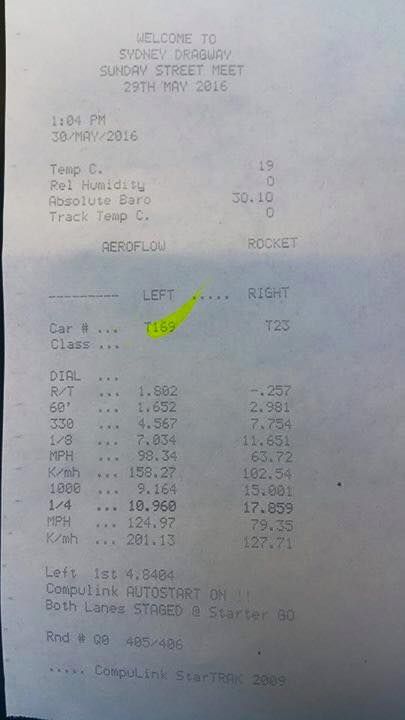

    Congratulations to Jason setting a 10.893 Second time in his TTE420 Turbocharged S3.

    Great praise to Recode Tuning Systems and Revlimit ECU tuning for software and setting up this beast.


    [​IMG]

  30. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113
  31. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113

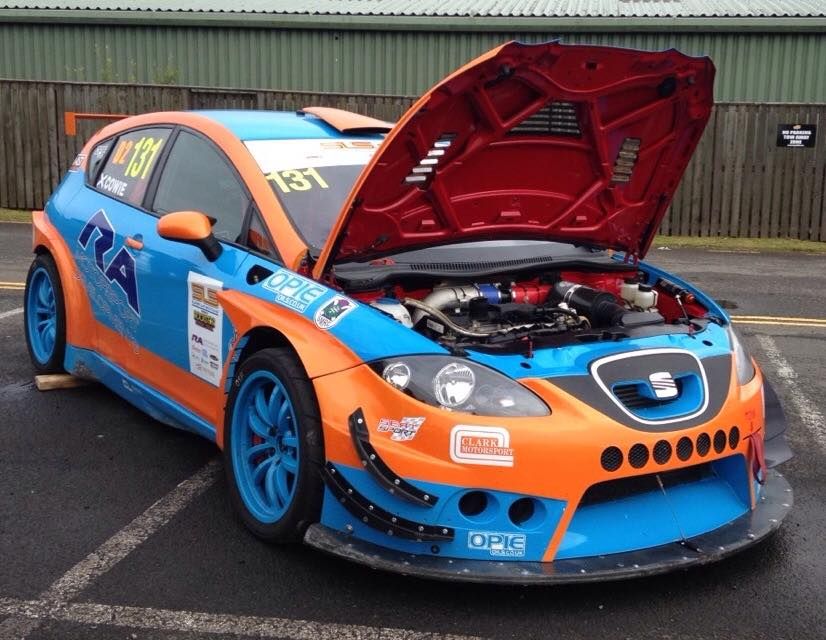

    Teamcowie's Seat Supercopa TTE420

    Soon to go TTE480

    [​IMG]

  32. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113
  33. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113

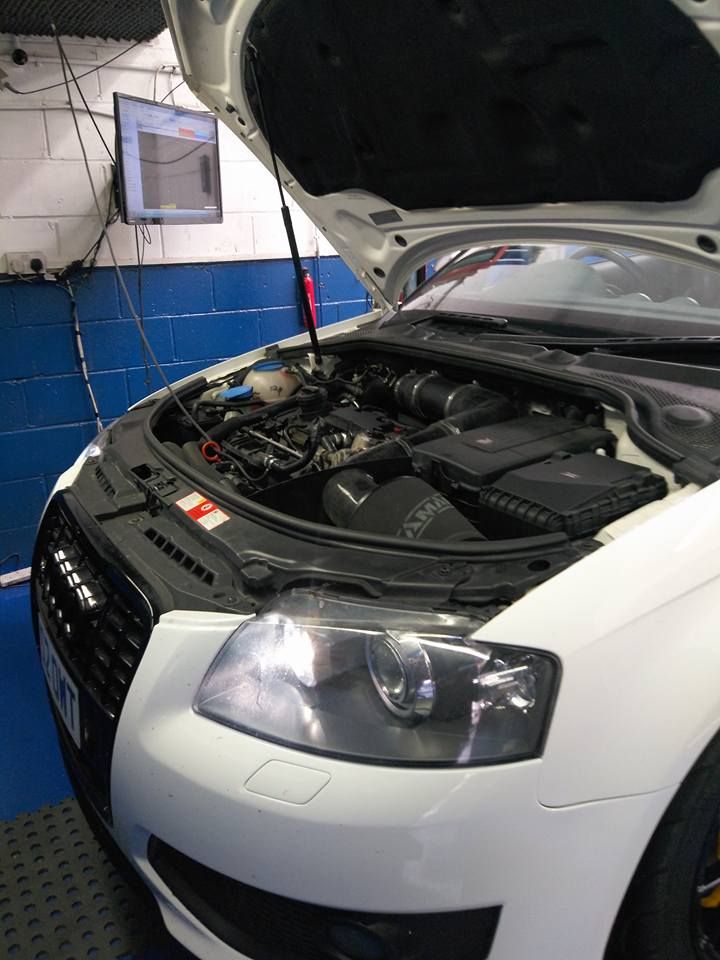

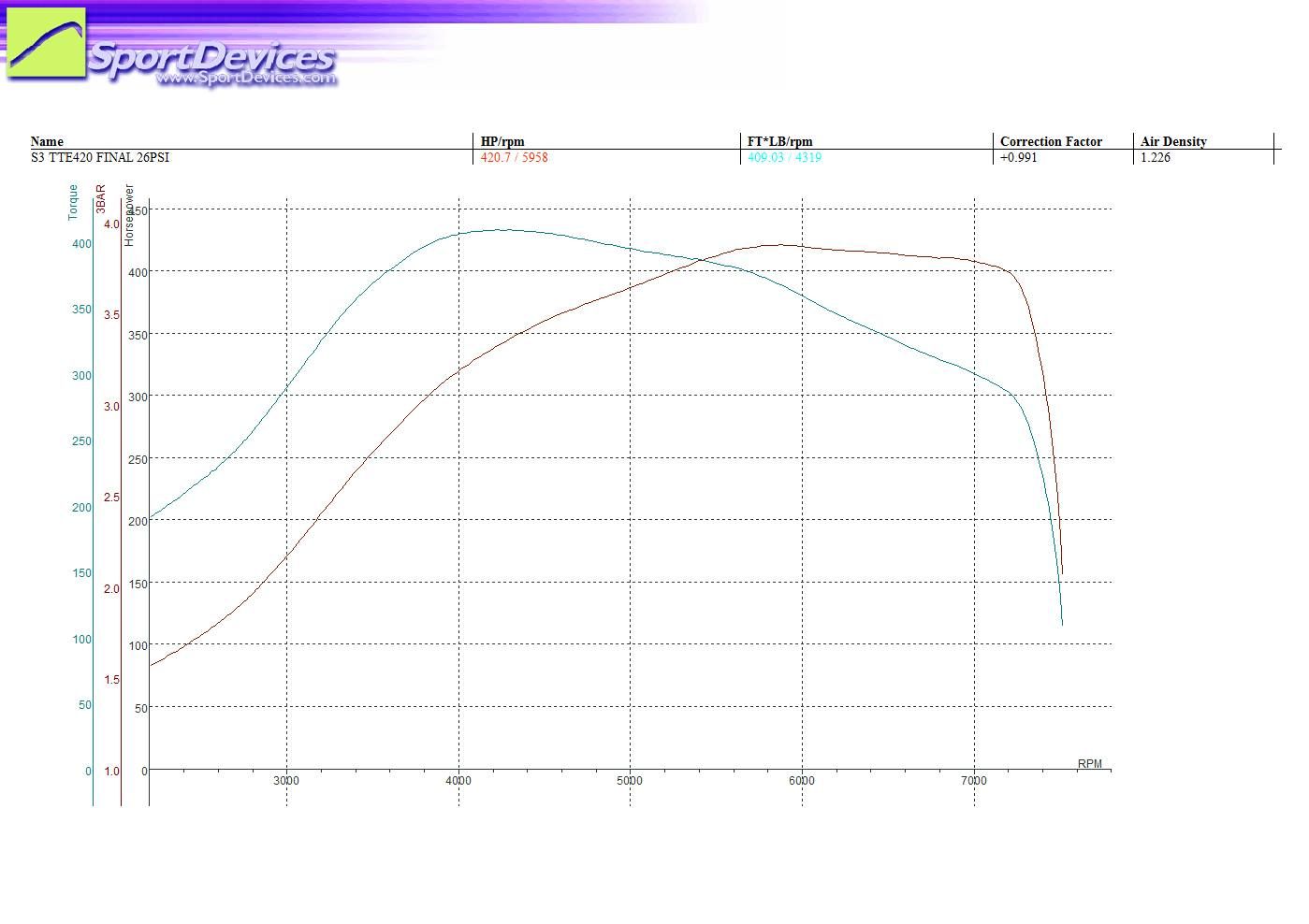

    S3 TTE420 From Ecotune using APR, LLC. software 98 FUEL (No wmi)

    422PS 583Nm

    [​IMG]
    [​IMG]

  34. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113
  35. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113
  36. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113

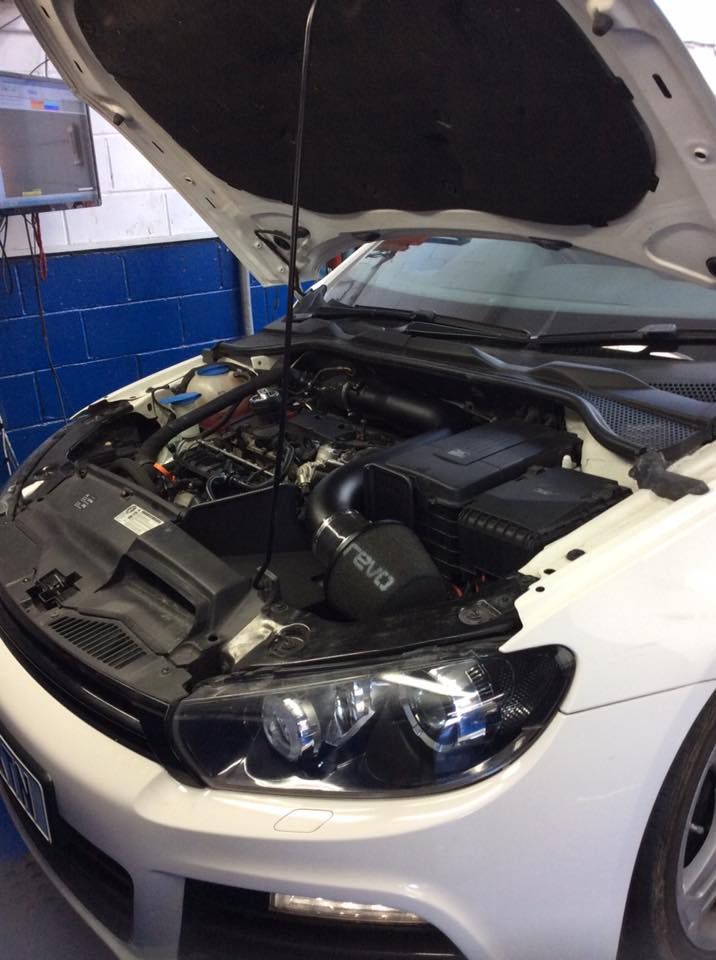

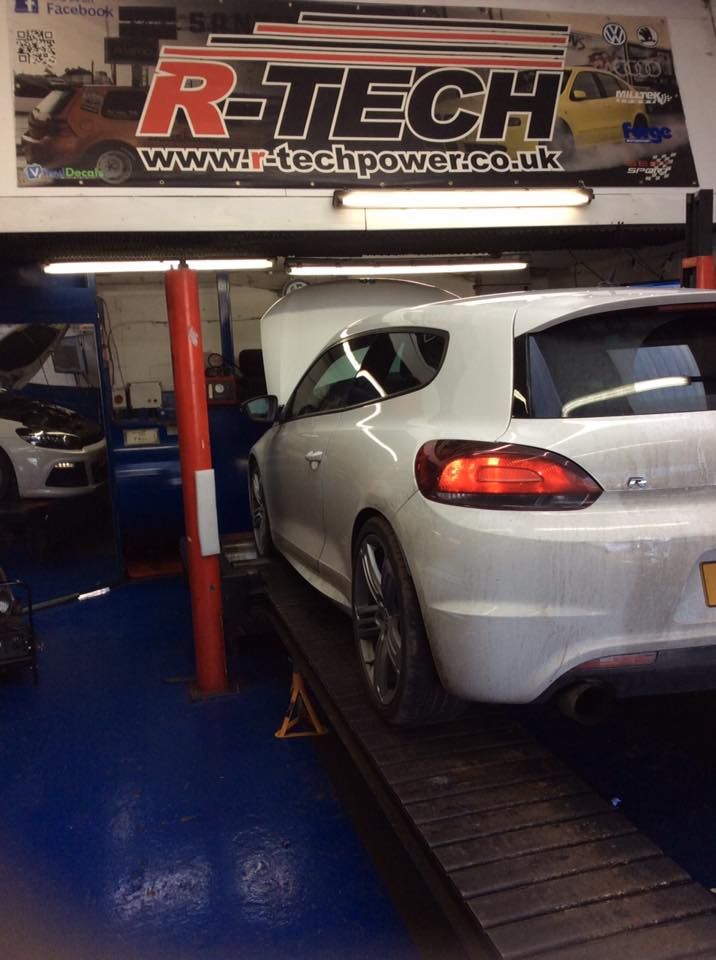

    AKS tuning Built Sirocco R TFSI TTE420

    TTE420 turbo - Revo Intake - Peron Fmic - BCS powevalve exhaust - stock injectors at 160bar - loba hpfp - ttrs intank pump - rfd - helix clutch -R-TECH custom map - 98 pump fuel

    Boost peak at 2860mb in the torque band tailing to 2660mb for peak power of 431hp at 6100rpm tailing to 2400mb and 410hp at 7000rpm.


    [​IMG]
    [​IMG]
    [​IMG]

  37. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113

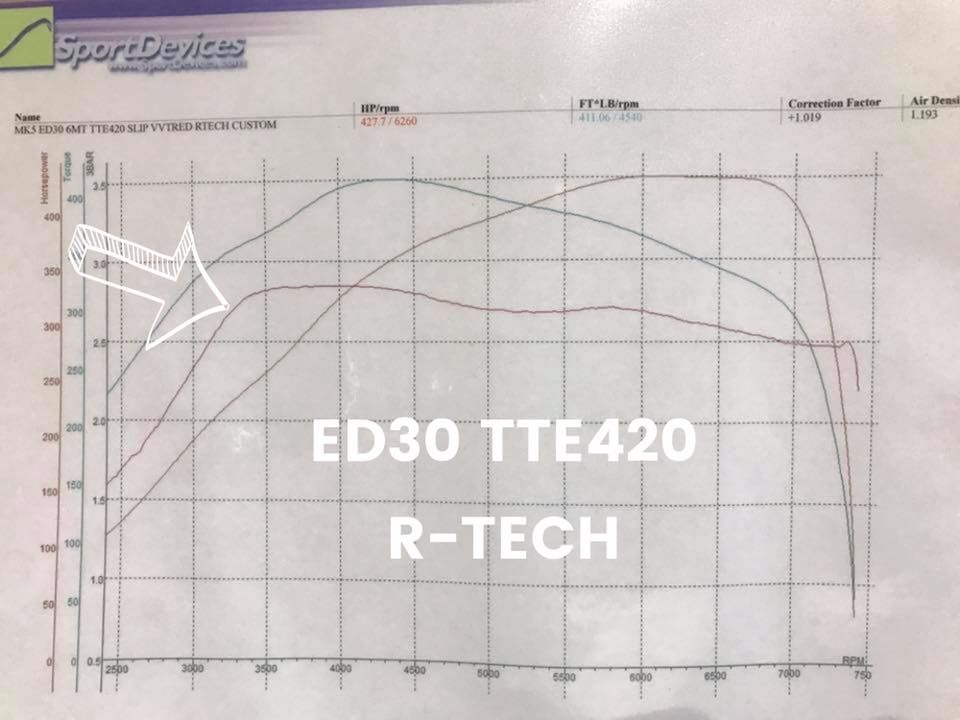

    TTE420 Mk5 Golf ED30 6MT

    Low down torque capped using timing and vvt as the car showed signs of clutch slip. (back soon for tweek when on new clutch) But look at the great turbo spool response (arrowed)

    TTE420 Turbo - S3 injectors- draft42 intake - 170bar reg - rfd - twintercooler setup - BCS Powervalve turbo back exhaust. 427hp 411lbft with 1.85bar for the torque band which tails to 2500mb at 7400rpm - R-TECH custom map - 98 ron pump fuel



    [​IMG]
    [​IMG]
    [​IMG]

  38. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113
  39. TTE Si

    TTE Si Site Sponsor Site Sponsor

    1,576
    878
    113
  40. Batyr RRR

    Batyr RRR New Member

    11
    1
    3
    Can u suggest some dealers in Europe of theturboengineers
