Project: New Identity

Discussion in 'A3/S3 Forum (8L Chassis)' started by damo.h, Aug 19, 2011.

  1. damo.h
    Offline

    damo.h DVLA Say it's Black

    Joined:
    Feb 9, 2010
    Messages:
    3,608
    Likes Received:
    64
    [Aug 19, 2011]
    Ok it's been a few weeks now since i wrapped the S3, Bit delayed but here you go....

    Insperation for the colour choice was the old skool light blue mk1 gti look and the GT3 RS in Riviera blue

    Products used....

    Autosmart G101
    3M Surface preparation system
    3M 85 series CV3 Premium cast vinyl ( light blue for the main body & gloss black for the detailing)

    So I started off by flatting back the front bumper otherwise it would of looked like an ad for clearacell, ill get it painted again when i go for a colour change, didn't have time due to the out-gassing needed with new paint as the solvents will eat away at the adhesive.

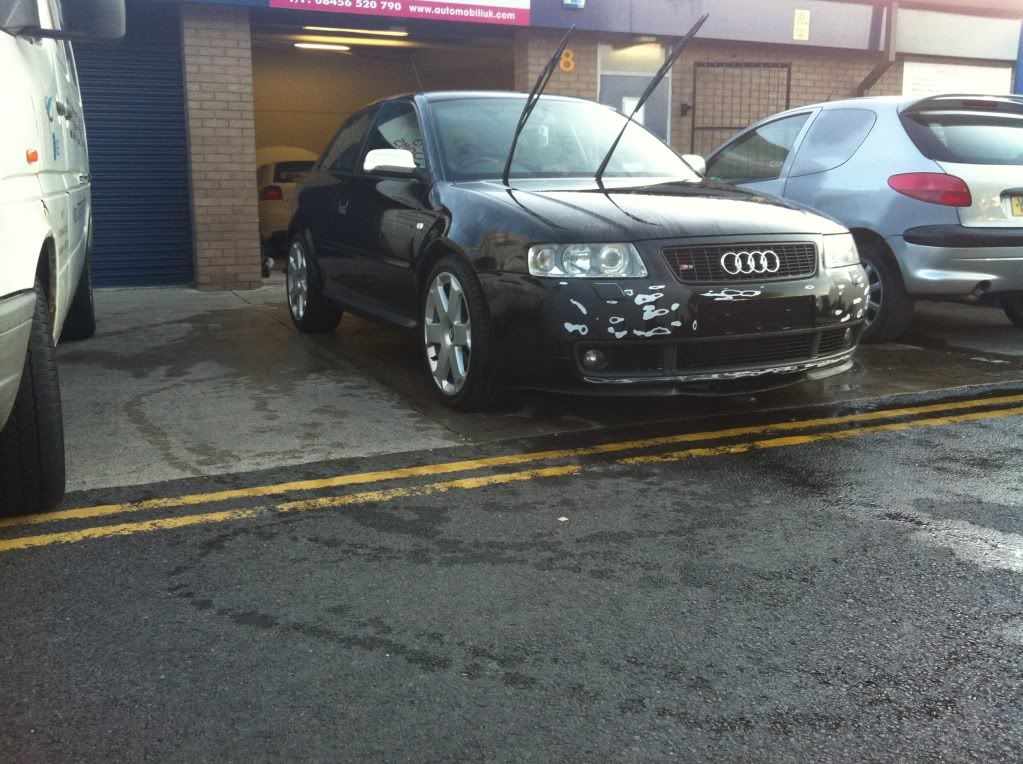

    So this is how she looked after a little sanding and a soapy wash looks like a confused snow leopard

    [​IMG]

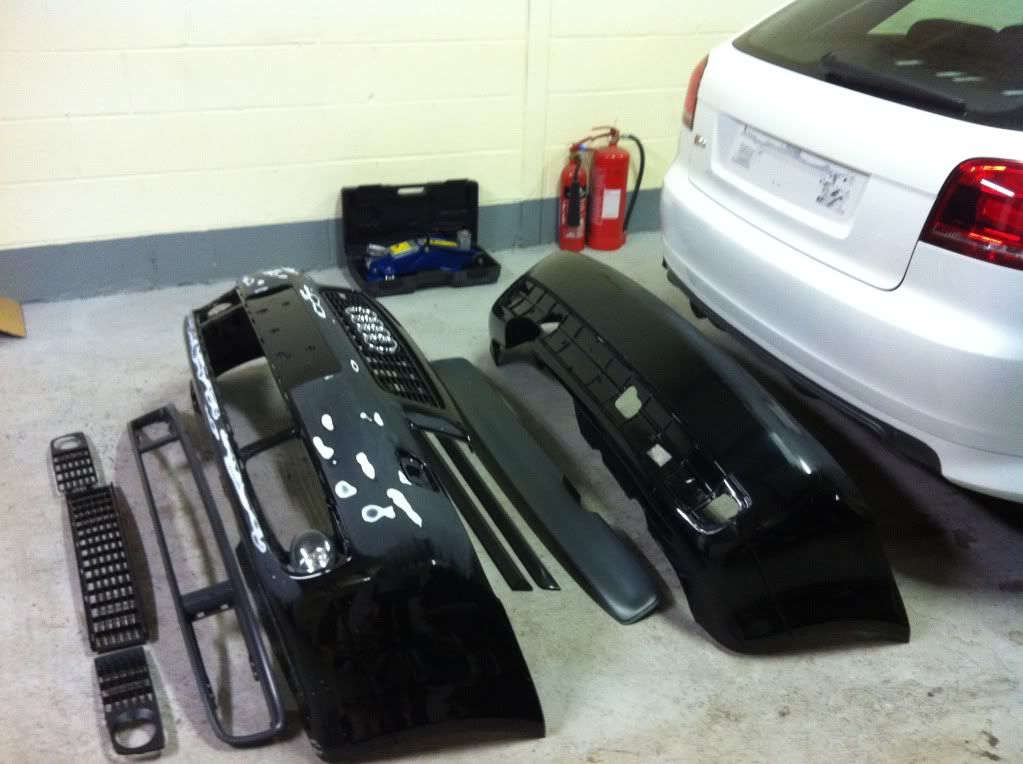

    Then Started the strip out, wont go into much detail as im sure this is all a bit boring

    [​IMG]

    after stripping we then gave all areas to be wrapped a good clean with G101, wipe clean, then repeat the process with the 3M prep system. the good thing i like about using 3M's PS is you can see it once applied, so you know when its all removed.

    Anyway lets gett this sucker Wrapped

    First off we started on the bonnet, Jimmy takes the left as he's a south paw and i take the right as im normal ;)
    [​IMG]


    [​IMG]

    On a colour change we wrap each panel individually, pre post heat, cut in, then post heat.
    [​IMG]
    [​IMG]

    Then the wings
    [​IMG]
    [​IMG]

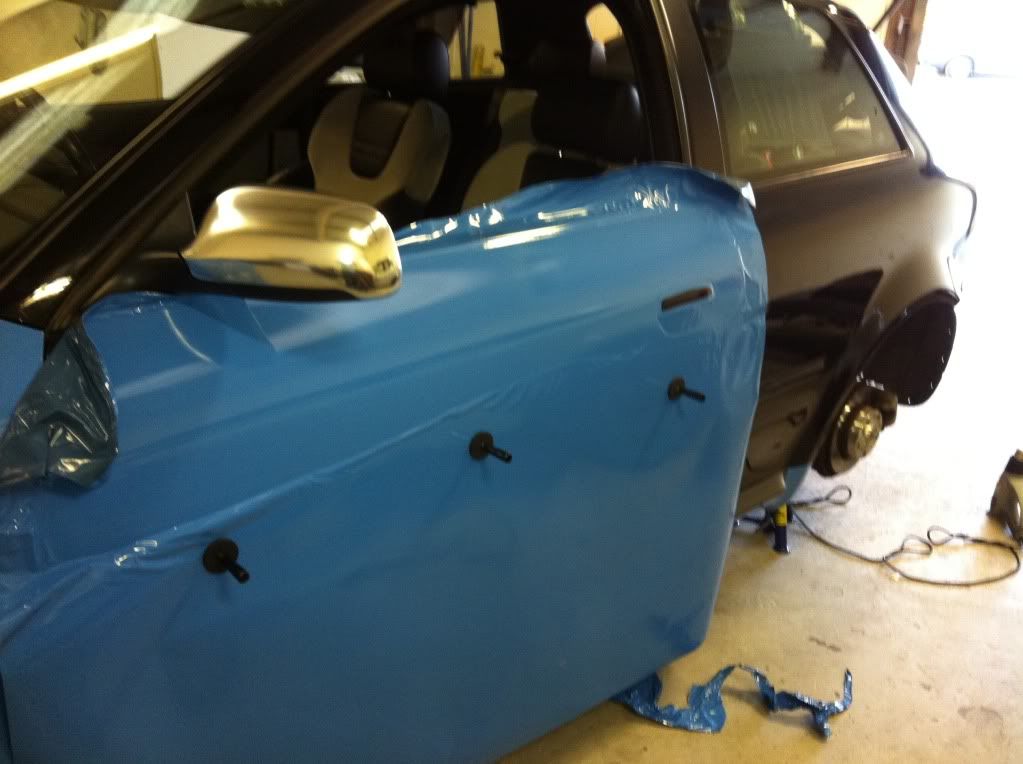

    We then measure out enough vinyl to do the whole side of the vehicle with a good amount of overhang, two reasons for this, it gives us something to hold onto when applying so wee don't touch the area that going on to the vehicle. also when we cut out the door section we have enough left to be able to use on the door.

    [​IMG]
    [​IMG]


    Then the 3/4's.

    [​IMG]
    [​IMG]
    [​IMG]


    [​IMG]
    [​IMG]

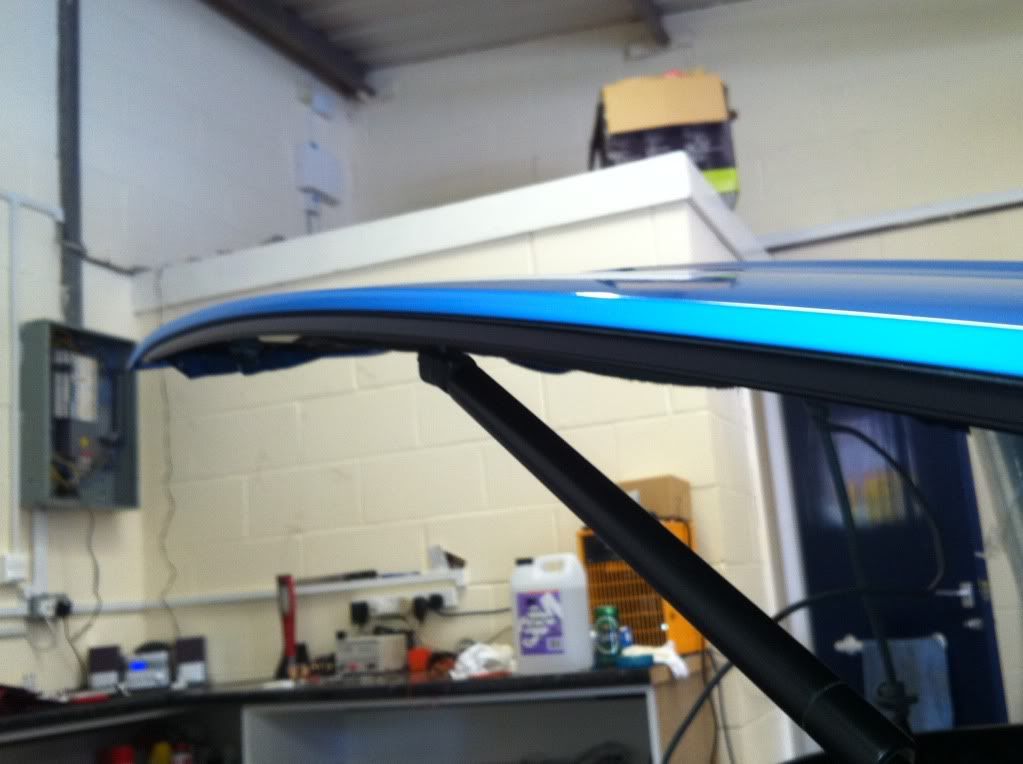

    Then the tail gate[​IMG]

    Then the bumpers

    [​IMG]
    [​IMG]
    [​IMG]

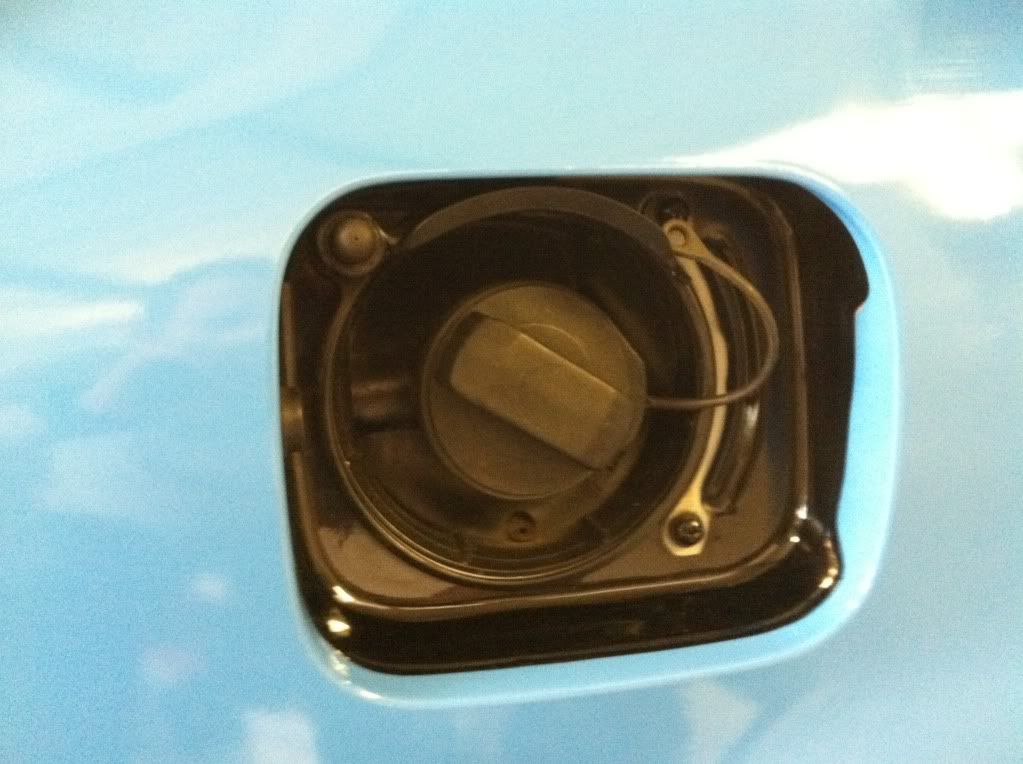

    Then is was time for the finiky stuff, grill surround, rear defuser, door blades.

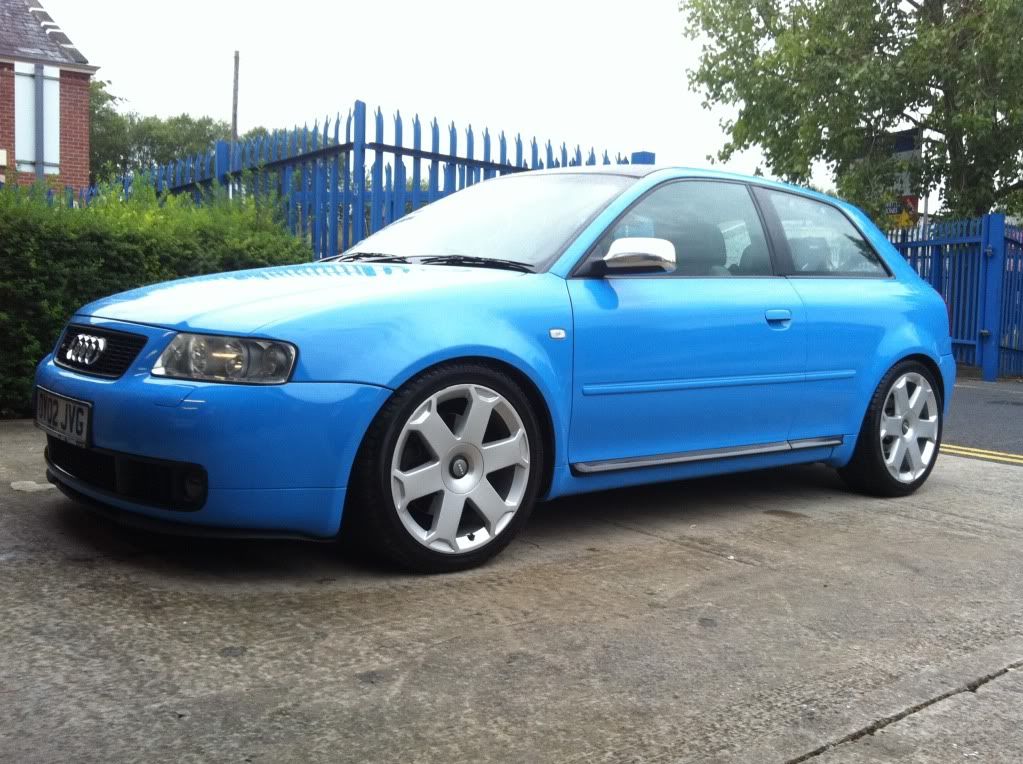

    Throw it all back together and its looking like this

    [​IMG]


    [​IMG]


    and a few from AITP
    [​IMG]

    [​IMG]
    [​IMG]

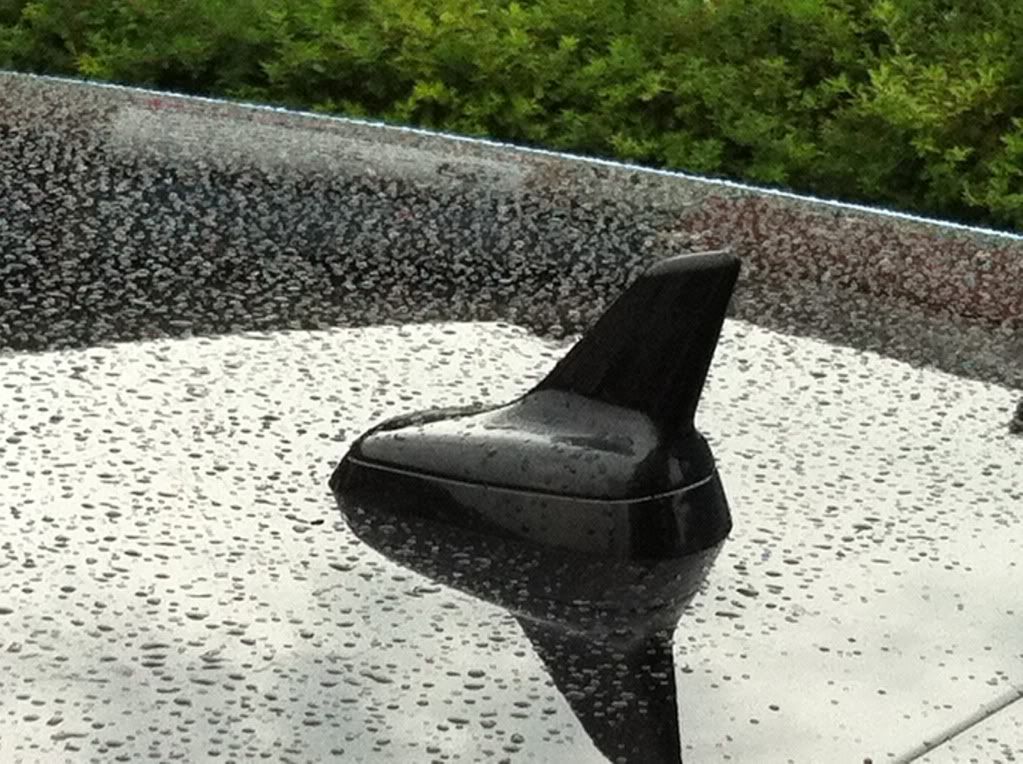

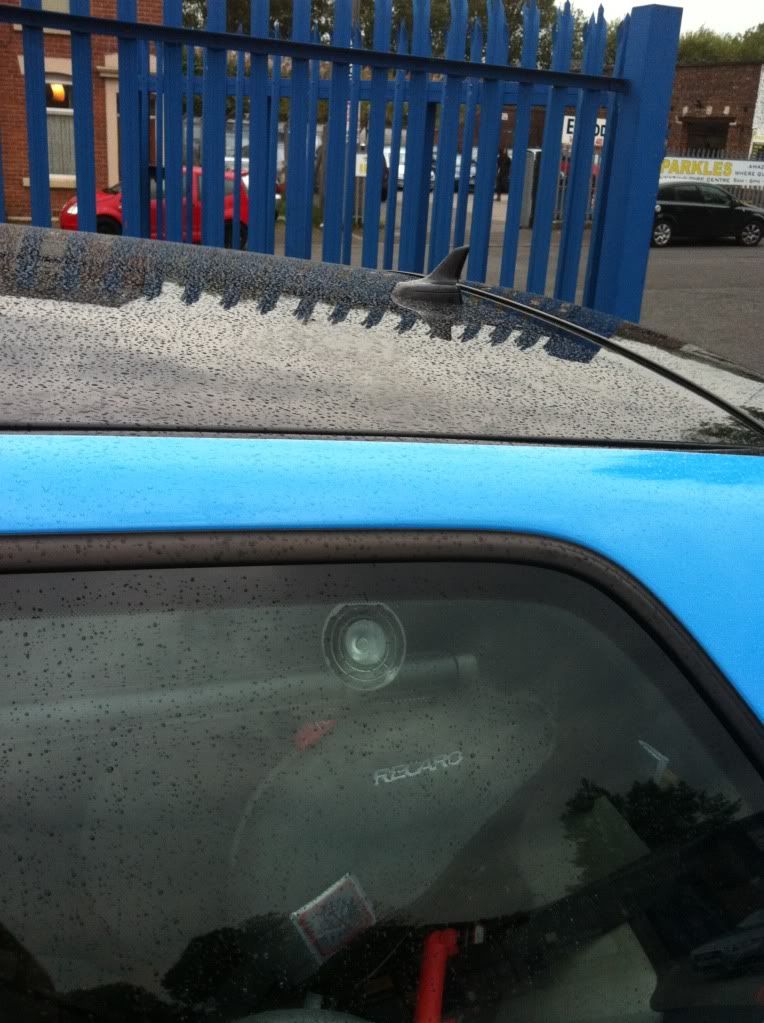

    Fitted the Audi shark fin that I bagged off my mate... love free stuff ;)
    [​IMG]
    [​IMG]
    [​IMG]



    So that's how she currently sitting on the kw's with the S4's still in two minds weather to go black on the wheels but think the S4's look better in silver so maybe a change is on the cards....... wheel see ;)

    What ya think peep's ??

    I Know it wont be to everyone's taste and it took me a few weeks to get used to it but its getting the attention when out and about so its doing its job...
    #1
  2. Ads

    Ads

    [Sep 22, 2014]

  3. 16Klappe
    Offline

    16Klappe Princess Clap.

    Joined:
    Sep 16, 2008
    Messages:
    5,327
    Likes Received:
    906
    [Aug 19, 2011]
    How much is a vinyl wrap like that?

    Say on a Mk2 Scirocco?
    #2
  4. 666markyboy
    Offline

    666markyboy Well-Known Member

    Joined:
    Mar 17, 2008
    Messages:
    1,126
    Likes Received:
    32
    [Aug 19, 2011]
    And how long would you expect it to last ?? do you polish and wax it like normal paint ?? it looks really good, i like the colour too, i thought the pic on your sig had been photoshoped lol
    #3
  5. damo.h
    Offline

    damo.h DVLA Say it's Black

    Joined:
    Feb 9, 2010
    Messages:
    3,608
    Likes Received:
    64
    [Aug 19, 2011]
    Install usually 3 to 4 days, as we let the car and vinyl acclimatise to the unit after the de grease for 12 hrs, then we let it stand for 12hrs after so 1 we can check adhesions and so the vinyl dont go into shock.
    Iv used 3m cv3 Wich is the top end stuff in the industry. price wise Yr looking @ £1300 ish but we do a little asn discout ;)
    Durability, as we install to 3m's spec to the letter we offer a 5 Yr warrenty on all 3m app's with a 6 to 8 Yr expectancy, but that really depends on aftercare. Hope this helps

    Aftercare, wash and polish as normal really, I usually use meg's quick detailer for ease.
    #4
  6. MURRAYS444
    Offline

    MURRAYS444 Member

    Joined:
    Aug 4, 2009
    Messages:
    790
    Likes Received:
    38
    [Aug 19, 2011]
    Nice color choice very original!!!
    #5
  7. Paullie
    Offline

    Paullie Banana Menace!

    Joined:
    Jan 19, 2011
    Messages:
    2,088
    Likes Received:
    267
    [Aug 19, 2011]
    That looks lovely, Damo! Great choice of colour and it really suits the car. Lot of work, but well worth it for sure. Nice job! :wub: x
    #6
  8. S3 AUO
    Offline

    S3 AUO Member

    Joined:
    Jan 6, 2011
    Messages:
    201
    Likes Received:
    9
    [Aug 19, 2011]
    Really nice colour mate, would you say it was defiantly worth the money then?
    #7
  9. Dani_B19
    Offline

    Dani_B19 Audi-sports own special child.

    Joined:
    Nov 9, 2008
    Messages:
    7,282
    Likes Received:
    90
    [Aug 19, 2011]
    Car looks spot on mate, didnt like it to start with but its grown on me and think it looks mint.
    Think it need some black wheels for defo but not the s4's, like you said they look better in silver.
    #8
  10. superkarl
    Offline

    superkarl MAN OF STEEL

    Joined:
    Mar 28, 2010
    Messages:
    7,616
    Likes Received:
    1,105
    [Aug 19, 2011]
    Amazing to see the process, thats some skill there well done. It looked superb at aitp.
    #9
  11. Reesy
    Offline

    Reesy Well-Known Member VCDS Map User

    Joined:
    Jan 20, 2010
    Messages:
    3,614
    Likes Received:
    133
    [Aug 19, 2011]
    Spoke to you about the car at AITP mate, and you knew my thoughts then. Looks just as good in the flesh. Definitely don't spray the s4 rims, but I think your car would look better with satin CH's anyways.

    Did you change the springs whilst it was being wrapped, as it looks lower after the wrap then it did when it was black?
    #10
  12. Paradox1
    Offline

    Paradox1 Active Member

    Joined:
    Aug 3, 2011
    Messages:
    1,833
    Likes Received:
    86
    [Aug 19, 2011]
    That looks wicked mate, love the colour!
    #11
  13. voorhees
    Offline

    voorhees Moderator Staff Member Moderator

    Joined:
    Dec 18, 2005
    Messages:
    15,123
    Likes Received:
    1,186
    [Aug 19, 2011]
    looks good...better in the flesh
    #12
  14. jojo
    Online

    jojo S3 Drift King! Staff Member Moderator

    Joined:
    Sep 4, 2003
    Messages:
    26,237
    Likes Received:
    1,676
    [Aug 19, 2011]
    Looks sharpe in the photo's and I have to say, quite sharpe in the flesh also, since 8L S3's didn't come in this colour, it's very unique.
    #13
  15. Prawn
    Offline

    Prawn My other car is a MINI!!!!

    Joined:
    Dec 8, 2006
    Messages:
    9,603
    Likes Received:
    1,361
    [Aug 19, 2011]
    S4 wheels HAVE to be silver I'm afraid. so they must stay.

    Your car would look epic with black / anth wheels, but the S4's must remain black.

    Love the wrap though!
    #14
  16. Nilz
    Offline

    Nilz Defo worth the wait :)

    Joined:
    Apr 9, 2006
    Messages:
    10,255
    Likes Received:
    403
    [Aug 19, 2011]
    WOW!!!

    Dude that looks amazing, I love that colour as well, its such an original colour, my uncle has recently had his Camper Van done in the same colour.
    #15
  17. damo.h
    Offline

    damo.h DVLA Say it's Black

    Joined:
    Feb 9, 2010
    Messages:
    3,608
    Likes Received:
    64
    [Aug 20, 2011]
    Yeh i would say so, but then again im bound to lol, the paint protection alone is priceless imo, but its different and i like that also.

    you and me both dani took me a while to get used to it but i think ill like it more with black wheels. but i dont think i can bring myself to spray the s4's

    Kind words dude, cheers :thumbsup:

    Ye had the kw's fitted just after

    Deffo agree there the camera don't like the colour... so haed to get it right, either shows the colour to be to light or to dark. :wtf:

    Cheers man ye i agree totally, always been a sucker for ch's even though they been done to death. been looking at the
    Nuespeed rse14's also but i think they only do them in 19's :(

    thanks guys
    #16
  18. IrishDave
    Offline

    IrishDave Active Member

    Joined:
    Apr 27, 2011
    Messages:
    654
    Likes Received:
    44
    [Aug 20, 2011]
    Like the finish. A lot of effort put in there.:thumbsup:
    #17
  19. Wizza
    Offline

    Wizza BÜBENGRÖPEN

    Joined:
    Dec 10, 2008
    Messages:
    750
    Likes Received:
    14
    [Aug 20, 2011]
    It looks great :) but there's always one thing that bugs me about wrapping/respraying cars and thats when the interior is a different colour (although you can get away with it being black).
    #18
  20. beanoir
    Offline

    beanoir Sharpest Tongue in the West

    Joined:
    Jan 15, 2007
    Messages:
    2,174
    Likes Received:
    19
    [Aug 20, 2011]
    That looks awesome, love the colour!:thumbsup:

    I actually like the silver wheels on the car, but then i'm not a fan of black wheels.
    #19
  21. gary3306
    Offline

    gary3306 Member VCDS Map User

    Joined:
    Oct 17, 2010
    Messages:
    950
    Likes Received:
    27
    [Aug 20, 2011]
    Looks the mutts. Lovely looking motor
    #20
  22. Essflee
    Offline

    Essflee Well-Known Member

    Joined:
    Mar 26, 2008
    Messages:
    2,031
    Likes Received:
    28
    [Aug 20, 2011]
    Excellent job, well impressed with how the wrap has gone on.

    Good choice of colour, and another one in favor of the wheels/colour, I'd leave it how it is, looks cool
    #21
  23. damo.h
    Offline

    damo.h DVLA Say it's Black

    Joined:
    Feb 9, 2010
    Messages:
    3,608
    Likes Received:
    64
    [Aug 20, 2011]
    Ye I get you there dude. Looks well when you have contrasting colours, we do wrap door shuts but we don't advise it as you have overlaying joins and can't warranty the inners due to the build up of grease n grime. But at the end of the day it's classed as a semi perm colour change and is not a respray also it's cheaper ;)

    hmmm thats my dilemma haha

    cheers dude i really can't decide.
    #22
  24. Reesy
    Offline

    Reesy Well-Known Member VCDS Map User

    Joined:
    Jan 20, 2010
    Messages:
    3,614
    Likes Received:
    133
    [Aug 20, 2011]
    Did you do just springs mate, or shocks as well?
    #23
  25. s3dave
    Offline

    s3dave TFSI Hybrid

    Joined:
    Nov 11, 2009
    Messages:
    10,120
    Likes Received:
    729
    [Aug 20, 2011]
    Amazing skills,, a credit to you and the company...
    #24
  26. vorney
    Offline

    vorney Member

    Joined:
    May 23, 2011
    Messages:
    121
    Likes Received:
    2
    [Aug 20, 2011]
    that looks fab pal great work and fantastic finish and post:arco:
    #25
  27. Wizza
    Offline

    Wizza BÜBENGRÖPEN

    Joined:
    Dec 10, 2008
    Messages:
    750
    Likes Received:
    14
    [Aug 20, 2011]
    Aye hence why I wrapped my roof and mirrors - can always take it off if need be :) mirrors need redoing though. As long as there is a decent colour contrast, the inside/engine bay original colour doesn't bother me as such. But when you have a green car and a blue interior then it looks silly - even if it's hidden under the carpet it's one of them things that you know is there lol

    Top work anyways!
    #26
  28. DJ_Troopa
    Offline

    DJ_Troopa K1 Driver

    Joined:
    Oct 30, 2008
    Messages:
    1,741
    Likes Received:
    13
    [Aug 20, 2011]
    Love that!!! :)
    #27
  29. damo.h
    Offline

    damo.h DVLA Say it's Black

    Joined:
    Feb 9, 2010
    Messages:
    3,608
    Likes Received:
    64
    [Aug 20, 2011]
    Kw v1's all round dude, by the way how's Yr mom:eyebrows:

    After seeing what you turn out Dave thats a bit ott ;)

    Cheers bro :thumbsup:

    Exactly and you don't need to tell the DVLA which makes me laugh, yeh you do see some rank colours getting covered, liking the orange there nice and different.

    back at ya!! Looks mint.
    #28
  30. Reesy
    Offline

    Reesy Well-Known Member VCDS Map User

    Joined:
    Jan 20, 2010
    Messages:
    3,614
    Likes Received:
    133
    [Aug 20, 2011]
    Ah, so you're the one with the small 8=D ? :lmfao: :thumbsup:
    #29
  31. Sanj
    Offline

    Sanj Blue Beast

    Joined:
    Nov 6, 2008
    Messages:
    174
    Likes Received:
    0
    [Aug 21, 2011]
    love the colour dude, car looks mint!
    #30
  32. Wizza
    Offline

    Wizza BÜBENGRÖPEN

    Joined:
    Dec 10, 2008
    Messages:
    750
    Likes Received:
    14
    [Aug 21, 2011]
    Yeah it's confusing one ain't it because effectively the car hasn't 'changed' colour :p

    Cheers Damo - was hit and miss at first but once the mirrors were on I was chuffed :)
    #31
  33. damo.h
    Offline

    damo.h DVLA Say it's Black

    Joined:
    Feb 9, 2010
    Messages:
    3,608
    Likes Received:
    64
    [Aug 21, 2011]
    Ye id like to know how they let us get away with it cos from the outside it's visibly a different colour, and also how many ringers are flying around wrapped lol
    #32
  34. Ash B
    Offline

    Ash B Well-Known Member

    Joined:
    Jul 19, 2008
    Messages:
    5,829
    Likes Received:
    74
    [Aug 21, 2011]
    Like this alot:wub: Looks lovely fella! Got to be the first 8L in that colour?
    Good work.
    #33
  35. damo.h
    Offline

    damo.h DVLA Say it's Black

    Joined:
    Feb 9, 2010
    Messages:
    3,608
    Likes Received:
    64
    [Aug 22, 2011]
    Cheers ash, it very well may be the only one I spent ages searching for images, but none to be found.
    #34
  36. Reesy
    Offline

    Reesy Well-Known Member VCDS Map User

    Joined:
    Jan 20, 2010
    Messages:
    3,614
    Likes Received:
    133
    [Nov 16, 2011]
    Any pics of the motor now it's got Lamin X'd lights?
    #35
  37. DaveA3
    Offline

    DaveA3 Audi A-Trizzle!

    Joined:
    Feb 25, 2010
    Messages:
    2,374
    Likes Received:
    14
    [Nov 16, 2011]
    looks great
    #36
  38. benb89
    Offline

    benb89 New Member

    Joined:
    Nov 17, 2011
    Messages:
    13
    Likes Received:
    0
    [Nov 21, 2011]
    Iv seen your car in brownhill! Looks saweeet! I went into automobili today about getting the wrap on my s3, after seeing yours i reckon im gonna get it done
    #37
  39. Buzzer
    Offline

    Buzzer Member

    Joined:
    Apr 11, 2011
    Messages:
    410
    Likes Received:
    14
    [Nov 21, 2011]
    What condition is the paint in when you take the wrap off. Is there anything special to be done for removal?
    Would love to have a bright White wrapped S3, and anthracite 18" s4 wheels. So
    W day.
    #38
  40. damo.h
    Offline

    damo.h DVLA Say it's Black

    Joined:
    Feb 9, 2010
    Messages:
    3,608
    Likes Received:
    64
    [Nov 25, 2011]
    Nice one dude what colour you going for??
    What you drive Ill keep a look out for ya, did you manage to speak to Archy ?? unfortunatly i wont be wrapping your car if you did as im up to my eyes in it at untill after xmas. Automobilli didnt wrap mine tho dude, archy a good mate of mine so lets me use his unit to wrap in from time to time and I also wrap for him when needed. They good on the auto electrics side also if you ever need anything doing.

    Ahhhhhh Chris you brought it back to life.... now ill have to upload all the recent photos. cheers bro ;)

    Erm that all depends on the paintwork condition before the wrap... if good and solid there would be no damage 99.9% of the time but i paint is lifting in areas you would expect it to pull it off when de-wrapping.


    Ill get some recent pics up soon as i get chance..
    Last edited: Nov 25, 2011
    #39
  41. fran-s3
    Offline

    fran-s3 Active Member VCDS Map User

    Joined:
    Jan 29, 2008
    Messages:
    1,103
    Likes Received:
    1
    [Nov 25, 2011]
    Looks so amazing I love that colour!!!!!!

    I think your black grill, skirts and rear bumper and roof finish it off so well and make it stand out even more with such a better contrast.

    Love to get mine wrapped! WHITE!!!!! Although is it Chavy? Not sure....
    #40

Share This Page
