number plate light bulb holders

Discussion in 'A4/A4 cabriolet/S4 forum(B6 chassis)' started by Leaky Lloyd, Sep 24, 2010.

  1. Leaky Lloyd

    Leaky Lloyd Member

    Joined:
    Apr 17, 2010
    Messages:
    293
    Likes Received:
    1
    why the bloody hell as a picture of our kid pumping a transit van tyre up appeared on my post ??????? PMSL!!!
    Remember that,, blow out in a tranny at 90 on the m1,, smashin stuff !!!!

  2. Advert Guest Advertisement


  3. T0m

    T0m Active Member

    Joined:
    Sep 13, 2007
    Messages:
    516
    Likes Received:
    26
    Hey guys Ive been to the local DIY stores and I cannot find any M3 x 20 STAINLESS ALLEN BOLT CAP SCREWS any ideas people I know ebay is an option but Id like to buy and get them there and then if your with me and I only want a couple not a whole pack!ThanksTom

  4. Woorlord

    Woorlord shifting to Hyperspace... .
    VCDS Map User

    Joined:
    Dec 8, 2007
    Messages:
    951
    Likes Received:
    15
    As linked above 20 screws for £1.85 inc. P&P is not so bad IMO - always handy to have spares.

    You could try a local "fastenings" trade counter - do a local Google search and see what pops up.

  5. T0m

    T0m Active Member

    Joined:
    Sep 13, 2007
    Messages:
    516
    Likes Received:
    26
    Hey Woorlord thanks for the reply and Ive had a butchers but cannot find anything not even screwfix sell them so looks like ebay it is!Thanks

  6. Scouse

    Scouse LIVERPOOL

    Joined:
    Jul 10, 2009
    Messages:
    39
    Likes Received:
    0
    I couldn't find any either Tom, so I just got some of Ebay aswell.

    They were easy enough to fit, thanks to Leaky Lloyd for the guide.

    A few pics bit of a difference eh? :yes:

    [​IMG]


    [​IMG]

  7. T0m

    T0m Active Member

    Joined:
    Sep 13, 2007
    Messages:
    516
    Likes Received:
    26
    Looks good Scouse and looks like Ive got to waste money on 20 screws that I will only use 2 of them, ok I know its only £2 but I hate having packets and packets of screws for packets sake! Dont fancy sending me a few do ya fella and I'll chuck you a drink!!

  8. Scouse

    Scouse LIVERPOOL

    Joined:
    Jul 10, 2009
    Messages:
    39
    Likes Received:
    0
    Alright Tom, I've got 2 here pm me your details and i'll send you some freebies :icon_thumright:

  9. AlexGSi2000

    AlexGSi2000 Well-Known Member
    VCDS Map User

    Joined:
    Feb 14, 2012
    Messages:
    1,461
    Likes Received:
    199
    I will be doing mine this weekend - saw this thread a few weeks ago after wanting to change to LEDs - decided to leave them alone.
    That was until one of the bulbs went yesterday!

  10. banny

    banny Member

    Joined:
    Apr 18, 2007
    Messages:
    113
    Likes Received:
    0
    Just got all mine apart, well corroded it was both screws snapped to gotta replace whole, maybe even lock, mine is an 02 plate avant can I get the plastic replacement for mine surely the later model part is the same fitment

  11. AlexGSi2000

    AlexGSi2000 Well-Known Member
    VCDS Map User

    Joined:
    Feb 14, 2012
    Messages:
    1,461
    Likes Received:
    199
    Well, managed to get mine done over the weekend.

    Looking through the cars service history, when the car was serviced in June of last year (2011) at an Audi dealership - they have charged to replace the plinth and lenses at a cost of £162.
    The plynth and lenses were quite clearly the original parts fitted to the car when I was working on it over the weekend!

  12. B6Steve

    B6Steve Member

    Joined:
    Feb 1, 2012
    Messages:
    42
    Likes Received:
    0
    Thanks for all the info guys. Much appreciated.

    My screws where badly seized on so I drilled them out and replaced the lenses and put some leds in. Got new pressed plates on also.
    Led on the right.

    [​IMG]

    Sent from my HTC Desire using Tapatalk 2

  13. Jules

    Jules Member

    Joined:
    Mar 14, 2004
    Messages:
    130
    Likes Received:
    1
    Chris555, i tried to reply with quote but just hanged anyway the middle pic of the moulding looks different than mine, mine is plastic not metal behind and the wiring looks differnet i have a problem with my bulbs not working i removed them now they do not work any ideas?

  14. quattrojames

    quattrojames Moderator
    Staff Member Moderator Audi A6 Audi Avant Owner Group

    Joined:
    Mar 28, 2008
    Messages:
    14,039
    Likes Received:
    565
    LED Bulbs? They usually have to be put in the correct way round.

  15. B6Steve

    B6Steve Member

    Joined:
    Feb 1, 2012
    Messages:
    42
    Likes Received:
    0
    That's right, they are one way only, turn them round and see if they come on.

  16. Jules

    Jules Member

    Joined:
    Mar 14, 2004
    Messages:
    130
    Likes Received:
    1
    Normal bulbs just not sat in right, anyway the standard bulbs are really dim. So what is a good led bulb to buy?

  17. B6Steve

    B6Steve Member

    Joined:
    Feb 1, 2012
    Messages:
    42
    Likes Received:
    0
  18. Inertiauk

    Inertiauk Member

    Joined:
    Mar 23, 2011
    Messages:
    535
    Likes Received:
    21
    I bought some LED replacement lights (include lenses as a full unit) off ebay.

    My screws are rounded so ordered a new Panel from TPS as well, but it wasn't £27 it was £52 + VAT. :-0

  19. Inertiauk

    Inertiauk Member

    Joined:
    Mar 23, 2011
    Messages:
    535
    Likes Received:
    21
    mine was more expensive because it was complete with handle, lenses etc and, I just kept the lenses and bulbs as spares, and used all new for the handle etc, why not.

    I used the same eBay LED lamps as scouse, very happy with the results.

  20. munchkincoupe

    munchkincoupe Member

    Joined:
    Aug 21, 2010
    Messages:
    948
    Likes Received:
    19
    For rounded off screw heads - use a dremel with the finest cutting disc you can find and cut a flat slot straight across the screw head and then use a flat blade screwdriver instead. Has worked a treat on the last 3 Audis I've worked on

    KO_81 likes this.
  21. fallmonk

    fallmonk Turbo Sport

    Joined:
    Jun 27, 2004
    Messages:
    1,869
    Likes Received:
    4
    Great thread guys thanks for the ideas and clues to sort this bloody problem I have !

  22. Advert Guest Advertisement



    to hide this advert.
  23. fallmonk

    fallmonk Turbo Sport

    Joined:
    Jun 27, 2004
    Messages:
    1,869
    Likes Received:
    4
    This going to sound daft but does anyone know what size the bulbs are ?
    there is 3 listings on ebay .36mm,37mm and 42mm!!!

  24. A4Chad

    A4Chad Member

    Joined:
    Dec 20, 2012
    Messages:
    42
    Likes Received:
    0
    Thanks everyone for the info on here. Still an absolute PITA to do though. I ended up taking the strip out of the boot as both of the screw were rounded off. I was able to dremel a line through the screws and get a big flathead in there to open them up, I did try an impact driver on it first (with the strip removed and in a vice..) but all I ended up doing was bashing the connector / holder part of the unit right through, and broke it away from the strip itself.. ! :-(

    A long enough and strong enough screw though is now holding the whole thing together, with a bit of sealant, and bobs your uncle. Two working number plate lights!

    Why oh why to car manufacturers insist on making life tricky?!

    Oh also - bear in mind it you take the strip out, there is a bolt hidden behind the plastic unit that protects the metal bar of the opening mechanism - couldnt find it at first!

  25. GeoffDunk

    GeoffDunk Well-Known Member
    Team Panther Audi RS4 quattro Audi Avant Owner Group

    Joined:
    Jul 11, 2012
    Messages:
    1,285
    Likes Received:
    382
    Just fitted these ones too, got them delivered 3 weeks ago but only got round to fitting this weekend, they are great, no errros and super bright, very nice.

  26. morrisonbrink

    morrisonbrink Member

    Joined:
    Aug 20, 2013
    Messages:
    67
    Likes Received:
    33
    I too have had the "pleasure" of needing to change number plate bulbs on an A4. Like so many others the retaining screws on the lenses were $%^&ed, but I was not able to remove them at all even after butchering the lenses. I ran the car with a lashed up fix for a while but now have bitten the bullet and replaced the whole moulding. This cost me €48 + €18 for new lenses!

    The temporary solution- a self tapper & some silicone, worked OK but a bit worrying in the rain.


    The original moulding removed, with that familiar "Captain Nemo" finish

    Thanks to the detailed instructions in this thread I managed to fit the new moulding without too much difficulty, except of course the bits where it says "disconnect the electrical connector" like it was in any way easy or obvious how to do this???? Every connector on the car seems to have a different clip system and they are all a ***** to get off [​IMG]. I fitted the standard bulbs and screws temporarily till my Ebay LED bulbs turn up. Copper grease is on order.

    Obviously 1hour after I finish fitting the old style bulbs the postman calls.... Hopefully I will not have to do this again for a while. All I need now is some Stainless Steel M3 hex head replacement screws, Ebay again I suppose??

    Thanks to all who have contributed to this thread, I certainly would never have figured any of this out for myself!

    P.S. Can anyone point me to a thread explaining how to post images properly? I have tried to search both FAQ and whole forum but no joy. I am baffled by the attachment manager which seems to have a mind of its own and all my images appear tiny in my posts. Clearly I am doing it all wrong somehow?


    Attached Files:

    #144 morrisonbrink, Oct 12, 2013
    Last edited: Oct 12, 2013
  27. OxfordRich

    OxfordRich Collecting Rings
    VCDS Map User

    Joined:
    Nov 8, 2010
    Messages:
    112
    Likes Received:
    9
    Legendary thread, same issue here, I managed to persuade the screws out using some voodoo magic and witchcraft and will replace now with M3 x 12mm Cap Heads! Thanks!!

  28. mikeb7

    mikeb7 Active Member

    Joined:
    Jan 15, 2014
    Messages:
    129
    Likes Received:
    27
    Omg just done. mine was not Easy,screws were almost welded in. Your guides were helpful took advice put hex screws in, boot Liner off now got to fit resistors
    Lol post a pic when done. Mike IMG_20140118_210032.jpg IMG_20140120_192906.jpg

    #146 mikeb7, Jan 20, 2014
    Last edited: Jan 20, 2014
  29. krunz

    krunz New Member

    Joined:
    Jan 17, 2014
    Messages:
    7
    Likes Received:
    0
    mine are stuck in there :( is the easiest way to remove them to break the lense??

  30. quattrojames

    quattrojames Moderator
    Staff Member Moderator Audi A6 Audi Avant Owner Group

    Joined:
    Mar 28, 2008
    Messages:
    14,039
    Likes Received:
    565
    Drill into the lens around the bolt, prise the lens out and use some mole grips to wind the screw out.

  31. S4_dan

    S4_dan Fire up the Quattro!
    VCDS Map User

    Joined:
    Jan 5, 2006
    Messages:
    2,657
    Likes Received:
    155

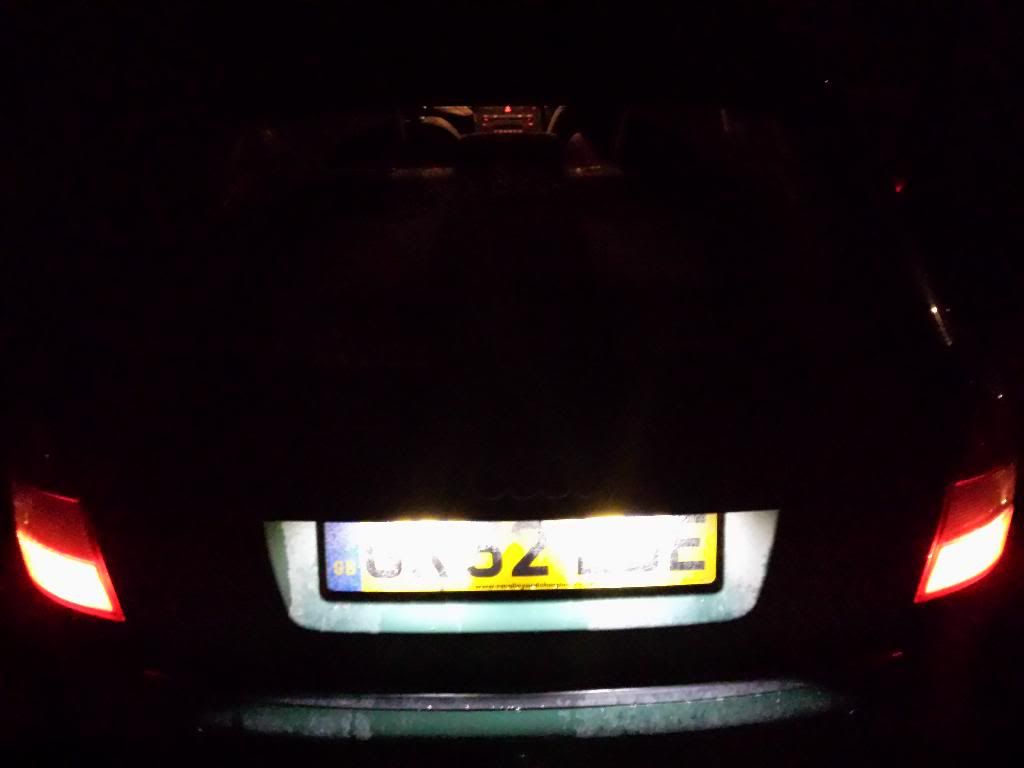

    I did mine in mid Jan, screws were fine? Albeit, a bit rusty on the surface but certainly not stuck fast. I now have a white rear underglow from the LED lights lol. they are very very bright.

    [​IMG]

  32. morrisonbrink

    morrisonbrink Member

    Joined:
    Aug 20, 2013
    Messages:
    67
    Likes Received:
    33
    Mine were so far gone that it was impossible to get the screws out with mole grips, they just sheared off in place, so I had to replace the whole housing. See above

  33. mikeb7

    mikeb7 Active Member

    Joined:
    Jan 15, 2014
    Messages:
    129
    Likes Received:
    27
    Its a pain in the neck the screw sit flush and have to. Get the plastic underneath it out then with pointed. Molegrips wind out the screw. Took. Me a while you wont get them out without breaking the lens covers, good luck with it

  34. quattrojames

    quattrojames Moderator
    Staff Member Moderator Audi A6 Audi Avant Owner Group

    Joined:
    Mar 28, 2008
    Messages:
    14,039
    Likes Received:
    565
    So were mine if you see the pictures earlier in this thread.

    Incidentally I still have my replacement light surround and loom from the A4 if anybody is needing one.

  35. krunz

    krunz New Member

    Joined:
    Jan 17, 2014
    Messages:
    7
    Likes Received:
    0
    Would it be the same for a saloon?

  36. mikeb7

    mikeb7 Active Member

    Joined:
    Jan 15, 2014
    Messages:
    129
    Likes Received:
    27
    Think its a universal part. Check with Audi for part numbers for your car as the there is a left and right

  37. jdw88rm

    jdw88rm Member

    Joined:
    Mar 18, 2014
    Messages:
    166
    Likes Received:
    5
    Anyone have a couple of the replacement screws at all?

  38. Welshquattro

    Welshquattro Active Member
    Team Mauritius quattro Audi A4 Audi Avant Owner Group

    Joined:
    Sep 3, 2013
    Messages:
    717
    Likes Received:
    126
    You can get them on EBay.

  39. jdw88rm

    jdw88rm Member

    Joined:
    Mar 18, 2014
    Messages:
    166
    Likes Received:
    5
    Anyone have trouble removing the key lock barrel from the light surround?? Mine just WILL NOT come out

  40. Pedroloco

    Pedroloco New Member

    Joined:
    Feb 14, 2014
    Messages:
    10
    Likes Received:
    0
    Great info in this thread. One of my bulbs had gone and de-headed. So retrofitted LED's

    I took out the strip
    drilled round the plastic as per page one thread
    Used molly grips to get screw out (touch and go with one must say........)
    Noticed blown bulb rear contacts were badly corroded (probably not blown bulb but duff contacts)
    Used some contact cleaner (electrolube!) and wire wool to clean contacts
    New LED's in (must say nevous about them rotating round so they don't shine out no more- any ideas?)
    New lenses, s/s cap screws, copper slip......HAPPY DAYZ!

    Ebay parts -
    Audi Number Plate Lamp 8E0807430B RIGHT | eBay
    Audi Number Plate Lamp 8E0807430A LEFT | eBay
    M3 x 12 STAINLESS ALLEN BOLT CAP SCREW 20 + 10% EX FREE | eBayCARLUBE COPPER SLIP 20g MULTI PURPOSE ANTI SEIZE ASSEMBLY COMPOUND GREASE | eBay
    2x 36mm 6SMD 5050 LED 239 C5W Canbus Error Free White Feston Bulb AUDI | eBay

    Photos-

    BOOOOOOOMMMMMMM!!!!!!!

  41. leegsi

    leegsi Active Member

    Joined:
    Sep 17, 2013
    Messages:
    489
    Likes Received:
    57
    Looks good :D

  42. Tarian

    Tarian New Member

    Joined:
    Aug 22, 2014
    Messages:
    1
    Likes Received:
    0
    An old post - but full of great tips. Glad I found it. Thanks to all of you.
    One of my number plate lights fails to contact properly (pressure on lens and it comes on). Plastic around contacts bubbled with heat.

    To inspect the mounting (with hatch handle) - and maybe find crud like in your photos - I assume that the inside panel(s) has to come off (main panel and 4" wide strip under window).
    Thanks for the pictures and descriptions - plenty of different fixings.
    Behind the main panel, I have the triangular spring clips sorted - but I can't remove the hard plastic strip (4" wide). It's stuck at each corner.
    There is some grey plastic screwed in to the the metal window pillar. I hope this is part of the plastic up the side of the window - but I'd like to be sure before yanking too hard on the hatch panel/strip only to find that this is the same piece of plastic.
    Any tips for unhitching this plastic strip - or the main panel?

    Even better would be a tip about improving contact with the bulb without all this palaver !!!
    (How many people to change an Audi light bulb ??)

    Thanks very much
