my DTM 'build' - story so far, hybrid K04 - custom FMIC

Discussion in 'Audi S4/A4/A4 Cab (B7 Chassis)' started by olethalb, Nov 16, 2012.

  1. olethalb
    Offline

    olethalb Member

    Joined:
    Aug 29, 2012
    Messages:
    321
    Likes Received:
    45
    [Nov 16, 2012]
    when i joined i said i wasn't going to make a 'build' thread as not a lot was going to be done to this one, unlike my old bora.

    this is still the case but i had a little thread on uk-audis as a record of what has been done, but they've recently upated the site and i cannot get on with it at all so i'll transfer what i have done so far.

    spec - A4 TFSI permanent quattro DTM LTD edition made in 2006 to celebrate audis success in DTM racing

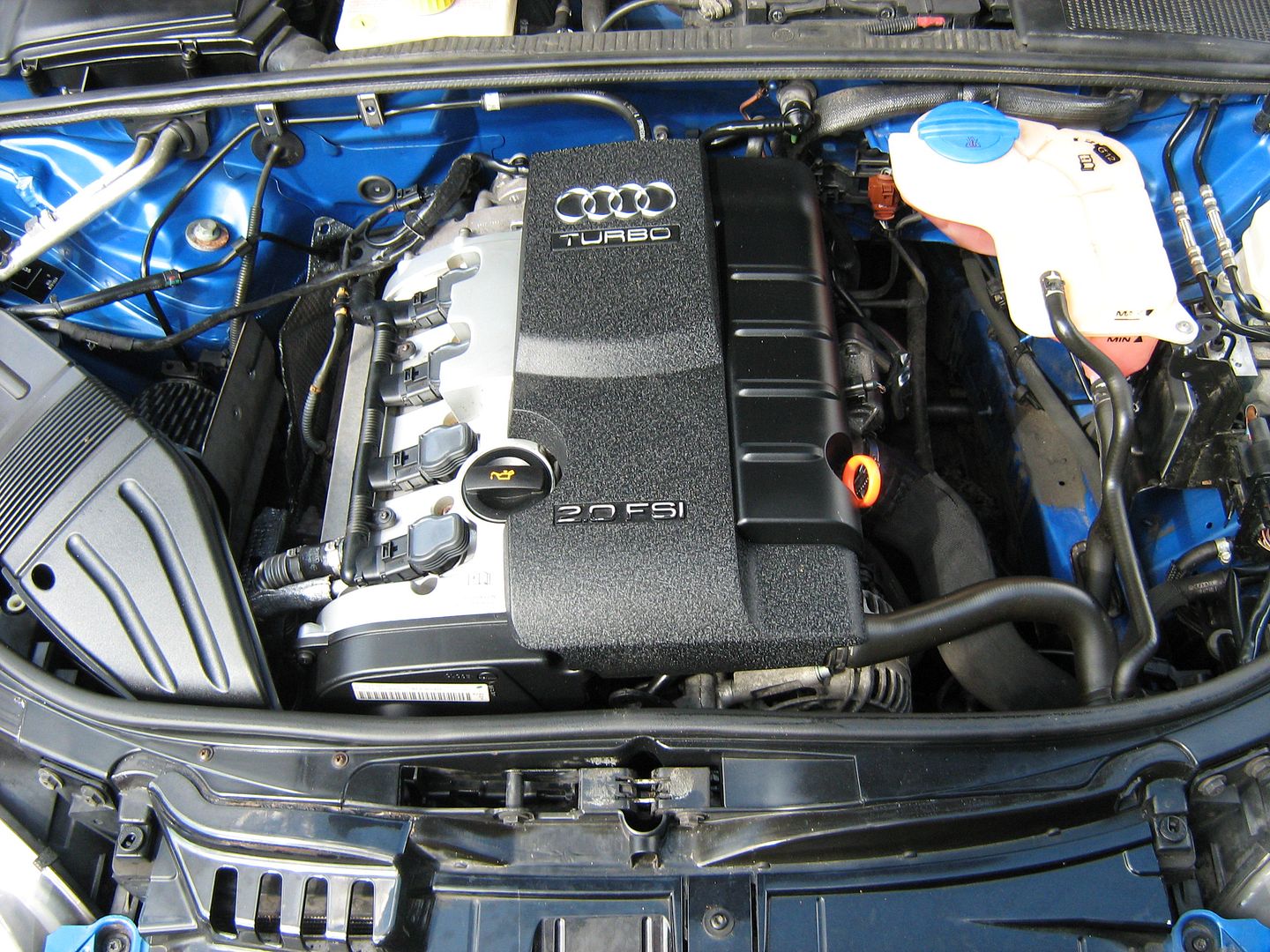

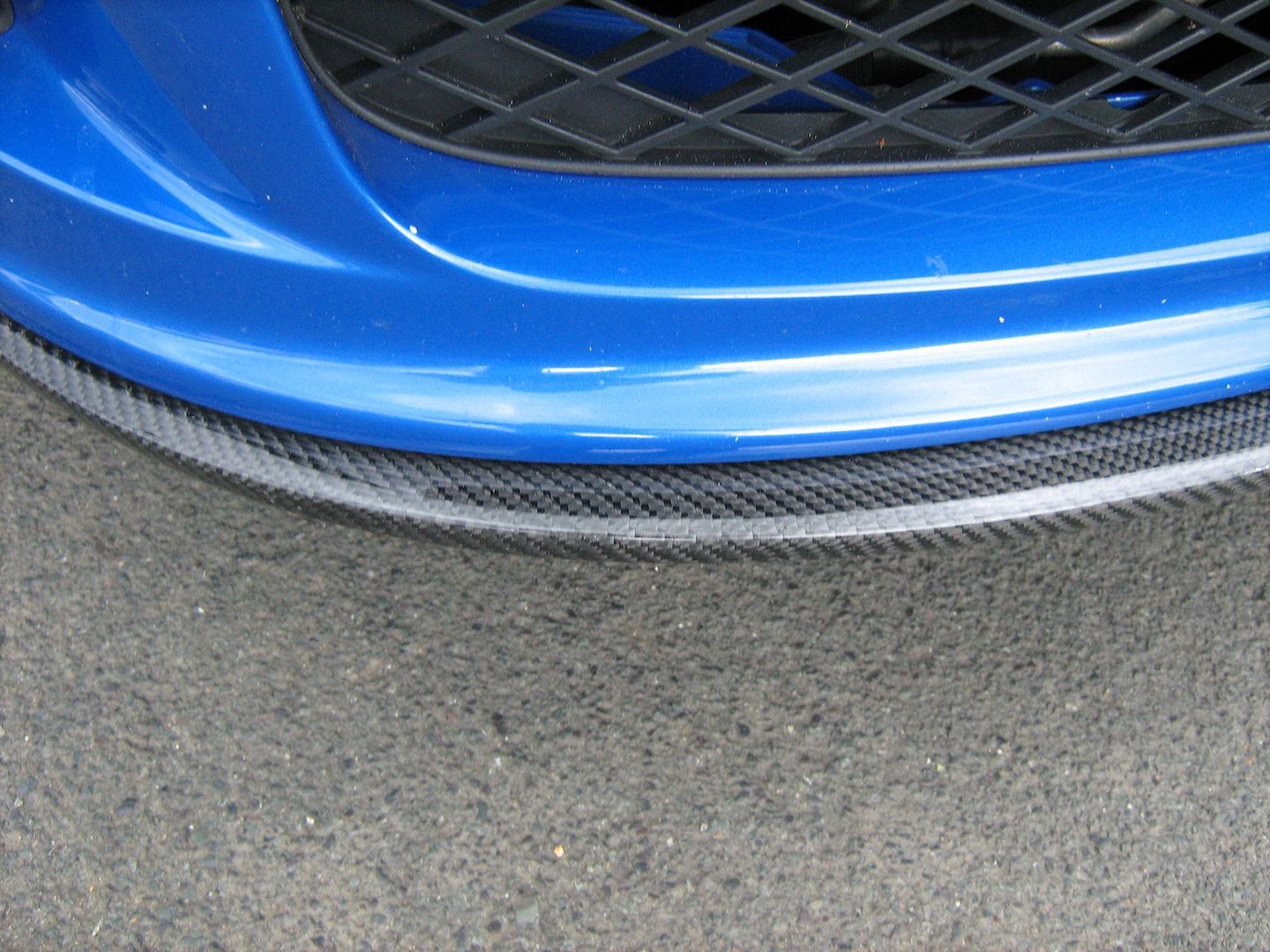

    as i bought it - 220bhp k03 turbo recaro half leathers and DTM specific carbon extras

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

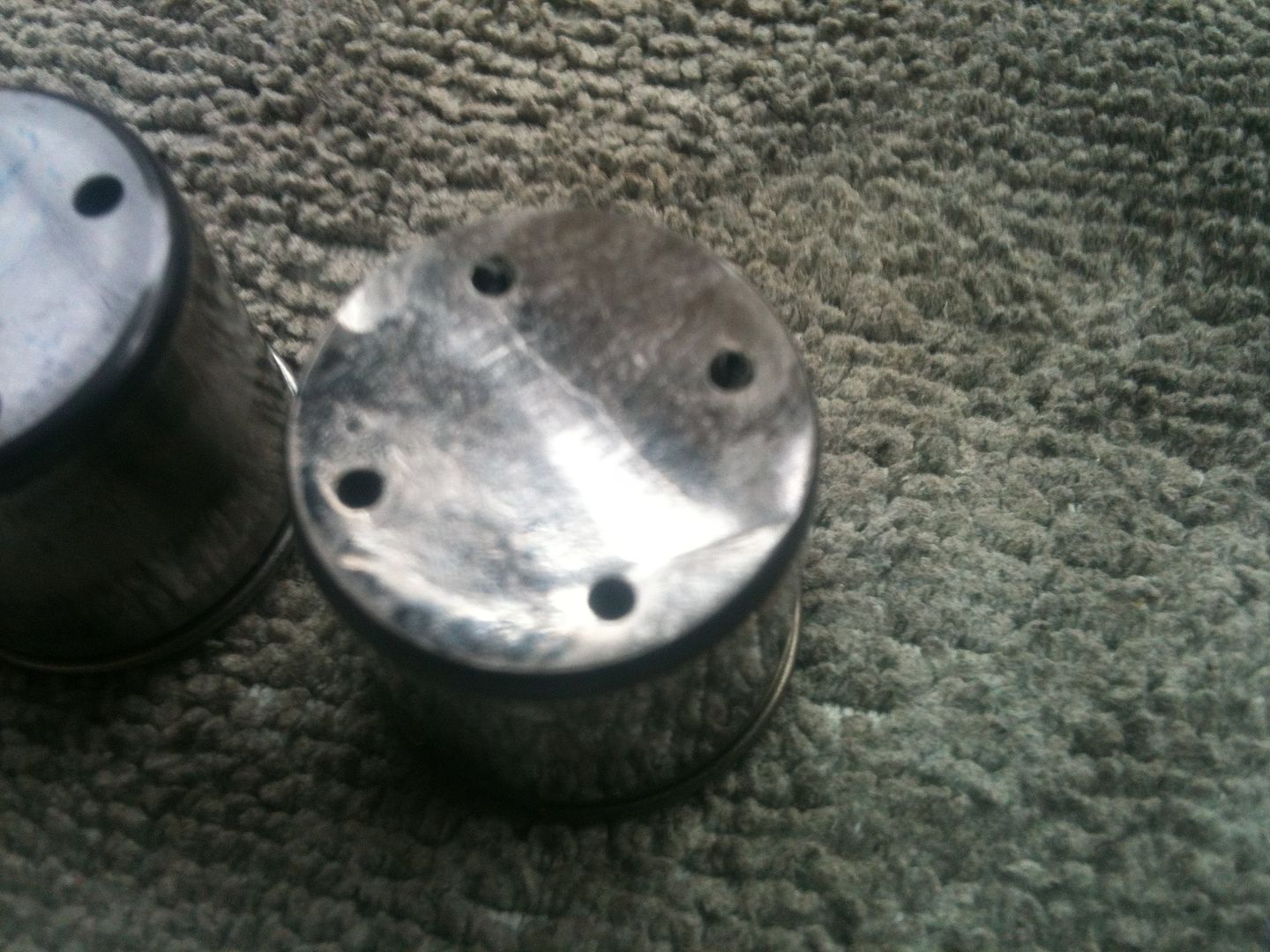

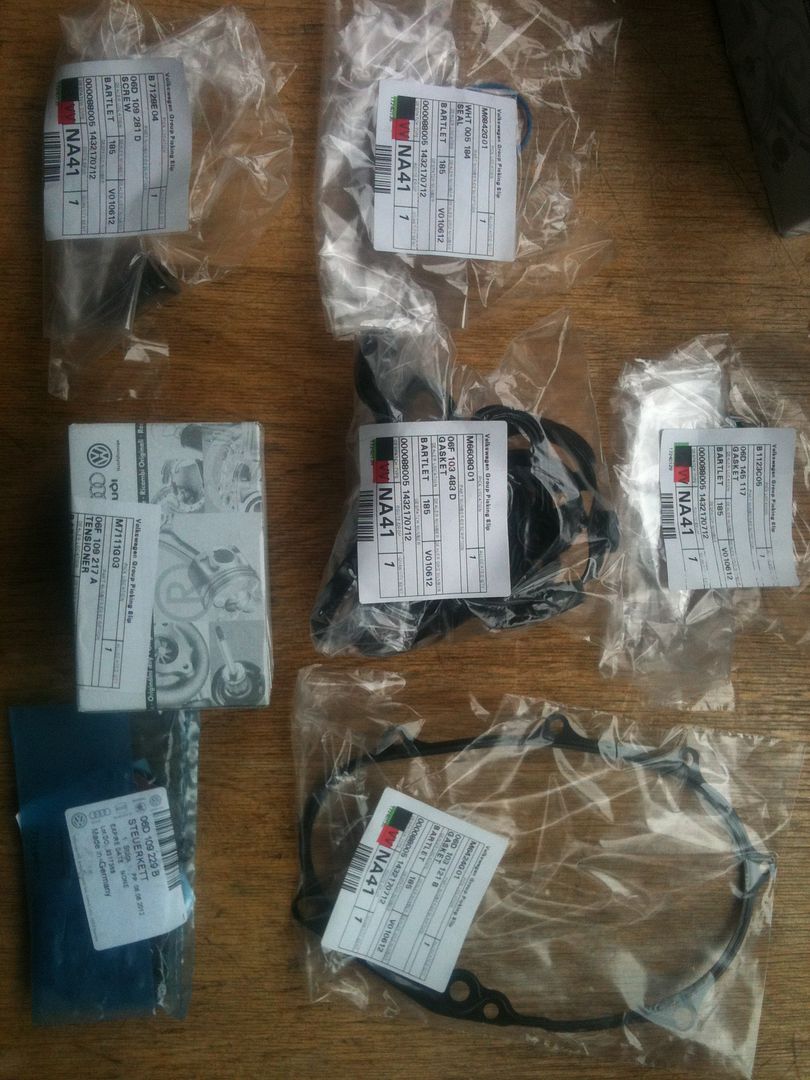

    first things first - new fuel pump tappet and cam chain and tensioner to keep things sweet

    [​IMG]
    [​IMG]
    [​IMG]

    and after the work spruce the bay up a little

    [​IMG]
    Last edited: Nov 16, 2012
    #1
  2. Ads

    Ads

    [Oct 24, 2014]

  3. olethalb
    Offline

    olethalb Member

    Joined:
    Aug 29, 2012
    Messages:
    321
    Likes Received:
    45
    [Nov 16, 2012]
    after the engine had been treated it was time for wheels, these came up fairly cheap so snapped them up

    [​IMG]
    [​IMG]

    next was to 'joey' the headlights and de tango

    [​IMG]
    [​IMG]
    [​IMG]

    soon after the long awaited coils arrived

    [​IMG]
    [​IMG]

    and with 12mm spacers a little fitment

    [​IMG]

    also ebayed a leather arm rest

    [​IMG]
    #2
  4. olethalb
    Offline

    olethalb Member

    Joined:
    Aug 29, 2012
    Messages:
    321
    Likes Received:
    45
    [Nov 16, 2012]
    more power was on the cards so started accumulating parts

    k04

    [​IMG]

    DV

    [​IMG]

    one stage cooler plugs

    [​IMG]

    s3 injectors

    [​IMG]

    with more to follow.....

    the DTM comes with 320mm front discs which aren't the best so upgraded to S4 345's

    [​IMG]
    [​IMG]
    [​IMG]

    aux belt tensioner started clicking so on with a new one

    [​IMG]
    #3
  5. olethalb
    Offline

    olethalb Member

    Joined:
    Aug 29, 2012
    Messages:
    321
    Likes Received:
    45
    [Nov 16, 2012]
    the rotis came with tyres but size wasn't ideal so i changed them for 215/35's and tweaked the ride height a little

    and purchased a new reg from DVLA

    [​IMG]
    [​IMG]

    after having a lot of bits and bobs on order from UK and USA they started trickling through

    ATP 3" decat

    [​IMG]
    [​IMG]

    polybush snub mount

    [​IMG]

    milltek cat back system

    [​IMG]

    Autotech HPFP internals

    [​IMG]
    [​IMG]
    #4
  6. olethalb
    Offline

    olethalb Member

    Joined:
    Aug 29, 2012
    Messages:
    321
    Likes Received:
    45
    [Nov 16, 2012]
    the day of exhaust fitting came

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    when i removed the original cat the wastegate flap had disintegrated from vibration

    [​IMG]

    all i could do at that piont was weld the flap back to the arm....

    fitment of the milltek went well until it came to the tailpipes

    [​IMG]

    they stuck out far too much so had to trim an inch off each tailpipe trim

    [​IMG]

    they still didn't sit evenly in the cutouts in the bumper so i had to cut a bracket off that regulated the distance between the pipes and weld a correct sized rod in between

    [​IMG]
    [​IMG]

    the left pipe would not sit high enough no matter how much tweaking so i had to splice the tailpipe trim and reweld

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    perfecto
    #5
  7. olethalb
    Offline

    olethalb Member

    Joined:
    Aug 29, 2012
    Messages:
    321
    Likes Received:
    45
    [Nov 16, 2012]
    as i was gearing up for the K04 swap i spoke to MRC who advised FMIC - the kits i had seen weren't too impressive, either required bumper chopping or losing the crash bar, neither was an option

    i measured up and went for a core intended for another audi

    [​IMG]
    [​IMG]

    then set about mocking up custom hard boost pipes with a variety of ally bends

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    mocked them all up to size and correct path making no contact and gave them to my ally welder

    also decided to weld the s3 dv flange to the boost pipe

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    painted and fitted

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    #6
  8. olethalb
    Offline

    olethalb Member

    Joined:
    Aug 29, 2012
    Messages:
    321
    Likes Received:
    45
    [Nov 16, 2012]
    next was the modified k04

    tt225 outlet welded on

    [​IMG]
    [​IMG]
    [​IMG]

    downpipe bolts repostitioned and rethreaded

    [​IMG]

    test fitted

    [​IMG]
    [​IMG]
    [​IMG]

    bolted up

    [​IMG]

    intake with recirc inlet for DV

    [​IMG]
    [​IMG]
    [​IMG]

    front end slotted back on with no mods or trimming :)

    [​IMG]

    DIY heatshield box

    [​IMG]
    [​IMG]

    now it was all up and together next was MRC for mapping

    [​IMG]

    made 330bhp and 350 torque but had budget fuel and clutch was dying :(

    well fitted a new clutch yesterday, brimmed it with optimax and went to RR day today but was too low for the rollers :(
    #7
  9. olethalb
    Offline

    olethalb Member

    Joined:
    Aug 29, 2012
    Messages:
    321
    Likes Received:
    45
    [Nov 16, 2012]
    oh one from Surrey RR day today - ignore the tit in the wifebeater

    [​IMG]

    few more pics - one from players

    [​IMG]

    one with new honeycomb satin grill

    [​IMG]

    and completed the de-chroming with some carbon fibre mirrors

    [​IMG]
    [​IMG]
    [​IMG]
    #8
  10. olethalb
    Offline

    olethalb Member

    Joined:
    Aug 29, 2012
    Messages:
    321
    Likes Received:
    45
    [Nov 16, 2012]
    also fitted BSH PCV fix but will be making custom catch can set up

    refitted stock 'D' diverter valve

    near future mods include:

    better custom intake set up

    custom manifold / turbo heatshield

    better p/s fluid cooler

    WMI kit

    uprated intank pump

    make a new crash bar

    source 'open' grill or make my own

    remap (3rd time lucky)

    next year will be fbsw and some new wheels i think
    #9
  11. mancdan
    Offline

    mancdan Member

    Joined:
    Jun 1, 2011
    Messages:
    277
    Likes Received:
    11
    [Nov 16, 2012]
    Excellent write up and cracking looking car. Hats off to you sir.
    Did you wrap the chrome mirrors in Carbon or replace them completely?
    #10
  12. olethalb
    Offline

    olethalb Member

    Joined:
    Aug 29, 2012
    Messages:
    321
    Likes Received:
    45
    [Nov 16, 2012]
    mancdan - thanks, i replaced the covers completely. got these ones from felondnb off edition38 :)
    #11
  13. mancdan
    Offline

    mancdan Member

    Joined:
    Jun 1, 2011
    Messages:
    277
    Likes Received:
    11
    [Nov 16, 2012]
    whats edition 38?
    Also,dso you still have your chrome mirrors?
    #12
  14. Macdoon
    Online

    Macdoon Well-Known Member

    Joined:
    Jan 20, 2010
    Messages:
    1,633
    Likes Received:
    311
    [Nov 16, 2012]
    Here ye go fella

    Edition 38

    Mac
    #13
  15. stuiwhite
    Offline

    stuiwhite Member

    Joined:
    Jul 23, 2012
    Messages:
    53
    Likes Received:
    3
    [Nov 16, 2012]
    Car looks awesome!

    Is that grille off eBay? - apologies if this offends!

    Just, I want one!

    Thanks,

    Stui
    #14
  16. Morgan46
    Offline

    Morgan46 Member

    Joined:
    Nov 2, 2012
    Messages:
    34
    Likes Received:
    0
    [Nov 16, 2012]
    Is that all you've done lol
    #15
  17. AudiB7Jay
    Offline

    AudiB7Jay Member

    Joined:
    Nov 16, 2012
    Messages:
    402
    Likes Received:
    20
    [Nov 16, 2012]
    Soooo unfair! :( I wanted rotiform blq 19's on mine once lowered! You beat me too it :/ looks sweet too!

    Did you have to add spacers with them? What kind of alignment settings you running too? How far did you lower by also?

    So jealous right now lol sweet car :)
    #16
  18. chrisa4quat
    Offline

    chrisa4quat Member

    Joined:
    Sep 21, 2004
    Messages:
    897
    Likes Received:
    10
    [Nov 17, 2012]
    This is a great thread! Exactly what I want to be doing to mine!! Are the s4 pads and discs a straight fit?
    #17
  19. ANDYTQ
    Offline

    ANDYTQ Active Member

    Joined:
    Oct 26, 2003
    Messages:
    994
    Likes Received:
    28
    [Nov 17, 2012]
    Looks stunning, i'll be the last to fit my ko4 at this rate lol,cheers Andy
    #18
  20. chrisa4quat
    Offline

    chrisa4quat Member

    Joined:
    Sep 21, 2004
    Messages:
    897
    Likes Received:
    10
    [Nov 17, 2012]
    Doubtful Andy ill be one of the last! Lol
    #19
  21. CHEZ
    Offline

    CHEZ moderately amusing Supporter

    Joined:
    Jul 9, 2011
    Messages:
    3,796
    Likes Received:
    555
    [Nov 17, 2012]
    easily the best DTM i have seen!
    well done fella! :wub:
    #20
  22. chrisa4quat
    Offline

    chrisa4quat Member

    Joined:
    Sep 21, 2004
    Messages:
    897
    Likes Received:
    10
    [Nov 17, 2012]
    Agreed!!!
    #21
  23. sewell10
    Offline

    sewell10 Member

    Joined:
    Dec 19, 2010
    Messages:
    226
    Likes Received:
    10
    [Nov 17, 2012]
    That car looks mint mate credit to u fella I have a yellow one great car
    #22
  24. Jez-dtm
    Offline

    Jez-dtm Member

    Joined:
    Jun 20, 2012
    Messages:
    87
    Likes Received:
    15
    [Nov 18, 2012]
    What a beaut! Do the s4 disks and pads just fit the original dtm callipers or would I need a fitting kit ? Cheers! 👍❤
    #23
  25. chrisa4quat
    Offline

    chrisa4quat Member

    Joined:
    Sep 21, 2004
    Messages:
    897
    Likes Received:
    10
    [Nov 18, 2012]
    I'm still waiting to see if they do too Jez. That would be my next mod if they do as I need brakes soon!
    #24
  26. Molnboman
    Offline

    Molnboman Well-Known Member

    Joined:
    May 27, 2012
    Messages:
    1,220
    Likes Received:
    168
    [Nov 18, 2012]
    Wow.....that's a lot of beer tokens spent on that! Amazing stuff and lots of ideas there too! Well done Sir.

    Cheers
    A
    #25
  27. BA4
    Offline

    BA4 Member

    Joined:
    Jun 10, 2012
    Messages:
    76
    Likes Received:
    0
    [Nov 18, 2012]
    really really nice car, best of luck with it
    #26
  28. Olly P
    Offline

    Olly P My other cars a mk2 Golf GTi

    Joined:
    Dec 2, 2008
    Messages:
    690
    Likes Received:
    11
    [Nov 18, 2012]
    Awesome DTM, given me some ideas!
    #27
  29. olethalb
    Offline

    olethalb Member

    Joined:
    Aug 29, 2012
    Messages:
    321
    Likes Received:
    45
    [Nov 19, 2012]
    wow - quite a response over the weekend :0

    mancdan - it's a vag forum. i think the covers got thrown out, it wasn't 'til i removed them i saw they were ebay copies.

    Macdoon - thanks

    Stui - yes ebay item, i was after the more open holes but it's only available from Australia at the mo with £145 postage

    Morgan46 - yes, not a lot in comparison with my last car :)

    AudiB7Jay - they have 12mm spacers on the rear, all allignment is stock but obviosly had to have tracking done. i didn't take measurements, just lowered it so the front and rear arch to tyre distance was even and there was no contact.

    P.S Roti's will be for sale next year

    Chris - i was told to fit S4 fronts all you need is discs pads and S4 carriers, i fitted the carriers to my DTM calipers and popped the discs and pads on but the very top and bottom of the caliper contacted the disc. i could have ground a bit out but i picked up the proper calipers for cheap enough and bolted them on.

    ANDY - thanks, i still have my dead one sat on the bench :(

    CHEZ - thats quite a compliment, thank you

    Sewell - thanks, do you have a thread? i'd like to see a yellow one

    Jez - see reply to chris above RE brakes :)

    Molnbowman - i had my last car 'show car' bora up for sale but decided to break it so when something sold i'd treat the A4.

    BA4 - thanks, i need some after my turbo died

    Olly - thanks, and thanks for spelling 'Olly' in the correct way :)
    #28
  30. ANDYTQ
    Offline

    ANDYTQ Active Member

    Joined:
    Oct 26, 2003
    Messages:
    994
    Likes Received:
    28
    [Nov 19, 2012]
    Pipework looks really neat,where did you source the front mount from?
    #29
  31. Jez-dtm
    Offline

    Jez-dtm Member

    Joined:
    Jun 20, 2012
    Messages:
    87
    Likes Received:
    15
    [Nov 19, 2012]
    Cheers mate! One more quick question....
    Do you have a guide, or a link to the one you used to get rid of those awful orange reflectors?

    thanks :)))
    #30
  32. Olly P
    Offline

    Olly P My other cars a mk2 Golf GTi

    Joined:
    Dec 2, 2008
    Messages:
    690
    Likes Received:
    11
    [Nov 20, 2012]
    #31
  33. solaris
    Offline

    solaris Member

    Joined:
    Feb 27, 2010
    Messages:
    410
    Likes Received:
    12
    [Nov 20, 2012]
    Well done, good to see another DTM with a KO4 :happy:
    #32
  34. olethalb
    Offline

    olethalb Member

    Joined:
    Aug 29, 2012
    Messages:
    321
    Likes Received:
    45
    [Nov 20, 2012]
    Jez - i just went at it :yes: i think i must have seperated and redone my bora headlights in different styles about 6 times.

    Olly - thanks, i just went for the leave them off with them chrome / orange bulbs

    Solaris - my turbo died a short time after my first MRC mapping session, so i went to turbo dynamics and bought a brand new item and had hybrid work so it should be the same spec as yours now. ordered a new K revision thrust sensor and RS4 pressure regulator yesterday, next will be uprated intank pump then WMI. i'm hoping to crack 400bhp with the hybrid.

    i'll also be making a tubular crash bar so i can expose the full fmic and will have to buy / make a more open grill - remove or reduce number plate plinth.
    #33
  35. olethalb
    Offline

    olethalb Member

    Joined:
    Aug 29, 2012
    Messages:
    321
    Likes Received:
    45
    [Nov 20, 2012]
    ANDY - nearly missed you out :0 it's from an ebay kit for a B6, i looked at a lot of cores from jap to RS500 but this fitted my dimension needs best. the hard pipes, silicon joiners and clamps were all binned and custom pipework made up. the pipes that came with the kit were ridiculously narrow :haha:
    #34
  36. Golfedd
    Offline

    Golfedd Active Member

    Joined:
    Nov 20, 2012
    Messages:
    138
    Likes Received:
    30
    [Nov 20, 2012]
    looking good Olly man, Nice to see the full pics and the bits you've done! Didn't realise the level of love you gave this one (it comes as no surprise though) haha. Catch you soon no doubt for some A4 rolling times! :rockwoot:
    #35
  37. olethalb
    Offline

    olethalb Member

    Joined:
    Aug 29, 2012
    Messages:
    321
    Likes Received:
    45
    [Nov 21, 2012]
    i'll be happy when it's making good power with a decent map, you know i can't leave things alone. the bora was supposed to be my sensible car....
    #36
  38. stuiwhite
    Offline

    stuiwhite Member

    Joined:
    Jul 23, 2012
    Messages:
    53
    Likes Received:
    3
    [Nov 21, 2012]
    Any build thread of this Bora you speak of :) - would be nice to see other pieces of art you have mastered!

    Really jealous of this one - wish i had the funds to buy such a gorgeous vehicle!

    Ill have to stick to me SE TDI!
    #37
  39. olethalb
    Offline

    olethalb Member

    Joined:
    Aug 29, 2012
    Messages:
    321
    Likes Received:
    45
    [Nov 21, 2012]
    #38
  40. stuiwhite
    Offline

    stuiwhite Member

    Joined:
    Jul 23, 2012
    Messages:
    53
    Likes Received:
    3
    [Nov 21, 2012]
    WOW!

    Ill watch this thread with eager eyes!

    *Tail between legs* - Back to work I go!
    #39
  41. sewell10
    Offline

    sewell10 Member

    Joined:
    Dec 19, 2010
    Messages:
    226
    Likes Received:
    10
    [Nov 21, 2012]
    All I can say is mint well done
    #40

Share This Page
