Glove box light retro fit and puddle light information

Discussion in 'Audi S4/A4/A4 Cab (B8 Chassis)' started by pns2007, Oct 26, 2009.

  1. pns2007
    Offline

    pns2007 Member VCDS Map User

    Joined:
    Nov 23, 2008
    Messages:
    644
    Likes Received:
    19
    [Oct 26, 2009]
    It annoys me that having spent loads of money on an A4 S-line that there's not even a glove box light. Not a big deal in the great context of things but quite handy.

    well I've had a go at retro fitting this and it wasn't as hard as I'd originally thought. before I go any further though, the following is what I have done and should not be taken as advice for others to follow. I am by no means a vehicle electrician so if you follow this then at your own risk :approve:

    [​IMG]

    The above image is for a left hand drive car, reverse it (in your mind) for a right hand drive.

    First remove the panel lettered x above, this just pulls off with a hard pull. Fingers only needed! Then pull off the end dash board panel which will reveal the fuses and the fuse holder (Handbook will give further info)

    There are seven bolts (lettered 'A' in the diagram) which are holding the glove box in position. Undo all of these. Bolt A1 is inside the glove box at the top behind the cd changer (if you have one) if you haven't you should be able to see it. Bolt A2 is below the fuse holder.

    The glove box will then be supported by two or three small plastic hooks (marked 'C' in the diagram), carefully support the glove box and manouvre it so that it becomes detached. Lower it to the floor of the car but be careful to make sure there are no wires caught.

    It will then look a bit like this:-

    [​IMG]

    You will need to buy the following parts:-

    Glove box light - part number UBD0 947 415 - £6.30

    2 Plastic connectors - part number U893 971 632 - £1.53 each

    2 repair wires - part number U000 979 133 - £1.16 each (all above subject to VAT - I did manage a 5% discount aswell))

    The repair wires have the correct contacts for pushing into the plastic connecotrs, push each end of the repair wire into the plastic connector. Plug one of the plastic connectors into the light. Feed the wire through (from the inside of the glove box - the space for the light will allready be cut out) and click the light into place. Assemble it to look like this:-

    [​IMG]
    Light in position:-
    [​IMG]

    Plug the other plastic connector into the glove box damper (Audi call it a break) shown by the letter 'Y' in the following photo. This is the actual switch which turns the light on and off when opening and closing the glove box (I thought I would need to buy this but it was already there) :biglaugh:

    [​IMG]


    Cut one of the wires in half. One half will go to ground, the other half to a positive connection. A little planning might be needed here to ensure you have enough cable. You will need to add additional cable to the positive connection so cut the wire to give you a long enough length for the ground connection.

    I used the hole in the support bracket for a ground, used a small nut and bolt with a couple of washers. (obviously any other suitable grounding point could be used) The hole can be seen in this photo:-

    [​IMG]


    I didn't take any pictures of the positive connection, mainly because I changed my mind a couple of times. I was going to take a 'spur' off the interior lights circuit but the wiring was on the drivers side. Another possibility was to take a live from the cigarette lighter. I chose in the end to use the free fuse (number 2) in the beige fuse holder at the end of the dash board.

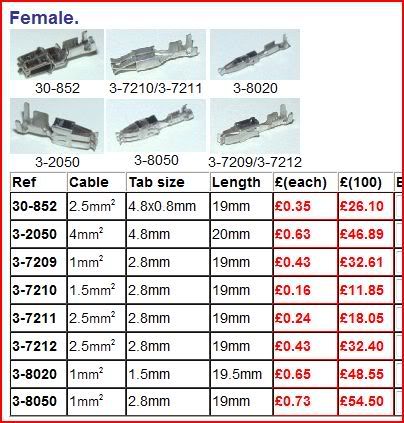

    I used a connector similar to one of these which can be bought from

    http://www.vehicle-wiring-products.eu/VWP-onlinestore/terminalsnonins/mouldingterms.php



    [​IMG]


    Trouble is I can't remember which one - I think it was 3 - 2050 in the picture above, but hopefully you see my point - Please check if you do it this way.

    Unclip the back of the fuse carrier and plug the connector into the free space

    I fitted it with a 3 amp fuse.

    Please feel free to add any modifications
    Last edited: Oct 26, 2009
    #1
  2. johnnythepie
    Offline

    johnnythepie Well-Known Member

    Joined:
    Apr 27, 2009
    Messages:
    2,233
    Likes Received:
    70
    [Oct 27, 2009]
    Great guide...this will help a lot of people who lose the wire behind the glovebox when fitting led bulbs!How come no glovebox light as standard?WTF?
    #2
  3. pns2007
    Offline

    pns2007 Member VCDS Map User

    Joined:
    Nov 23, 2008
    Messages:
    644
    Likes Received:
    19
    [Oct 27, 2009]
    Yes I agree, I have an S-line exec, you'd think a glove box light would come as standard but you have to order the illumination pack.

    Ah well, just finished fitting the footwell lights and the door lights now. All I need to complete the package are the vanity mirror lights. On comparison the cost of parts are not far off what the illumination pack would cost anyway:)

    Could I ask a question to those of you who have the illumination pack as standard. The footwell lights are led, can you control the brightness through the mmi? (my model is a 2010 spec - if that makes a difference)

    cheers

    Neil
    #3
    Marius likes this.
  4. NHN
    Offline

    NHN Retrofitter - Audi - VW - Skoda - Seat Site Sponsor VCDS Map User

    Joined:
    Jan 14, 2008
    Messages:
    27,919
    Likes Received:
    1,368
    [Oct 27, 2009]
    Good job Neil.

    Pity audi still use that shyte plastic glovebox brake part as this usually snaps of, the trouble I had repairing mine & getting it to move slowly aswell.

    You got pic of the footwell bulb, is this a built in housing with led or seperate bulb/led as such?

    The updated 8P clusters & network board (as per my car) give you interior light dimming via the DIS mate so I would say yours would be there almost 99% sure given yours is much newer.
    #4
  5. pns2007
    Offline

    pns2007 Member VCDS Map User

    Joined:
    Nov 23, 2008
    Messages:
    644
    Likes Received:
    19
    [Oct 27, 2009]
    Yes, the break is a bit flimsy. I originally priced it as part of the modification but when I went to the Audi parts dept they said it was one unit, with or without light. Saved me £16 :)

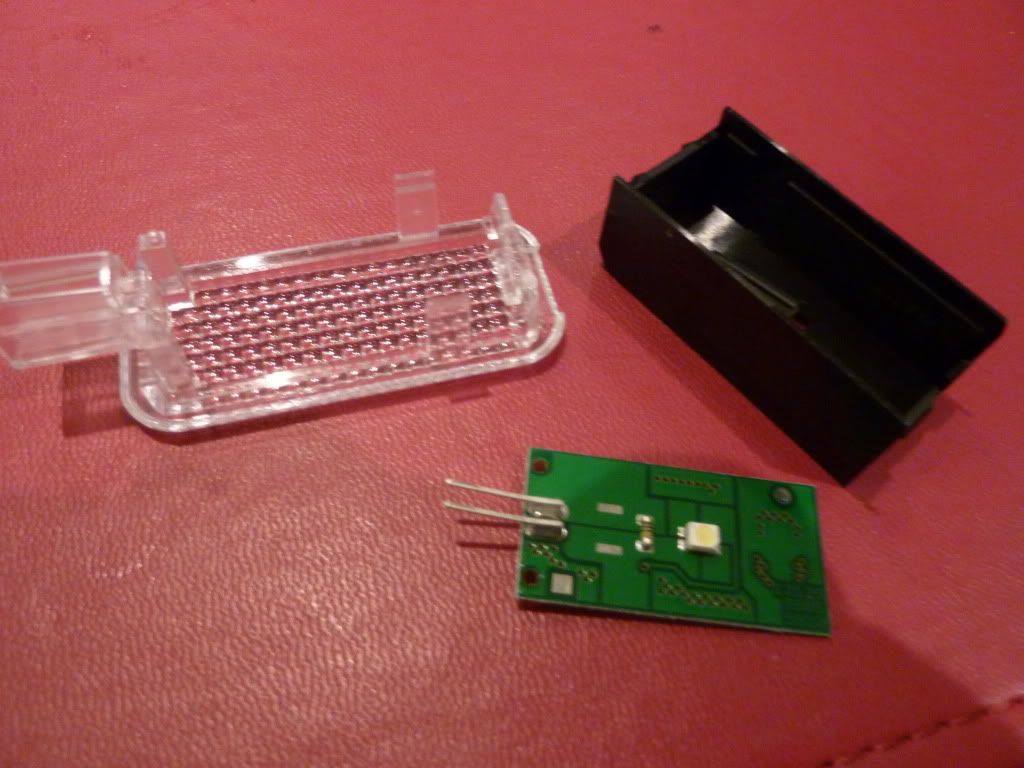

    The glove box light is the normal W5W bulb. The footwell lights are listed as LED. (Part number for the led light is U4E0 947 415 (£8.40), the connector part number is U4B0 971 832 (£1.53 each) and you need a repair wire for each part number U000 979 009 (£1.16) (all subject to VAT)

    I have taken one out (just for you Nigel) -
    [​IMG]

    It was a pain in the arse when I first connected it as I didn't think the polarity would matter. When I coded the car for footwell lights (with the code given to me by Ross Tech) they didin't work. It was only when I was fiddling around in the garage with the rear ones that I tested them on a battery and hey presto.

    Had to swop the wiring on the others:blush:. All works fine now.

    With regards to the dimming, there is no function in the DIS or MMI. The only reason I ask is that that there is a thread on MKivs forum where the function on the mk6 is not available either. Are led lights dimmable?

    The only problem I have with the retro fit now is that I can't get the rear door warning lights to work. VDS is still pretty basic when it comes to the my2010 A4 and the coding just refers to support at Ross Tech. Will send them another message.
    Last edited: Oct 27, 2009
    #5
  6. NHN
    Offline

    NHN Retrofitter - Audi - VW - Skoda - Seat Site Sponsor VCDS Map User

    Joined:
    Jan 14, 2008
    Messages:
    27,919
    Likes Received:
    1,368
    [Oct 27, 2009]
    So did you code the door modules for the lights, cause I would try playing with the coding a little, speculating to accumulate is my idea, sometimes we find out these things just by chance & playing about even if its not logged with vagcom, I'm not sure whats cnagedfor the B8 coding wise, can you show me a screen dump of the door module coding, just intrigued as dont get chance to touch other cars so much.

    Led's are dimmable, just alters the current feed to it, not the voltage afaik.
    #6
  7. pns2007
    Offline

    pns2007 Member VCDS Map User

    Joined:
    Nov 23, 2008
    Messages:
    644
    Likes Received:
    19
    [Oct 27, 2009]
    This is the 'screen dump'
    [​IMG]

    Two other bytes have one option in each, one for rhd, the other for the type of car i.e. A4 limousine.

    Anyone else have the coding for either the left or right rear doors who have door warning/puddle lights

    Thanks
    #7
  8. scoTTy
    Offline

    scoTTy Active Member

    Joined:
    Jan 2, 2003
    Messages:
    1,962
    Likes Received:
    10
    [Oct 28, 2009]
    I'll have a look at mine later ;)
    #8
  9. pns2007
    Offline

    pns2007 Member VCDS Map User

    Joined:
    Nov 23, 2008
    Messages:
    644
    Likes Received:
    19
    [Oct 28, 2009]
    Thanks scoTTy i'm eagerly awaiting:happy:
    #9
  10. scoTTy
    Offline

    scoTTy Active Member

    Joined:
    Jan 2, 2003
    Messages:
    1,962
    Likes Received:
    10
    [Oct 28, 2009]
    Both rears doors are coded the same i.e. modules 62 (left rear) and 72 (right rear) both show :

    [​IMG]

    p.s. Mine's an Avant if it makes any difference.

    p.p.s. I'm trying to think what else could be different in the doors. Here's a list of what I can think of that "may" affect the coding.
    B&O speakers
    Illuminated door handles (recessed red light)
    Footwell lights
    Puddle lights

    Can't think of anything else to be honest :uhm:
    Last edited: Oct 28, 2009
    #10
  11. pns2007
    Offline

    pns2007 Member VCDS Map User

    Joined:
    Nov 23, 2008
    Messages:
    644
    Likes Received:
    19
    [Oct 28, 2009]
    Cheer again mate, your a big help

    my coding - 01 00 02 20 40 01 41 00 01
    your coding - 01 0C 02 20 40 01 21 00 01

    The only differences are the illuminated door handles and the door/puddle lights, so I only need to change one number.

    I'll go and do it now - back in a bit :detective2:
    #11
  12. pns2007
    Offline

    pns2007 Member VCDS Map User

    Joined:
    Nov 23, 2008
    Messages:
    644
    Likes Received:
    19
    [Oct 28, 2009]
    Done it and it works :rock:

    The fourth digit needed to be changed to C to enable door/puddle lights.

    I therefore presume that the thirteenth digit relates to illuminated door handle. (I don't as yet have these)

    Finished and WELL satisified

    :beerchug: everyone

    (I'll e-mail Ross Tech with this info as the coding on the new A4 seems a little sparse)

    Neil
    #12
  13. scoTTy
    Offline

    scoTTy Active Member

    Joined:
    Jan 2, 2003
    Messages:
    1,962
    Likes Received:
    10
    [Oct 28, 2009]
    Good job mate :applaus:
    #13
  14. NHN
    Offline

    NHN Retrofitter - Audi - VW - Skoda - Seat Site Sponsor VCDS Map User

    Joined:
    Jan 14, 2008
    Messages:
    27,919
    Likes Received:
    1,368
    [Oct 28, 2009]
    Speculate to accumulate huh Neil, nice one chap.
    #14
  15. pns2007
    Offline

    pns2007 Member VCDS Map User

    Joined:
    Nov 23, 2008
    Messages:
    644
    Likes Received:
    19
    [Oct 28, 2009]
    Couldn't have done it without you two guys. Thanks Nigel and scoTTy.

    This sort of help is what makes this forum really great - loads of helpful, knowledgable and friendly people.

    :beerchug:

    Just had an e-mail from Andy Smith at Ross tech regarding this point. With what Sebastian said in his other post we should have a few more things to look forward to with the new VDS software updates.
    #15
  16. NHN
    Offline

    NHN Retrofitter - Audi - VW - Skoda - Seat Site Sponsor VCDS Map User

    Joined:
    Jan 14, 2008
    Messages:
    27,919
    Likes Received:
    1,368
    [Oct 28, 2009]
    It was all scotty tbh mate, I just pushed you out of your armchair to go play a bit, he did the homework mostly, but I'll accept the beer anyway, lmao.

    Good work scotty.
    #16
  17. scoTTy
    Offline

    scoTTy Active Member

    Joined:
    Jan 2, 2003
    Messages:
    1,962
    Likes Received:
    10
    [Oct 28, 2009]
    You got me intrigued now. Tomorrow evening I'll pop out and see if that other value is the door handles. ;)
    #17
  18. johnnythepie
    Offline

    johnnythepie Well-Known Member

    Joined:
    Apr 27, 2009
    Messages:
    2,233
    Likes Received:
    70
    [Oct 28, 2009]
    illuminated door handles????
    #18
  19. pns2007
    Offline

    pns2007 Member VCDS Map User

    Joined:
    Nov 23, 2008
    Messages:
    644
    Likes Received:
    19
    [Oct 29, 2009]
    I only have a picture of them on the A3, I think they are the same on an A4
    [​IMG]
    #19
  20. scoTTy
    Offline

    scoTTy Active Member

    Joined:
    Jan 2, 2003
    Messages:
    1,962
    Likes Received:
    10
    [Oct 29, 2009]
    Yep just like that. I'll be having a play around 16:00...although not sure it'll be dark enough to really see as they're quite subtle ..... and I'm colour blind hahahaha
    #20
  21. johnnythepie
    Offline

    johnnythepie Well-Known Member

    Joined:
    Apr 27, 2009
    Messages:
    2,233
    Likes Received:
    70
    [Oct 29, 2009]
    Ah.Sorry, thought you meant on the outside like the beemers.I like them!
    Last edited: Oct 29, 2009
    #21
  22. NHN
    Offline

    NHN Retrofitter - Audi - VW - Skoda - Seat Site Sponsor VCDS Map User

    Joined:
    Jan 14, 2008
    Messages:
    27,919
    Likes Received:
    1,368
    [Oct 29, 2009]
    Thats known as surround or enviroment lighting & they're on the underside of the mirrors on the A6 & possiblyA4 B8 range, not very common, but I had some to wire into my A3 as the mirrors shared the same trims, but now I'm upgrading mine to facelift I will get the newer A6 trims with leds to fit, just working out the wiring tbh as they come on with the coming home system which the A3 had but not with surround lighting
    #22
  23. scoTTy
    Offline

    scoTTy Active Member

    Joined:
    Jan 2, 2003
    Messages:
    1,962
    Likes Received:
    10
    [Oct 29, 2009]
    For the front doors VCDS already identifies the byte and bit.

    For the rear doors the door handle illumination is toggled on and off with Byte 1 bit 5.

    Any idea what "SLP Parameter Set : Audi A5 (8T) Coupe" means?

    My front's were set to "SLP Parameter Set : Audi A4 (8K) Limousine/Avant & Audi Q5" so I did the rears the same just for the sake of it :happy:
    #23
  24. NHN
    Offline

    NHN Retrofitter - Audi - VW - Skoda - Seat Site Sponsor VCDS Map User

    Joined:
    Jan 14, 2008
    Messages:
    27,919
    Likes Received:
    1,368
    [Oct 29, 2009]
    Surround Lighting perhaps, I'm speculating here atm.
    #24
  25. pns2007
    Offline

    pns2007 Member VCDS Map User

    Joined:
    Nov 23, 2008
    Messages:
    644
    Likes Received:
    19
    [Oct 29, 2009]
    No idea! but mine was the same and I changed it to Audi A4 (8K) Limousine/Avant & Audi Q5 aswell. Can't say I've noticed any changes.

    I'm going to have a look on etka later to see if you can just get the led for the illuminated door handles. Might have a go at this aswell
    #25
  26. gazguthrie
    Offline

    gazguthrie New Member

    Joined:
    Dec 28, 2009
    Messages:
    1
    Likes Received:
    0
    [Jan 6, 2010]
    Interesting thread, just received my new A4 Exec S-line and cant believe the illumination pack is an extra. Has anyone sussed the vent illumination?
    #26
  27. NHN
    Offline

    NHN Retrofitter - Audi - VW - Skoda - Seat Site Sponsor VCDS Map User

    Joined:
    Jan 14, 2008
    Messages:
    27,919
    Likes Received:
    1,368
    [Jan 8, 2010]
    Does the B8 have vent illumination then as 8P doesnt even though there's a mod for that, that I'm working on.
    #27
  28. scoTTy
    Offline

    scoTTy Active Member

    Joined:
    Jan 2, 2003
    Messages:
    1,962
    Likes Received:
    10
    [Jan 8, 2010]
    I've not noticed it but I was told I had it on my B6 S4 and I could never set it on that either!
    #28
  29. NHN
    Offline

    NHN Retrofitter - Audi - VW - Skoda - Seat Site Sponsor VCDS Map User

    Joined:
    Jan 14, 2008
    Messages:
    27,919
    Likes Received:
    1,368
    [Jan 9, 2010]
    They come on with the rest of the headlights etc switch, illumination pack, it only lit the dials on the vents, well it did on the facelift 8L's I know for sure, I am awaiting for the snow to clear so I can grab a mates old vents to start my mod as I bloody hate the fact you cant see the damn vents at night or at least the adjusters, poxy audi change there mind more often than the queen changes her underwear lol.
    #29
  30. scoTTy
    Offline

    scoTTy Active Member

    Joined:
    Jan 2, 2003
    Messages:
    1,962
    Likes Received:
    10
    [Jan 9, 2010]
    The dials on mine are definately lit (including the rear temp controller). I was told previously that the B6 S4's had subtle lighting in the actual vent. I've always assummed they all do as this seems a very basic function .... but then again so is a glove box light normally!
    #30
  31. febelus
    Offline

    febelus New Member

    Joined:
    Jun 21, 2010
    Messages:
    2
    Likes Received:
    0
    [Jun 21, 2010]
    how can i wire the footwheel led light??
    #31
  32. k3nnis
    Offline

    k3nnis Member

    Joined:
    Mar 8, 2010
    Messages:
    33
    Likes Received:
    0
    [Aug 26, 2010]
    Do the door handle lights come on all A4 B8's? Or do you need the lightting package?
    #32
  33. andyam
    Offline

    andyam Active Member

    Joined:
    Jan 18, 2011
    Messages:
    439
    Likes Received:
    30
    [Dec 10, 2013]
    I have brought a loom from trups. But I'm wondering where can I put the live feed in? Rather than using the fuse? Thanks,,,
    #33
  34. pns2007
    Offline

    pns2007 Member VCDS Map User

    Joined:
    Nov 23, 2008
    Messages:
    644
    Likes Received:
    19
    [Dec 10, 2013]
    #34
  35. andyam
    Offline

    andyam Active Member

    Joined:
    Jan 18, 2011
    Messages:
    439
    Likes Received:
    30
    [Dec 11, 2013]
    Sorry it related to the glovebox light.

    My bad
    #35
  36. andyam
    Offline

    andyam Active Member

    Joined:
    Jan 18, 2011
    Messages:
    439
    Likes Received:
    30
    [Jan 13, 2014]
    So I've done the glovebox light. Have tr8ps led light plus housing it works as I tested in the boot light. .I am using a 5 amp fuse but it should be effect. There is no light output.....I'm losing my mind as to why this isn't working...any help would be brilliant

    Attached Files:

    #36
  37. mrose
    Offline

    mrose Member

    Joined:
    Mar 4, 2014
    Messages:
    130
    Likes Received:
    13
    [Apr 11, 2014]
    Not sure if you got an answer or any help Andyam. Two things spring to mind:

    1. is the live feed you are using ignition switched?
    2. could the switch in the glovebox damper be faulty? Try disconnecting the connector (looks white or light brown in you pics) from the damper and short it - any light now?

    It's been months since your post so you've probably solved it already.

    Mark
    #37
  38. andyam
    Offline

    andyam Active Member

    Joined:
    Jan 18, 2011
    Messages:
    439
    Likes Received:
    30
    [Apr 11, 2014]
    Hi Mark. Yeh I sorted it...o connected it to an ignition live lol!!! Such an amateur. Sorted to a live feed. Cheers Mark
    Andy
    #38
  39. Anthony566
    Offline

    Anthony566 Active Member

    Joined:
    Nov 24, 2013
    Messages:
    713
    Likes Received:
    104
    [Apr 12, 2014]
    Andy which feed did you use ??
    #39
  40. andyam
    Offline

    andyam Active Member

    Joined:
    Jan 18, 2011
    Messages:
    439
    Likes Received:
    30
    [Apr 12, 2014]
    I used the feed from the fuse box on the passenger side. The beige one is the one your looking for. NOT THE BLACK ONE
    #40

Share This Page
