Cup holder mod for facelift A3 / S3

Discussion in 'A3/S3/Sportback (8P Chassis)' started by R7SAN, Nov 7, 2009.

  1. R7SAN
    Offline

    R7SAN New Member

    Joined:
    Oct 19, 2009
    Messages:
    25
    Likes Received:
    0
    As you know in the 2009 facelift A3 / S3 Audi has opted to fit the cardholder instead of a cupholder.

    Searching for “cupholder” on the forum, I found boggym’s excellent “retrofitted cupholder” write up.
    This got me thinking, could this mod be done on the new 2009 facelift switch assembly?


    [​IMG]

    I took the switch surround off and discovered that the height and width of the 2009 cardholder enclosure is the same as the cupholder, so it does fit. The problem is with the new curved shape of the card holder front and the switch surround. Because the cupholder was designed with a square front there is an obvious clearance issue, but with a bit of modifying to the front and the right-hand side of the cupholder, it can be made to fit properly.

    It took awhile figuring out what to do but here is my modified cupholder in a 2009 S3.
    Ok so it’s not the best mod you can do but it’s my first ever mod and I am rather pleased with the result.

    [​IMG]


    Here is a list of parts and what had to be modified.

    Parts:-

    Illuminated Cupholder Part number: - 8P0 862 534C 5PR
    Approx £27 inc VAT from Audi Parts Dept. or find a cheap one on ebay

    Tools used: –
    Mobile phone fascia removal tool. ( Or be careful with flat bladed screw driver)
    Sharp bladed Knife
    Metal ruler
    Dremel
    Wet and dry sandpaper to tidy up edges.


    1. REMOVE CARDHOLDER

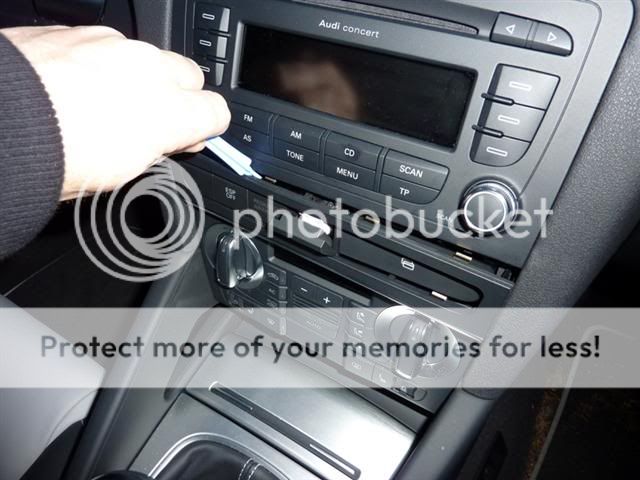

    The switch surround is just clipped on so gently prise it off using removal tool. Be ready to catch the hazard warning switch as it will ping off as you remove the surround.
    [​IMG]


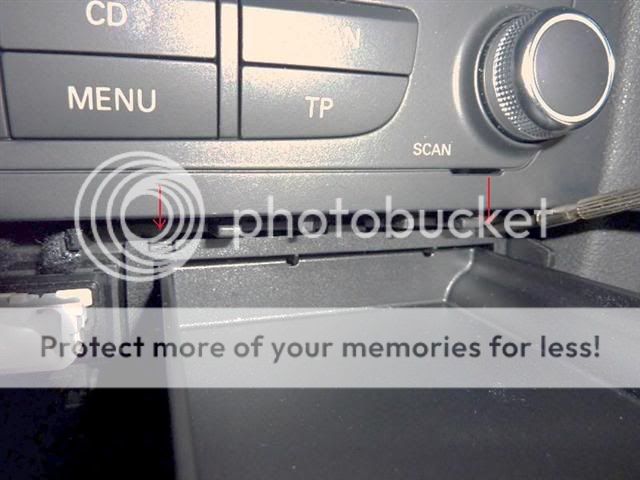

    Eject the cardholder then remove it by pressing down on the two tabs and pull out. Unclip the wire for the LED on the back


    [​IMG]


    2. CREATE CLEARANCE FOR CUPHOLDER

    Although the cupholder will fit when the switch surround is put back, it will not eject. So you need to trim part of the right hand side of the cupholder to allow it to eject properly past the curved switch surround. Score a line with the knife to mark what needs removing. You can use a dremel or a knife to remove the excess plastic. I found the dremel started to melt the plastic so I used the knife to get a clean cut. It is tough plactic but scoring back and forth you will eventually cut through. Tidy up the edge with wet and dry sandpaper


    [​IMG]
    [​IMG]

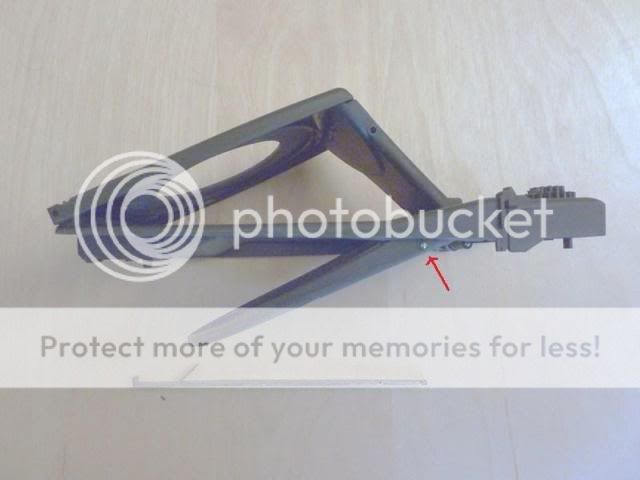

    The arrow in the picture shows the locating pin for the bottom flap is no longer held by the side arm. Don’t worry the side arm is not the support for the pin.

    Fit it back in the car and check that it ejects past the switch surround without catching.



    3. FITTING THE CARDHOLDER FRONT.

    Getting the cardholder front to fit on the cupholder requires a fair bit of modifying and patience.
    [​IMG]

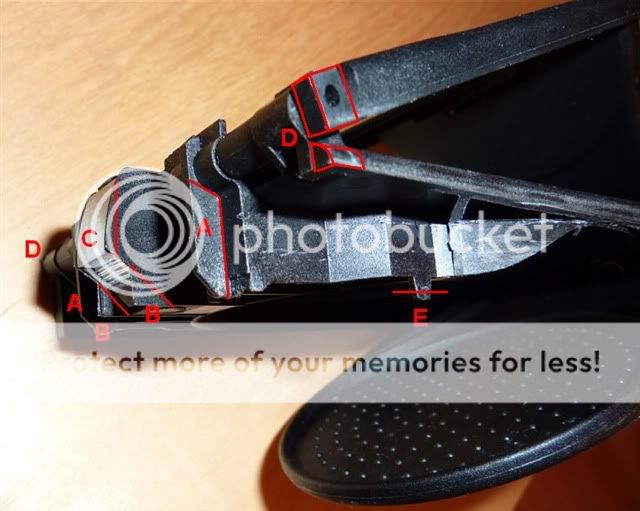

    Trim the following parts.

    A – Cut away until they are flush
    B – Cut away so they follow the angle of the clear plastic
    C – File down the clear plastic and black sides to the red line
    D – On the right hand side, cut away the 2 sections illustrated. On the left just cut away the top section.
    E - This sometimes caused mine to stick when ejecting so you might need to cut 1mm off the little tab.



    Next trim down the top and make two slots so the cardholder front will sit at the right height when located in the switch surround.


    [​IMG]

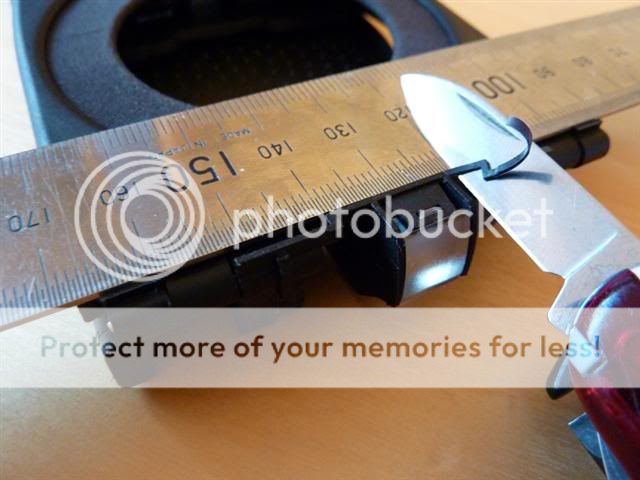

    I found that a metal ruler placed on the top will allow you to cut away the required 1 mm.
    [​IMG]

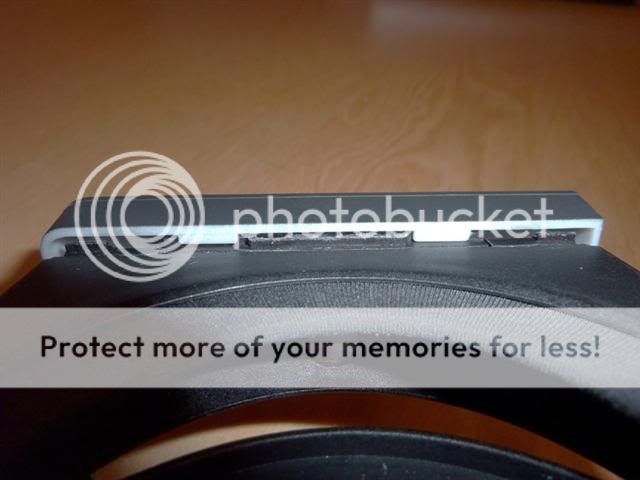

    Work out where the slots need to be made. The dremel was ideal for cutting the slots


    [​IMG]

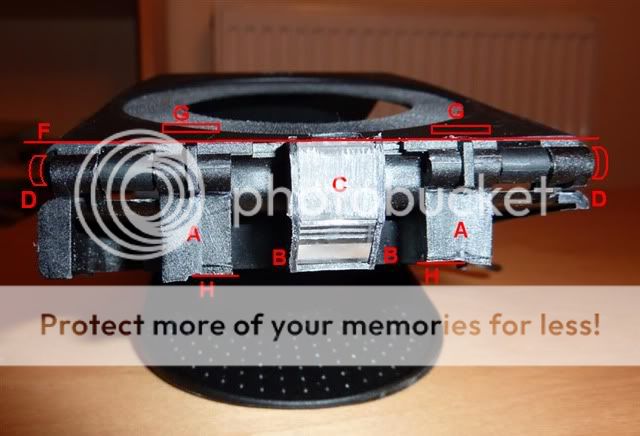

    Once all the modifications shown above are done, the cardholder front should fit.

    A – Tabs trimmed down flush.
    B – Tabs trimmed following angle of clear plastic
    C – Clear plastic / Black tabs filed back
    D – On the Left top section removed, on the right top and bottom sections removed
    F – 1 mm trimmed off the top
    G – Slots cut to locate tabs in cardholder front
    H – Put the cardholder front on and see how much needs to be trimmed so it clicks in place properly.



    4. MAKING THE CUPHOLDER “LOCK” IN PLACE

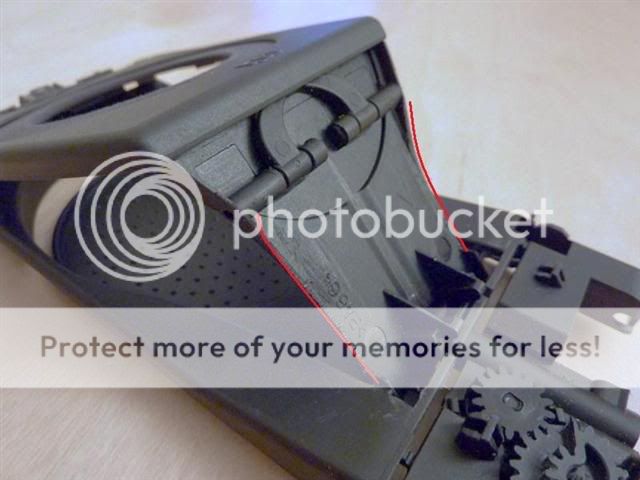

    At this point, the cupholder with the cardholder front should fit properly in the switch surround and it should eject without catching. Now, just like in boggym’s "Retrofitted cupholder” guide you need to trim the back of the cupholder where it hits the switch surround.


    [​IMG]
    I
    tapered both sides and tidied up with wet and dry sandpaper.


    So that’s it. Admittedly there is a lot more work required than the preface lift mod, but if you really want a cup holder then these are the lengths you have to go to ... :arco:

    [FONT=&quot]
    [/FONT]
    #1
    Artimus and ankarage like this.
  2. N8
    Offline

    N8 Kowalski Details

    Joined:
    Jul 4, 2007
    Messages:
    17,157
    Likes Received:
    5
    superb write up, nice one.
    #2
  3. martyboy
    Offline

    martyboy Member

    Joined:
    Feb 20, 2009
    Messages:
    525
    Likes Received:
    0
    ive already got a cup-holder, but what a fantastic write-up!!!:o.k:
    #3
  4. jbconno
    Offline

    jbconno New Member

    Joined:
    Feb 5, 2011
    Messages:
    6
    Likes Received:
    0
    Cheers R4SAN. Just done this mod on the misses 58 plate A3, great instructions. Must admit for a German car there are some daft design flaws, you can use either the arm rest or the existing cup holders, and the shelf in the glove box is too small for the service book pack. Other than that, its a great car.
    #4
  5. sub39h
    Offline

    sub39h Active Member

    Joined:
    May 19, 2010
    Messages:
    2,502
    Likes Received:
    0
    the service book belongs in a little section of the passenger door card. if you look at the storage area, at the back there's a little recessed area. it fits perfectly in there
    #5
  6. 1animal1
    Offline

    1animal1 The Clar!! it mouves!!!

    Joined:
    Dec 27, 2007
    Messages:
    9,981
    Likes Received:
    4
    I was going to do this but it looks too much of a ball ache :)
    #6
  7. jbconno
    Offline

    jbconno New Member

    Joined:
    Feb 5, 2011
    Messages:
    6
    Likes Received:
    0
    I didnt notice that, I will have a look. She wanted me to hack the divider out on the shelf in the glove box !
    #7
  8. NHN
    Online

    NHN Modmetractor Site Sponsor

    Joined:
    Jan 14, 2008
    Messages:
    27,220
    Likes Received:
    29
    Also using this with cans is not advisable as my tests found out, as hard braking will potentially end up with liquid leakage on the radio, cant understand why they put cup holder on the single din units above the radios, even water bottles used to fall out often.
    #8
  9. jbconno
    Offline

    jbconno New Member

    Joined:
    Feb 5, 2011
    Messages:
    6
    Likes Received:
    0
    Guy I know went through 3 radios on his pre FL A3as the holder is above the radio. Radios and Coke dont mix well !
    #9
  10. welshwoody
    Offline

    welshwoody Member

    Joined:
    Feb 19, 2010
    Messages:
    392
    Likes Received:
    0
    Do Audi not make a genuine cup holder for the A3?
    #10
  11. sub39h
    Offline

    sub39h Active Member

    Joined:
    May 19, 2010
    Messages:
    2,502
    Likes Received:
    0
    not for the double DIN, and the latest MY11+ A3s don't even have a card holder anymore
    #11
  12. 1animal1
    Offline

    1animal1 The Clar!! it mouves!!!

    Joined:
    Dec 27, 2007
    Messages:
    9,981
    Likes Received:
    4
    Isnt the cupholder in the MY11's the same as my MY09? under the arm rest?
    #12
  13. sub39h
    Offline

    sub39h Active Member

    Joined:
    May 19, 2010
    Messages:
    2,502
    Likes Received:
    0
    there used to be a dash mounted cup holder. that's what's generally referred to as "the cup holder" - not that silly little indent in the console that's the wrong shape for every type of drinks holder known to man
    #13
  14. NHN
    Online

    NHN Modmetractor Site Sponsor

    Joined:
    Jan 14, 2008
    Messages:
    27,220
    Likes Received:
    29
    TBH I never use the damn thing under armrest, what a totally ridiculous place to put it, they could of put something just behind the gear knob as such, redesign that area to suit, but I reckon could of squeezed something in there so its more directly accessible & not enclosed by armrest etc.
    #14
  15. sub39h
    Offline

    sub39h Active Member

    Joined:
    May 19, 2010
    Messages:
    2,502
    Likes Received:
    0
    the american centre console makes me laugh too lol
    #15
  16. 1animal1
    Offline

    1animal1 The Clar!! it mouves!!!

    Joined:
    Dec 27, 2007
    Messages:
    9,981
    Likes Received:
    4
    Totally agree, shit place to put it, almost as bad as the 8L glovebox indentations..... great if not moving and with a 3 inch cup :)
    #16
  17. NHN
    Online

    NHN Modmetractor Site Sponsor

    Joined:
    Jan 14, 2008
    Messages:
    27,220
    Likes Received:
    29
    lmfao so true 3 inch cup lol remember that very well.
    #17
  18. jbconno
    Offline

    jbconno New Member

    Joined:
    Feb 5, 2011
    Messages:
    6
    Likes Received:
    0
    Its a dogs cock design, why couldnt they have used a similar design to the Golf/Octavia ?
    #18
  19. sub39h
    Offline

    sub39h Active Member

    Joined:
    May 19, 2010
    Messages:
    2,502
    Likes Received:
    0
    because the A3 is meant to be better. by which they mean worse. oh well it's not as if we pay more for the privilege :faint:
    #19
  20. RAPS3
    Offline

    RAPS3 Active Member

    Joined:
    Jan 14, 2003
    Messages:
    1,100
    Likes Received:
    4
    I think I'm going to so this mod too.

    Missed this thread the first time around - good thread resurection :)


    Oh and excellent write up bud - thanks
    #20
  21. NHN
    Online

    NHN Modmetractor Site Sponsor

    Joined:
    Jan 14, 2008
    Messages:
    27,220
    Likes Received:
    29
    I rest my case :)
    #21
  22. NHN
    Online

    NHN Modmetractor Site Sponsor

    Joined:
    Jan 14, 2008
    Messages:
    27,220
    Likes Received:
    29
    Still loving that pic Rap.
    #22
  23. jb0o
    Offline

    jb0o North East Forum Moderator Regional Rep Site Sponsor

    Joined:
    Feb 2, 2009
    Messages:
    2,615
    Likes Received:
    4
    I did this a while back, very easy to do and very effective.
    #23
  24. 1animal1
    Offline

    1animal1 The Clar!! it mouves!!!

    Joined:
    Dec 27, 2007
    Messages:
    9,981
    Likes Received:
    4
    it is a bit gash though, my 8L cupholder on the dash was really good in that it had a few flaps which allowed diff cup sizes...isnt this particular one really flimsy material?
    #24
  25. jbconno
    Offline

    jbconno New Member

    Joined:
    Feb 5, 2011
    Messages:
    6
    Likes Received:
    0
    Dont knock the Octy. I loved my VRS TDI. Fantastic car !
    #25
  26. 1animal1
    Offline

    1animal1 The Clar!! it mouves!!!

    Joined:
    Dec 27, 2007
    Messages:
    9,981
    Likes Received:
    4
    lol the tdi was never really a vrs though was it :)
    #26
  27. jbconno
    Offline

    jbconno New Member

    Joined:
    Feb 5, 2011
    Messages:
    6
    Likes Received:
    0
    Remapped to 200 bhp it was ;-)
    #27
  28. rdfcpete
    Offline

    rdfcpete Member

    Joined:
    Apr 6, 2008
    Messages:
    126
    Likes Received:
    0
    Has anyone got a spare or unused one of these modded efforts? Its beyond my skillset so ill
    happily pay for someones time and postage if I could
    obtain one?

    Thanks.
    #28
  29. rdfcpete
    Offline

    rdfcpete Member

    Joined:
    Apr 6, 2008
    Messages:
    126
    Likes Received:
    0
    Still after one of these, cash waiting if anyone wants to bang one together - I'll obviously cover your time, parts and postage? :icon_thumright:

    Cheers
    #29
  30. NHN
    Online

    NHN Modmetractor Site Sponsor

    Joined:
    Jan 14, 2008
    Messages:
    27,220
    Likes Received:
    29
    #30
  31. rdfcpete
    Offline

    rdfcpete Member

    Joined:
    Apr 6, 2008
    Messages:
    126
    Likes Received:
    0
    #31
  32. Boydie
    Offline

    Boydie Boycie

    Joined:
    Dec 24, 2006
    Messages:
    2,816
    Likes Received:
    7
    That's all well and good. I thought about this mod but decided I wanted full access to my heating control.

    So I installed the USDM centre console which has built in cup holder:

    Attached Files:

    #32
  33. Cruiser89
    Offline

    Cruiser89 <span style="color: blue;"><b>Advanced In Car Tech Site Sponsor

    Joined:
    Nov 25, 2009
    Messages:
    1,433
    Likes Received:
    3
    I remember this thread! Was incredible :)

    That picture makes me want to do it again...
    #33
    Boydie likes this.
  34. rdfcpete
    Offline

    rdfcpete Member

    Joined:
    Apr 6, 2008
    Messages:
    126
    Likes Received:
    0
    What would solve the problem is a full size second cup holder in the area with the drawer.

    Does a console tray exist with two full size cup holders (same size as the bigger one in the image below)?
    Cheers.





    [​IMG]
    #34
  35. Artimus
    Offline

    Artimus Short Back

    Joined:
    May 9, 2012
    Messages:
    1,878
    Likes Received:
    10
    ^^^:iagree:^^^

    edit: I'm considering something (spring loaded or drop down) that'll screw to the bottom of the shelf in the glovebox.
    Last edited: Mar 13, 2013
    #35
  36. Artimus
    Offline

    Artimus Short Back

    Joined:
    May 9, 2012
    Messages:
    1,878
    Likes Received:
    10
    #36
  37. Cruiser89
    Offline

    Cruiser89 <span style="color: blue;"><b>Advanced In Car Tech Site Sponsor

    Joined:
    Nov 25, 2009
    Messages:
    1,433
    Likes Received:
    3
    Nooooo.... I love that small one!

    Someone at Audi had their head screwed on and made it the exact size as a can of RedBull... Another piece of genius similar to the rear view mirror flap...

    [​IMG]

    Now only if they had thought about the Handbrake / Armrest situation :ninja:
    #37
  38. A3SBQ
    Offline

    A3SBQ A3 SportBack 2TFSI quattro DSG

    Joined:
    Jul 22, 2009
    Messages:
    228
    Likes Received:
    0
    I like the US style! Whats wrong with that?
    #38
    Boydie likes this.
  39. Boydie
    Offline

    Boydie Boycie

    Joined:
    Dec 24, 2006
    Messages:
    2,816
    Likes Received:
    7
    Its a pain in the ass to fit and doesnt and wont fit perfectly in the foot wells :(
