B6 Bumper Options.

Discussion in 'A4/A4 cabriolet/S4 forum(B6 chassis)' started by quattrojames, May 7, 2012.

  1. quattrojames
    Online

    quattrojames Moderator Staff Member Moderator

    Joined:
    Mar 28, 2008
    Messages:
    13,929
    Likes Received:
    487
    [May 7, 2012]
    I have written this to try and help people with all their Gmbh/Votex confusion.... It's compiled from my knowledge, but as always I'm happy to be corrected if I have got anything wrong. The pictures are taken from the picture thread, in no particular order, just as I saw a nice shot of the bumper I was looking for.

    Part numbers are shown in the relevant post in the seperate sticky:

    http://www.audi-sport.net/vb/a4-a4-cabriolet-s4-forum-b6-chassis/118739-b6-part-numbers-thread.html

    There are three bumper options fitted to the B6 A4's.

    Standard Front.

    The standard front was fitted to Sport/SE models until mid-late 2003, I am not aware that this was ever colour coded from the factory.

    A standard unpainted front:

    [​IMG]

    [​IMG]

    A standard unpainted rear Valance:

    [​IMG]

    A standard colour coded front:

    [​IMG]

    GMBH/S-Line Front.

    Then from this point onwards, Sport models came with a colour coded Gmbh front and rear, (so named because it was designed by Audi's styling house Quattro Gmbh). The SE's retained the standard front but it became colour coded front and rear. Gmbh cars also came with door blades (smaller than the S4 ones). Late model B6's were badged as S-Lines and were ONLY available with the 1.8T engine in fwd and quattro guise, and the Gmbh front often gets the 'S-Line' front nickname. It's also known as the UltraSport or USP kit in America.

    This is a very popular retro fit. It is possible to trim the standard upper to accept the Gmbh lower:

    B6 A4: Ultrasport Lower Front Bumper with Stock Upper

    USP Front Lip Conversion: Fabrication & Fitment (Lots of pics)

    A Gmbh front:

    [​IMG]

    [​IMG]

    [​IMG]

    The rears vary depending on whether it's a diesel with no exhaust cut outs, a 2.0 with one on the nearside, or a 1.8T or 3.0 with twin cutouts.

    A Gmbh rear valance:

    [​IMG]

    [​IMG]

    [​IMG]

    This is an unpainted USP kit:

    [​IMG]

    And here's Colins S-Line, just cos:

    [​IMG]

    VOTEX.

    Then there is the Votex bodykit, this was (I think) available as a dealer fit option.

    Votex front:

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Votex rear, again this differs between diesel and petrol versions:

    [​IMG]

    [​IMG]

    See THIS thread for the stunning way in which the Votex bumper can be integrated:

    [​IMG]

    Cupra splitters are a popular fit to all styles of front bumper (part number in seperate sticky):

    Standard front:

    [​IMG]

    Gmbh front:

    [​IMG]

    S4 front:

    [​IMG]

    Then of course the S4 comes with it's own unique bodykit:

    S4 front:

    [​IMG]

    [​IMG]

    S4 rear:

    [​IMG]

    [​IMG]
    #1
  2. Ads

    Ads

    [Nov 23, 2014]

  3. quattrojames
    Online

    quattrojames Moderator Staff Member Moderator

    Joined:
    Mar 28, 2008
    Messages:
    13,929
    Likes Received:
    487
    [May 7, 2012]
    Right this has taken me a while, but will hopefully answer the question thats asked most!

    I've grabbed pics as I came across them, please feel free to suggest more suitable ones, ie both the standard fronts on Dolphin Grey cars don't show it up that well. Where possible I want cars which are largely cosmetically standard as this helps to differentiate between the different styles better. And good quality photo's which nicely illustrate the relevant part.

    Please feel free to add bits, ask questions and make suggestion, but lets try and stay on topic as much as possible.

    :icon_thumright:

    Door Blades.

    All door blades are removable and exchangeable between B6 and B7 Avant and Saloon models, see seperate sticky thread for part numbers. They're easily removed by unscrewing the two screws inside the door, one at each end allowing them to slide out.

    [​IMG]

    I'll probably swap these pics as I find better ones. If anyone has a picture of two or all three blades side by side please let me know.

    Standard Blades.

    These were unpainted on ALL cars pre Gmbh kit, and body coloured on SE cars since then. These are really just a trim at the bottom of the door.
    [​IMG]

    [​IMG]

    Gmbh Blades.

    As fitted to Gmbh bodykit equipped cars, these are more flared than standard.

    [​IMG]

    [​IMG]

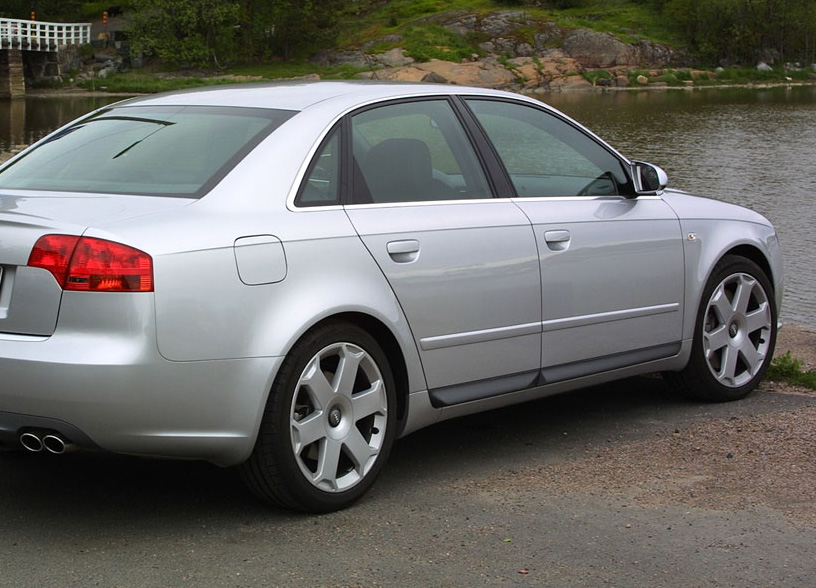

    S4 Blades.

    Standard fitment only on S4's. Unsure whether any left the factory body coloured, or if they were all unpainted.... They are much wider and more aggressive than Gmbh ones.

    [​IMG]

    [​IMG]
    Last edited: Apr 12, 2013
    #2
  4. crazy88
    Offline

    crazy88 Loving the anonymity

    Joined:
    Nov 26, 2009
    Messages:
    4,858
    Likes Received:
    400
    [May 7, 2012]
    The only thing I can think of is whether the Gmbh rear valance can fit the standard SE bumper without modification unlike like the front? Only asking cos I am wondering myself about an S-Line rear, and it's not mentioned.

    Ace post though! Cheers.
    #3
  5. CMD
    Offline

    CMD Pointing Forward's!!!!!!!!!

    Joined:
    Nov 22, 2008
    Messages:
    3,016
    Likes Received:
    17
    [May 7, 2012]
    Well done James this will/should help those who are doing a upgrade or for those who are New to the Audi A4 scene. Great job
    #4
  6. amz
    Offline

    amz Member

    Joined:
    Sep 29, 2011
    Messages:
    185
    Likes Received:
    2
    [May 7, 2012]
    This is an excellent post with very good explanation along with illustration, can't get any better than this! :icon_thumright:
    #5
  7. jbcalvin
    Offline

    jbcalvin Member

    Joined:
    Jan 9, 2011
    Messages:
    640
    Likes Received:
    16
    [May 7, 2012]
    Hi James,

    Great sticky to add and well written, spot on with the years/options as well....

    The only thing I would add is to remind people that the S4 bumpers are one piece only, rather than upper/lower sections, plus if doing an S4 front end your normal foglights will not fit, only place to get them is a dealer....
    #6
  8. Dubbers1
    Offline

    Dubbers1 Top Gear

    Joined:
    Jul 7, 2011
    Messages:
    238
    Likes Received:
    43
    [May 7, 2012]
    Good thread, maybe something else worth noting that on some of the front bumpers you show have an LCR splitter added

    Oh and I'm famous!
    #7
  9. crazy88
    Offline

    crazy88 Loving the anonymity

    Joined:
    Nov 26, 2009
    Messages:
    4,858
    Likes Received:
    400
    [May 8, 2012]
    He's mentioned they are LCR Splitters already. Above the first pic with the splitter there's a sentence explaining it. I was hoping i'd be famous too, but then I never really upload any pics of my car so it was highly unlikely. :)
    #8
  10. Dubbers1
    Offline

    Dubbers1 Top Gear

    Joined:
    Jul 7, 2011
    Messages:
    238
    Likes Received:
    43
    [May 8, 2012]
    Oh, my bad, sorry James, too busy looking at the nice pics
    #9
  11. AlexGSi2000
    Offline

    AlexGSi2000 Well-Known Member VCDS Map User

    Joined:
    Feb 14, 2012
    Messages:
    1,265
    Likes Received:
    137
    [May 8, 2012]
    Nice guide James - Im famous!
    #10
  12. archemist
    Offline

    archemist Member VCDS Map User

    Joined:
    Apr 23, 2012
    Messages:
    219
    Likes Received:
    5
    [May 8, 2012]
    James - a great idea / post and as a newbie it's cleared up a whole load of wonders - a little thought how about adding the spoiler options and maybe door blades? - cheers And:thumbsup:
    #11
  13. quattrojames
    Online

    quattrojames Moderator Staff Member Moderator

    Joined:
    Mar 28, 2008
    Messages:
    13,929
    Likes Received:
    487
    [May 8, 2012]
    Thanks for the thanks :icon_thumright:

    Yeh I can do, I wasn't looking to get too involved in how-to's, but am happy to link to any guides that you know of.

    I can add door blades, although they are pretty self explanatory. If anyone has any good pics of standard or Gmbh door blades please can they add them in here are I'll put them in the original post.

    :readit:
    #12
  14. quattrojames
    Online

    quattrojames Moderator Staff Member Moderator

    Joined:
    Mar 28, 2008
    Messages:
    13,929
    Likes Received:
    487
    [May 8, 2012]
    I've added door blade options to post 2.
    #13
  15. Captainwow
    Offline

    Captainwow Member

    Joined:
    Apr 17, 2012
    Messages:
    39
    Likes Received:
    2
    [May 8, 2012]
    Thanks for this, much appreciated.

    Love the look of the integrated Votex kit, looks awesome!

    Ooh my car's famous :D
    #14
  16. marktdisport
    Offline

    marktdisport Active Member

    Joined:
    Jul 14, 2011
    Messages:
    1,195
    Likes Received:
    15
    [May 9, 2012]
    nice 1 james lets just hope that folk can be bothered to use the search and sticky options before loads of repeated threads....

    thanks mark
    #15
  17. Captainwow
    Offline

    Captainwow Member

    Joined:
    Apr 17, 2012
    Messages:
    39
    Likes Received:
    2
    [May 9, 2012]
    Quick question guys;

    The last picture in the door blade section (silver B7), I assume that's an S4? As I'm after a rear diffuser like that, rather than with round holes. Would that fit a B6 Sport bumper? Sorry for the question!
    #16
  18. marktdisport
    Offline

    marktdisport Active Member

    Joined:
    Jul 14, 2011
    Messages:
    1,195
    Likes Received:
    15
    [May 10, 2012]
    it certainly looks like one m8
    #17
  19. StuG808
    Offline

    StuG808 1.9tdi130 Avant FailWheelDrive

    Joined:
    Feb 8, 2012
    Messages:
    255
    Likes Received:
    8
    [May 15, 2012]
    Great thread. I'd also like to see spoiler options. On my avant I have the basic stubby SE type but was told that the S-line wouldn't fit as the original spoiler is bonded on and not practically removable. But what about S4, Votex or Sport spoilers? Are there any that can be applied over the top of the SE one?
    #18
  20. quattrojames
    Online

    quattrojames Moderator Staff Member Moderator

    Joined:
    Mar 28, 2008
    Messages:
    13,929
    Likes Received:
    487
    [May 15, 2012]
    Sorry I probably confused things by showing a B7 in here, the B7 rear bumper is different to the B6 in that it's one piece (like the B6 S4). The B7 rear bumper won't fit the B6 for this reason, you'd need to cut a diffuser into the existing bumper.

    Roof spoilers? The SE's don't have a spoiler as standard at all, I don't 'think' the Sports do (but it may have come in with the GMBH kit?) - the S-Lines come with one I think.
    #19
  21. StuG808
    Offline

    StuG808 1.9tdi130 Avant FailWheelDrive

    Joined:
    Feb 8, 2012
    Messages:
    255
    Likes Received:
    8
    [May 15, 2012]
    Well, roof spoiler on the SE, which I accept is more a stubby apendage rather than a spoiler!
    #20
  22. quattrojames
    Online

    quattrojames Moderator Staff Member Moderator

    Joined:
    Mar 28, 2008
    Messages:
    13,929
    Likes Received:
    487
    [May 15, 2012]
    But it's all part of the roof rather than a seperate spoiler?
    #21
  23. StuG808
    Offline

    StuG808 1.9tdi130 Avant FailWheelDrive

    Joined:
    Feb 8, 2012
    Messages:
    255
    Likes Received:
    8
    [May 15, 2012]
    It's on the bootlid itself, but I read that the SE 'spoiler', as well as the S-Line spoiler are both bonded onto the bootlid during manufacturing and neither are really interchangeable.
    #22
  24. Q4
    Offline

    Q4 Member

    Joined:
    Oct 22, 2008
    Messages:
    33
    Likes Received:
    0
    [May 18, 2012]
    #23
  25. Neilb1
    Offline

    Neilb1 Member

    Joined:
    Oct 13, 2012
    Messages:
    180
    Likes Received:
    2
    [Oct 25, 2012]
    will the sallon fit the rear estate, i have a 2.5 vr tdi with the exhaust hidden on either side i would like to fit a rear so i can see them and possible pending were the hole line up have tips up one or a new exhaust fitted
    #24
  26. munchkincoupe
    Offline

    munchkincoupe Member

    Joined:
    Aug 21, 2010
    Messages:
    943
    Likes Received:
    18
    [Oct 26, 2012]
    no the edges of the bumpers are different so saloon rear won't fit the estate
    #25
  27. T0m
    Offline

    T0m Member

    Joined:
    Sep 13, 2007
    Messages:
    484
    Likes Received:
    23
    [Nov 23, 2012]
    Anyone know the part numbers for the GMBH/S-Line Front please?
    #26
  28. quattrojames
    Online

    quattrojames Moderator Staff Member Moderator

    Joined:
    Mar 28, 2008
    Messages:
    13,929
    Likes Received:
    487
  29. T0m
    Offline

    T0m Member

    Joined:
    Sep 13, 2007
    Messages:
    484
    Likes Received:
    23
    [Nov 23, 2012]
    Thanks James but unless im dumb I have been through that and cannot see the numbers anywhere
    #28
  30. marktdisport
    Offline

    marktdisport Active Member

    Joined:
    Jul 14, 2011
    Messages:
    1,195
    Likes Received:
    15
    [Nov 23, 2012]
    tom the part numbers are in post 6 bud the number in the red line on the right
    #29
  31. quattrojames
    Online

    quattrojames Moderator Staff Member Moderator

    Joined:
    Mar 28, 2008
    Messages:
    13,929
    Likes Received:
    487
  32. marktdisport
    Offline

    marktdisport Active Member

    Joined:
    Jul 14, 2011
    Messages:
    1,195
    Likes Received:
    15
    [Nov 23, 2012]
    Show off lol @ James
    #31
  33. T0m
    Offline

    T0m Member

    Joined:
    Sep 13, 2007
    Messages:
    484
    Likes Received:
    23
    [Nov 23, 2012]
    haha ok I asked for that, did look at that part and thought it was what i was after but a picture paints a thousand words and all that, now excuse me for my next question where is the part number for the top half of the bumper, the part where the number plate goes?

    Cheers Guys!!
    #32
  34. marktdisport
    Offline

    marktdisport Active Member

    Joined:
    Jul 14, 2011
    Messages:
    1,195
    Likes Received:
    15
    [Nov 23, 2012]
    looking at your pictures Tom I don't think you need the top part just the bottom pulls out my mrs is good at parking over the kerb at tescos then reversing leaving the spoiler behind lol the day I sold mine and it was being fetched hehe
    #33
  35. T0m
    Offline

    T0m Member

    Joined:
    Sep 13, 2007
    Messages:
    484
    Likes Received:
    23
    [Nov 23, 2012]
    Mate there are stress cracks across the top part (you can just about see them in the pic) and the supports that are behind the lower sline part that are part of the top half are broken and I dont want to bodge it fella.

    The pics I posted are not the best to be fair and its hard to show the damage its done.

    Ive seen this New & Genuine AUDI A4 Silver Front Bumper 8E0.807.437 (MSM) | eBay

    But I think it is just a standard top half and I dont want to do the mod you can do to attach the sline lower to it, I want the proper parts if your with me fella?
    #34
  36. quattrojames
    Online

    quattrojames Moderator Staff Member Moderator

    Joined:
    Mar 28, 2008
    Messages:
    13,929
    Likes Received:
    487
    [Nov 23, 2012]
    I'd be looking for an ebay top bumper I think, you might even find both parts in the right colour.

    If the top bumper part number isn't in that thread, which I don't think it is .. then I'll have to look in Etka and I can't do that tonight I'm afraid.
    #35
  37. T0m
    Offline

    T0m Member

    Joined:
    Sep 13, 2007
    Messages:
    484
    Likes Received:
    23
    [Nov 23, 2012]
    James Ive scanned all over ebay and I can find top sections but dont know if they are the right ones and are not OEM I dont think, Ive found one and it even has the cutouts for the parking sensors which I have so would save me a job but just dont know if it is the right top section, Ive posted the link above.

    and no worries about checking ETKA for me fella I will drop into my local Audi stealer tomorrow and get the right one ;-) thanks for the help guys!!!
    #36
  38. T0m
    Offline

    T0m Member

    Joined:
    Sep 13, 2007
    Messages:
    484
    Likes Received:
    23
    [Nov 26, 2012]
    Update guys, sline front bumper to go with the sline front bumper spoiler numbered above is;

    #8E0-807-103-BC-GRU
    #37
  39. Malfuss
    Offline

    Malfuss Member

    Joined:
    Dec 9, 2012
    Messages:
    150
    Likes Received:
    4
    [Dec 10, 2012]
    Awesome thread, just what I needed, now to find that Votex front bumper....
    #38
  40. hitman1978
    Offline

    hitman1978 Member

    Joined:
    Apr 16, 2012
    Messages:
    106
    Likes Received:
    2
    [Dec 10, 2012]
    great thread, only thing id like to ask about tho is you say pre 04 none came with colour coded bumpers etc, i have a 53 plate sport, standard bumpers and it came colour coded from the factory. im now confuse
    #39
  41. quattrojames
    Online

    quattrojames Moderator Staff Member Moderator

    Joined:
    Mar 28, 2008
    Messages:
    13,929
    Likes Received:
    487
    [Dec 10, 2012]
    A 53 plate car could have been produced in early 2004.
    #40

Share This Page
