    been very busy building new sub box

    Hello all

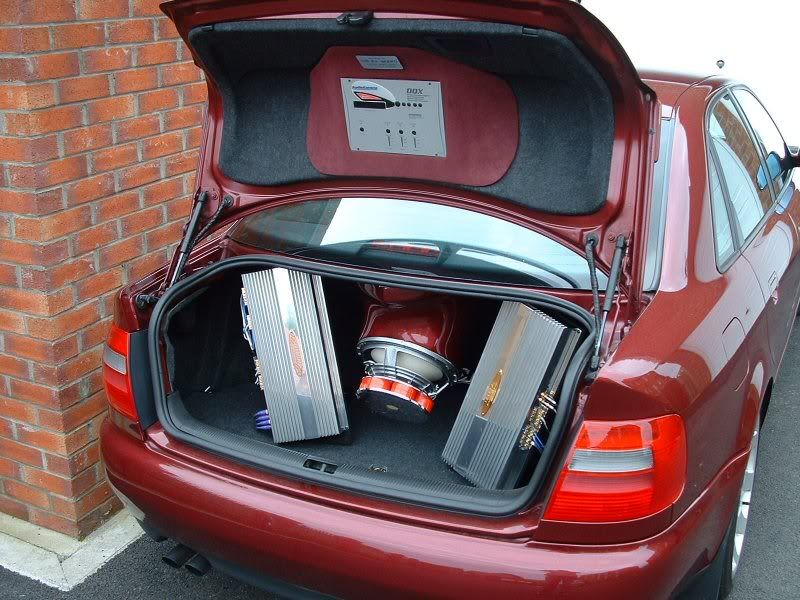

    Well i dont know if you remember my old install i was happy with it but the whole lot was very heavy and i got sick of not having a boot.



    Well i ripped all that out and going with just one 15" this time in a custom glassfiber box to the left hand side of the boot

    this is how ive been going on im still a long way off but i will update the post as i go.

    The big tape up this took some time





    The first of many layers of glass














    i will update with more info when i get a bit more time..

    TopGear Stockport / Longlife Exhausts /
    www.TopGearStockport.co.uk

  2. # ADS
    ADS
    Join Date
    Always
    Location
    Global
    Posts
    Many

  3. #2
    joost's Avatar
    5th Gear

    Status
    Offline
    Join Date
    Nov 2005
    Location
    Lancs
    Posts
    1,166
    Did you not have the PC on that side before?
    Justin

    2001 VW Golf 2.3 V5 (170) Highline, Indigo Blue - standard, for now...

    A4 (B5) SE with a few slight amendments here and there (sold)

  4. #3
    Broken Byzan's Avatar
    Photographic Moderator

    Status
    Offline
    Join Date
    Apr 2004
    Location
    Cardiff, United Kingdom
    Posts
    12,525

    My Social Networking

    Follow Broken Byzan On Twitter Add Broken Byzan on Facebook Add Broken Byzan on Google+ Visit Broken Byzan's Youtube Channel
    Is that box going to be big enough for a 15?? I have a 10 in the same spot and i am running it at the small side but wadded to compansate,around 20 ltres mine is

  5. #4
    billybravo's Avatar
    MODERATOR

    Status
    Offline
    Join Date
    Feb 2005
    Location
    stockport england
    Posts
    1,044
    im not sure where im going to put my pc think i might hide in under the dash.

    as for the box im hoping that its kinda of the same area as my old one as the ring which holds the sub comes out a long way. i will fill with water when im done to make sure there isnt any leeks and that way i can find out how many ltrs it holds.

    cheers

    craig

    TopGear Stockport / Longlife Exhausts /
    www.TopGearStockport.co.uk

  6. #5
    PhilR's Avatar
    One Ate Tea

    Status
    Offline
    Join Date
    Jan 2006
    Location
    UK
    Posts
    330
    best way to ensure no leaks is to "milkshake" the inside of the box.

    Basically add a tub of filler to about a litre of fibreglass resin (its not an exact science !), stick plenty of resin hardener in and mix it up.
    Then masking tape up the subbox especially at any joints fill the box up with this milkshake and slosh it all around the box till it starts to thicken and stick then set. guaranteed no leeks !

  7. #6
    billybravo's Avatar
    MODERATOR

    Status
    Offline
    Join Date
    Feb 2005
    Location
    stockport england
    Posts
    1,044
    cheers dude i will try this thanks

    TopGear Stockport / Longlife Exhausts /
    www.TopGearStockport.co.uk

  8. #7
    billybravo's Avatar
    MODERATOR

    Status
    Offline
    Join Date
    Feb 2005
    Location
    stockport england
    Posts
    1,044
    well i got the front on this morning still got to gt a few more layers of glass on top and inside if i can.

    heres some more pics








    TopGear Stockport / Longlife Exhausts /
    www.TopGearStockport.co.uk

  9. #8
    PhilR's Avatar
    One Ate Tea

    Status
    Offline
    Join Date
    Jan 2006
    Location
    UK
    Posts
    330
    cool, what material have you used ? is it fleece ?

    i have made boxes using fleece resined than strengthened with just the milkshake mix described rather than glass fibre-ing the fleece too

    Fleece is cool because it soaks up loads of resin and only costs about a pound a metre too !

  10. #9
    billybravo's Avatar
    MODERATOR

    Status
    Offline
    Join Date
    Feb 2005
    Location
    stockport england
    Posts
    1,044
    yeah mate its fleece and it did soak up a hell of alot of resin im happy with the way things are going

    TopGear Stockport / Longlife Exhausts /
    www.TopGearStockport.co.uk

  11. #10
    1st Gear

    Status
    Offline
    Join Date
    Feb 2007
    Location
    Manchester
    Posts
    138
    Hi guys,

    I don't wanna sound like a smart a#s but the volume of a sub box has to be calculated quite precisely and the final volume will depend if you are making a reflex or a closed box. If you are only looking for the "visual" effect of a sub, whatever but bare in mind that you won't get the real capacity of the sub if you do not have the proper box which is made specifically for the sub you want to install.

    My 2 pennies of the day...

  12. #11
    ZeroK66's Avatar
    1st Gear

    Status
    Offline
    Join Date
    Jun 2004
    Location
    Devon, UK
    Posts
    246
    Fook me good work! Wanna tidy my install?
    Facelift Imola S4 | Custom: K04's, Tubular Manifolds, 3" DPs-> 2.75" Catback | FMIC | H&R Coilovers + ARB's | Brembo 8-Pots | SS + DTS | 503HP/475lbs/ft | 1800W RMS

    Sold: Audi A4 (B5) 2.8 Quattro | Ivory Pearl
    Melted: Corrado - IHI 1.8 20vT: 343BHP

  13. #12
    billybravo's Avatar
    MODERATOR

    Status
    Offline
    Join Date
    Feb 2005
    Location
    stockport england
    Posts
    1,044
    yeah thats a good bit of info there mate

    and as you say numbers do have to be calculated i did this on my old box and ive made a few for the same subs in the past thats why ive gone by eye on this box the box isnt any smaller or bigger than the box i used to run this sub in.

    TopGear Stockport / Longlife Exhausts /
    www.TopGearStockport.co.uk

  14. #13
    billybravo's Avatar
    MODERATOR

    Status
    Offline
    Join Date
    Feb 2005
    Location
    stockport england
    Posts
    1,044
    Well i did the milkshake thing on the oldside like you said and f==k me that was messy lol

    ive got to be back in work tomorrow so i will be doing bit and bats but i should be updating later on in the week

    still got to put the milkshake on the inside will do this tomorrow night









    TopGear Stockport / Longlife Exhausts /
    www.TopGearStockport.co.uk

  15. #14
    1st Gear

    Status
    Offline
    Join Date
    Feb 2007
    Location
    Manchester
    Posts
    138
    YaY Milkshake! I want a Vanilla one!

    Good job though, I hardly see anybody making their own sub with glass and milk!

    Good luck, keep us posted!

  16. #15
    Broken Byzan's Avatar
    Photographic Moderator

    Status
    Offline
    Join Date
    Apr 2004
    Location
    Cardiff, United Kingdom
    Posts
    12,525

    My Social Networking

    Follow Broken Byzan On Twitter Add Broken Byzan on Facebook Add Broken Byzan on Google+ Visit Broken Byzan's Youtube Channel
    Billy that looks great mate, keep it up !!

  17. #16
    Reverse Gear

    Status
    Offline
    Join Date
    Jun 2004
    Posts
    25
    Quote Originally Posted by A4NA18
    Hi guys,

    I don't wanna sound like a smart a#s but the volume of a sub box has to be calculated quite precisely and the final volume will depend if you are making a reflex or a closed box. If you are only looking for the "visual" effect of a sub, whatever but bare in mind that you won't get the real capacity of the sub if you do not have the proper box which is made specifically for the sub you want to install.

    My 2 pennies of the day...
    Get the size wrong with a ported box and you're not gonna have any luck. But a sealed box isn't so bad if the size is out a little. Bigger than required will get a bit boomy normally but smaller than required will probably give a tighter sounding bass, and the sub will handle more power

    Nice work there billy. Check the sides of the box are solid, and dont have any flex in them, if they do then slap more FG and resin on the inside of the box to strengthen it up

    Pete

  18. #17
    billybravo's Avatar
    MODERATOR

    Status
    Offline
    Join Date
    Feb 2005
    Location
    stockport england
    Posts
    1,044
    cheers dude and what you said is what ive been thinking all along the box wont be ported



    im going to start sanding today and try to get a top coat of bog on will post pics later

    TopGear Stockport / Longlife Exhausts /
    www.TopGearStockport.co.uk

  19. #18
    PhilR's Avatar
    One Ate Tea

    Status
    Offline
    Join Date
    Jan 2006
    Location
    UK
    Posts
    330
    once you milkshake the inside it will be nice and thick and probably wont need any more glass. "External milkshaking" is messy but really helps build up the thickness and strength and provides a good surface to prep with filler for paint, thats what i did with mine below resined fleece over an mdf frame then int and ext milkshake its strong enough to hang the sub from the rear shelf

    as for box sizes this is what my 10 is in ! gotta be totally the wrong size but it sounds nice !


  20. #19
    rasA4's Avatar
    Four Rings Mafia Specialist

    Status
    Offline
    Join Date
    Apr 2003
    Location
    Deep
    Posts
    3,096
    Quote Originally Posted by PhilR
    once you milkshake the inside it will be nice and thick and probably wont need any more glass. "External milkshaking" is messy but really helps build up the thickness and strength and provides a good surface to prep with filler for paint, thats what i did with mine below resined fleece over an mdf frame then int and ext milkshake its strong enough to hang the sub from the rear shelf

    as for box sizes this is what my 10 is in ! gotta be totally the wrong size but it sounds nice !

    Flippin heck that must sound really awesome!!

    Bee Five | A4 2.4 V6 30V Tip SE | OEM S4 Alloys | S4 Bumper | S4 Leathers | HIDs| Billy's & Bachs | I Aint new to this | Hit the THANKS Button if my post is any use |Thanks!

  21. #20
    Beerzo's Avatar
    Masa'warty 3200... Talk To Me!

    Status
    Offline
    Join Date
    Feb 2006
    Location
    Scotland
    Posts
    1,241
    You'll get at least half a bag os shopping in that boot space now. LOL

  22. #21
    PhilR's Avatar
    One Ate Tea

    Status
    Offline
    Join Date
    Jan 2006
    Location
    UK
    Posts
    330
    Oh yeah its useful alright ! my car doesnt have split fold rear seats either so the space behind is useless too, i had planned after I built it to motorise it so it moved backwards into the bootspace and forward into view on demand but im too lazy to rip it all out and get fabricating

    [sorry]
    [/total thread hijack]

  23. #22
    Defratos's Avatar
    Youre Dethpicable!!

    Status
    Offline
    Join Date
    May 2004
    Location
    London....Relocated to the Mid East
    Posts
    2,230
    Nice work phil, loving the craftsmanship wonder how it sounds. Has it added more weight over your previous twin subs? or less?
    2002 S3 BAM | Jabba Re-Map | Uprated Haldex | Koni adjustable coilovers | Neuspeed ARBs | Powerflex Bushes | ECS tie-bars | Dog bone | Eibach spacers | TTDA | T'Dynamics DV | Dieselgeek short shift | Toyos | MIJ Custom Exhaust | Sound system | Security Tints |

    Audi S3-BAM

  24. #23
    billybravo's Avatar
    MODERATOR

    Status
    Offline
    Join Date
    Feb 2005
    Location
    stockport england
    Posts
    1,044
    oh i got as far as preping the first layer of body filler ready for a fresh skim tomorrow.

    to do this i used 40 grit papers and matt black to find the low and high spots of the car filler and also any curves. i trimmed the sub rings again with the router using a trim off bit.










    test fitment






    ive still got a long way to go but im thinking of painting it a nice gloss red or maybe covering it in red suede allicantarra as i can get a good deal on it at 25 pound a meter.

    anyways thats todays work done time for a pint

    TopGear Stockport / Longlife Exhausts /
    www.TopGearStockport.co.uk

  25. #24
    Broken Byzan's Avatar
    Photographic Moderator

    Status
    Offline
    Join Date
    Apr 2004
    Location
    Cardiff, United Kingdom
    Posts
    12,525

    My Social Networking

    Follow Broken Byzan On Twitter Add Broken Byzan on Facebook Add Broken Byzan on Google+ Visit Broken Byzan's Youtube Channel
    A pint well earnt mate, where are you gonna put the amps??

  26. #25
    Reverse Gear

    Status
    Offline
    Join Date
    Jun 2004
    Posts
    25
    How about black alcantara with some red detail?

  27. #26
    Moderator

    Status
    Offline
    Join Date
    Jun 2003
    Location
    World of my own
    Posts
    9,813
    Yes alcantara will look far more professional although it may be a bit tricky to fit with such a curvy shape.

  28. #27
    billybravo's Avatar
    MODERATOR

    Status
    Offline
    Join Date
    Feb 2005
    Location
    stockport england
    Posts
    1,044
    yeah thats what i was thinking im getting red for the door cards anyway so i can try it out i also want to do all the cream bits like pillers and roof lining in black alcantara then the old seats are coming out for something a little bit more supportive.

    TopGear Stockport / Longlife Exhausts /
    www.TopGearStockport.co.uk

  29. #28
    billybravo's Avatar
    MODERATOR

    Status
    Offline
    Join Date
    Feb 2005
    Location
    stockport england
    Posts
    1,044
    Quote Originally Posted by mawhitey
    A pint well earnt mate, where are you gonna put the amps??

    that im not sure of as of yet i mite make something for the other side or mount it at the back of the boot as i dont have fold down seats then i will make a cover with a few fans inside so you wouldnt even know the amp was there.

    TopGear Stockport / Longlife Exhausts /
    www.TopGearStockport.co.uk

  30. #29
    billybravo's Avatar
    MODERATOR

    Status
    Offline
    Join Date
    Feb 2005
    Location
    stockport england
    Posts
    1,044
    Well tuesday was spent sanding and sanding and sanding. i started to coat the box im high build primer today. I want to get a good few coats on to cover any little pin holes in the filler

    but now the box is really taking shape













    Fist coat of high build primer




    TopGear Stockport / Longlife Exhausts /
    www.TopGearStockport.co.uk

  31. #30
    PhilR's Avatar
    One Ate Tea

    Status
    Offline
    Join Date
    Jan 2006
    Location
    UK
    Posts
    330
    cool, if you are trimming it in something id stop now, it looks like a good enough surface to trim

  32. #31
    billybravo's Avatar
    MODERATOR

    Status
    Offline
    Join Date
    Feb 2005
    Location
    stockport england
    Posts
    1,044
    thinking i might go all the way and paint it now as i would really like a smooth look to it

    TopGear Stockport / Longlife Exhausts /
    www.TopGearStockport.co.uk

  33. #32
    rasA4's Avatar
    Four Rings Mafia Specialist

    Status
    Offline
    Join Date
    Apr 2003
    Location
    Deep
    Posts
    3,096
    like your garage billy, looks like you have plenty of room, even with your car in

    Bee Five | A4 2.4 V6 30V Tip SE | OEM S4 Alloys | S4 Bumper | S4 Leathers | HIDs| Billy's & Bachs | I Aint new to this | Hit the THANKS Button if my post is any use |Thanks!

  34. #33
    billybravo's Avatar
    MODERATOR

    Status
    Offline
    Join Date
    Feb 2005
    Location
    stockport england
    Posts
    1,044
    ok guys this is hard to do but im selling this box as ive gone mad with getting my car as light as i can i cought the stripping bug lol

    offers on the box

    the box should fit any 15" sub and is very strong with around 1.9 air space i will be sad to see it go as i miss my bass but if im ever going to get my car near a ton im not going to do it with a 15 in the boot.








    TopGear Stockport / Longlife Exhausts /
    www.TopGearStockport.co.uk

  35. #34
    Markey's Avatar
    6th Gear

    Status
    Offline
    Join Date
    Apr 2004
    Location
    KENT
    Posts
    2,143
    That looks excllent and loads of work gone into it. Shame your selling it after that but the stipping out can get crazy i know i did the same with my Silvia.
    A4 Avant project now started ! see this thread ! http://www.audi-sport.net/vb/a4-s4-forum-b5-chassis/43296-bit-project-going.html
    If you think my post had a usefull purpose please say thanks

  36. #35
    billybravo's Avatar
    MODERATOR

    Status
    Offline
    Join Date
    Feb 2005
    Location
    stockport england
    Posts
    1,044
    yup it can get mad my i stripped all my aircon at weekend i will defo miss the bass but if im ever going to make this car any quicker it has to be done. lol

    TopGear Stockport / Longlife Exhausts /
    www.TopGearStockport.co.uk

  37. #36
    easytease's Avatar
    cheesypeas

    Status
    Offline
    Join Date
    Nov 2005
    Location
    england, surrey
    Posts
    426
    very nice indeed. I made a custom box for my 10W7 that came out further then that, and that was only 1cu ft.

    oh, and PhilR, is that two dual mono's i spy there?
    1999 1.8 SE A4 100% standard tank, all green.
    Alpine old skool
    Helix RS6 - PHD PRO 4070
    Coral 10" passive setup - PHD 2200
