    PDC retrofit HELP!

    Hi all.
    I am retrofitting the PDC to my sportback 2009 modell.
    Bought all parts by NHN so think all the right parts are pressent. (tried reaching him with no luck)
    I am hoping you can help me.

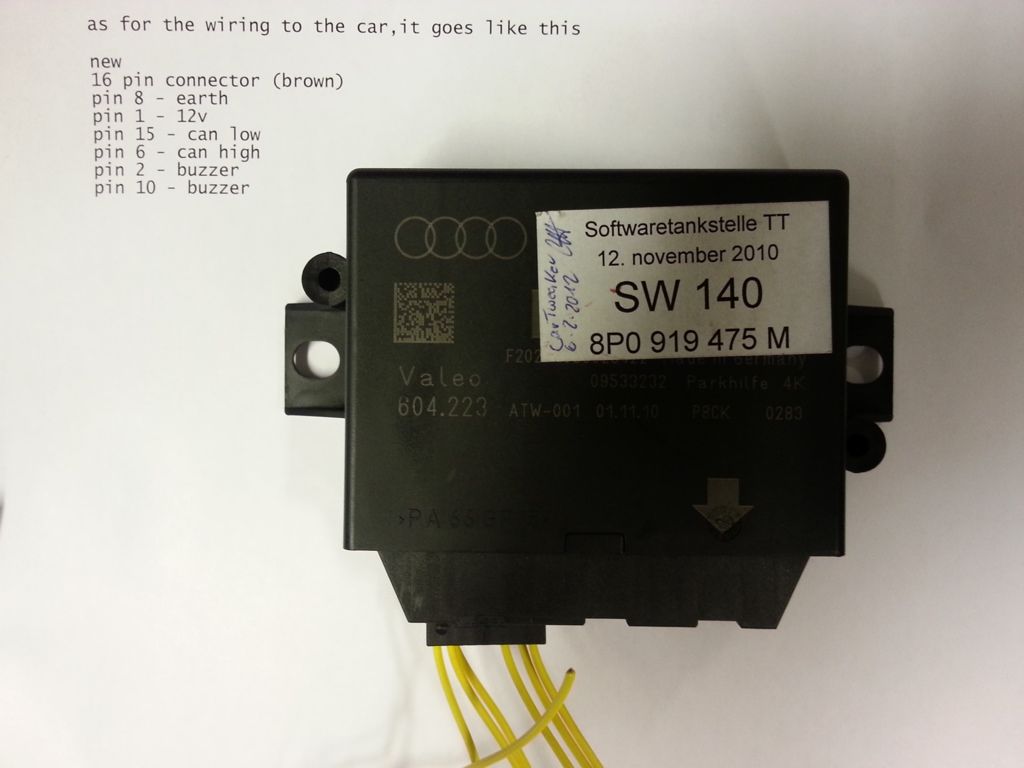

    The PDC module i am useing is 8p0 919 475 M (see attached pictur)



    The connections i have found out so far is this.
    On the brown 16 pin plug
    -pin1 = +12v ( not shure if it is constant or ignition?)
    -pin8 = ground
    -pin15 = CAN low (orange/brown?)
    -pin6 = CAN high (orange/green?)
    -pin2 = buzzer
    -pin10 = buzzer

    Can somone confirm this?
    I am tapping innto the CAN wires from the trailer module. And +12v is also pressent by the module.
    is there any polarety +/- on the buzzer?

    I know it is easter hollyday, but this is my only chance to make it happen.
    The bumper is newly painted an installed.

    PS. I have searched the forum/nett henc my conection list, but this gave me lots of faulty errors and a black cluster until i disconnected the 16pin pugg from the PDC module.

    Thanks.
    Last edited by A3SBQ; 28th March 2013 at 19:28.
    Best regards

    J$B
    Norway

  2. # ADS
    ADS
    Join Date
    Always
    Location
    Global
    Posts
    Many

  3. #2
    Wicked666's Avatar
    3rd Gear

    Status
    Offline
    Join Date
    Feb 2005
    Location
    Leeds
    Posts
    582

    PDC retrofit HELP!

    Can't help I'm afraid but was wondering what PDC was?
    S3 Sportback

  4. #3
    NHN
    NHN's Avatar
    Modmetractor

    Status
    Online
    Join Date
    Jan 2008
    Location
    Coding Something
    Posts
    27,097
    Jo, the 09 facelift pdc uses a different bus to the 08 & before larger sensors, so best option is run to front.

    Emailed schematic pics

    OEM RETROFITS - CRUISE CONTROL - SAT NAV - BLUETOOTH - AMI - HEADLIGHT SYSTEMS

    PARKING SYSTEMS - DIAGNOSTICS - FAULT FINDING - BODYWORK - PAINTWORK

  5. #4
    A3 SportBack 2TFSI quattro DSG

    Status
    Offline
    Join Date
    Jul 2009
    Location
    Norway
    Posts
    226
    Quote Originally Posted by Wicked666 View Post
    Can't help I'm afraid but was wondering what PDC was?
    PDC = Park Distance Control
    Best regards

    J$B
    Norway

  6. #5
    A3Kent's Avatar
    Different Gear

    Status
    Offline
    Join Date
    May 2012
    Posts
    1,065
    Quote Originally Posted by Wicked666 View Post
    Can't help I'm afraid but was wondering what PDC was?
    PDC - Parking Distance Control

    or parking sensors
    09 Audi A3 2.0 TDI 170 S-Line SB 8P3
    - Full Leather - LED DRL's - BOSE - Cruise Control - RNS-E Mk2 - AMI - Bluetooth - Folding Mirrors -

    VCDS owner - A3 Grille Install Guide

  7. #6
    A3 SportBack 2TFSI quattro DSG

    Status
    Offline
    Join Date
    Jul 2009
    Location
    Norway
    Posts
    226
    Quote Originally Posted by NHN View Post
    Jo, the 09 facelift pdc uses a different bus to the 08 & before larger sensors, so best option is run to front.

    Emailed schematic pics
    Thanks Nigel, I was missing the diagram showng the supply connections.
    So if i understad correctly, I can not tapp into the trailer CAN h/l signal? I need to feed it from the dash some place. right?
    What about my +12v. Do you recomend it also connected to the fuse box? Do you have the repair wire part no. Did not receive this!

    Replyed your email!
    Best regards

    J$B
    Norway

  8. #7
    A3 SportBack 2TFSI quattro DSG

    Status
    Offline
    Join Date
    Jul 2009
    Location
    Norway
    Posts
    226
    What do you mean by "BUS i different" ?
    Best regards

    J$B
    Norway

  9. #8
    Wicked666's Avatar
    3rd Gear

    Status
    Offline
    Join Date
    Feb 2005
    Location
    Leeds
    Posts
    582

    PDC retrofit HELP!

    Cheers
    S3 Sportback

  10. #9
    NHN
    NHN's Avatar
    Modmetractor

    Status
    Online
    Join Date
    Jan 2008
    Location
    Coding Something
    Posts
    27,097
    Jo, keep replies within email for now as we're going back/forth & its all over the place.

    OEM RETROFITS - CRUISE CONTROL - SAT NAV - BLUETOOTH - AMI - HEADLIGHT SYSTEMS

    PARKING SYSTEMS - DIAGNOSTICS - FAULT FINDING - BODYWORK - PAINTWORK
